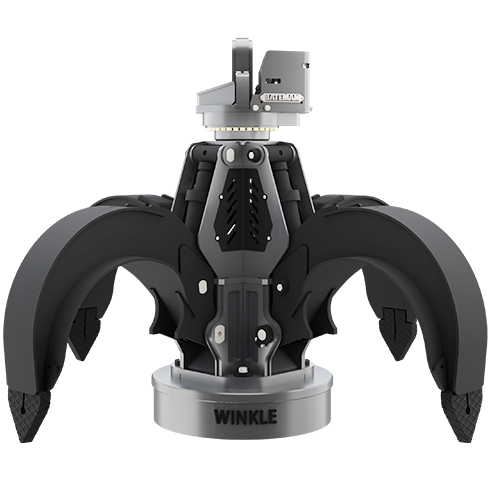

Mag Grapple
160 & 210 Series
Work with increased confidence with BATEMAN’s award-winning 160 & 210 Series Mag Grapple. Designed for a brand-new, bold experience, our mag-grabs are built to be the toughest in the industry with the ferrous metal sorting capabilities of a magnet. With improved designs for greater impact protection, longer life, and optimized work time, our magnet grapples have been reengineered to take power and precision further than ever.
- Improved rotator guarding for greater impact protection.
- Larger pin diameter and improved bushing design with seals for longer life and optimized work time.
- Newly designed double wall cylinders include return oil channel, eliminating exposed hoses and risk of damage. Now with fully enclosed cylinder guards, zero chrome exposure.
- More robust body for durability and greater cylinder protection as well as a thicker frame design for better pin support and hose guarding.
- Improved magnet bolt retainer.
- Improved tine design for optimal scrap penetration and material collection. Thicker, superior design with hardfacing on the tip area for durability.
PRODUCT SPECIFICATIONS
Product Specification
Bateman's award-winning Mag Grapple 160 & 210 Series feature wide-body design equipped with internal hydraulic relief valves for jaw & cylinder protection. The Bateman Mag-Grab will stand up to your needs & expectations. A medium duty magnet grapple that is both light weight and durable for daily use. Economically designed to handle, load and unload all types of steel scrap, waste paper, wood and industrial waste.
- Heavy-duty rotators with 360° continuous rotation.
- Fully protected, easy-access cylinder hoses.
- Fully guarded high-pressure cylinders.
- 5000 PSI working pressure.
- Oversized pins with custom locknuts.
- Optional pin-on tips.
- Supplied with jumper hoses & pin-on or quick-coupler yoke.
- Scrap & demolition material handling.
- Ideal for scrapyard.
- Heavy duty lift scrap magnet.
- Oversized pins with custom locknuts.
- Internal slip ring assembly fully sealed in the lower section.
- Heavy duty high abrasion resistant tines with thick backs, wear strips & heavy-duty replaceable weld-on tine tips.
- Our magnet grapple is the king of scrap handling.
| Model | Series | y3 / m3 | Magnet Dia. in (mm) | Weight lb (kg) | Tip-To-Tip Width (Open Tines) in (mm) | Height (Open Tines) in (mm) | Height (Closed Tines) in (mm) |
|---|---|---|---|---|---|---|---|
| 160 | 0.75 / 0.55 | 30 (762) | 4,760 (2,159) | 99 (2,513) | 67 (1,713) | 94 (2,377) | |
| BMG16-075-M36 | 160 | 0.75 / 0.55 | 36 (914) | 4,950 (2,245) | 99 (2,513) | 67 (1,713) | 94 (2,377) |
| BMG16-100-M30 | 160 | 1 / 0.75 | 30 (762) | 4,820 (2,186) | 106 (2,693) | 68 (1,724) | 97 (2,469) |
| BMG16-100-M36 | 160 | 1 / 0.75 | 36 (914) | 5,020 (2,277) | 106 (2,693) | 68 (1,724) | 97 (2,469) |
| BMG16-125-M36 | 160 | 1.25 / 0.95 | 36 (914) | 5,140 (2,331) | 113 (2,870) | 72 (1,829) | 104 (2,642) |
| BMG16-125-M40 | 160 | 1.25 / 0.95 | 40 (1,016) | 6,000 (2,722) | 113 (2,870) | 68 (1,724) | 101 (2,561) |
| BMG210-125-M40 | 210 | 1.25 / 0.95 | 40 | 7,700 | 120 | 79.5 | 113 |
| BMG210-150-M40 |
210 |
1.5 | 40 | 7,750 | 124 | 80 | 115 |
| BMG210-150-M44 | 210 | 1.5 | 44 | 8,250 | 124 | 80 | 115 |
| BMG210-200-M40 | 210 | 2 | 40 | 8,200 | 138 | 80 | 122 |
| BMG210-200-M44 | 210 | 2 | 44 | 8,600 | 138 | 80 | 122 |
| BMG210-200-M48 | 210 | 2 | 48 | 8,850 | 138 | 80 | 122 |
- Cat
- Doosan
- Hitachi
- Sany
- Sennebogen
- Liebherr
- Link-Belt
- Fuchs
Request a quote to find the right scrap grapple for your material handler or excavator!
Magnet Options
- Range From 30" to 40".
- Equipped with Winkle's state of the art Scrap Magnet
