Bateman Five-Tine Orange Peel Grapple

| | | | |

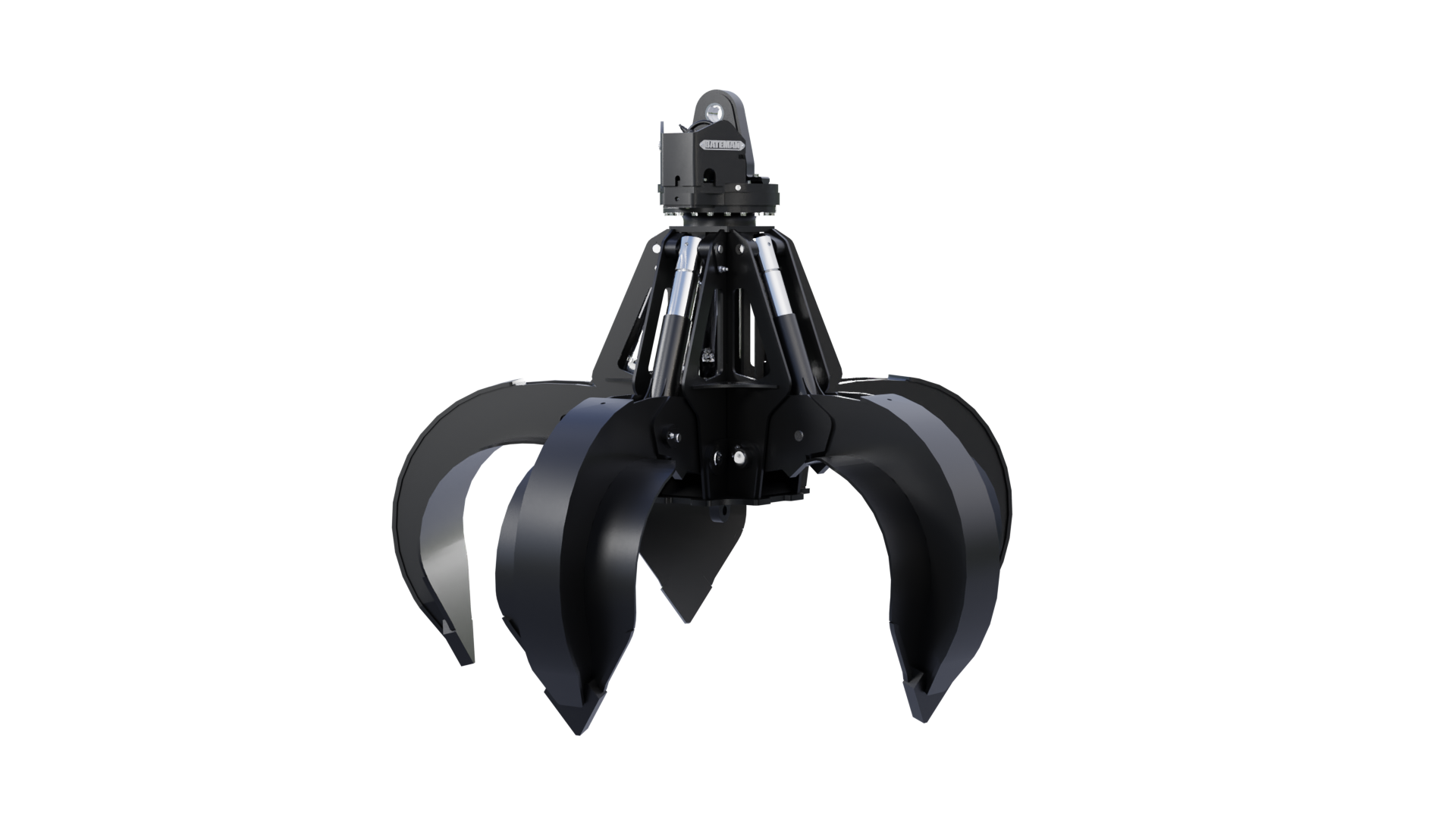

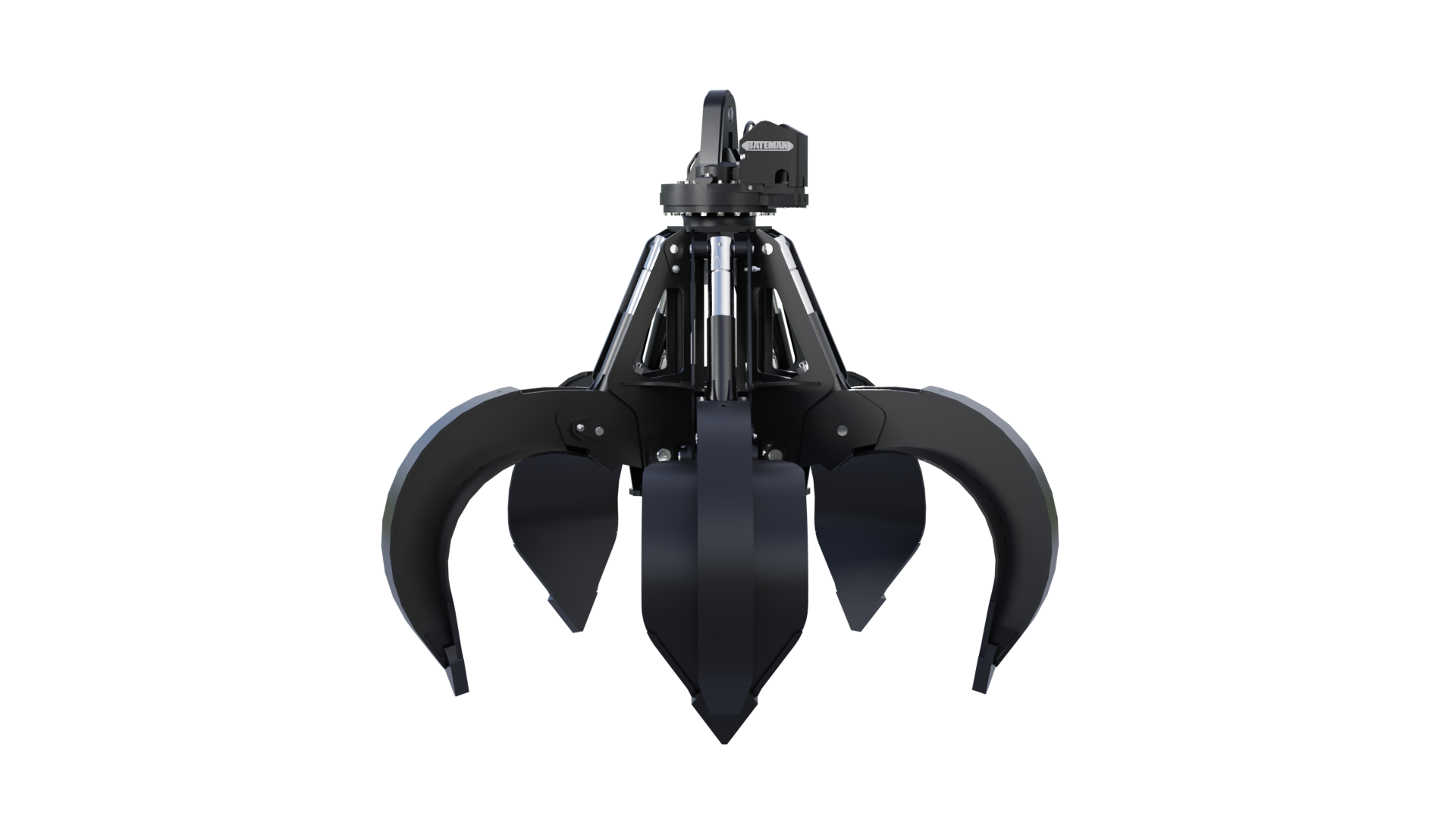

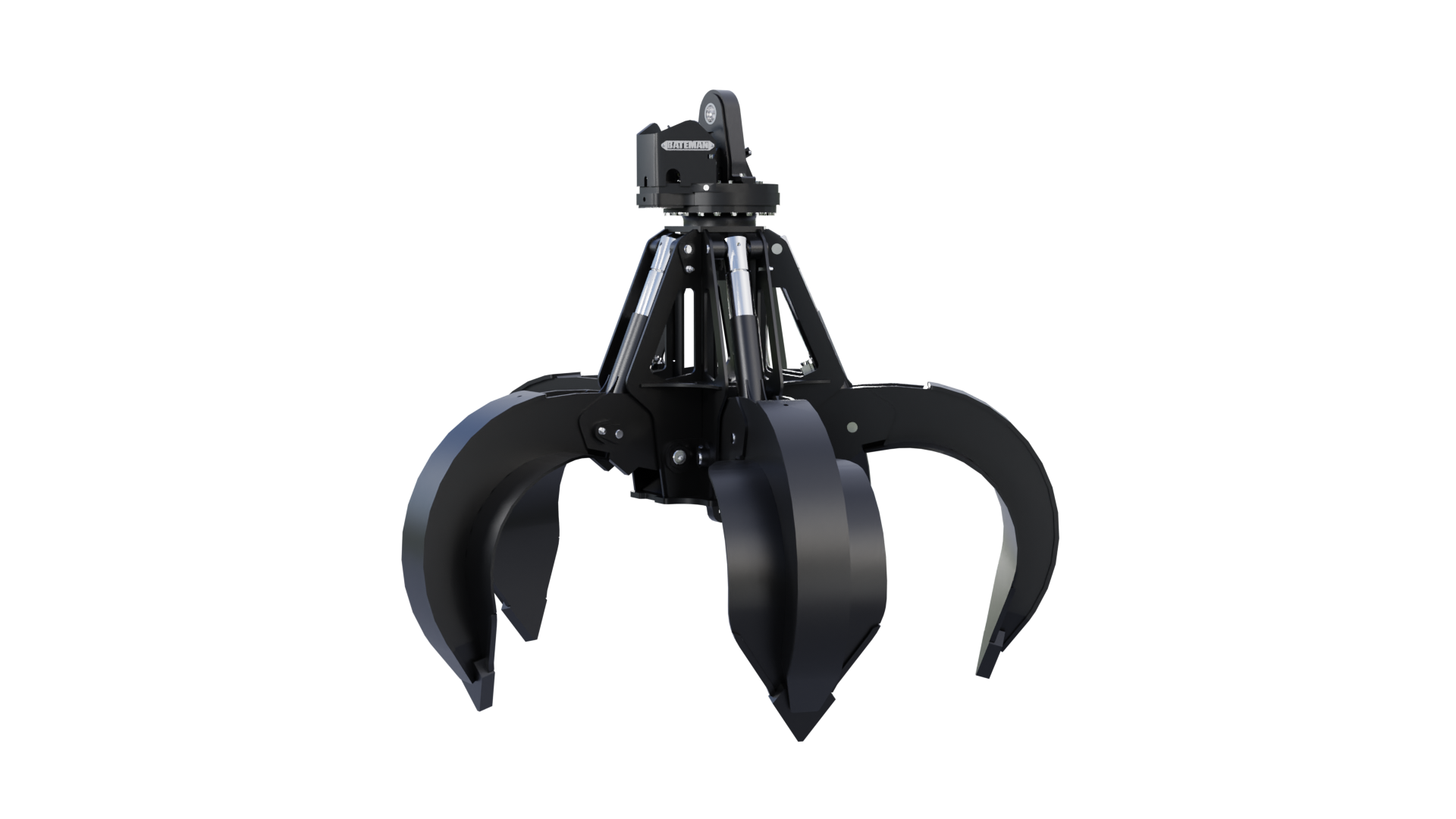

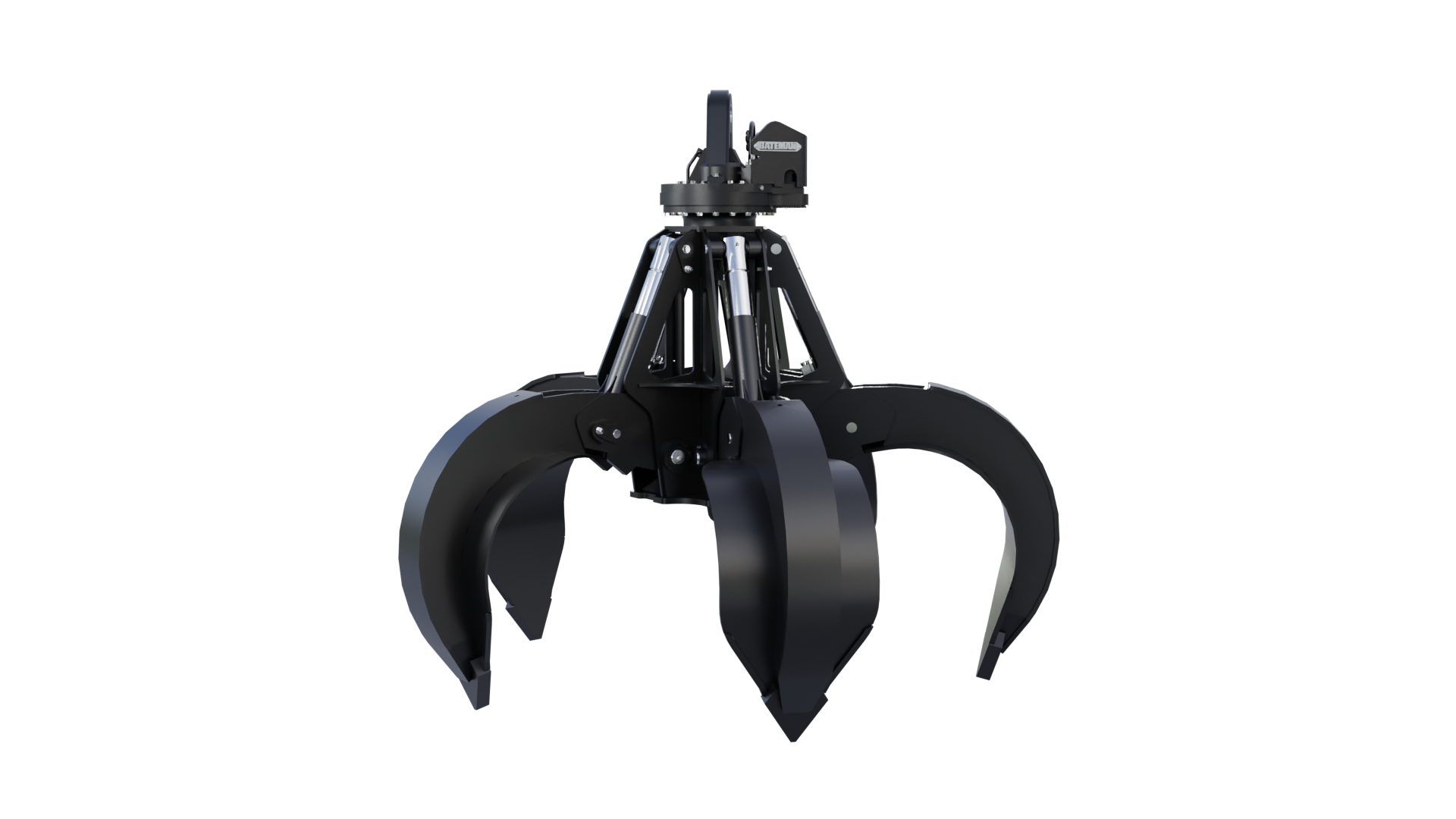

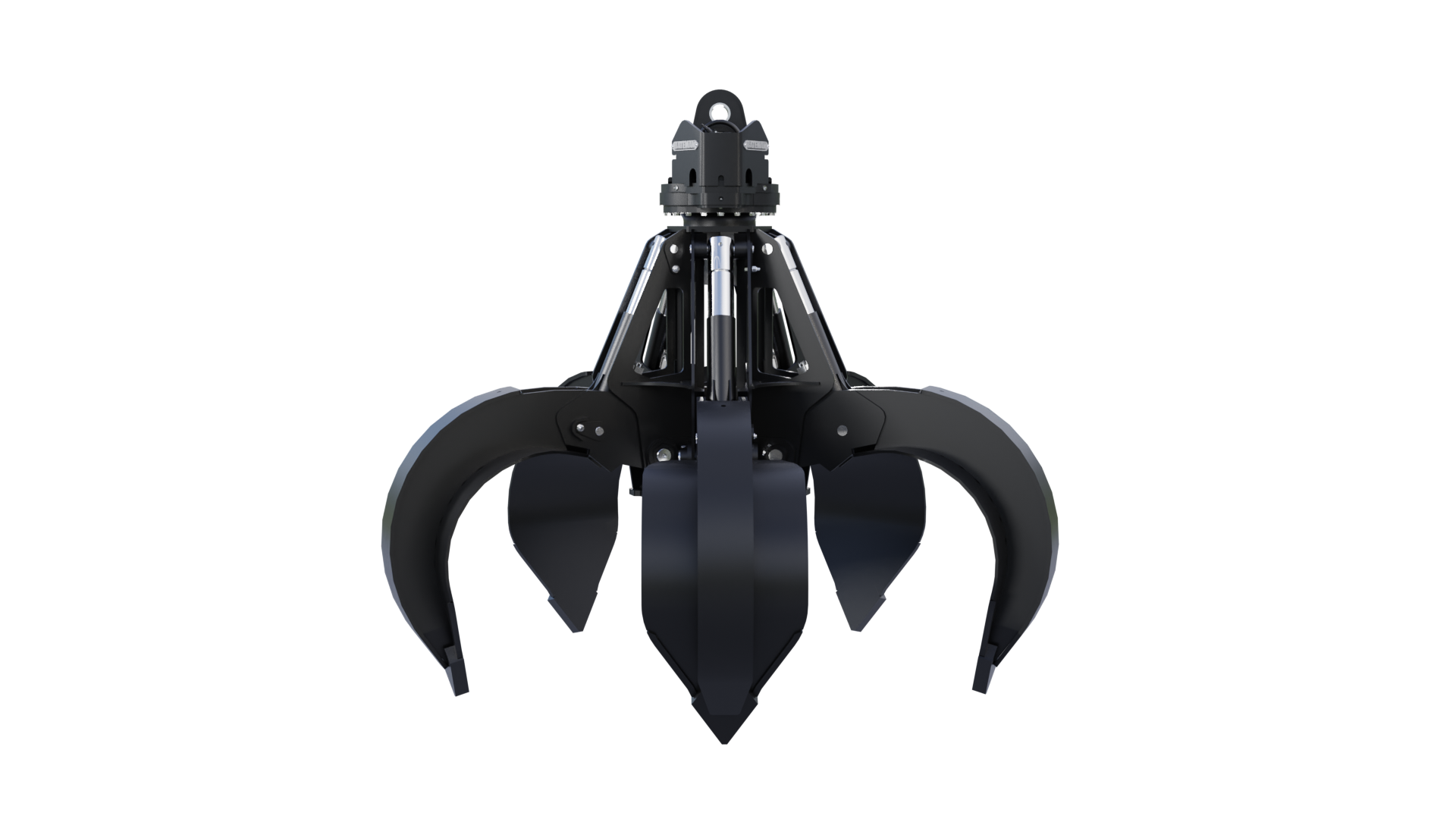

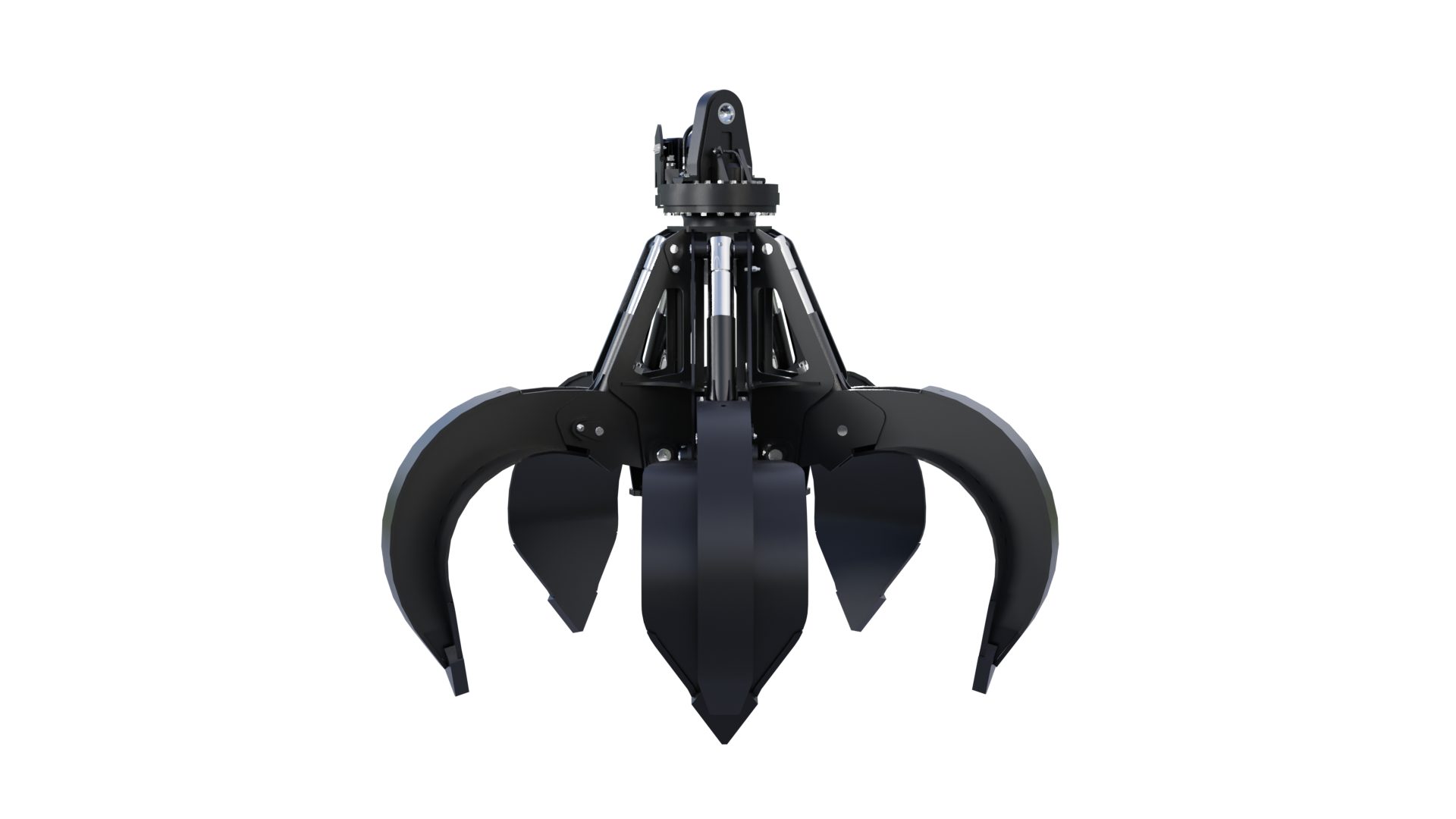

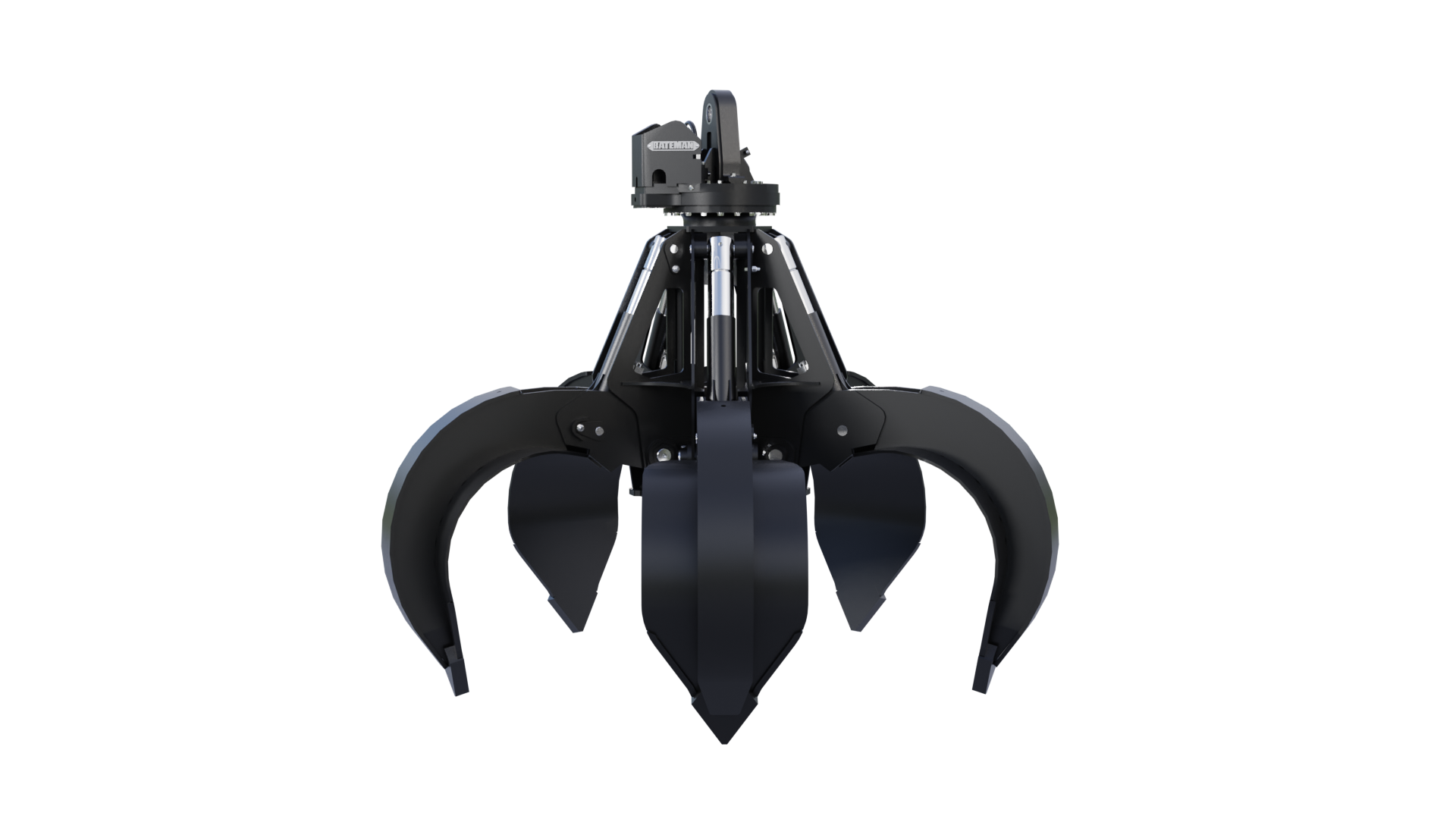

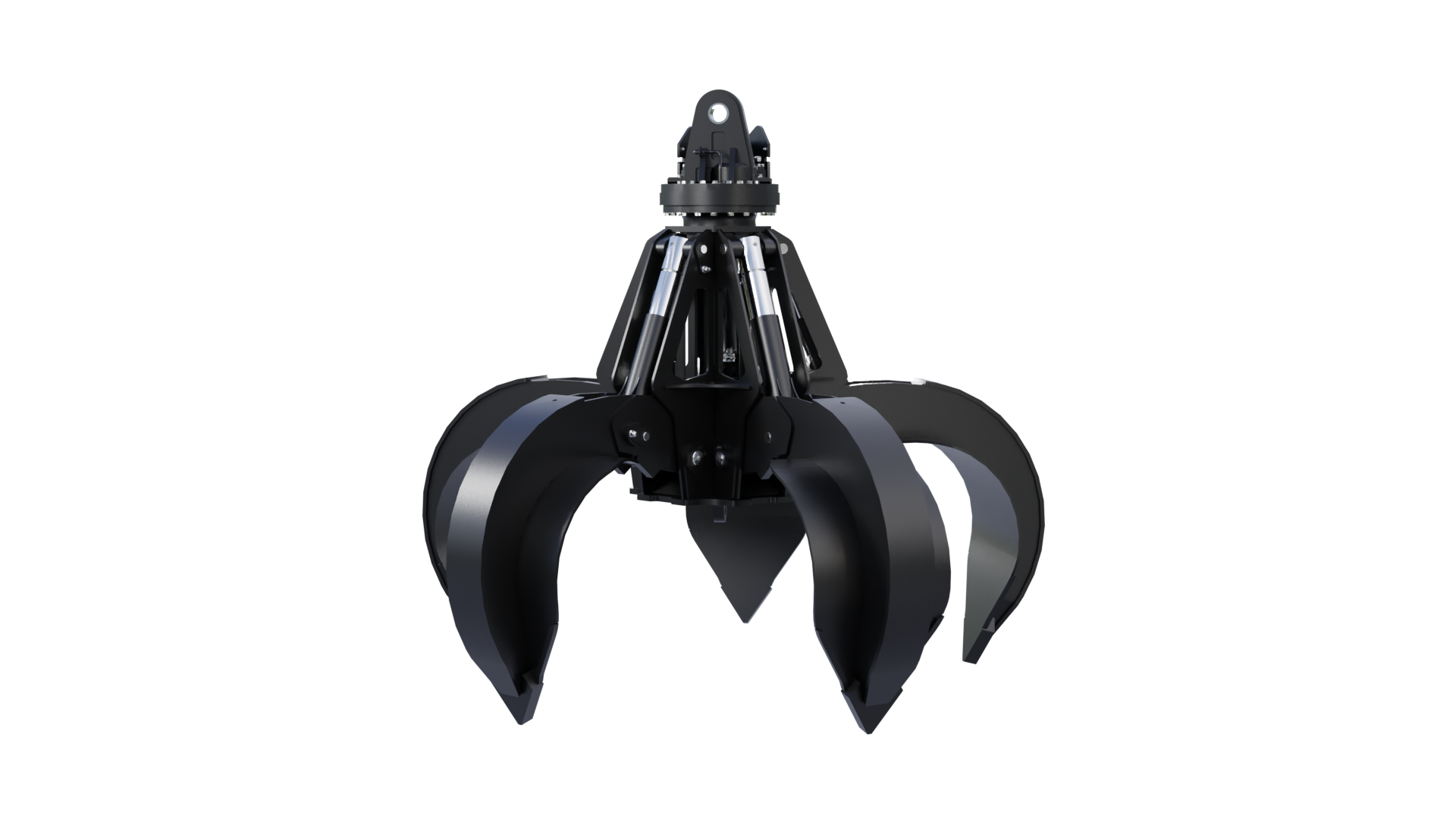

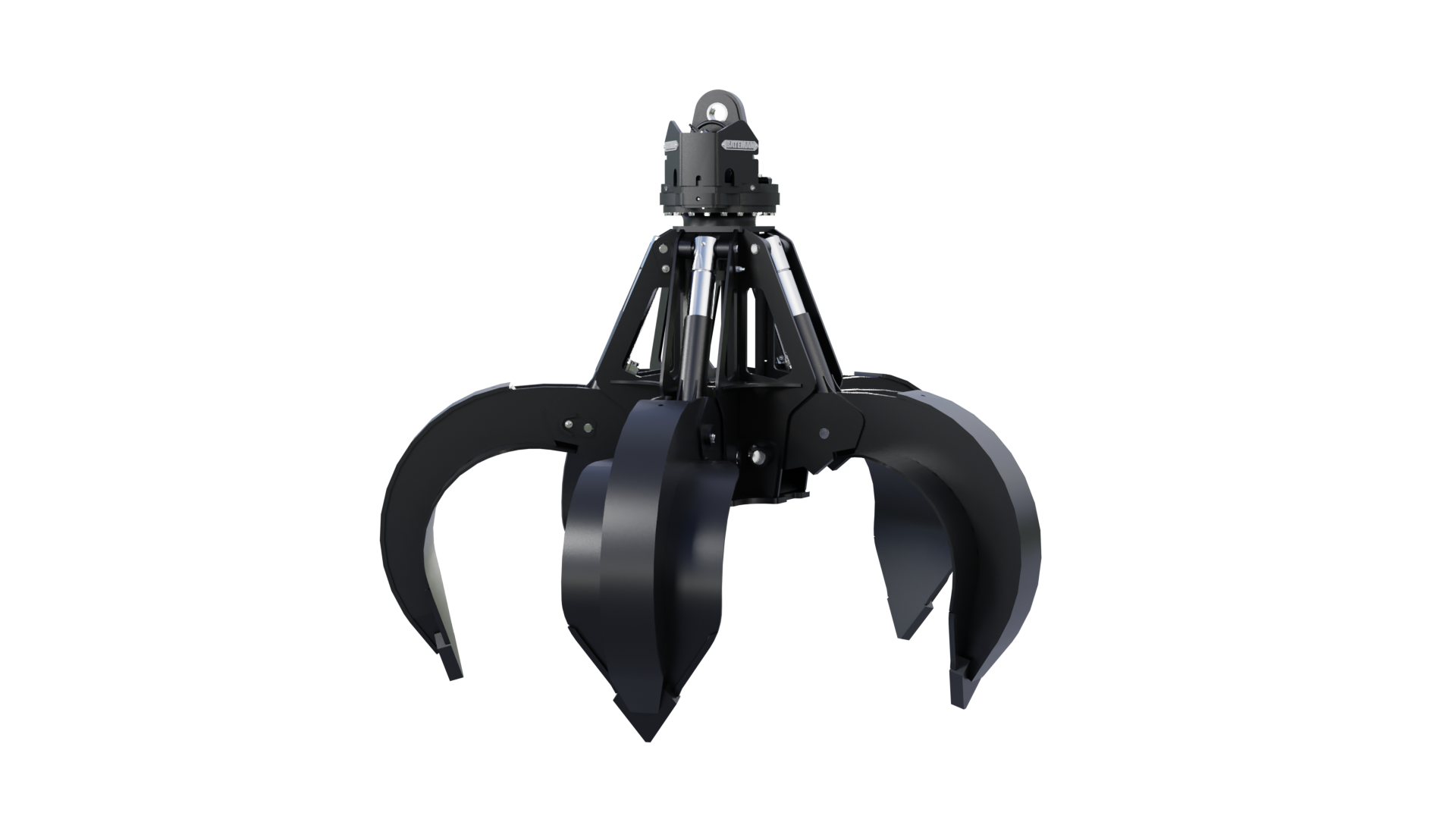

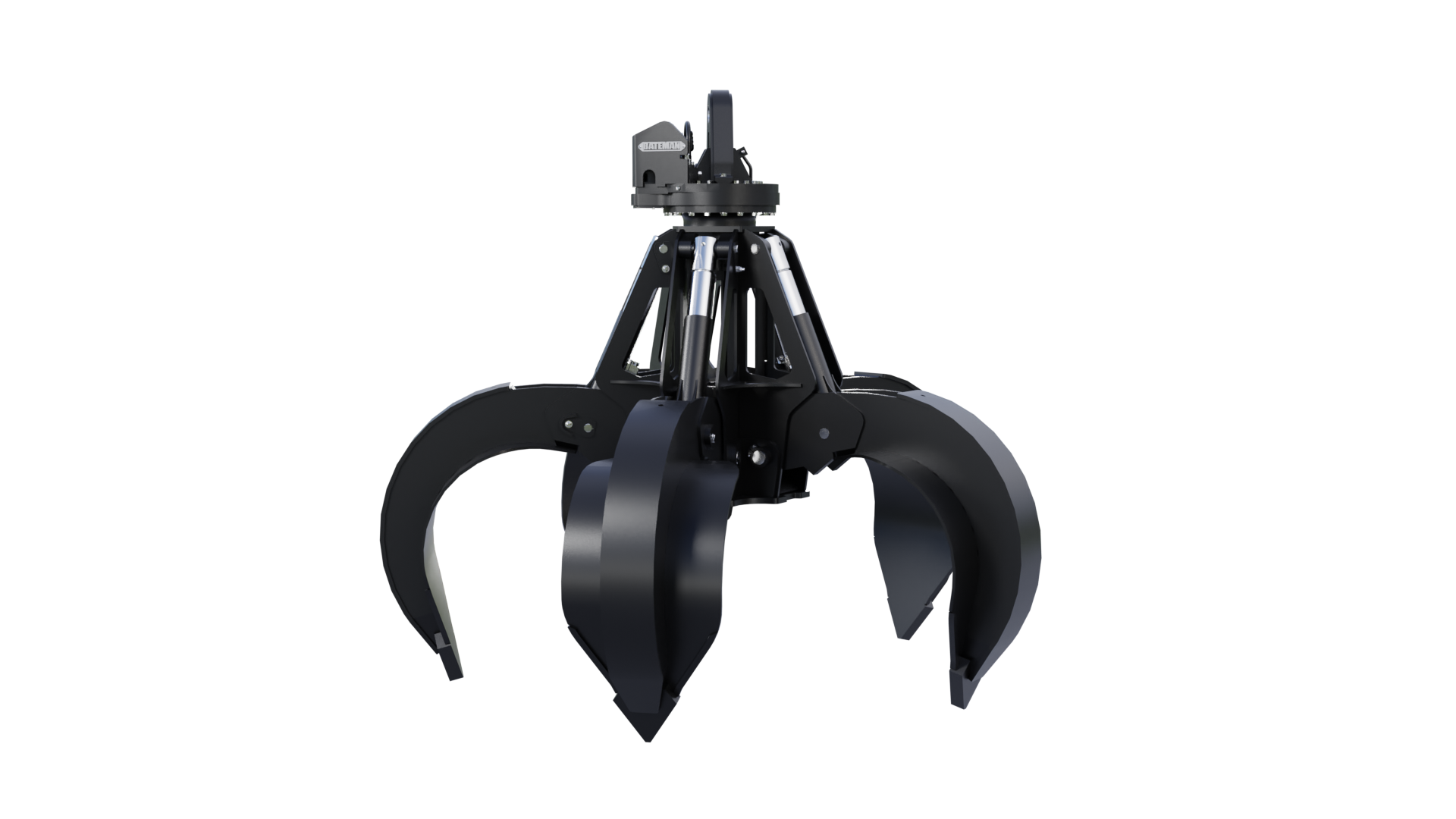

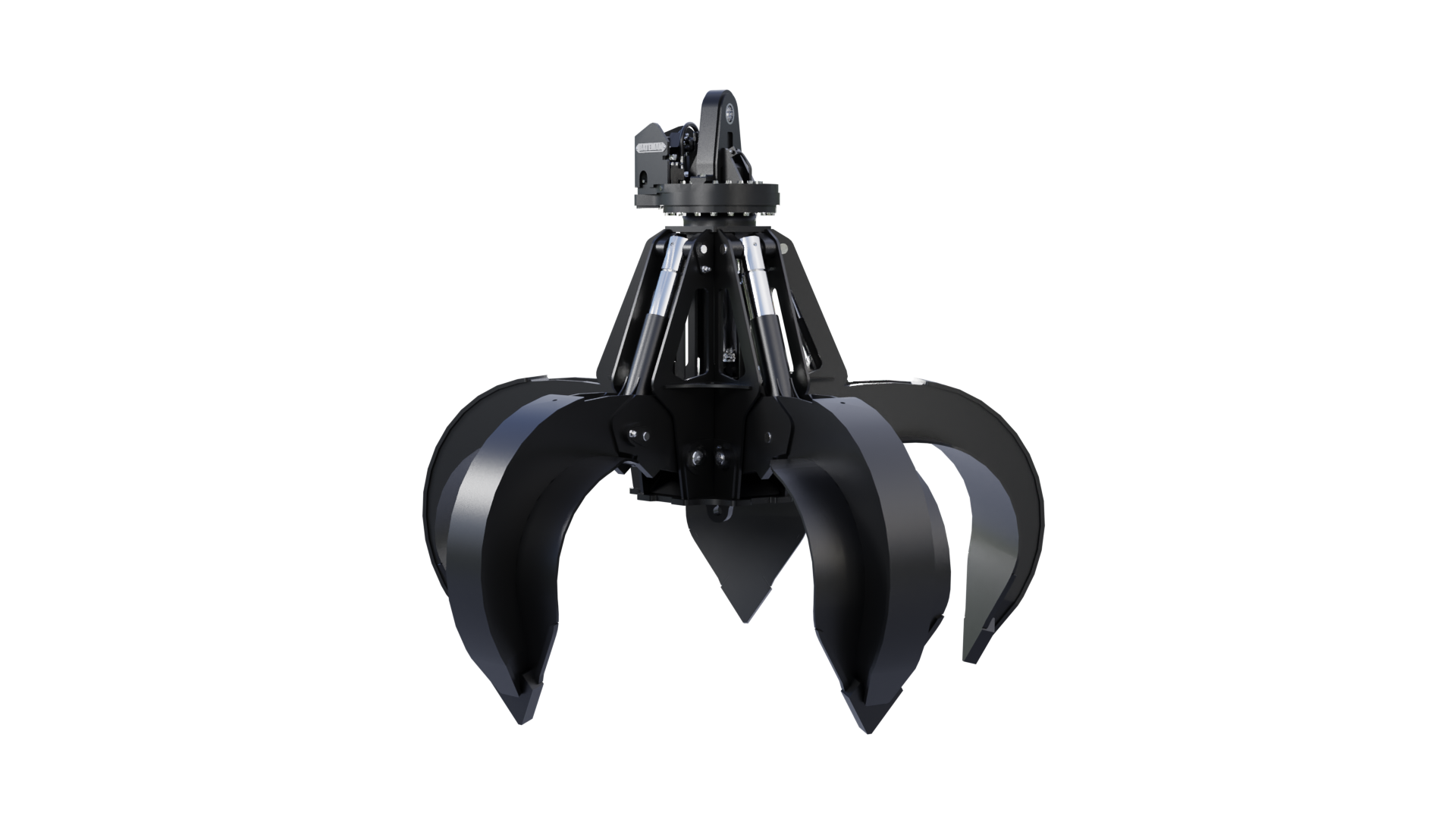

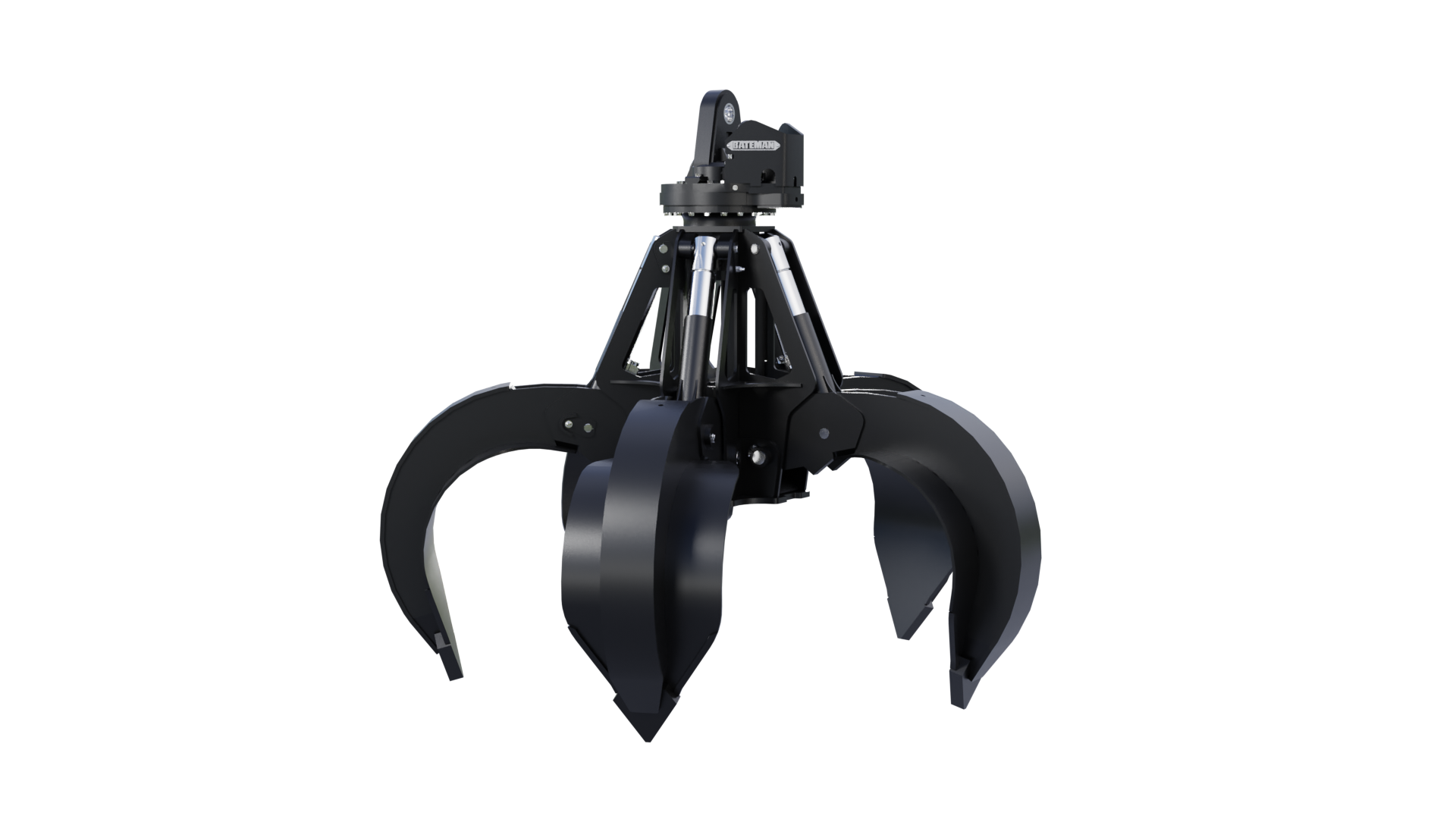

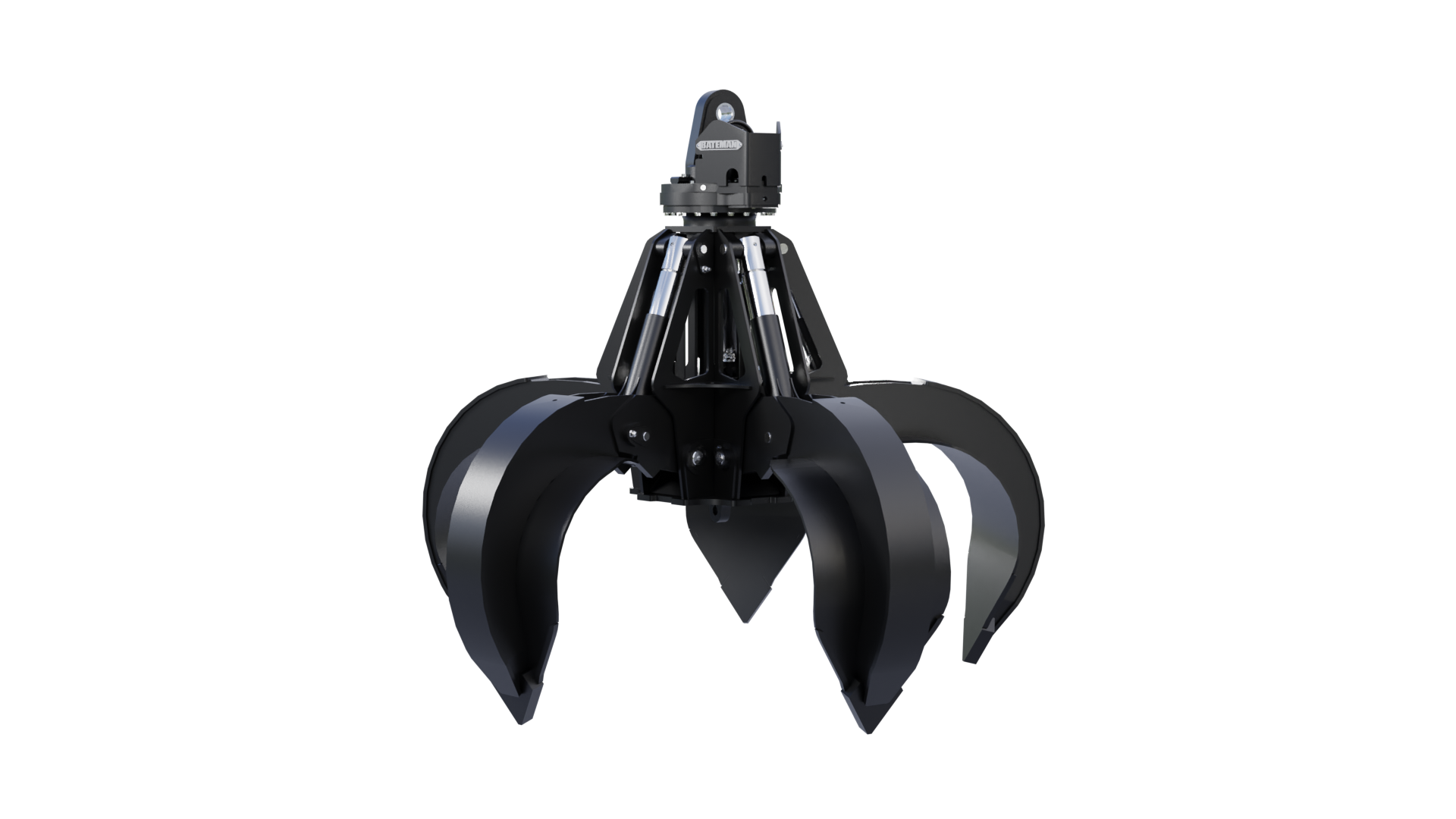

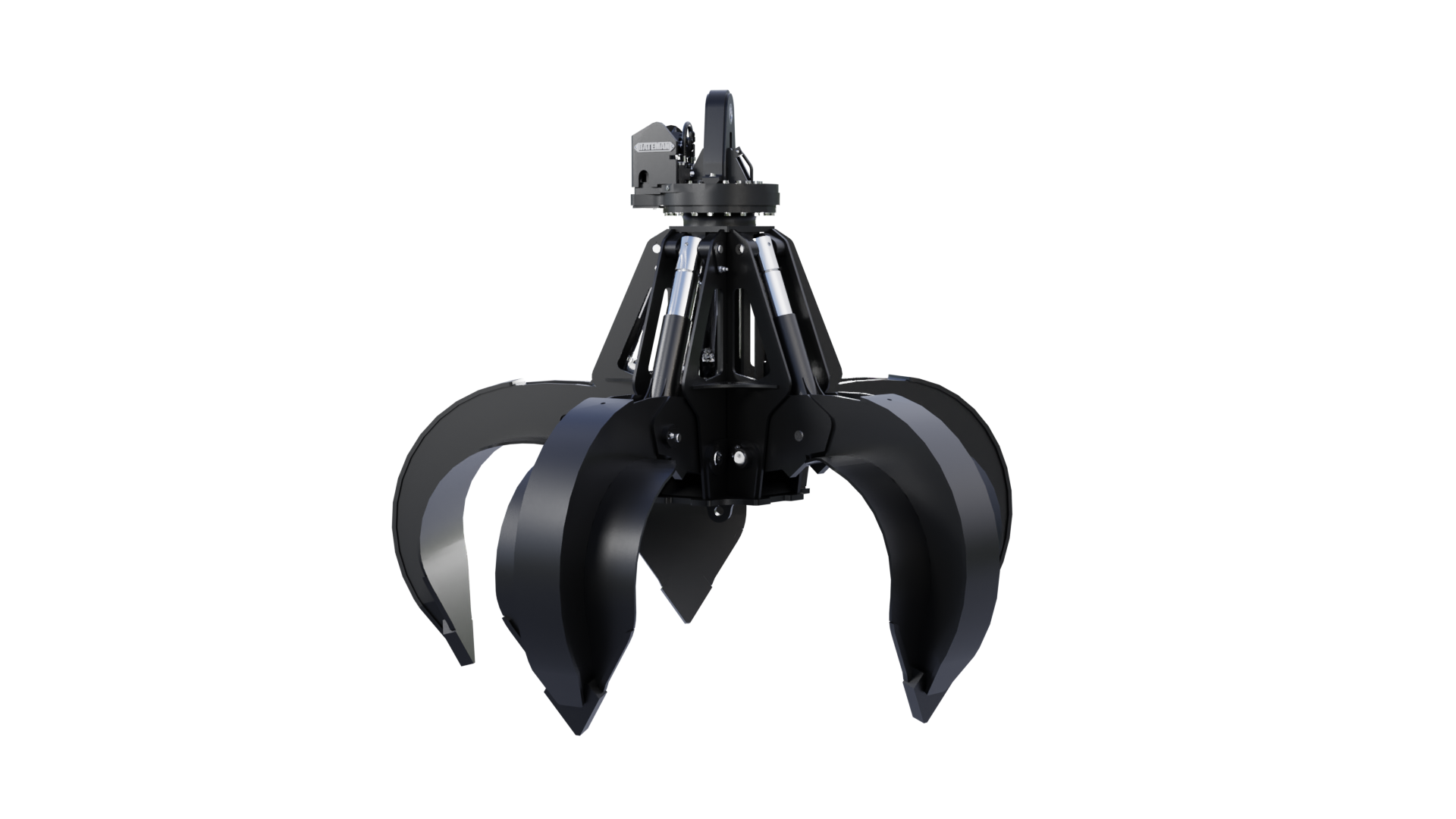

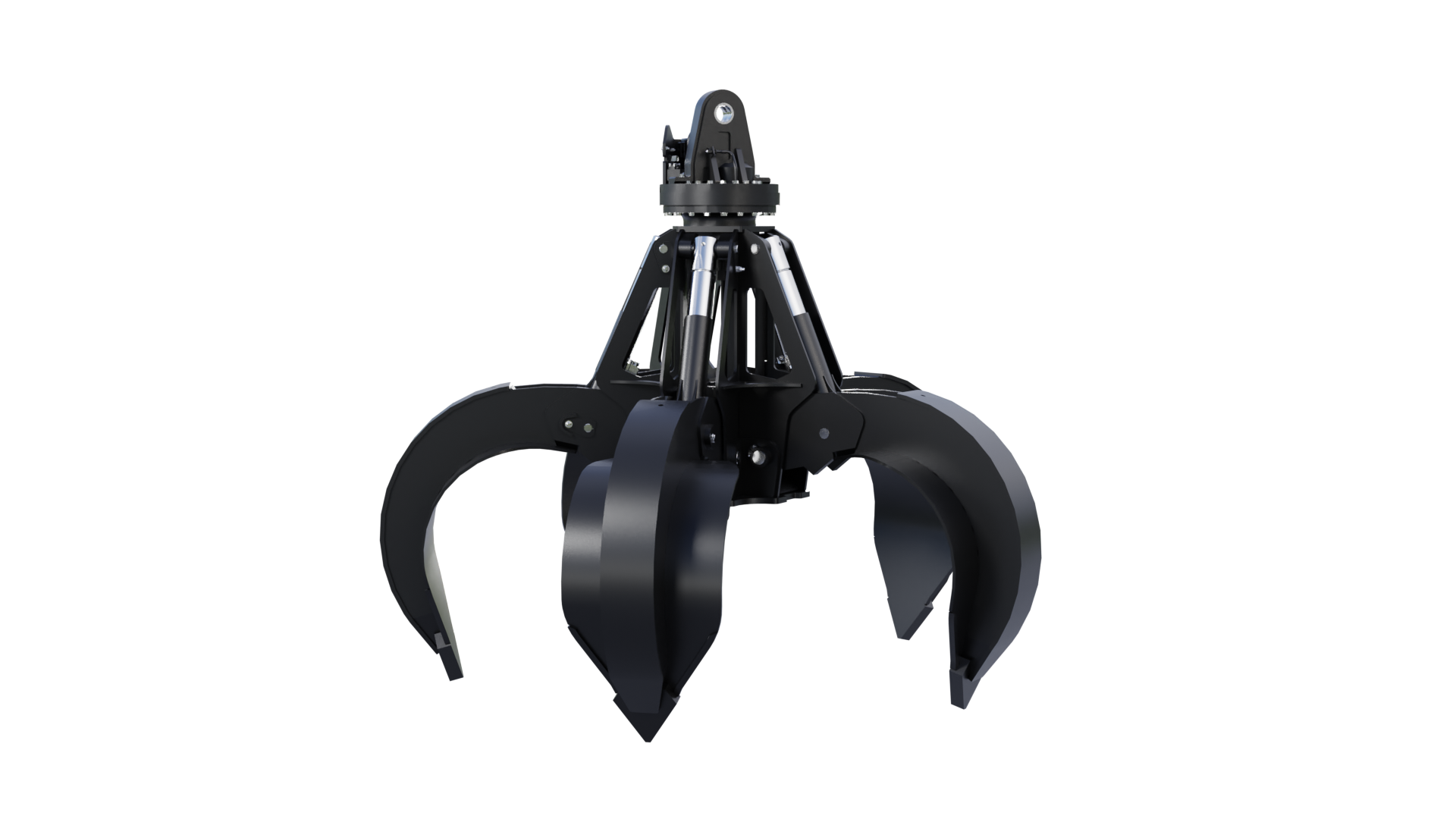

-180° 180°

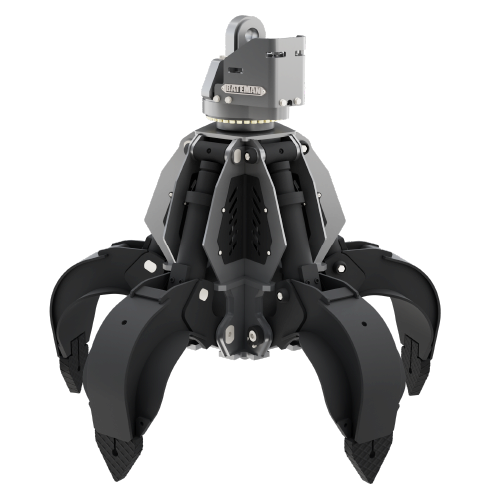

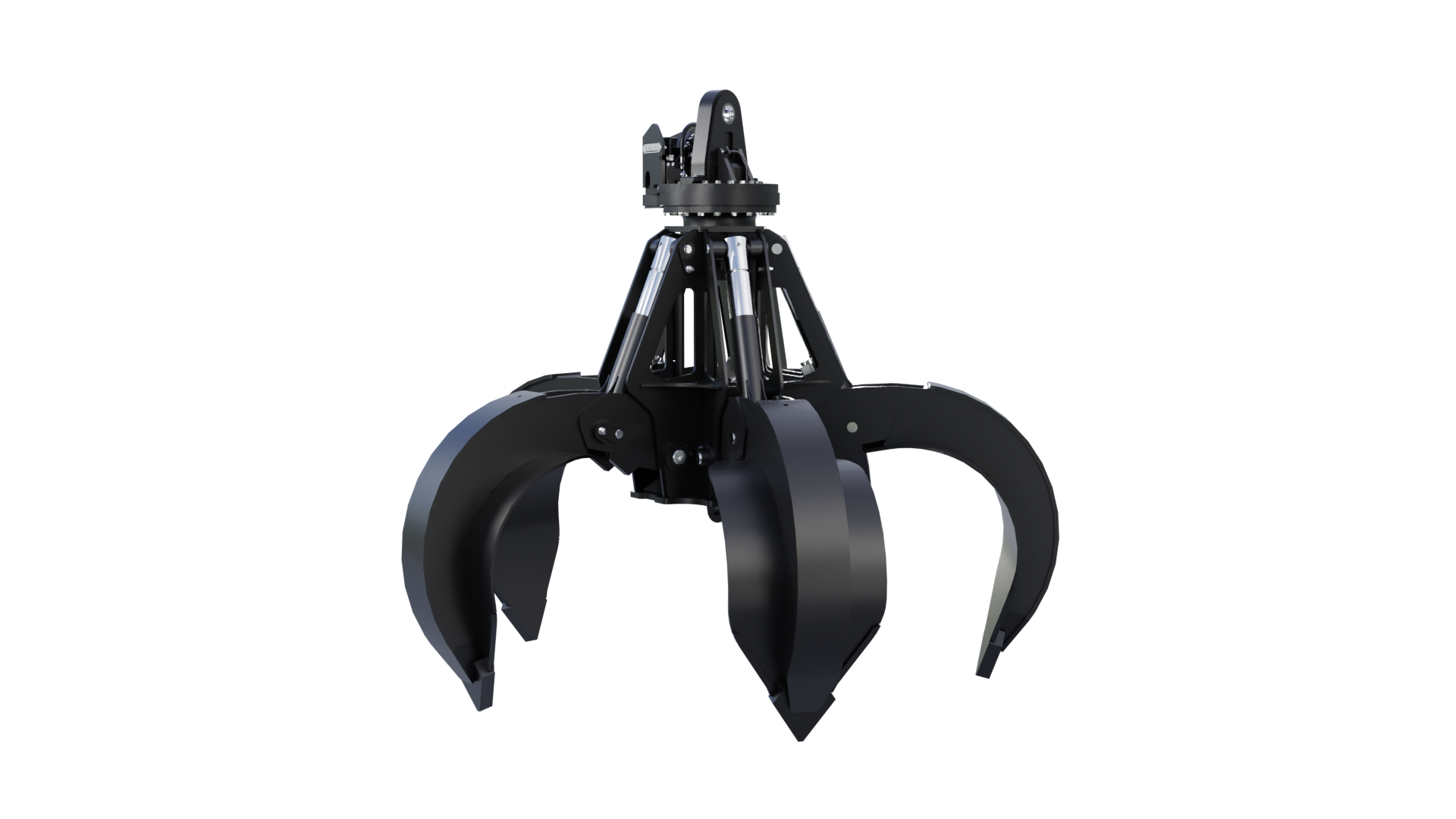

Bateman Five-Tine Orange Peel Grapple

5-Tine Scrap Grapple B5T

Bateman Five-Tine Orange Peel Scrap Grapples are designed to provide the highest production rate & maximum durability. Bateman Scrap Grapples have been proven to outlast the competition.

High abrasion resistant tines, designed with thicker backs, wear strips & heavy-duty replaceable weld-on tine tips.
High-torque, high-capacity bearing rotators with continuous rotation.
Wide-body design, provides full cylinder protection, with full protection to internal hoses & flange connections.
Multi-purpose scrap & recycling material handling grapple.

Download selling sheet

PRODUCT SPECIFICATIONS

Heavy-Duty Rotators With 360° Continuous Rotation.
Fully Protected, Easy-Access Cylinder Hoses.
Fully Guarded High-Pressure Cylinders.
5000 PSI Working Pressure.
Oversized Pins With Custom Locknuts.

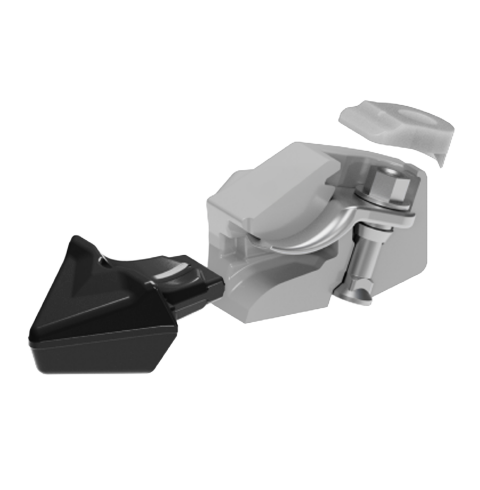

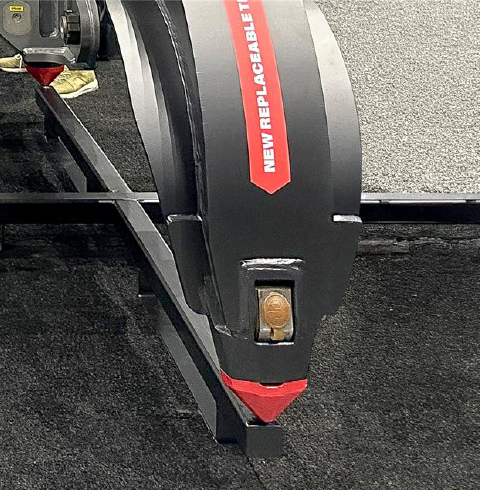

Optional Pin-on Tips.
Supplied With An Integrated Magnet Lifting Lug, Jumper Hoses & Pin-On or Quick-Coupler Yoke.
Scrap & Demolition Material Handling.
Ideal For Scrapyard.

TECHNICAL SPECIFICATIONS

Model	B5T15-075
Series	150
Volume yd³/m³	0.75 / 0.57
Weight lbs (kg)	3,350 (1,520)
Width in (mm)	93 (2,362)
Tip-To-Tip Width (Open Tines) in (mm)	85 (2,159)
Height (Open Tines) in (mm)	70 (1,779)
Height (Closed Tines) in (mm)	88 (2,235)

Download Spec. Sheet

Model	B5T15-100
Series	150
Volume yd³/m³	1 / 0.76
Weight lbs (kg)	3,750 (1,701)
Width in (mm)	103 (2,616)
Tip-To-Tip Width (Open Tines) in (mm)	91 (2,311)
Height (Open Tines) in (mm)	72 (1,829)
Height (Closed Tines) in (mm)	91 (2,311)

Download Spec. Sheet

Model	B5T15-125
Series	150
Volume yd³/m³	1.3 / 1
Weight lbs (kg)	3,850 (1,746)
Width in (mm)	108 (2,743)
Tip-To-Tip Width (Open Tines) in (mm)	99 (2,515)
Height (Open Tines) in (mm)	72 (1,829)
Height (Closed Tines) in (mm)	93 (2,362)

Download sPEC SHEET

Model	B5T2-100
Series	200
Volume yd³/m³	1 / 0.76
Weight lbs (kg)	5,700 (2,585)
Width in (mm)	97 (2,464)
Tip-To-Tip Width (Open Tines) in (mm)	80 (2,032)
Height (Open Tines) in (mm)	85 (2,159)
Height (Closed Tines) in (mm)	99 (2,515)

Download Spec. Sheet

Model	B5T2-125
Series	200
Volume yd³/m³	1.3 / 1
Weight lbs (kg)	5,850 (2,654)
Width in (mm)	112 (2,845)
Tip-To-Tip Width (Open Tines) in (mm)	99 (2,515)
Height (Open Tines) in (mm)	86.5 (2,197)
Height (Closed Tines) in (mm)	106 (2,692)

Download Spec. Sheet

Model	B5T2-150
Series	200
Volume yd³/m³	1.5 / 1.15
Weight lbs (kg)	6,000 (2,722)
Width in (mm)	115 (2,921)
Tip-To-Tip Width (Open Tines) in (mm)	102 (2,591)
Height (Open Tines) in (mm)	90 (2,286)
Height (Closed Tines) in (mm)	108 (2,743)

Download Spec. Sheet

Model	B5T2-200
Series	200
Volume yd³/m³	2.0 / 1.52
Weight lbs (kg)	6,600 (2,994)
Width in (mm)	128 (3,251)
Tip-To-Tip Width (Open Tines) in (mm)	112 (2,845)
Height (Open Tines) in (mm)	90 (2,286)
Height (Closed Tines) in (mm)	114 (2,896)

Download Spec. Sheet

Model	B5T2-250
Series	200
Volume yd³/m³	2.5 / 1.91
Weight lbs (kg)	7,000 (3,175)
Width in (mm)	130 (3,302)
Tip-To-Tip Width (Open Tines) in (mm)	120 (3,048)
Height (Open Tines) in (mm)	90 (2,286)
Height (Closed Tines) in (mm)	117 (2,972)

Download Spec. Sheet

Model	B5T2-300
Series	200
Volume yd³/m³	3 / 2.29
Weight lbs (kg)	7,600 (3,447)
Width in (mm)	137 (3,480)
Tip-To-Tip Width (Open Tines) in (mm)	123 (3,124)
Height (Open Tines) in (mm)	92 (2,337)
Height (Closed Tines) in (mm)	121 (3,073)

Download Spec. Sheet

Model	B5T2-350
Series	200
Volume yd³/m³	3.5 / 3
Weight lbs (kg)	7,200 (3,266)
Width in (mm)	145 (3,683)
Tip-To-Tip Width (Open Tines) in (mm)	129 (3,277)
Height (Open Tines) in (mm)	92 (2,337)
Height (Closed Tines) in (mm)	122 (3,099)

Download Spec. Sheet

COMPATIBILITY

Cat
Doosan
Hitachi
Sany
Sennebogen
Liebherr
Link-Belt
Fuchs

Request quote to find the right scrap grapple for your material handler or excavator!

Options

Open Tines
Fully-Closed
Semi-Closed (Standard)
Hardfacing (Increases Wear Resistance & Longevity)
