BATEMAN

| | | | |

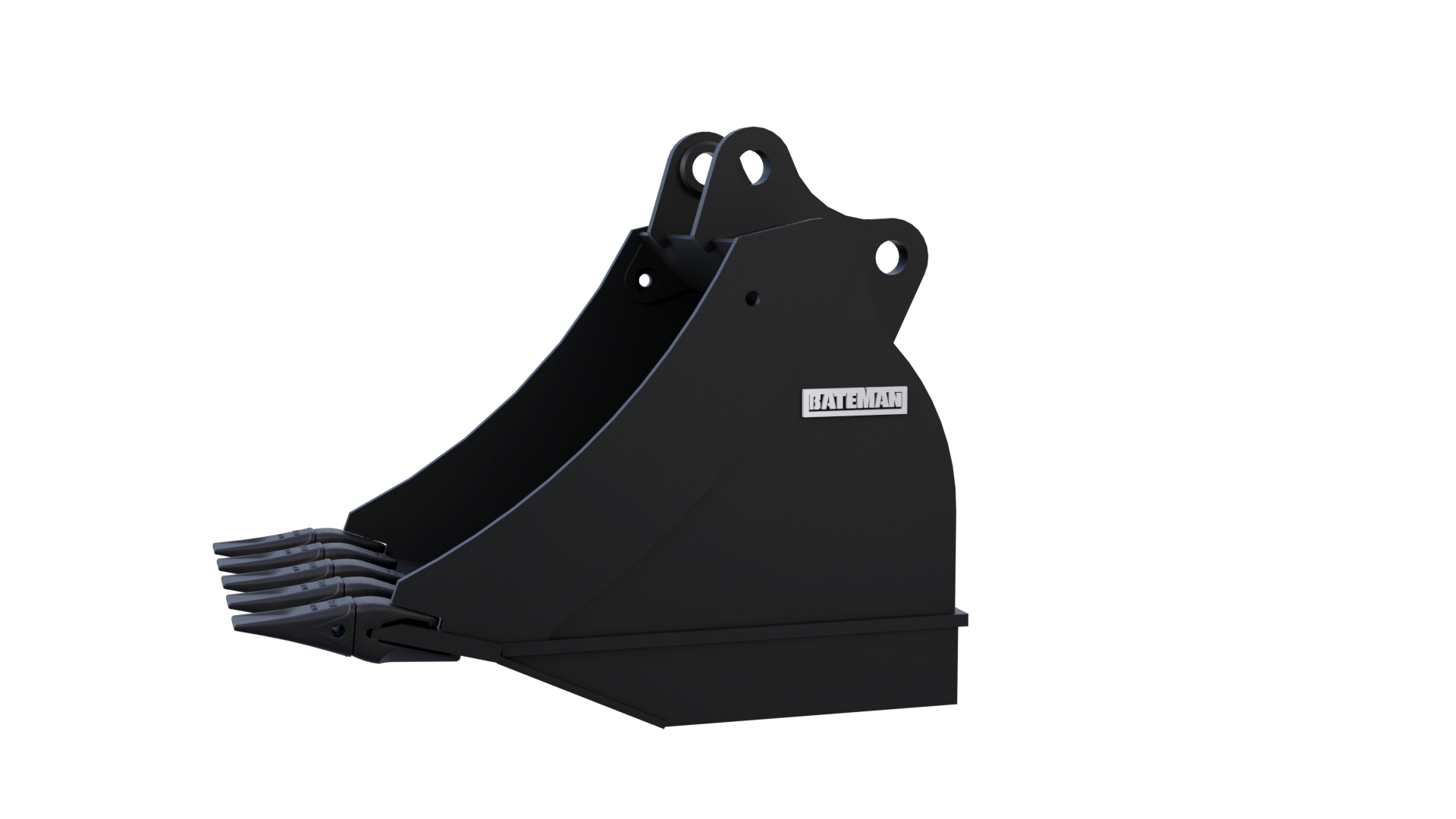

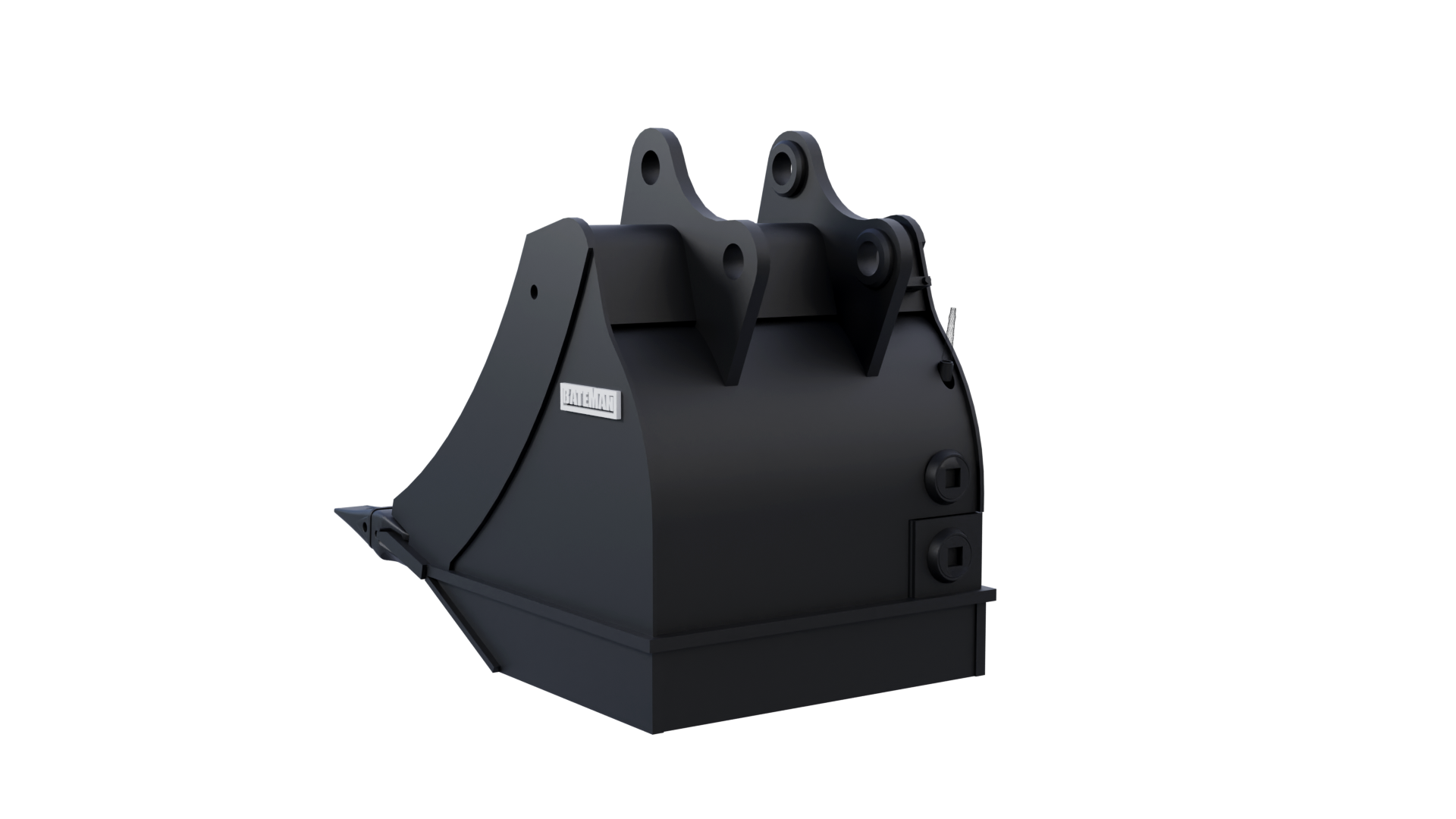

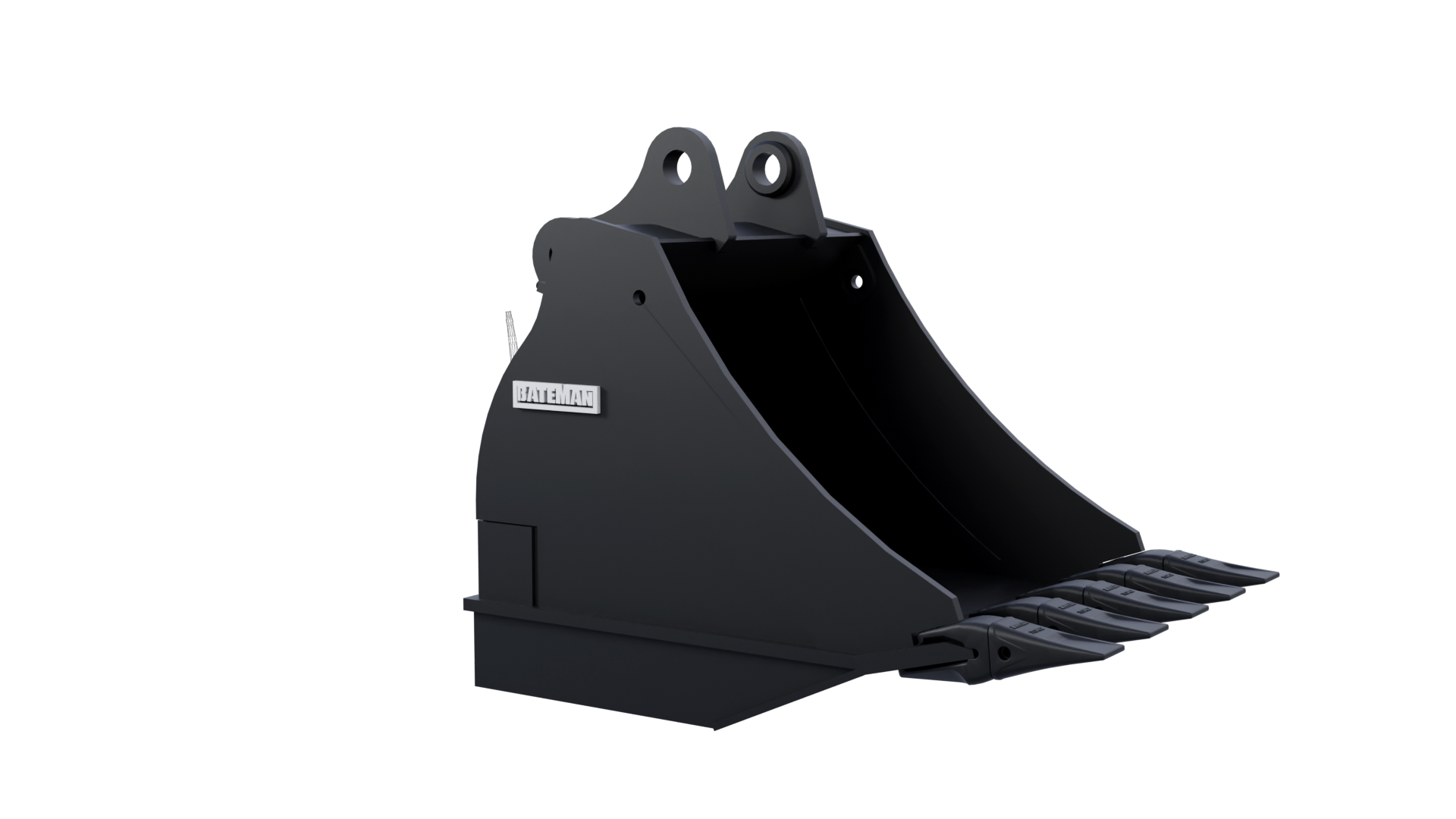

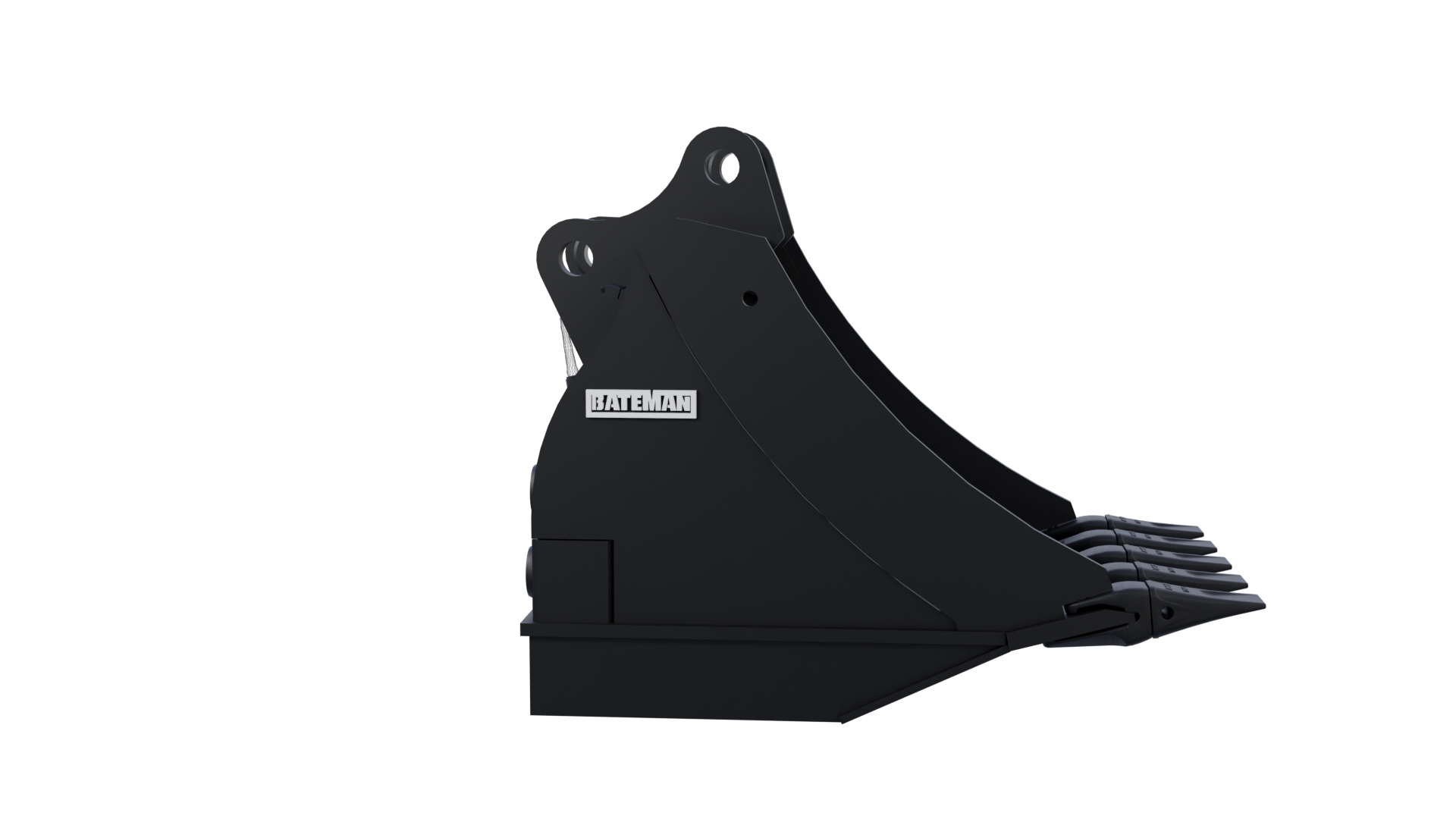

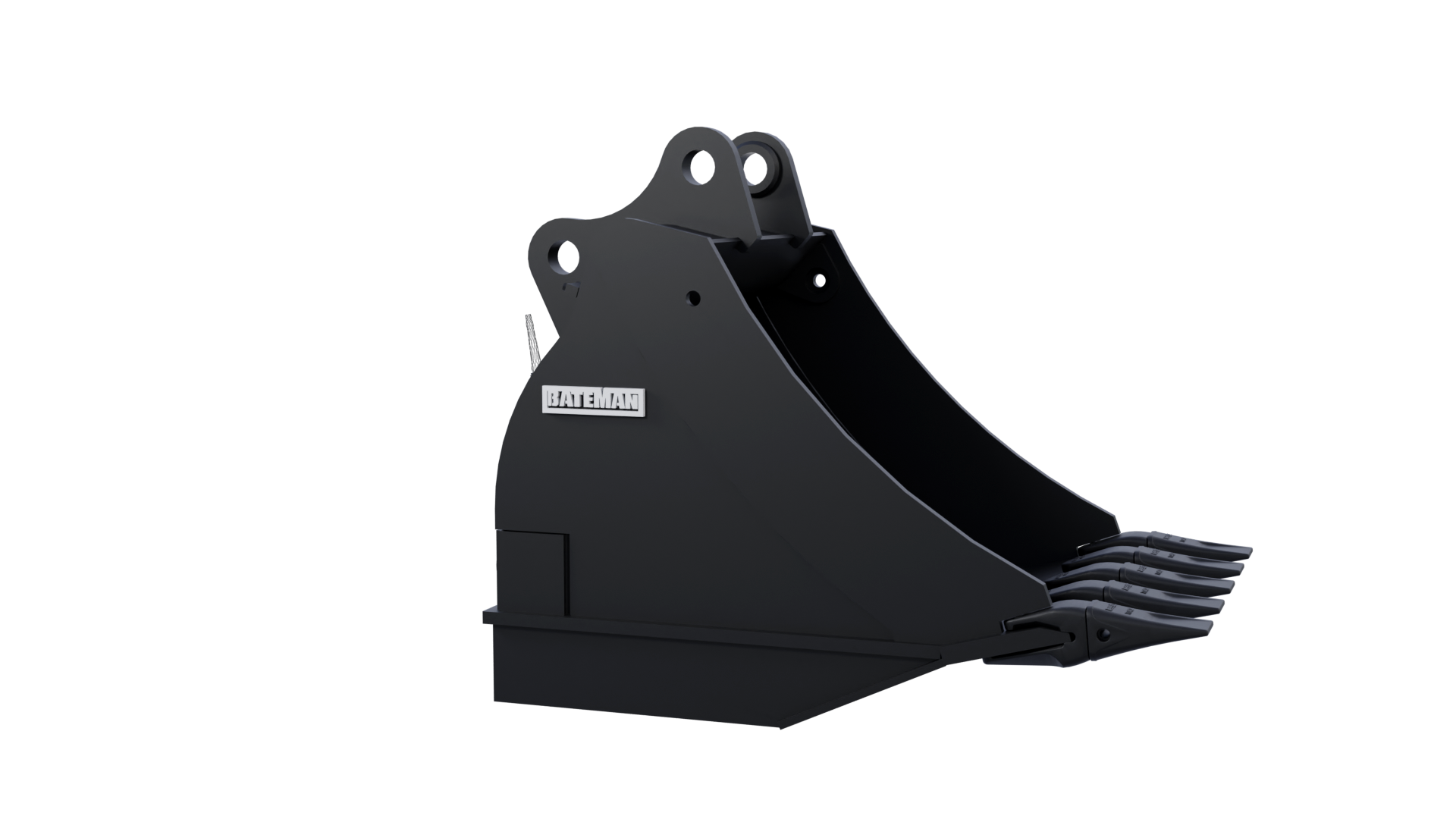

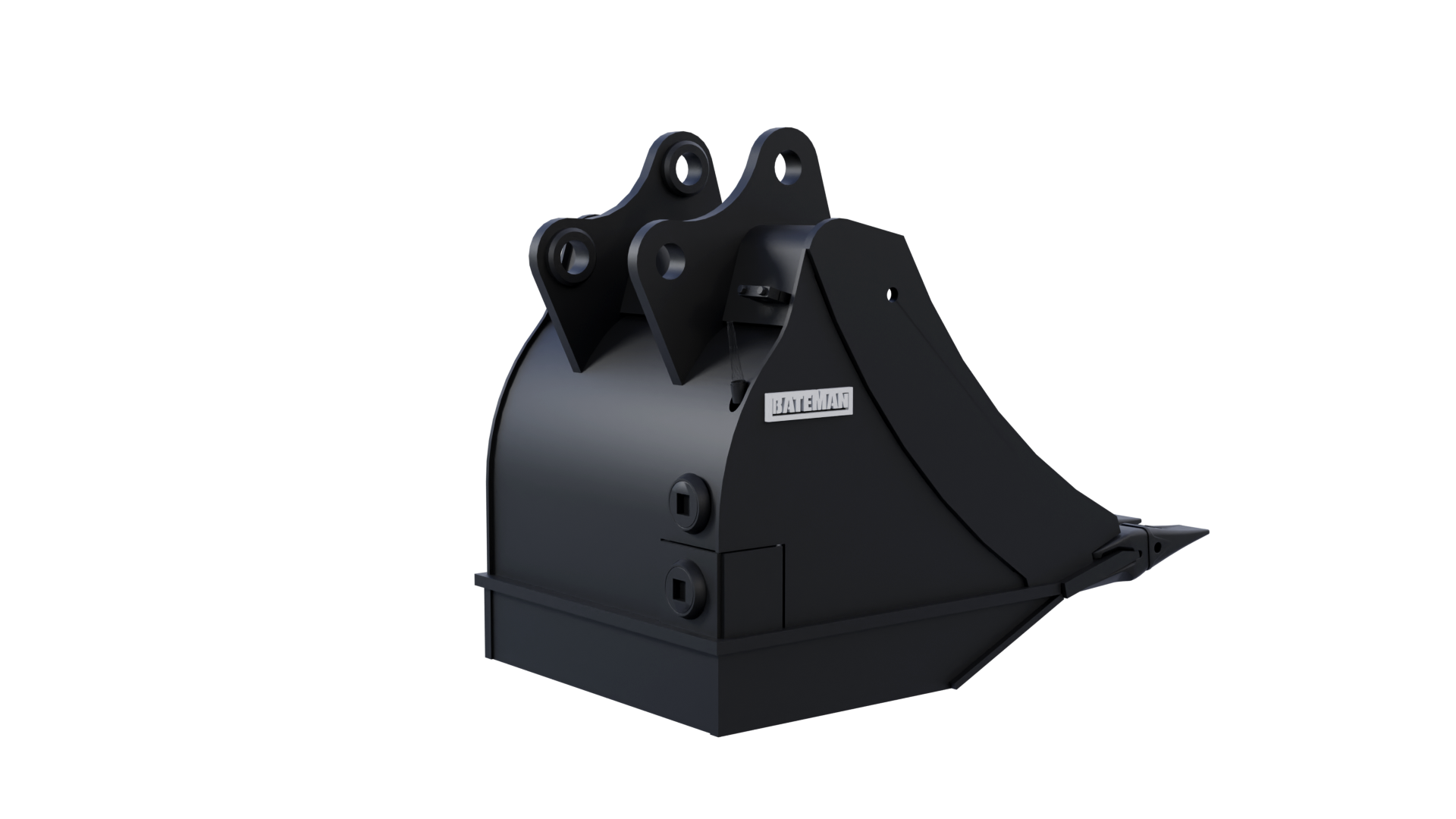

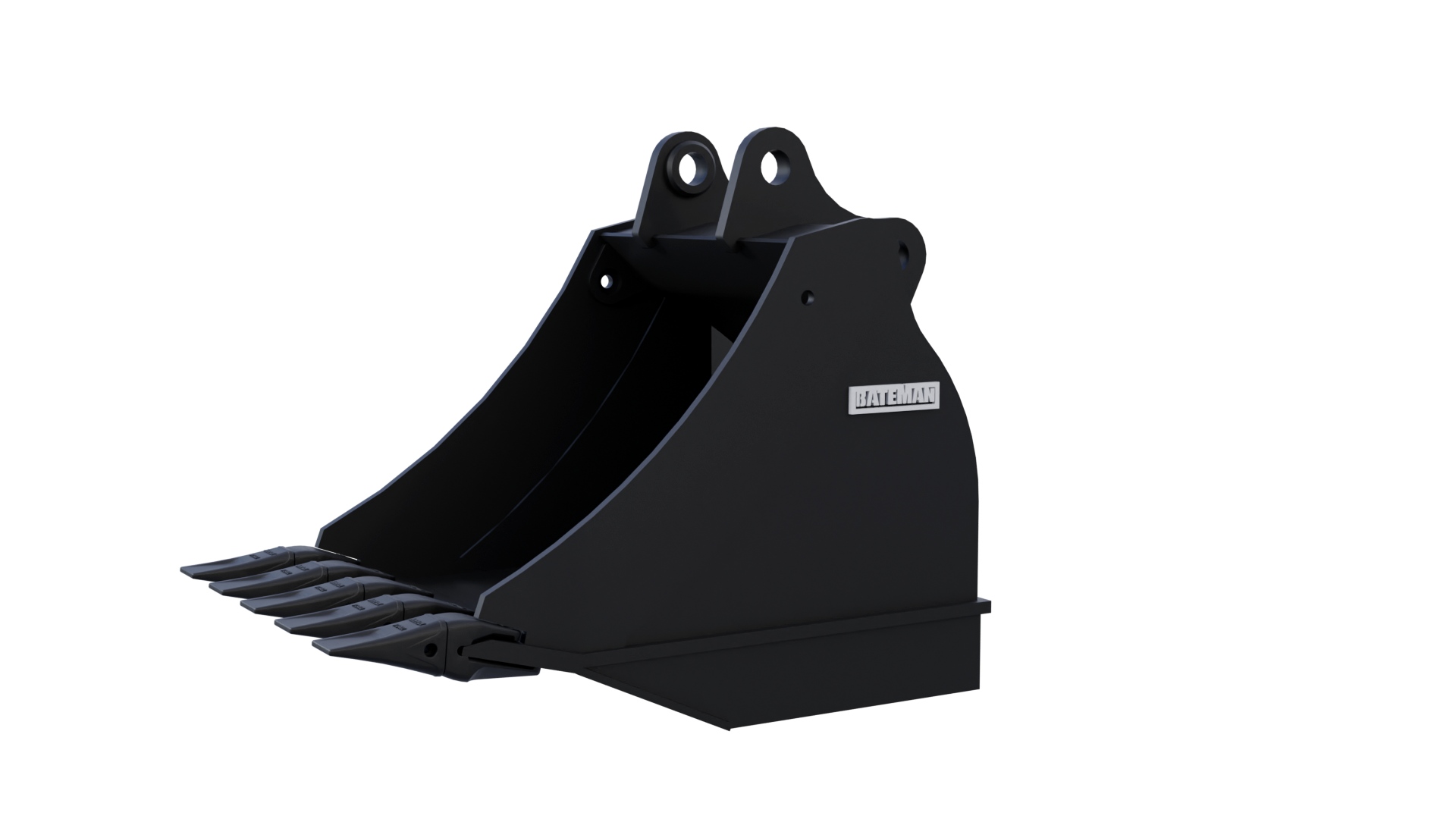

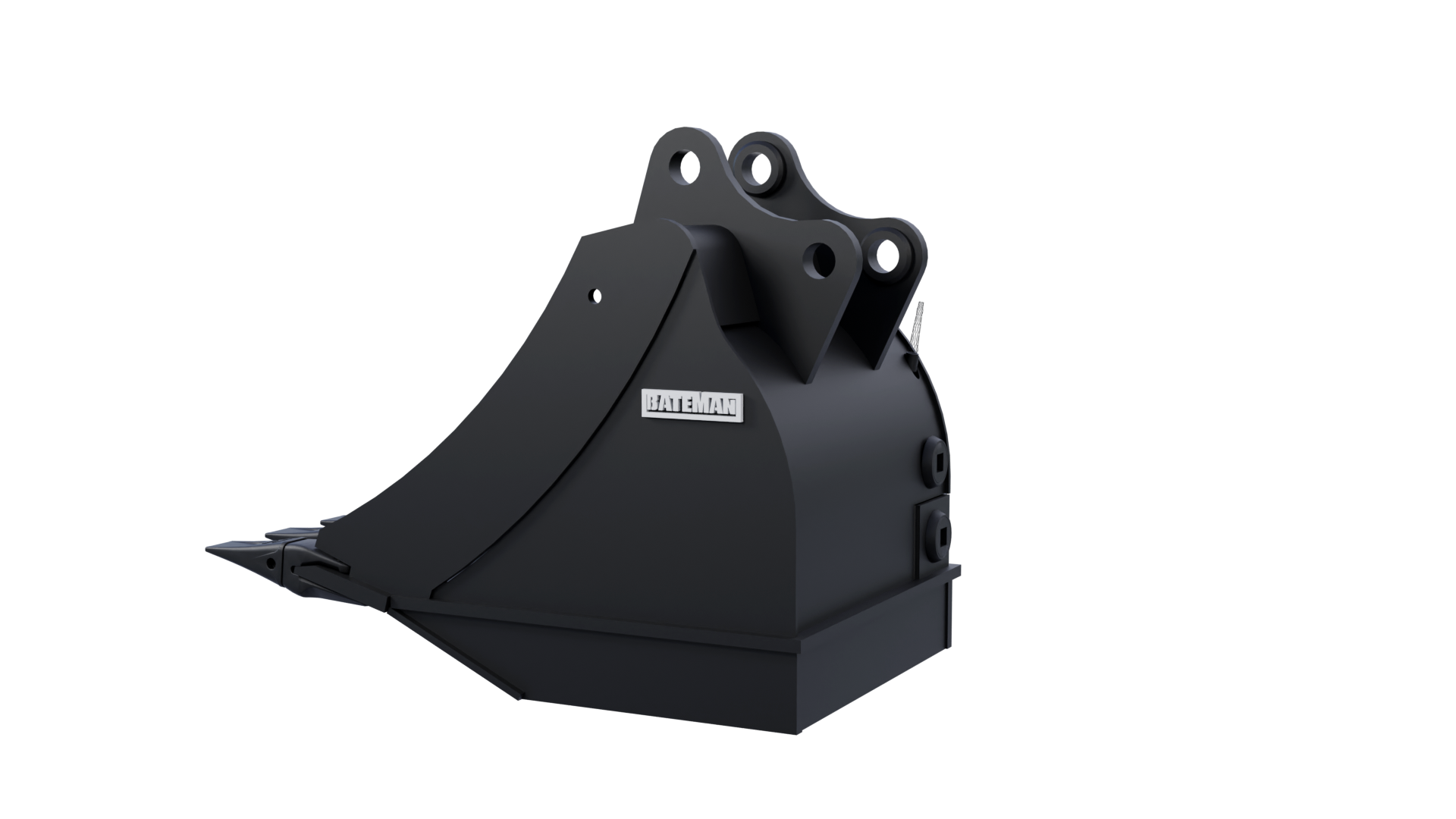

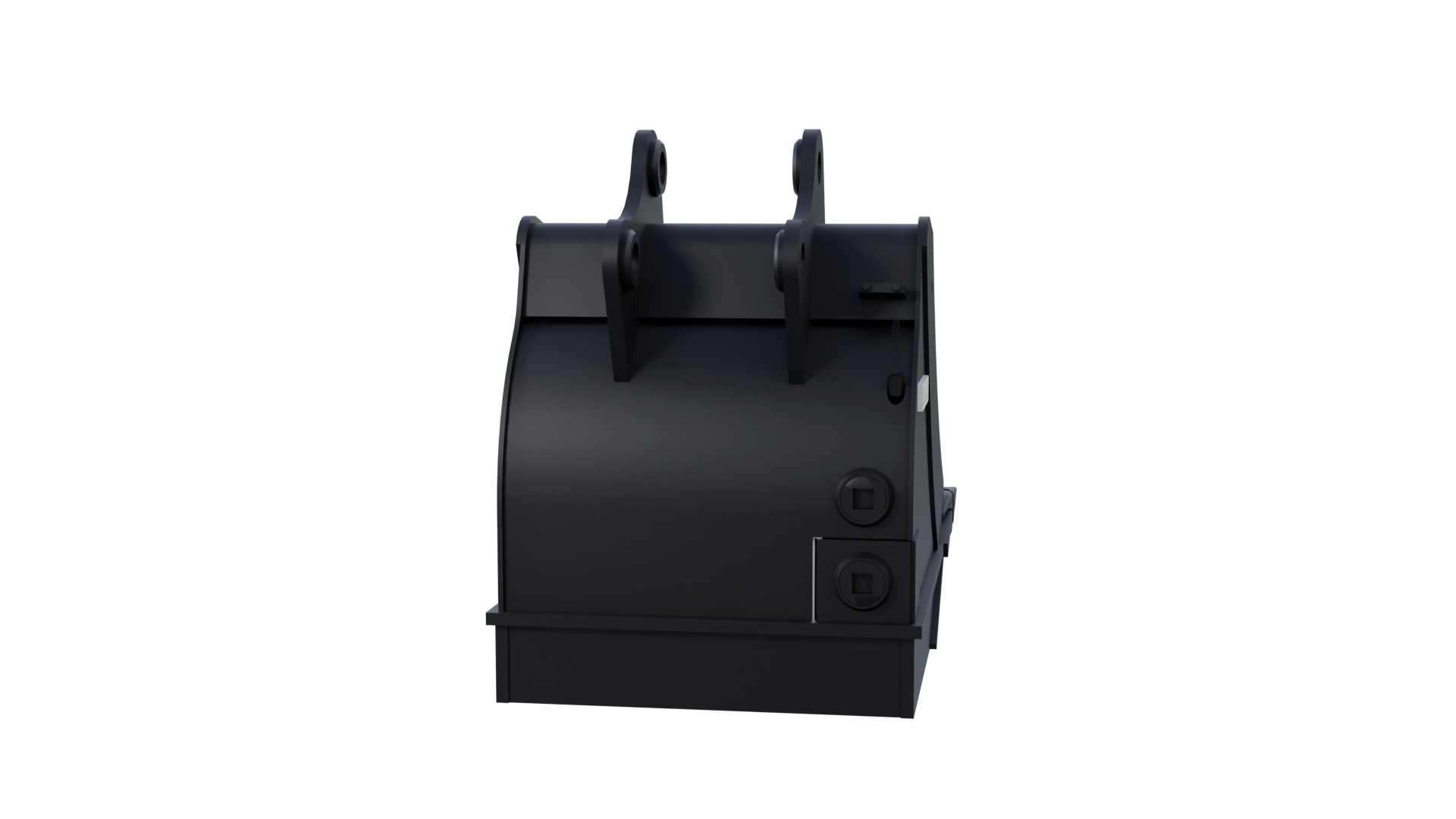

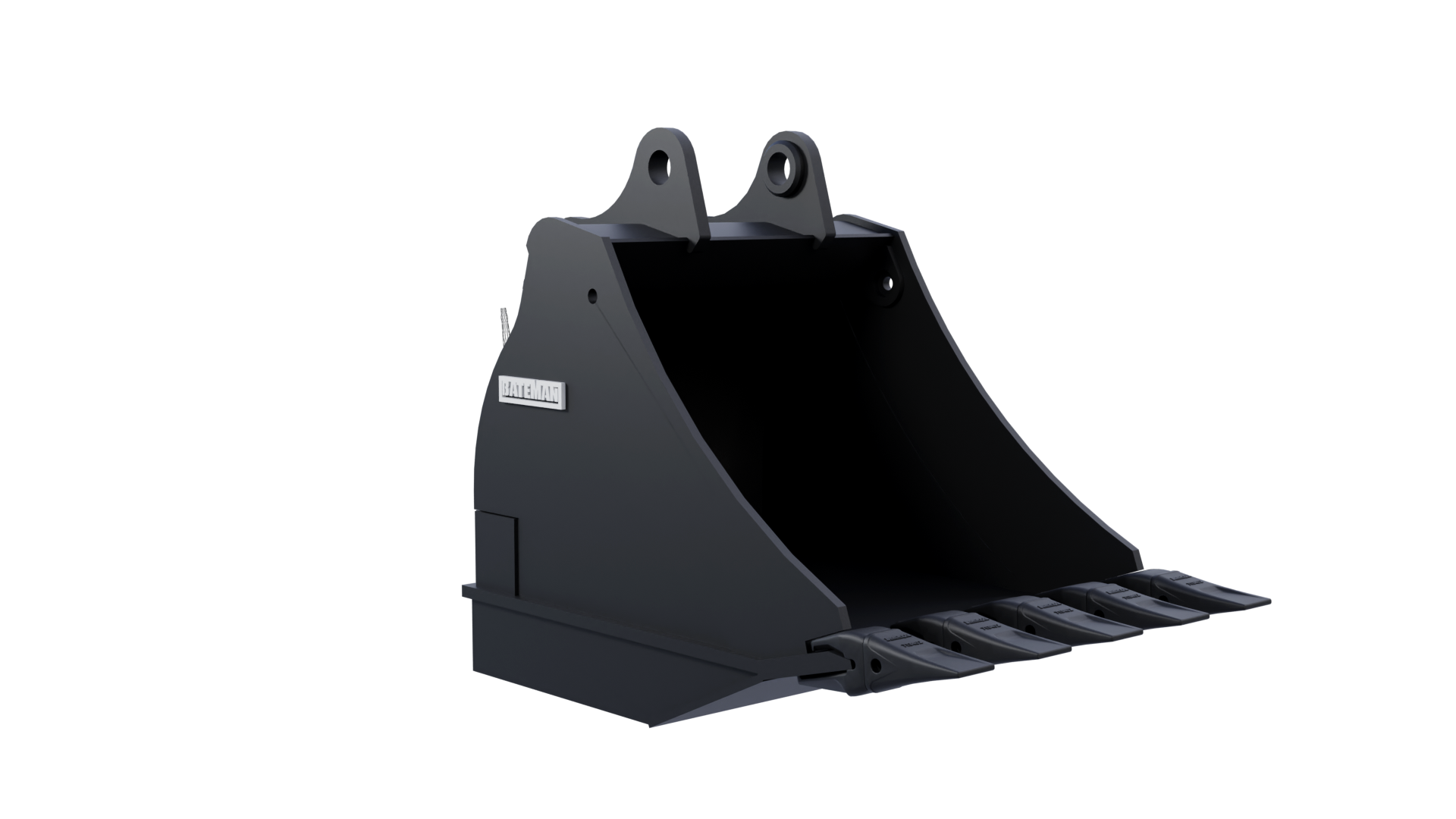

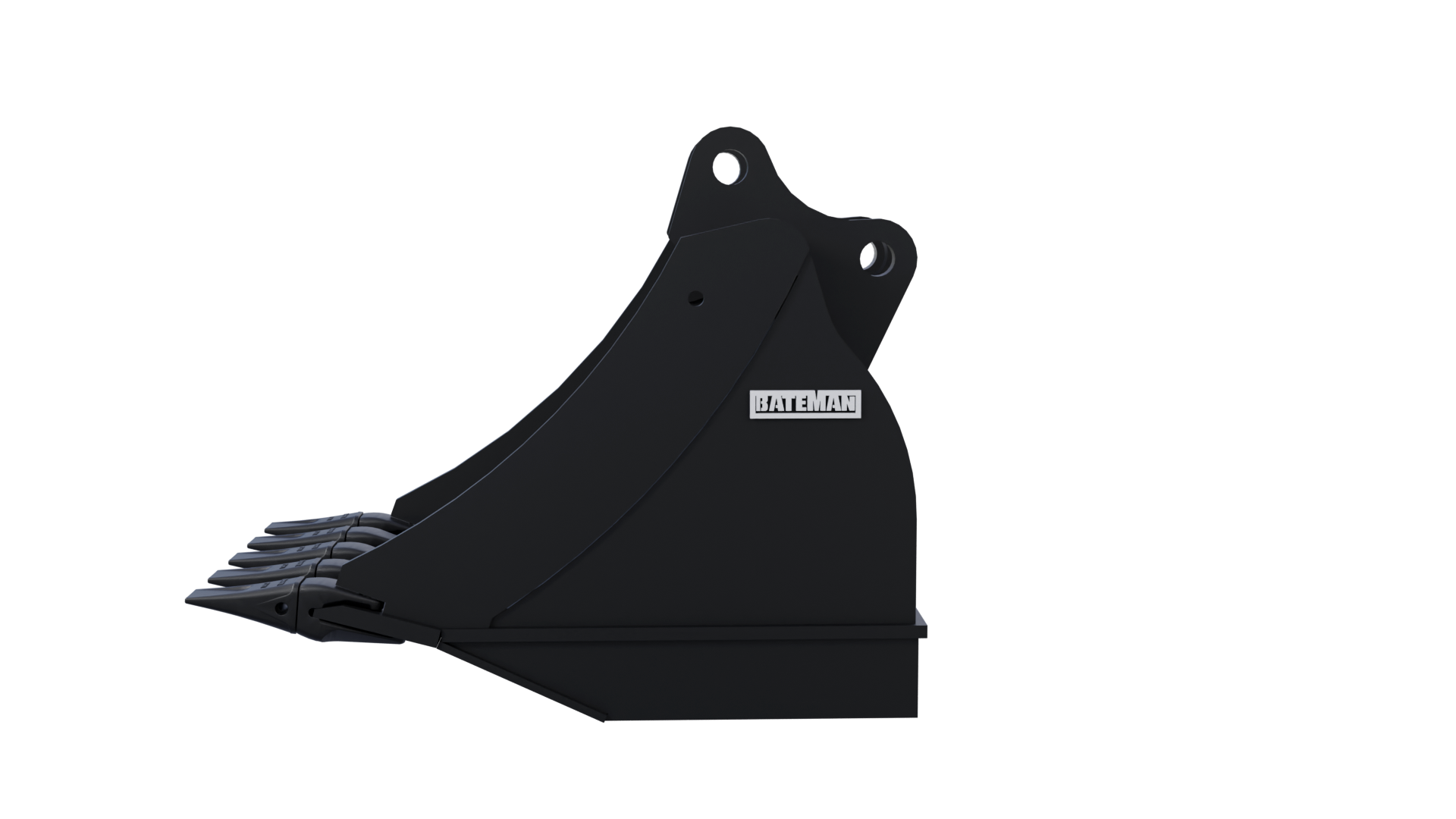

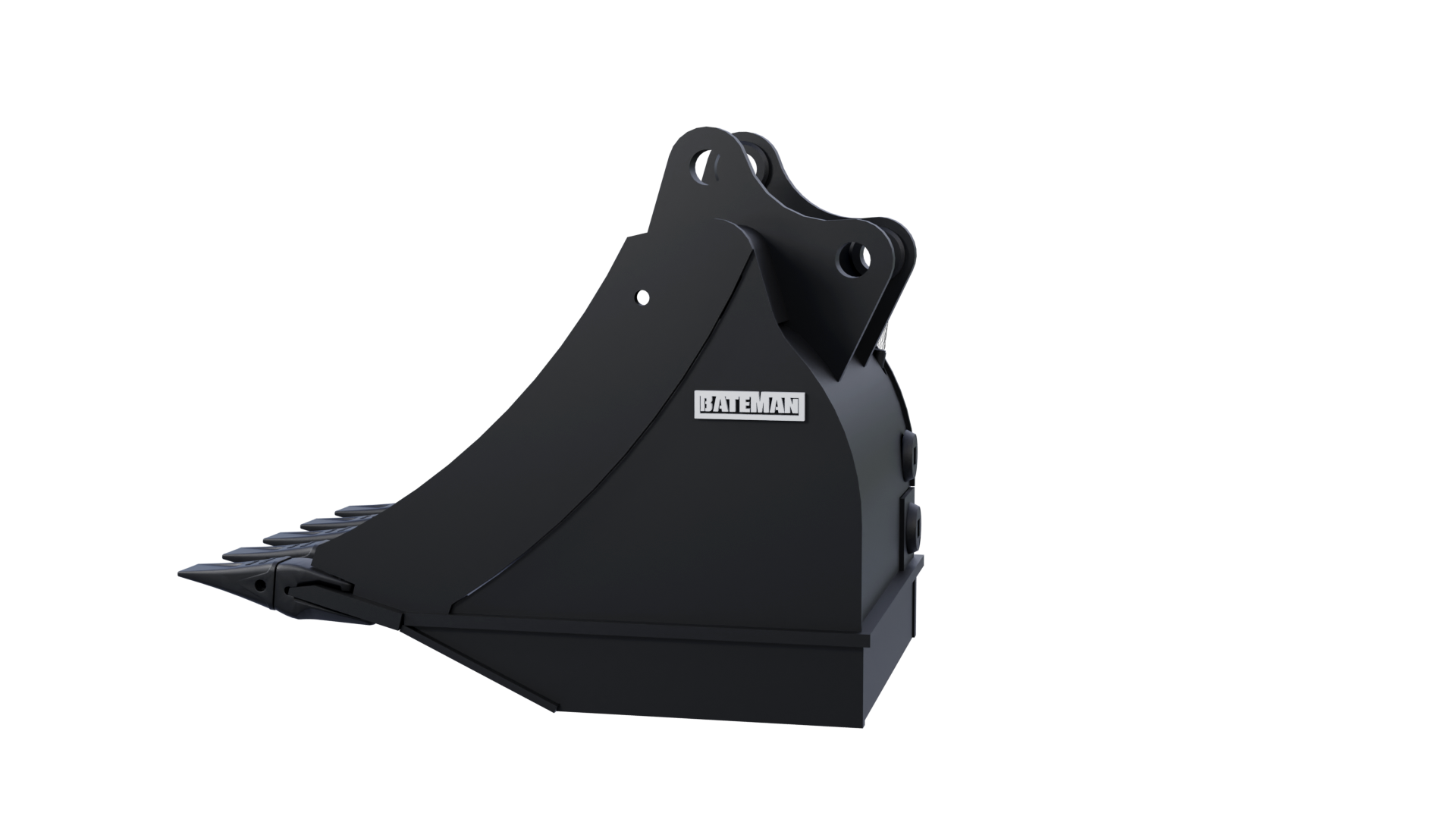

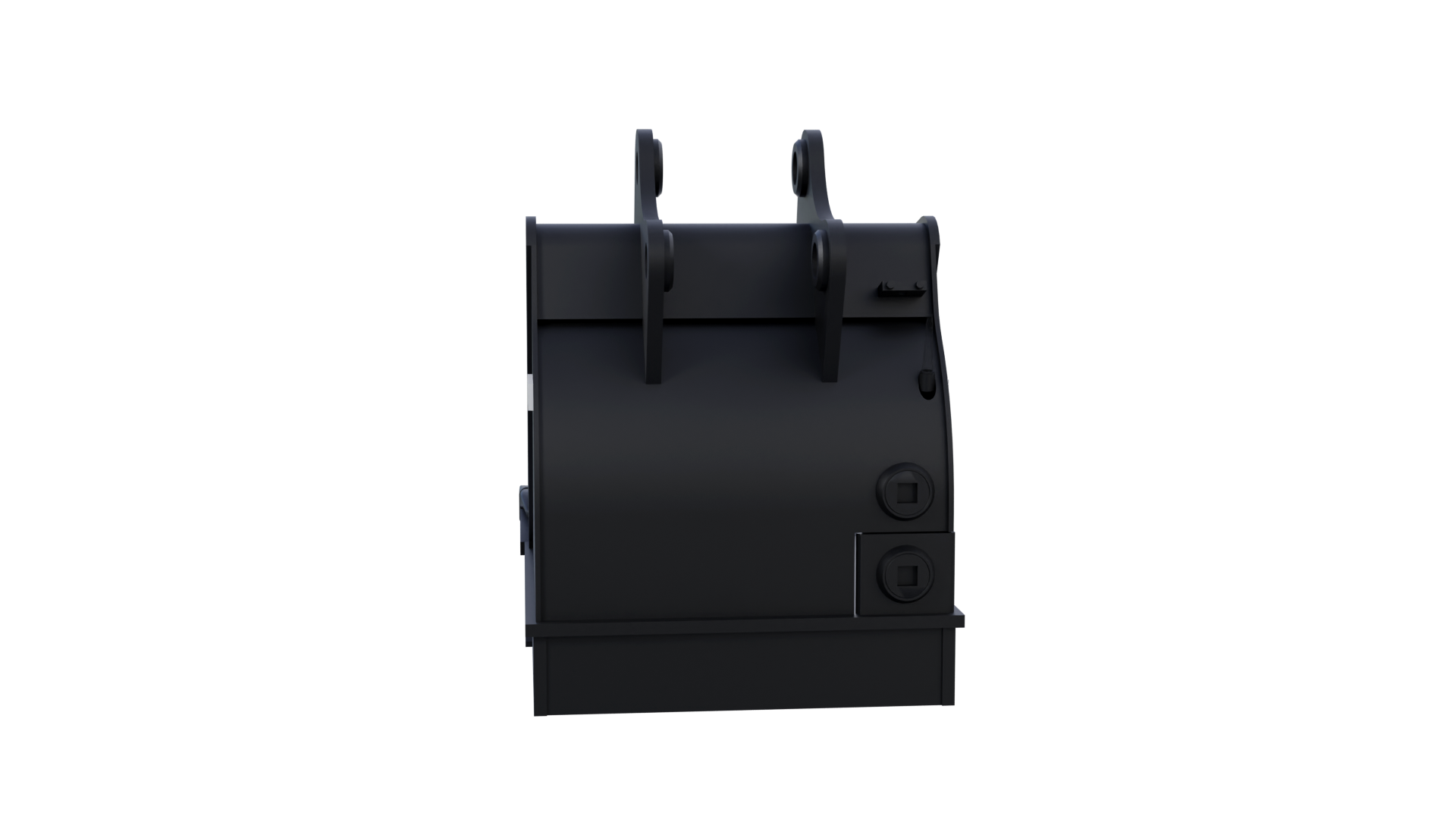

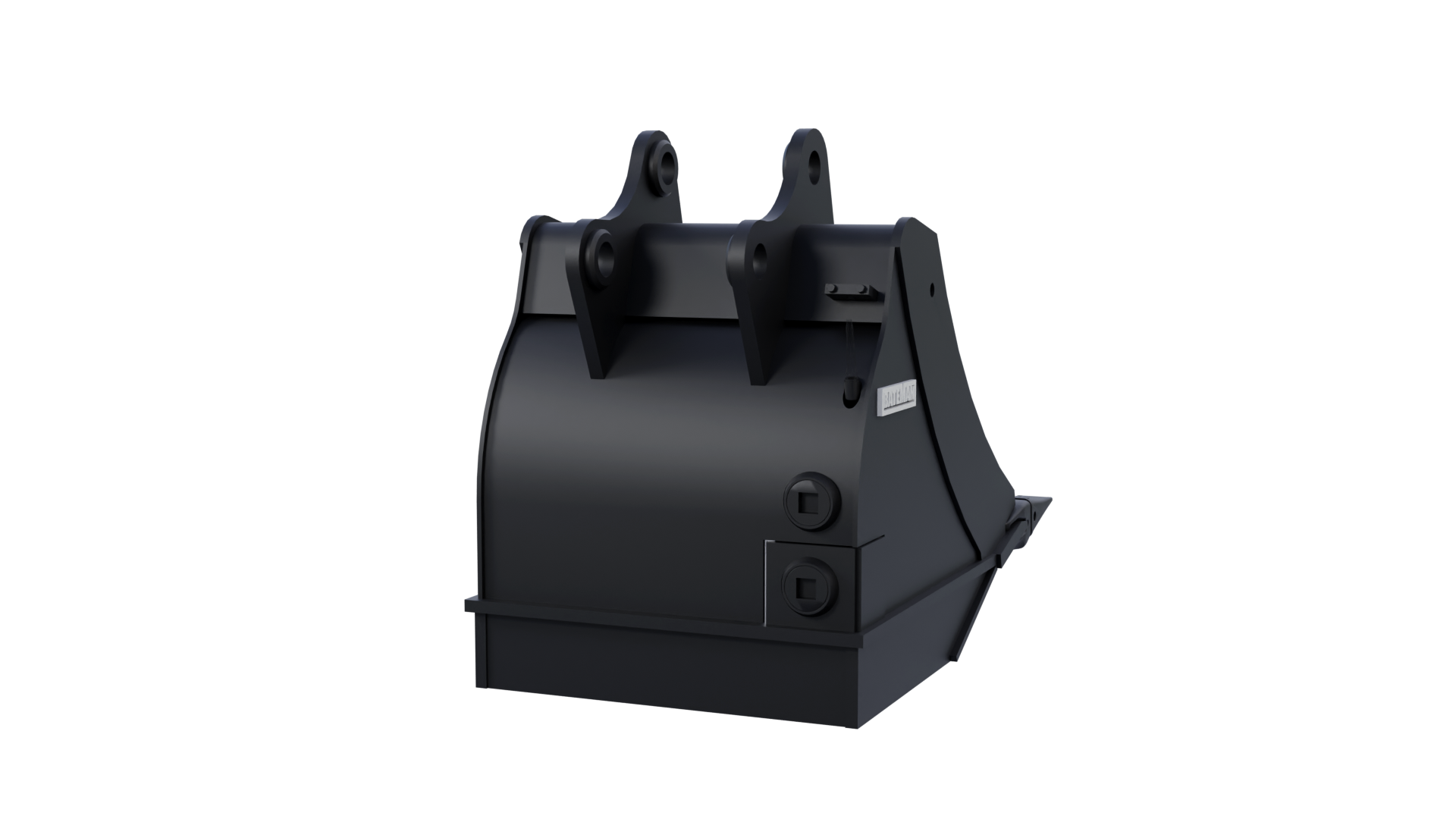

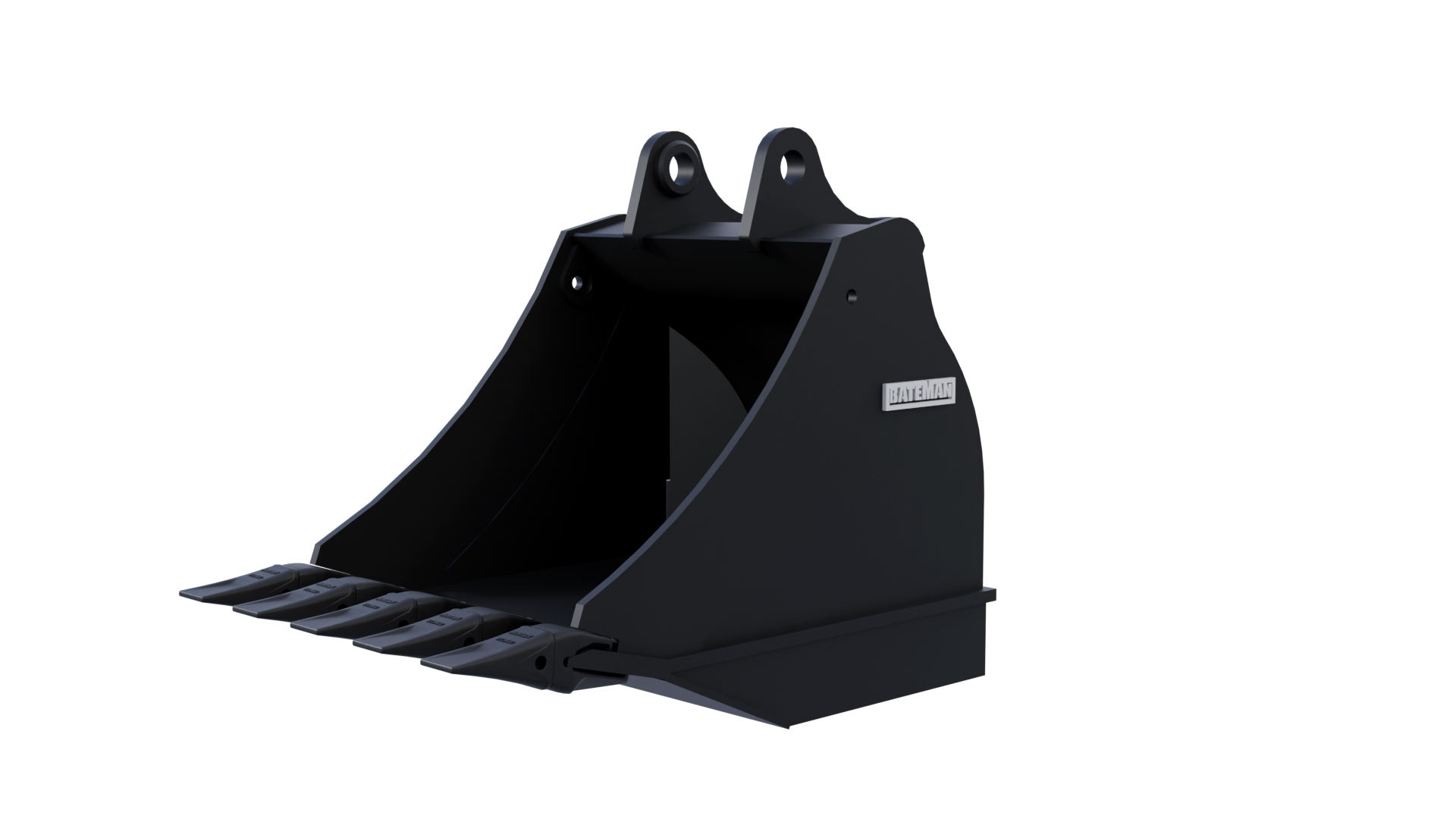

-180° 180°

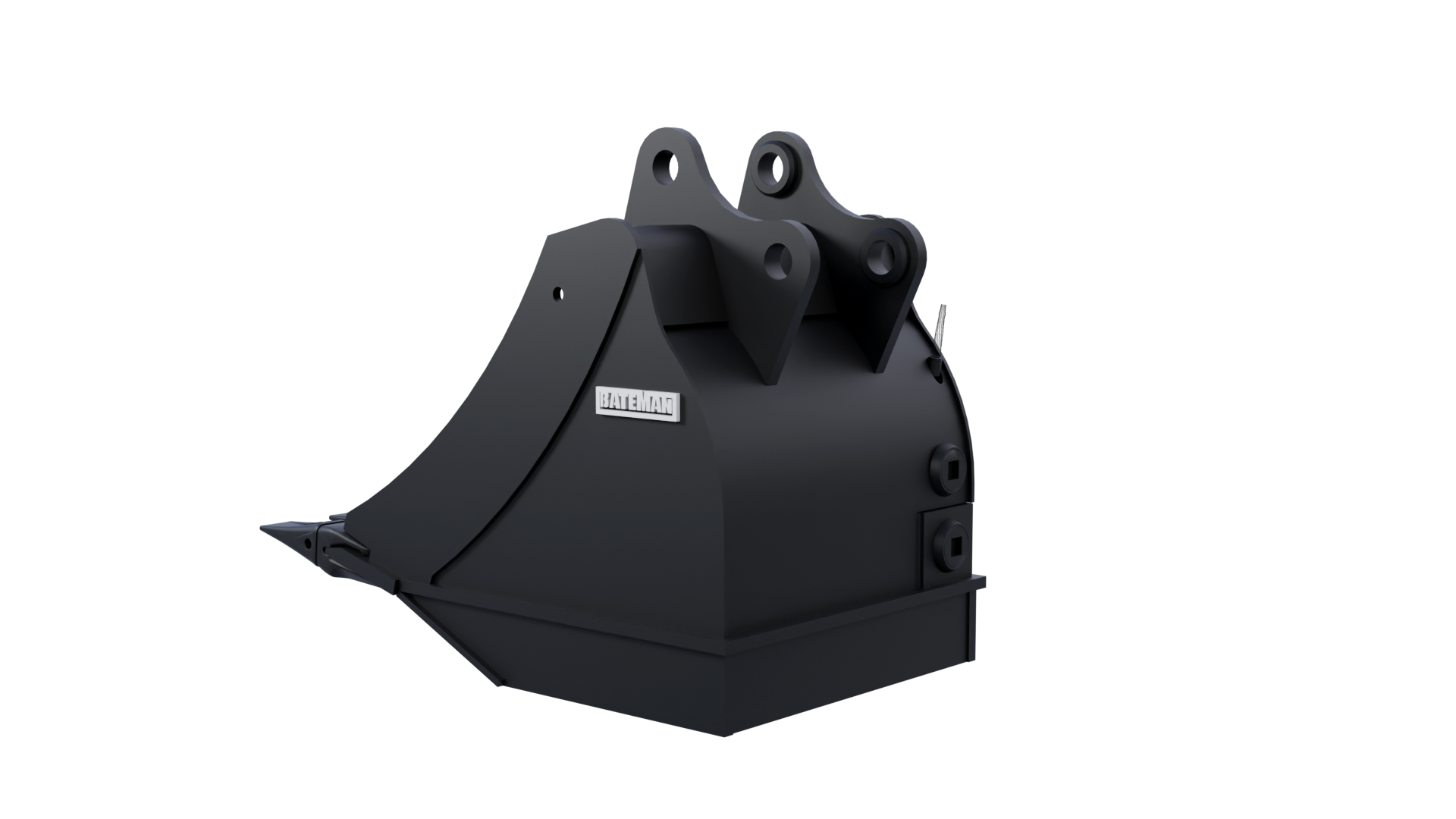

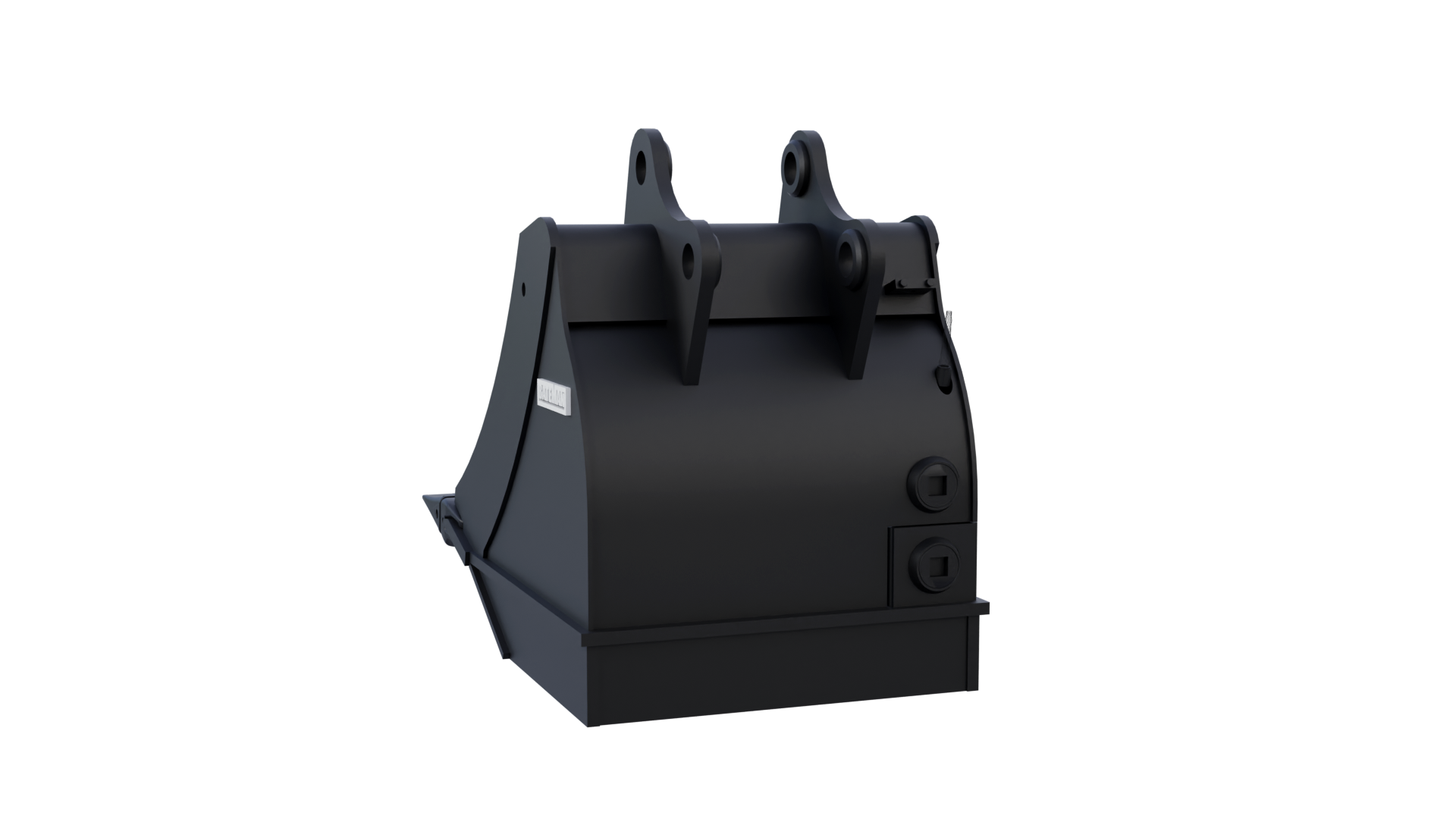

BMB Models

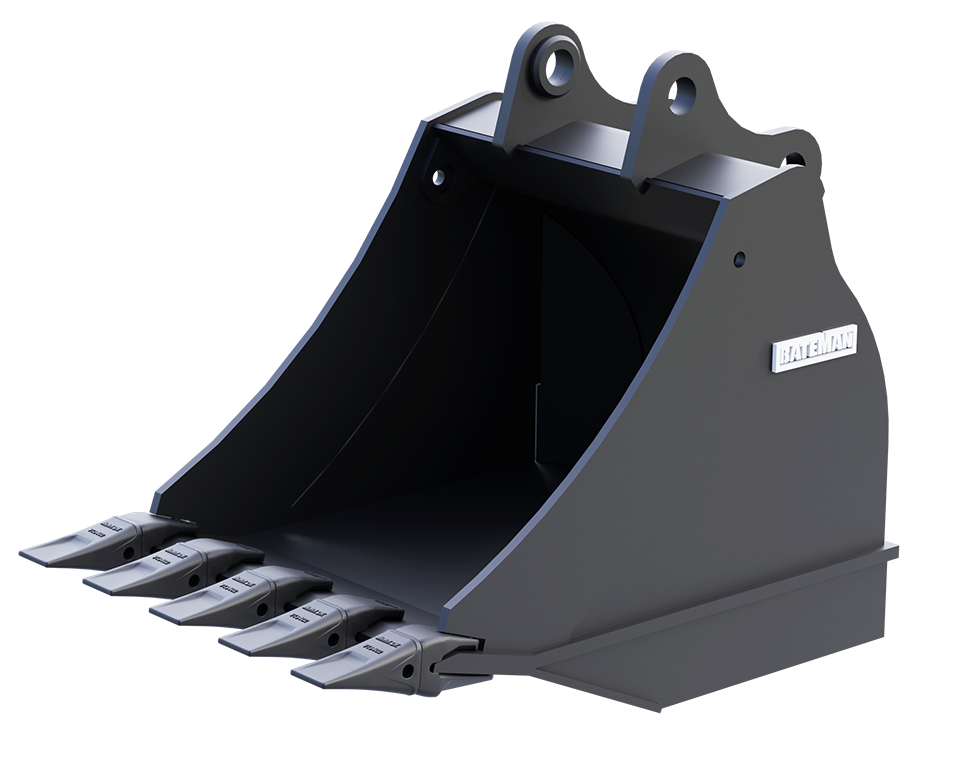

Dig, sort, demolish, and magnetize with the multi-purpose BATEMAN Magnet Bucket. These buckets are designed specifically for the separation of ferrous materials and feature fully protected supply wires. Thumbs are available upon request.

Ideal for demolition work.
Ideal for sorting material with a thumb.
Fully protected supply wires.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Magnet completely integrated with tooth bucket. Dig, sort, demolish and magnetize with just one multi-purpose tool.

TECHNICAL SPECIFICATIONS

Model	BMB150-6kW
Width in (mm)	36 (914)
Magnet	6KW
Tip Radius in (mm)	61 (1,549)
Weight lb (kg)	3,300 (1,497)

Download literature

Model	BMB200-6kW
Width in (mm)	38 (965)
Magnet	6KW
Tip Radius in (mm)	62 (1,575)
Weight lb (kg)	3,550 (1,610)

Download literature

Model	BMB250-9kW
Width in (mm)	42 (1,067)
Magnet	9kW
Tip Radius in (mm)	66 (1,676)
Weight lb (kg)	5,200 (2,359)

Download literature

Model	BMB300-9kW
Width in (mm)	51 (1,295)
Magnet	9kW
Tip Radius in (mm)	69 (1,753)
Weight lb (kg)	5,700 (2,585)

Download literature

Model	BMB400-9kW
Width in (mm)	51 (1,295)
Magnet	9kW
Tip Radius in (mm)	75 (1,905)
Weight lb (kg)	6,450 (2,926)

Download literature

COMPATIBILITY

Request Quote To Find The Right Demolition/Scrap Magnet Bucket For Your Material Handler Or Excavator!

Options

Optional thumb available upon request.
