Demolition Magnet Grapple

product--img

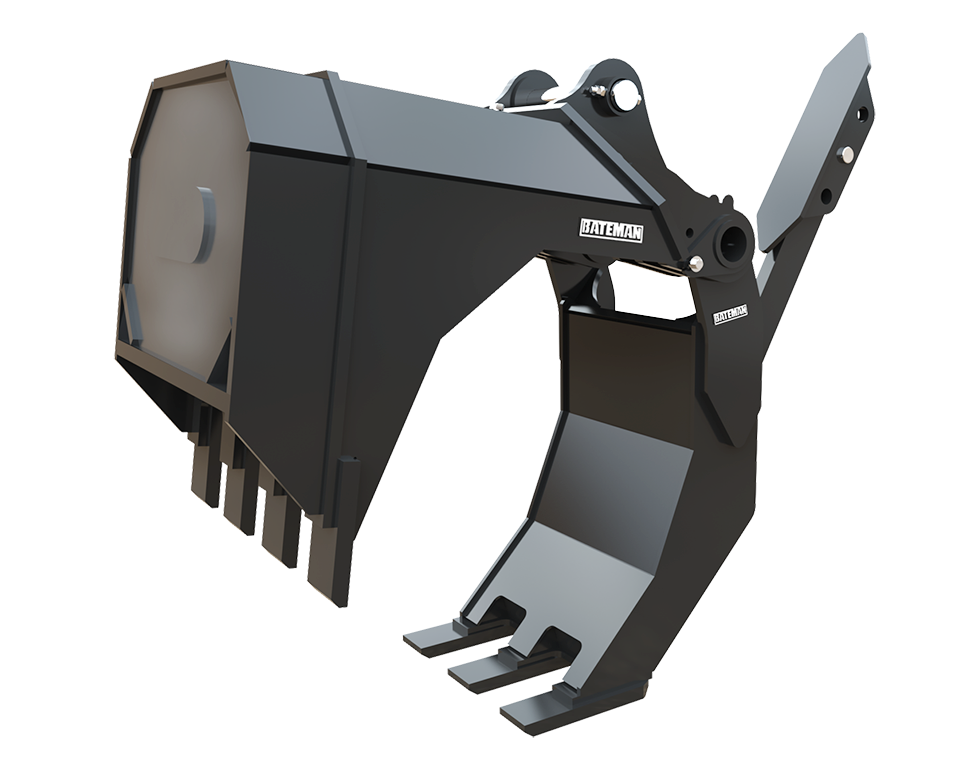

Bateman Demolition Magnet Grapple Image
| | | | |
-180° 180°
Bateman Demolition Magnet Grapple Image

DMG Models

The Bateman Demo-Mag (Demolition Magnet Grapple) Is One Of Bateman’s Innovative ALL-IN-ONE Attachment. This Attachment Combines The Versatility Of Our Demolition Contractor Grapple With a Durable Magnet; Giving It The Ability To Maneuver Material & Separate Valuable Ferrous Steel Without Switching Out Attachments.

The Bateman Demo-Mag Is Guaranteed To Reduce Your Labour Costs, Machine Downtime & Increase Your Return On Ferrous Metals!

  • Available With Adjustable Stiff Link Or Optional Cylinder.
  • Heavy-Duty AR500 Tips With High Tensile Strength & Abrasion-Resistant Material In High Wear Areas.
  • Available With Pin-On Lugging Or Quick Coupler Hooks.
  • Heavy-Duty Magnet For Lifting Ferrous Steel.

PRODUCT SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Model DMG100-3/2-4kW
Machine Class 100
Tine Configuration 3/2
Generator Min. (kW) 4
Magnet Size in (mm) 22.5 x 27.5 (572 x 699)
Weight lb (kg) 1,700 (771)
Width in (mm) 29 (737)
Height in (mm) 36 (914)
Jaw Opening in (mm) 64 (1,626)
Model DMG150-4/3-6kW
Machine Class 150
Tine Configuration 4/3
Generator Min. (kW) 6
Magnet Size in (mm) 27 x 36 (686 x 914)
Weight lb (kg) 4,100 (1,860)
Width in (mm) 37 (940)
Height in (mm) 48 (1,219)
Jaw Opening in (mm) 84 (2,134)
Model DMG200-4/3-6kW
Machine Class 200
Tine Configuration 4/3
Generator Min. (kW) 6
Magnet Size in (mm) 27 x 36 (686 x 914)
Weight lb (kg) 4,500 (2,041)
Width in (mm) 37 (940)
Height in (mm) 54 (1,372)
Jaw Opening in (mm) 88 (2,235)
Model DMG300-4/3-8kW
Machine Class 300
Tine Configuration 4/3
Generator Min. (kW) 8
Magnet Size in (mm) 31 x 50 (787 x 1270)
Weight lb (kg) 6,500 (2,948)
Width in (mm) 51 (1,295)
Height in (mm) 55 (1,397)
Jaw Opening in (mm) 90 (2,286)
Model DMG400-4/3-8kW
Machine Class 400
Tine Configuration 4/3
Generator Min. (kW) 8
Magnet Size in (mm) 37 x 53 (940 x 1346)
Weight lb (kg) 10,600 (4,808)
Width in (mm) 54 (1,372)
Height in (mm) 64 (1,626)
Jaw Opening in (mm) 112 (2,845)

COMPATIBILITY

Available For All Classes Of Machines & Can Be Customized To Suit Individual Needs.

Request Quote To Find The Right Demolition Magnet Grapple For Your Material Handler Or Excavator!

Options

  • Pin-On Lugging.
  • Quick-Coupler Hooks.
