Ships Gear Grapple (Diesel Hydraulic Grabs)

product--img

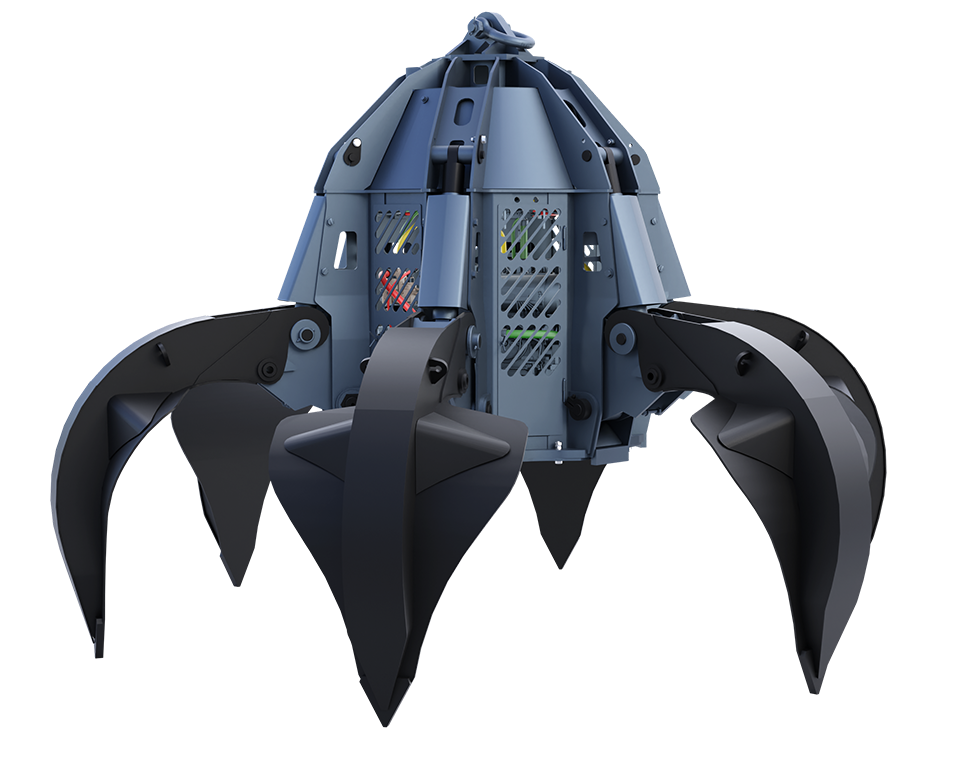

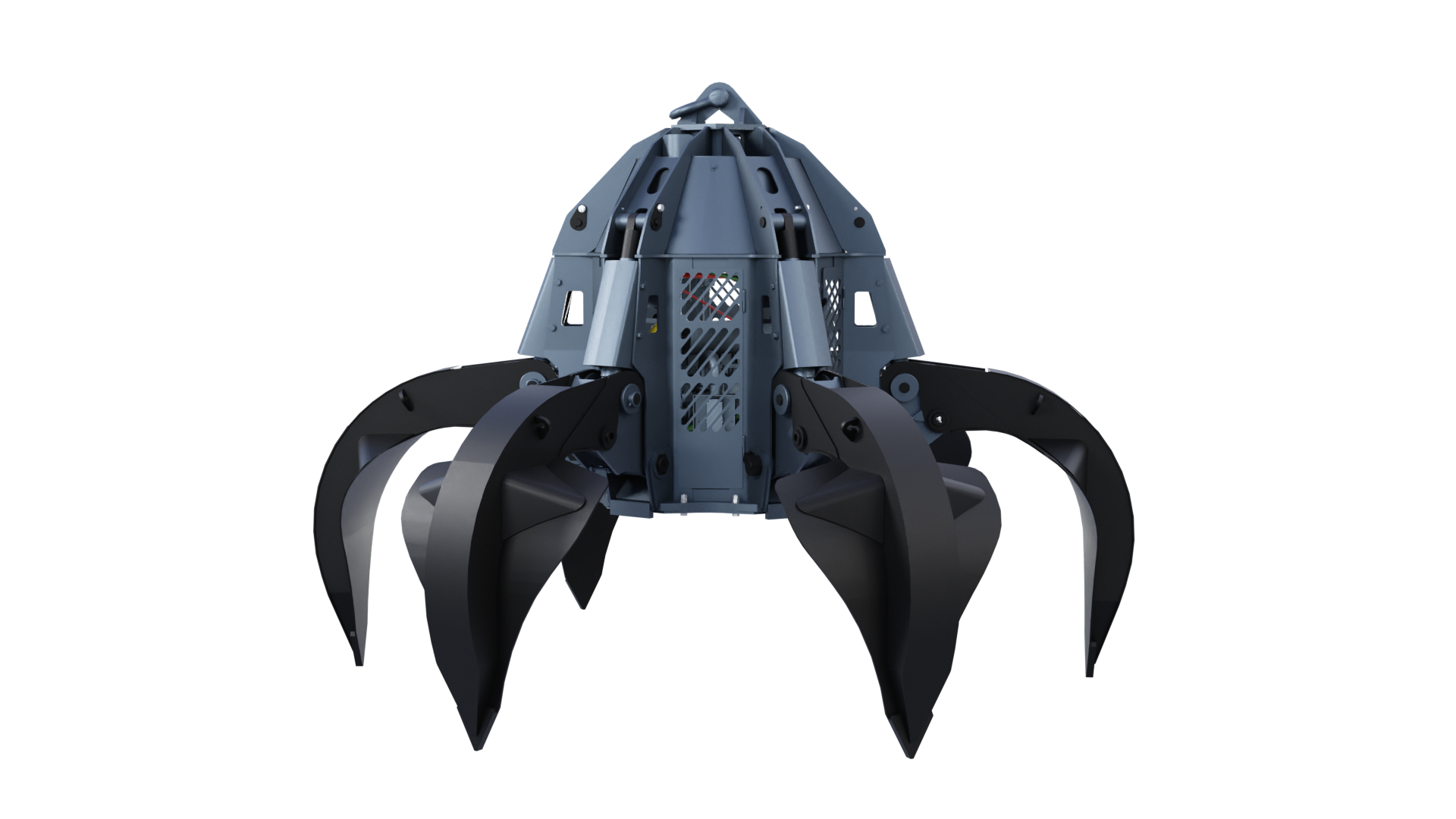

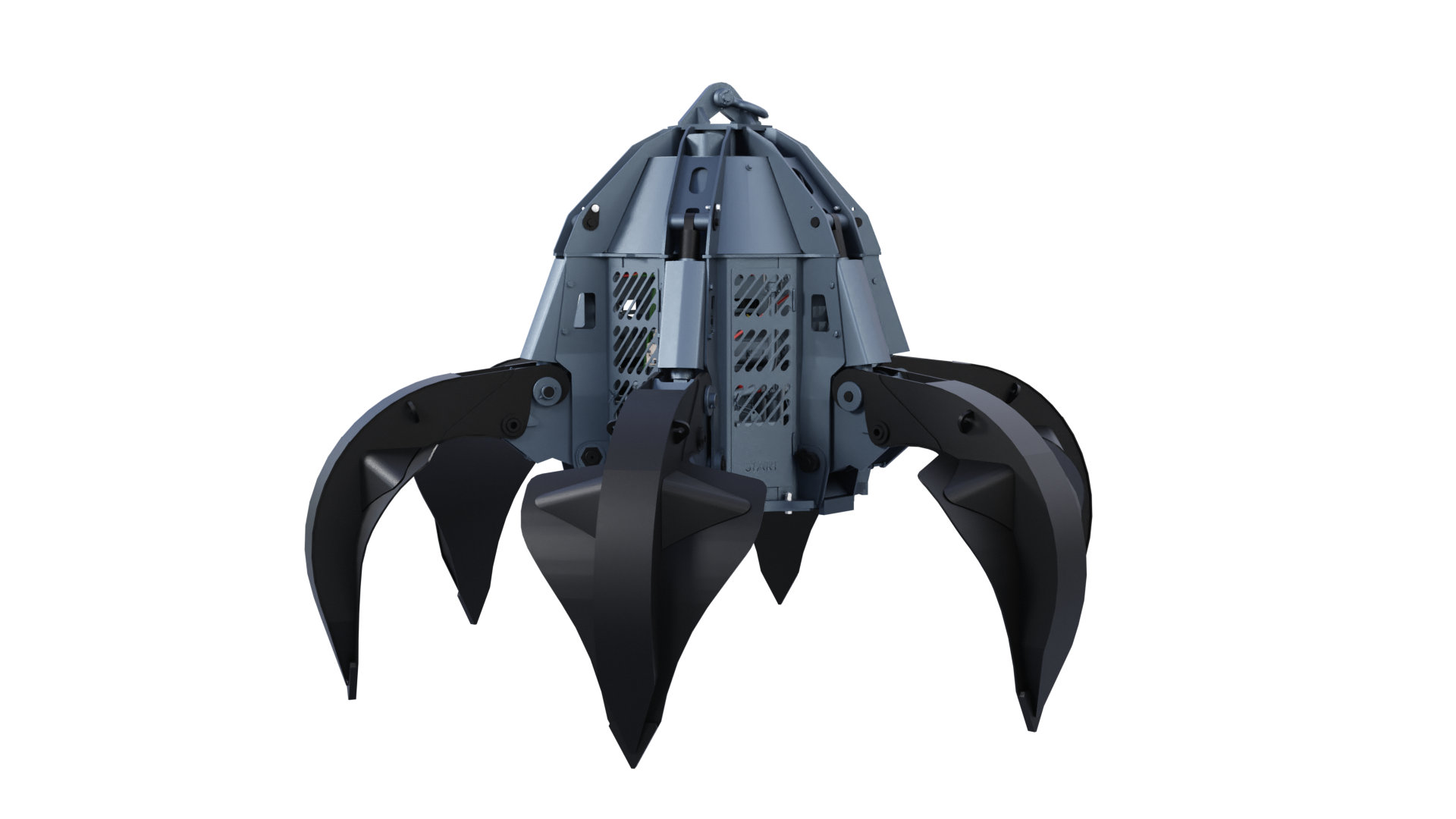

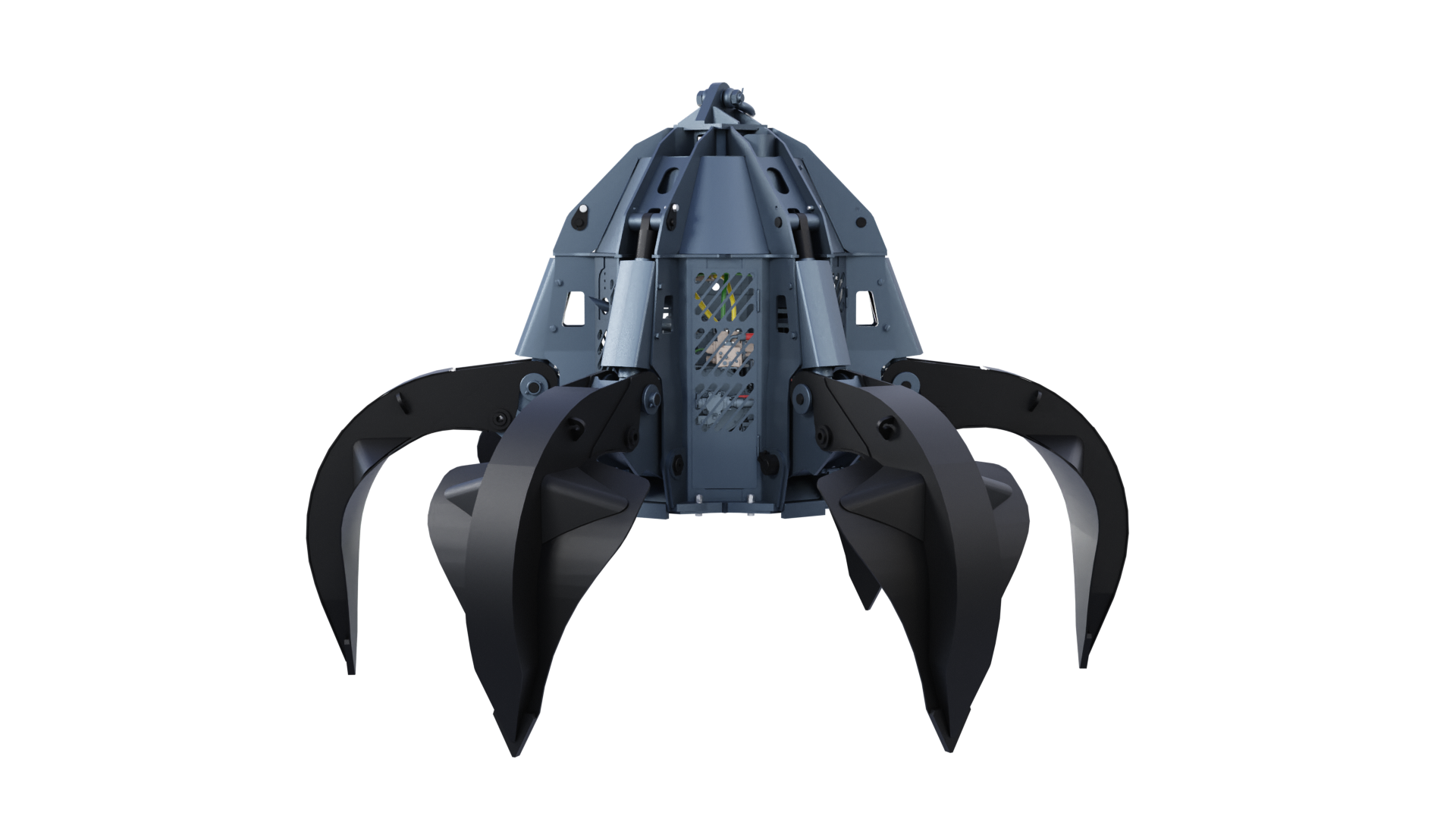

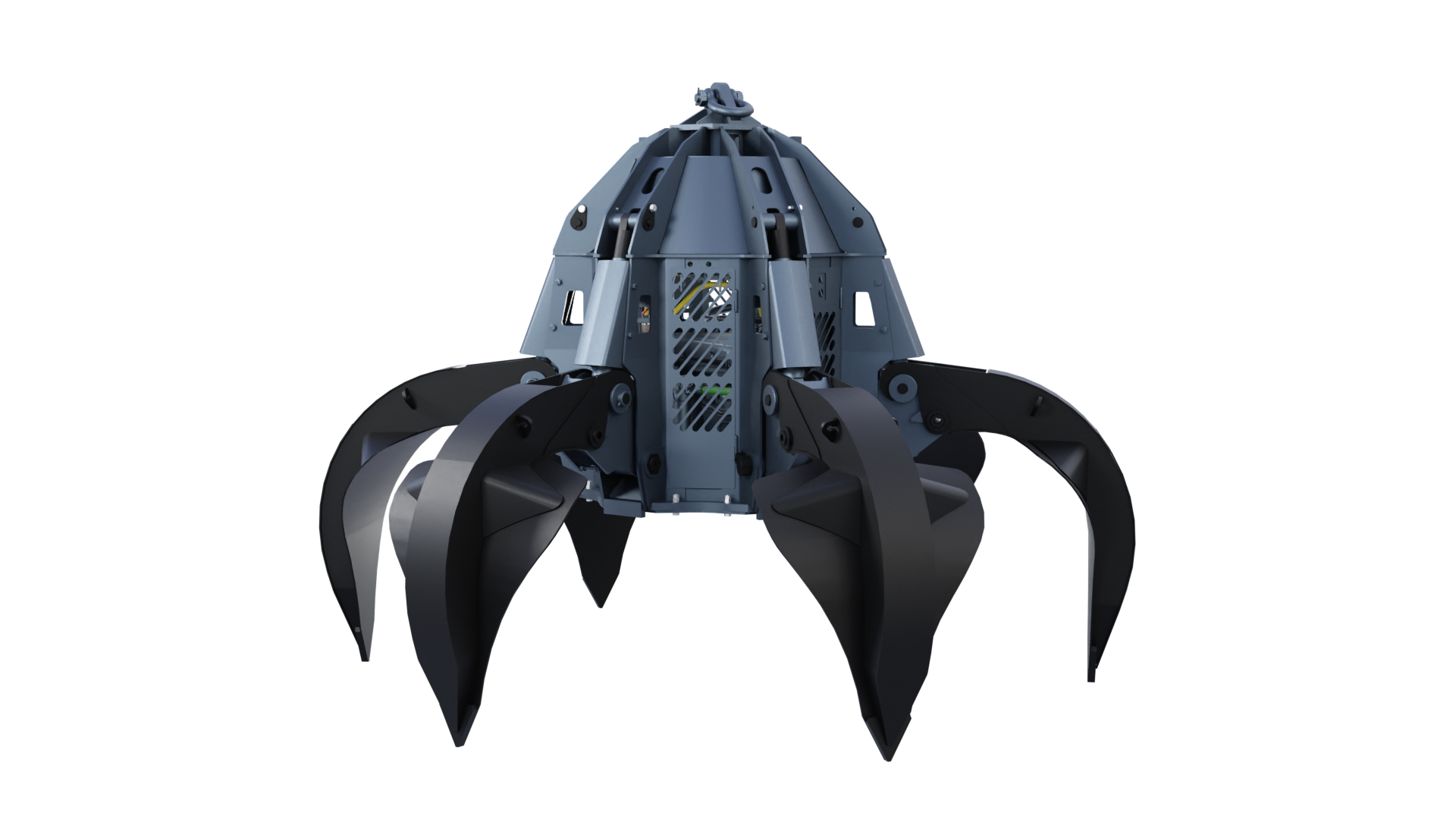

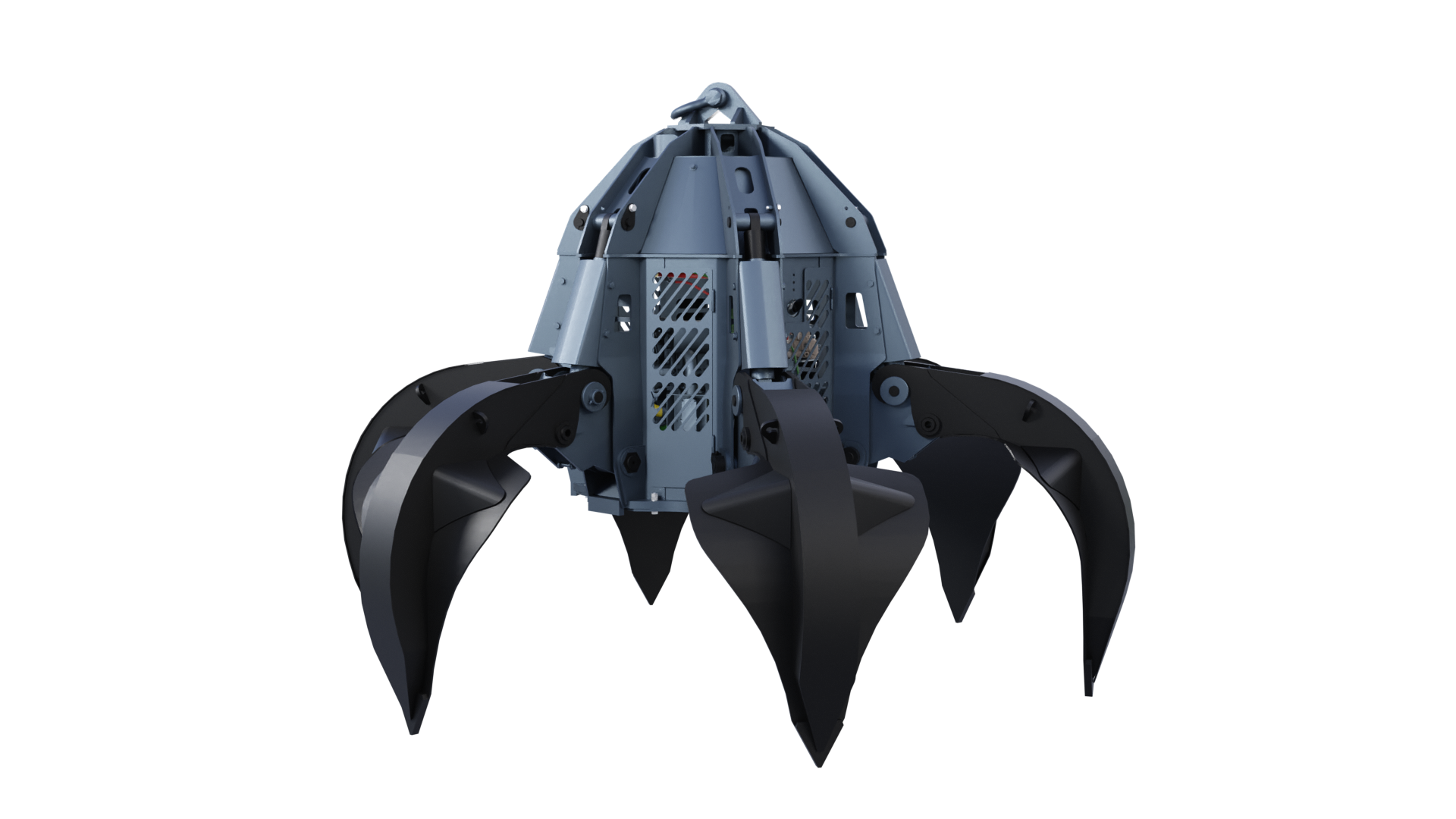

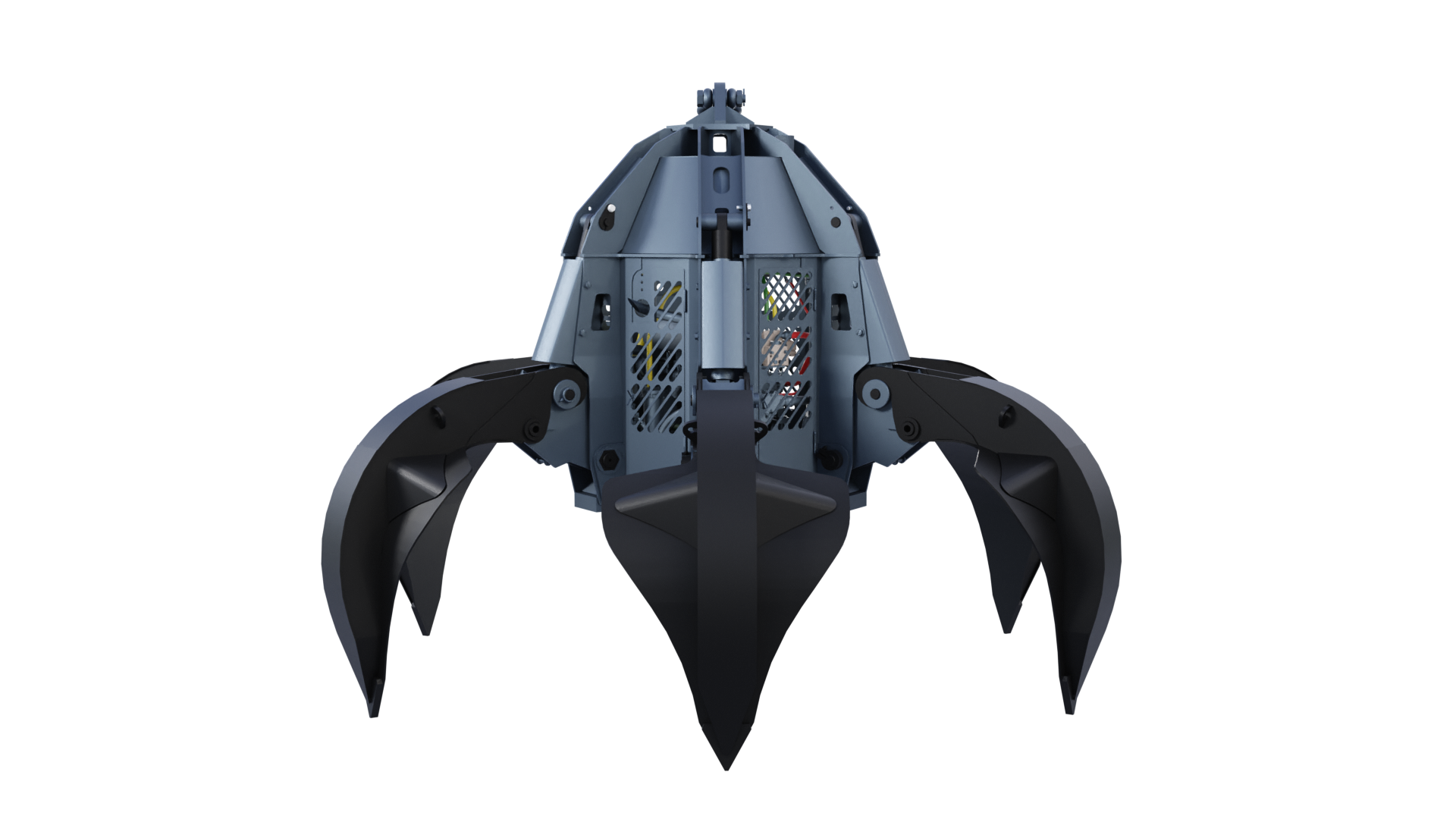

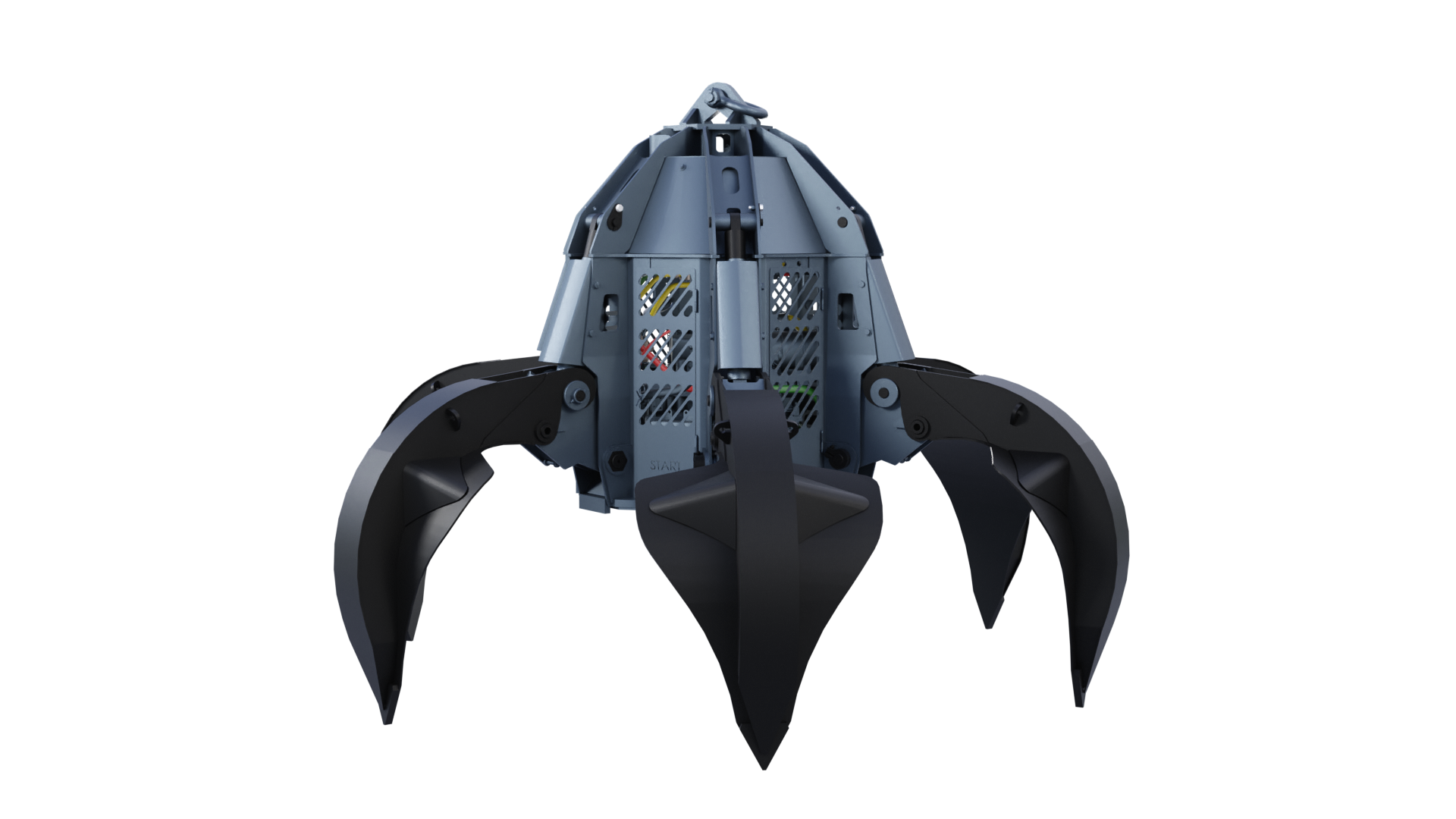

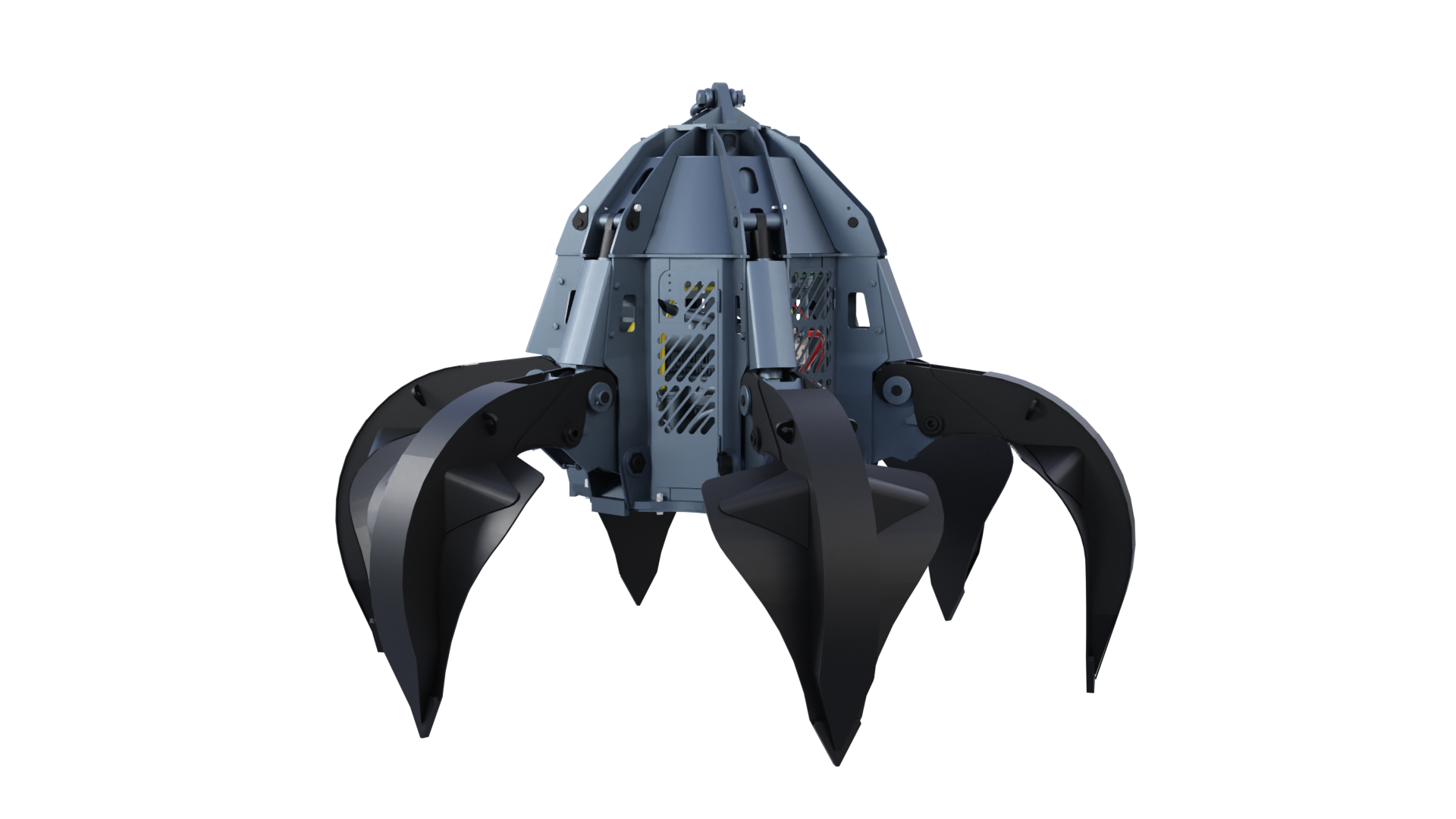

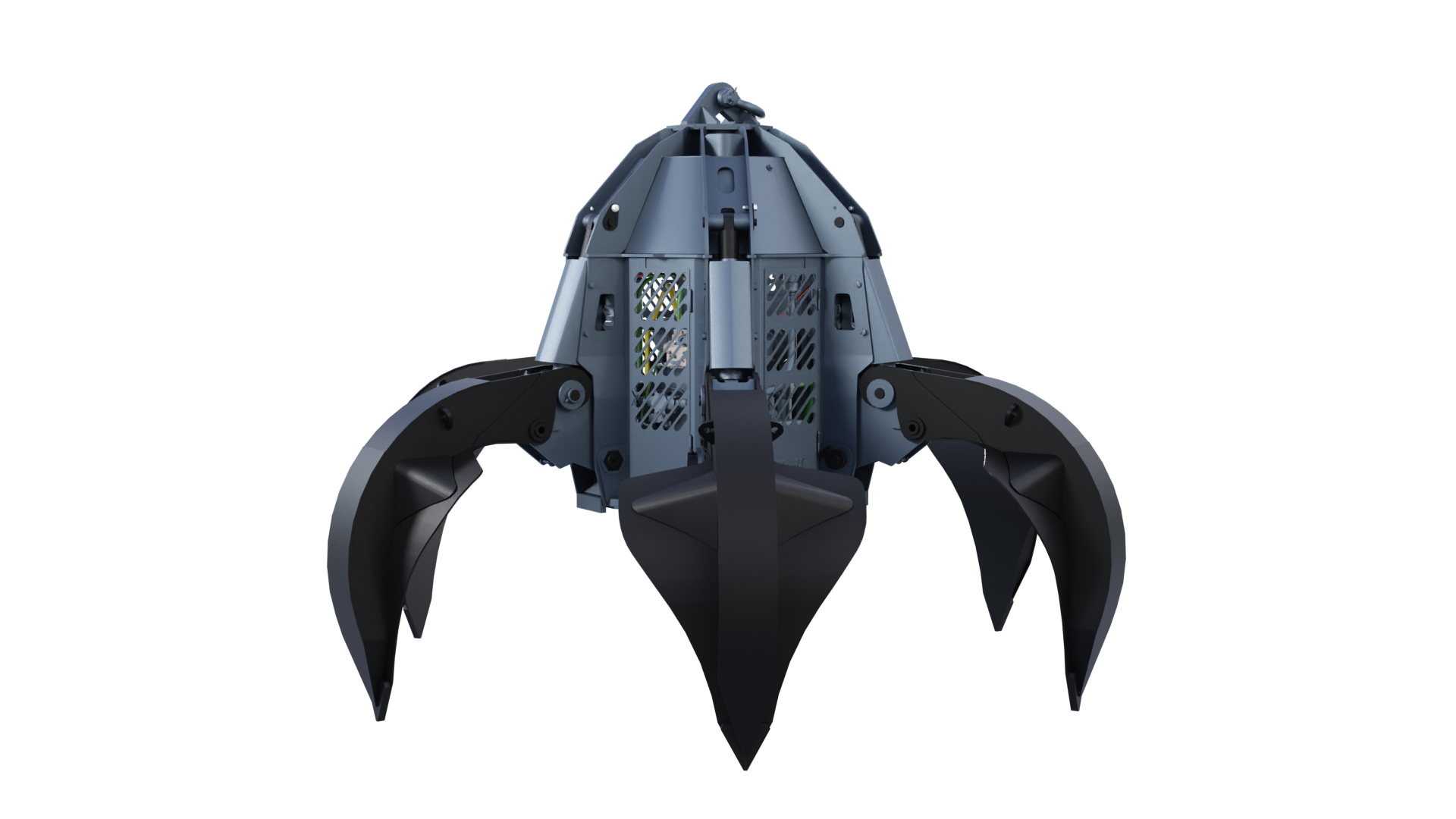

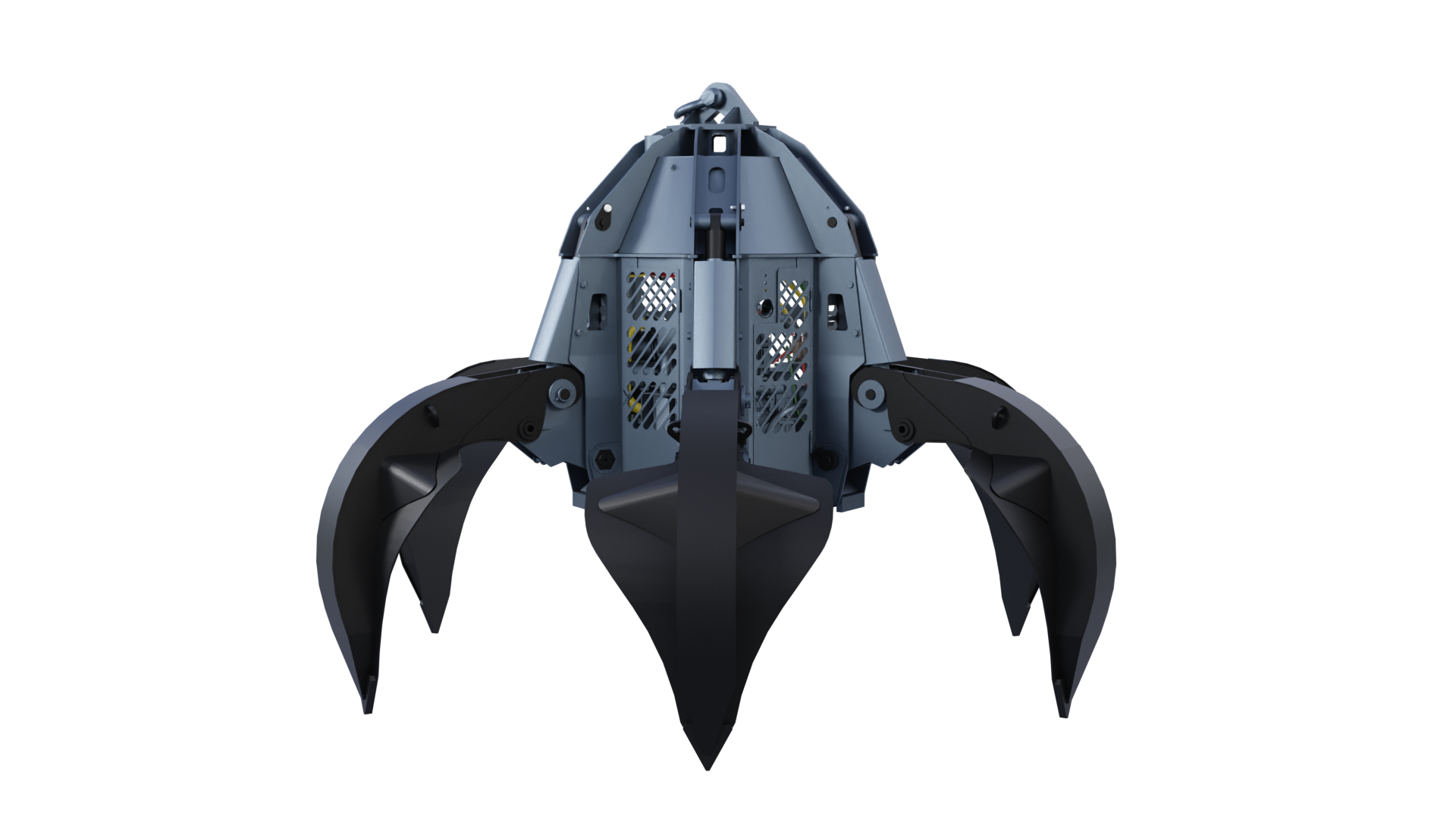

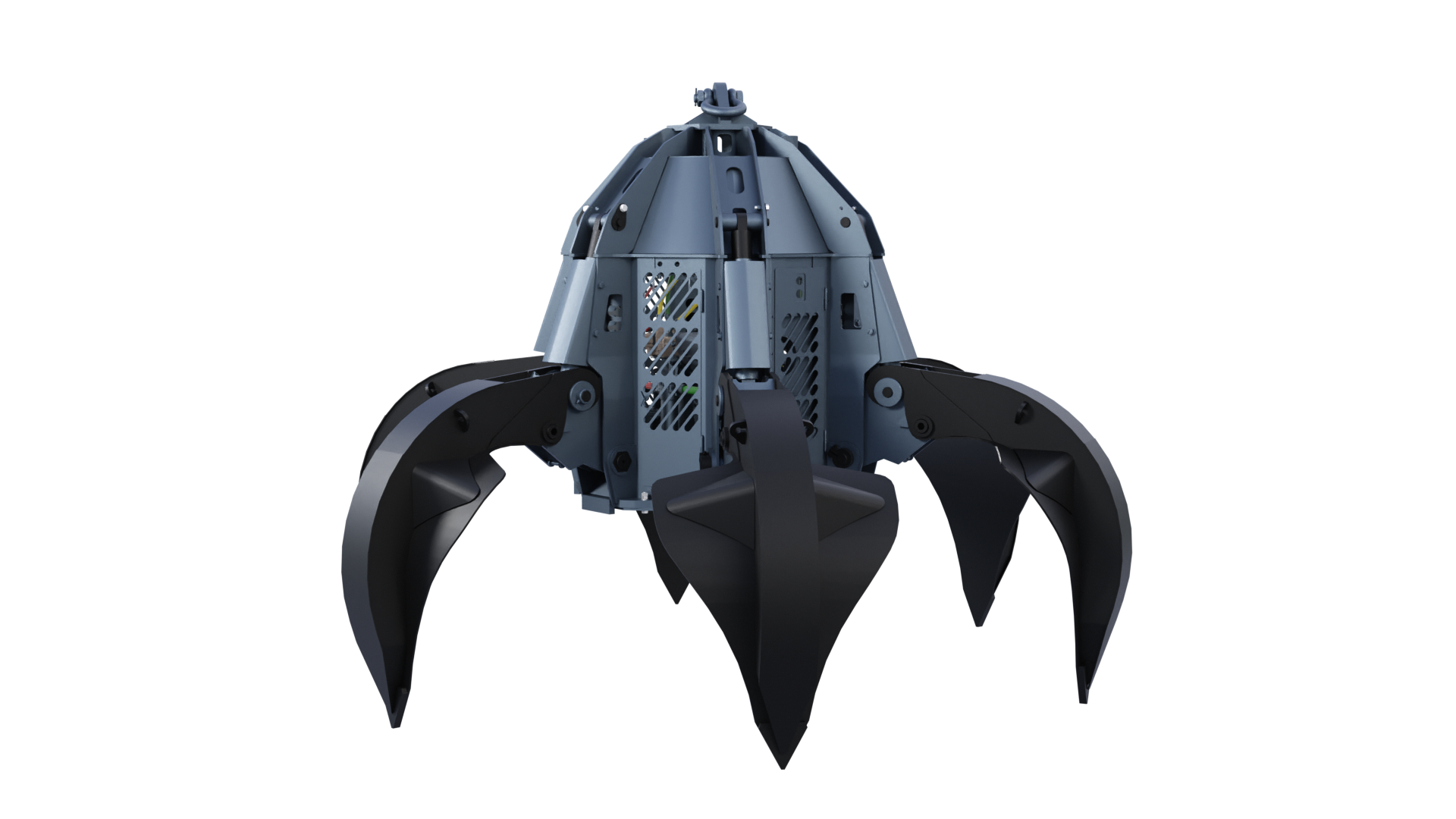

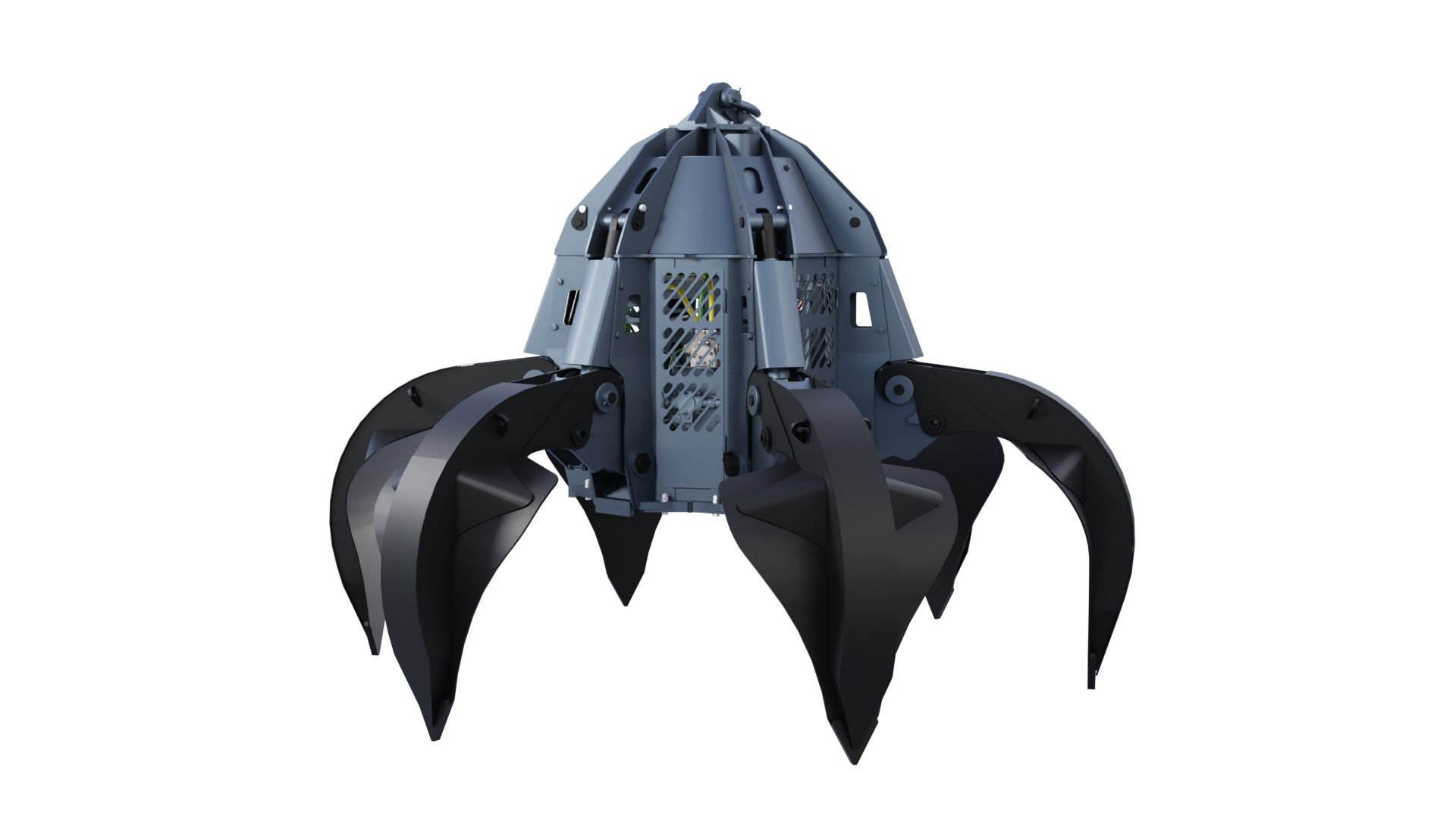

Bateman Ships Gear Grapple Image
| | | | |
-180° 180°

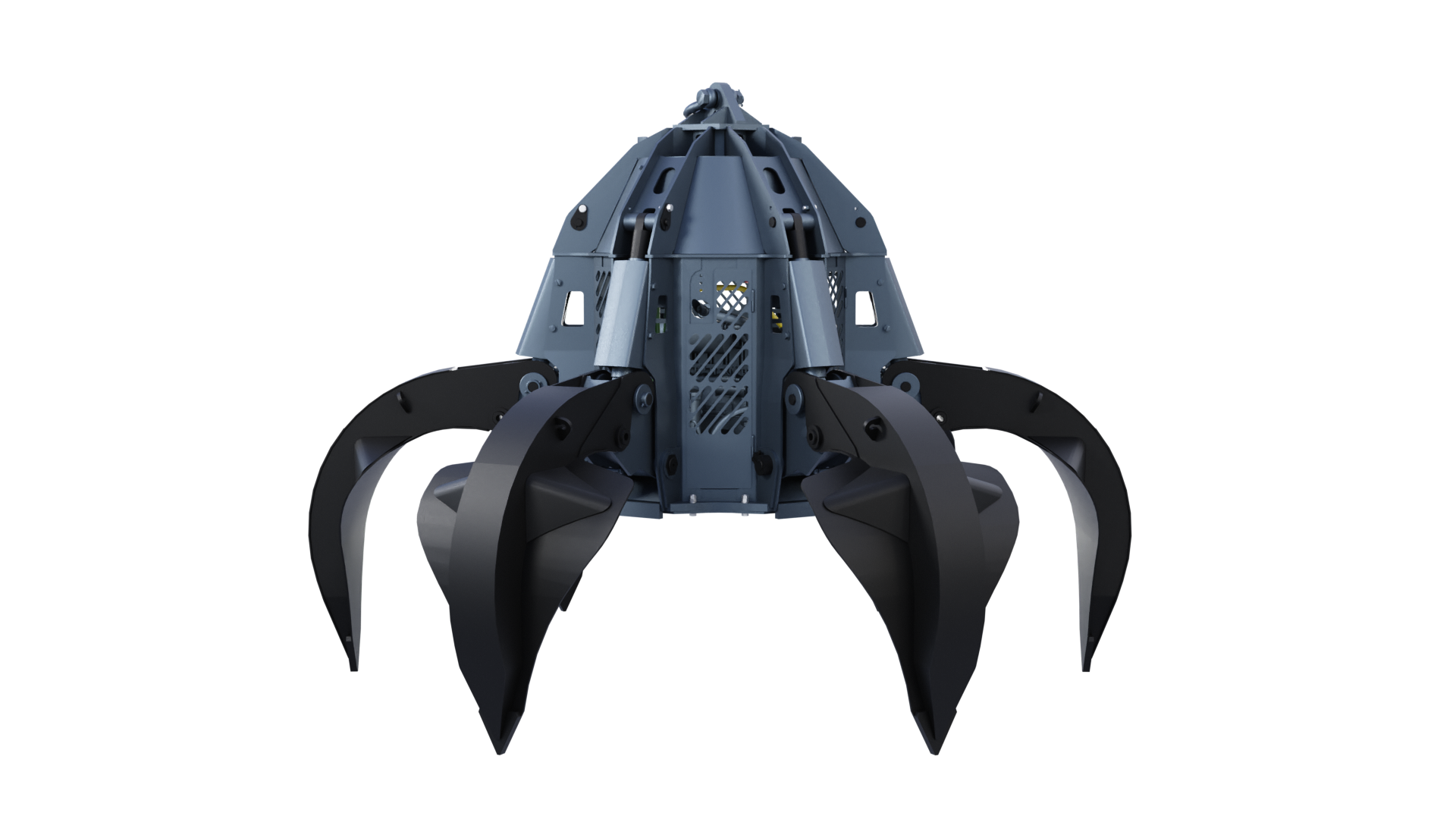

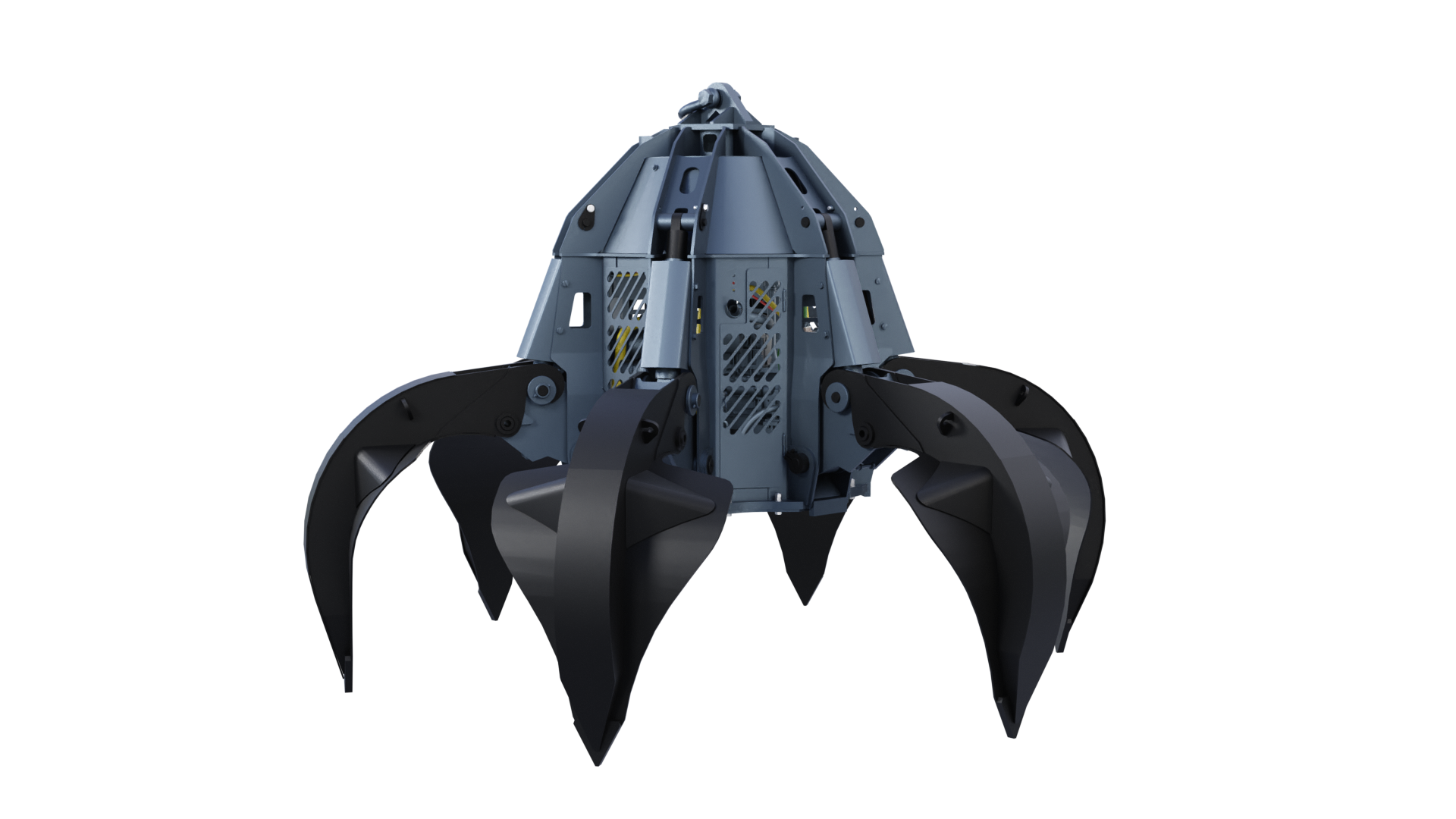

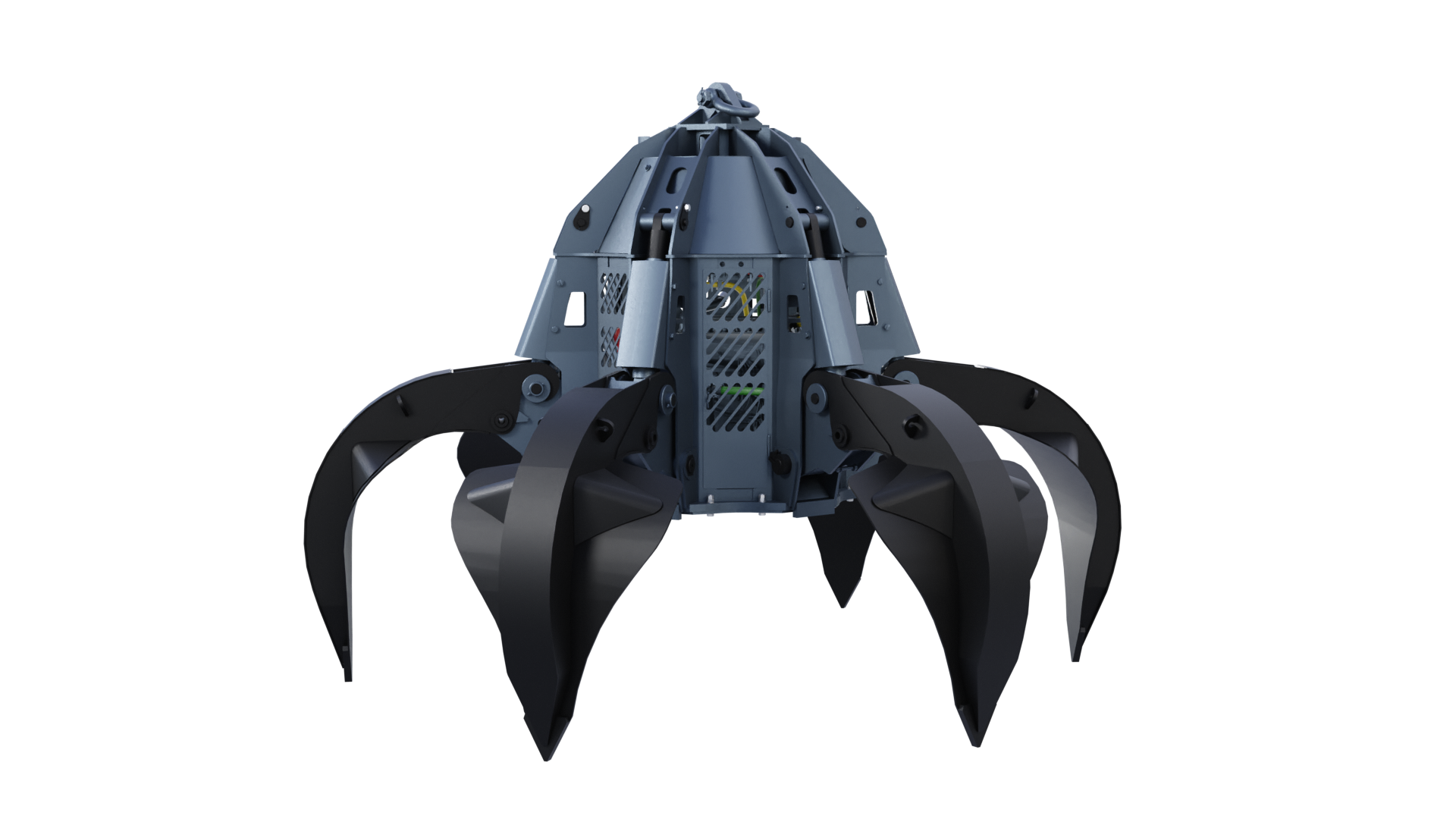

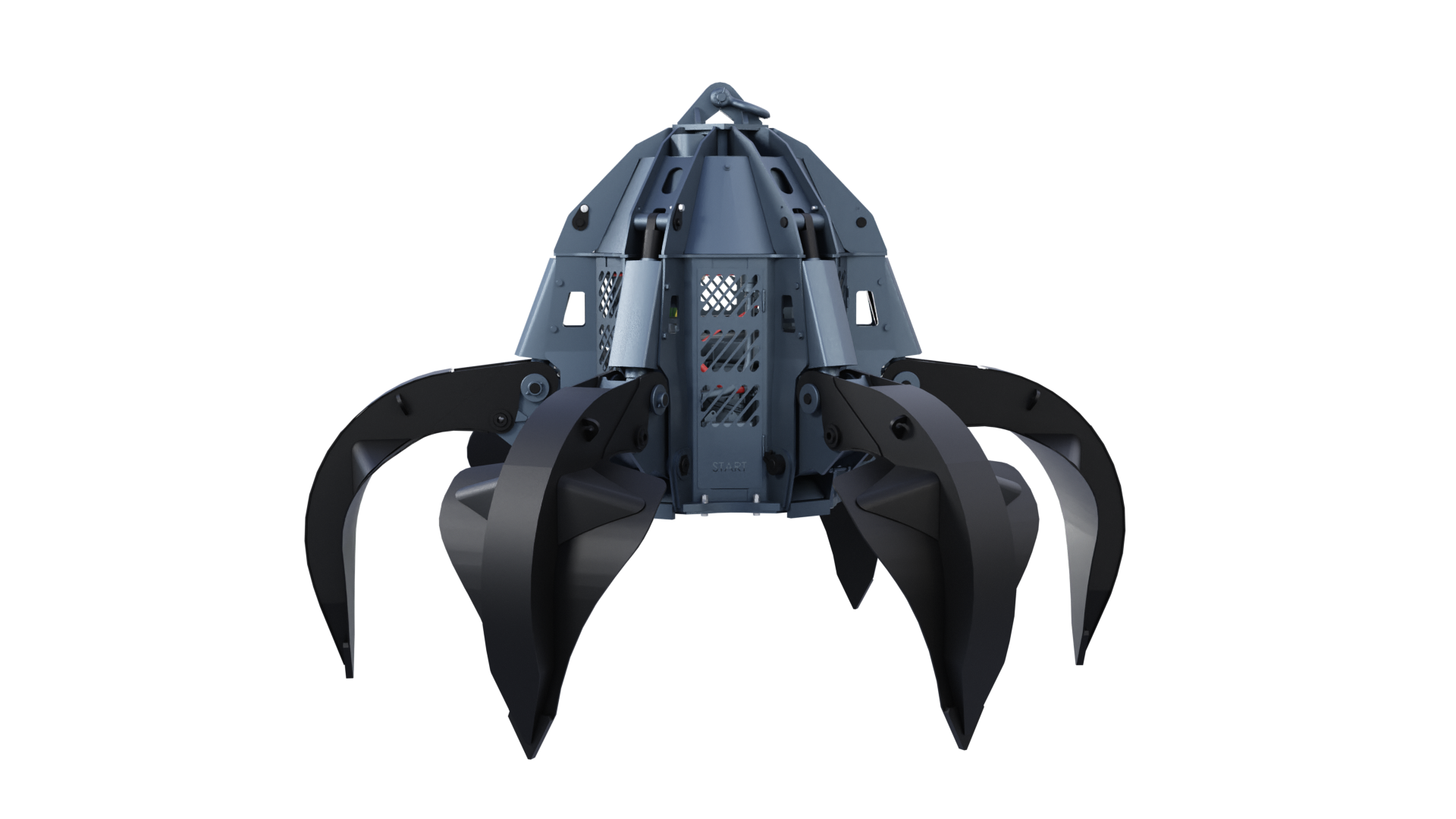

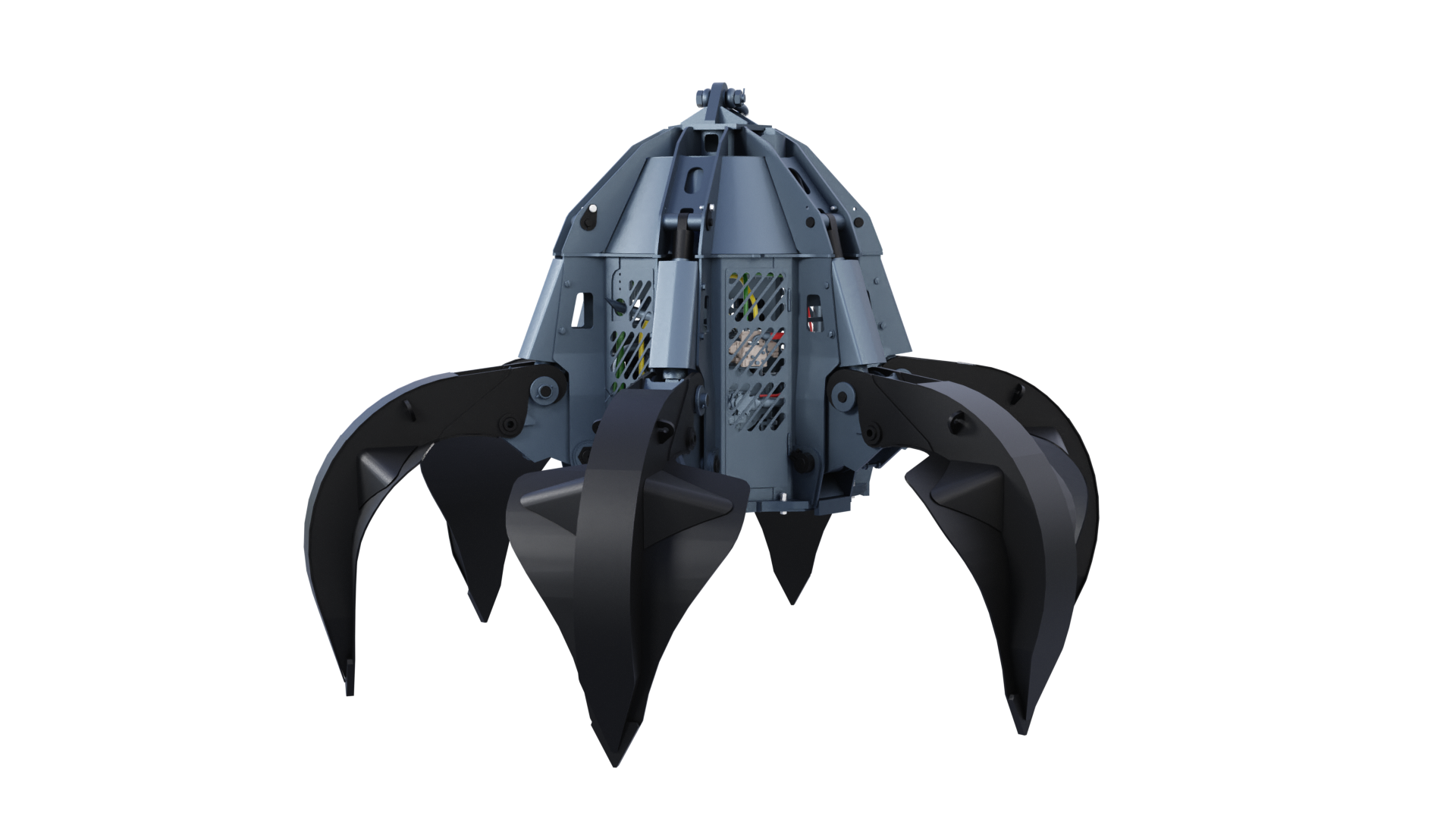

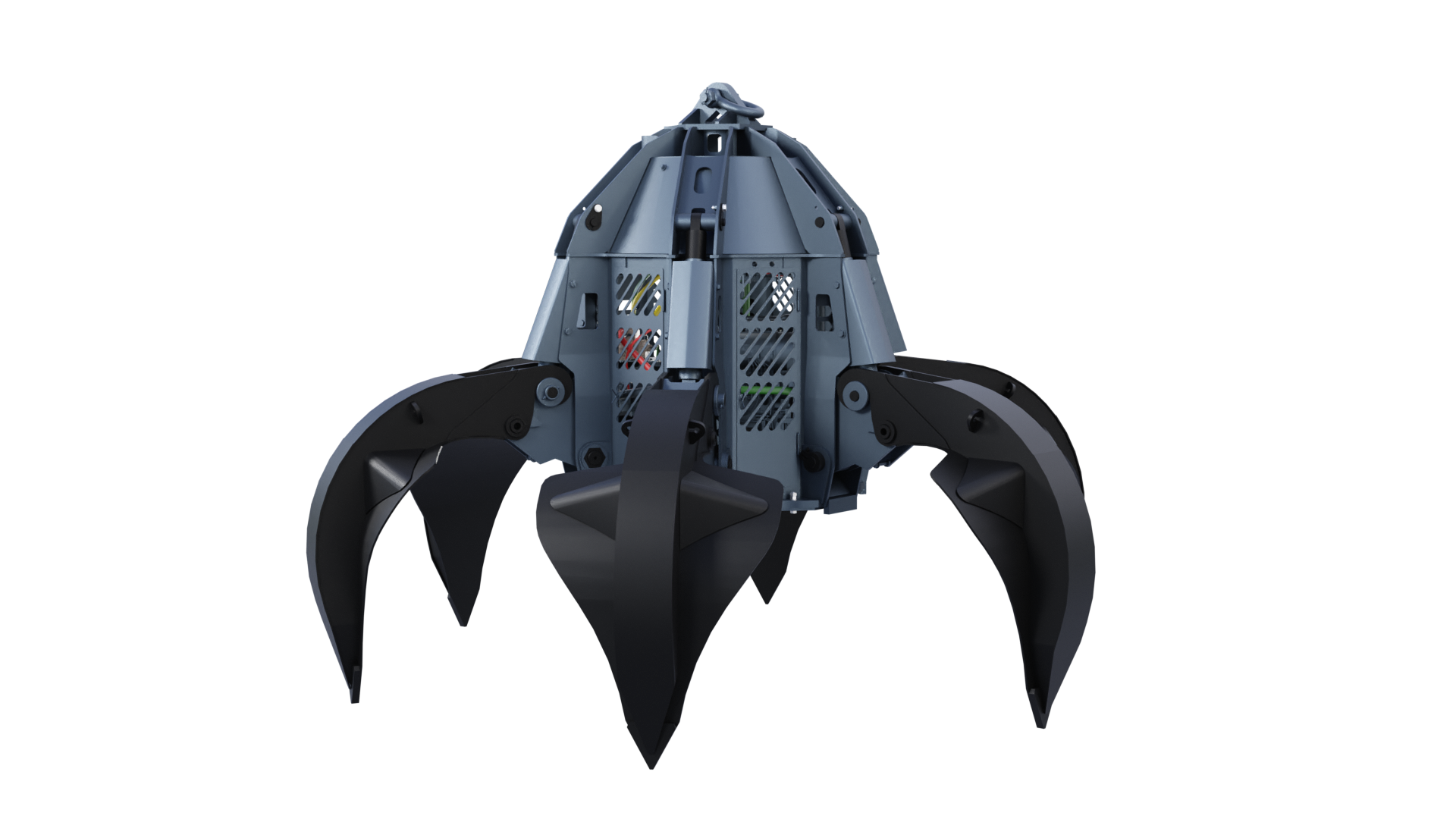

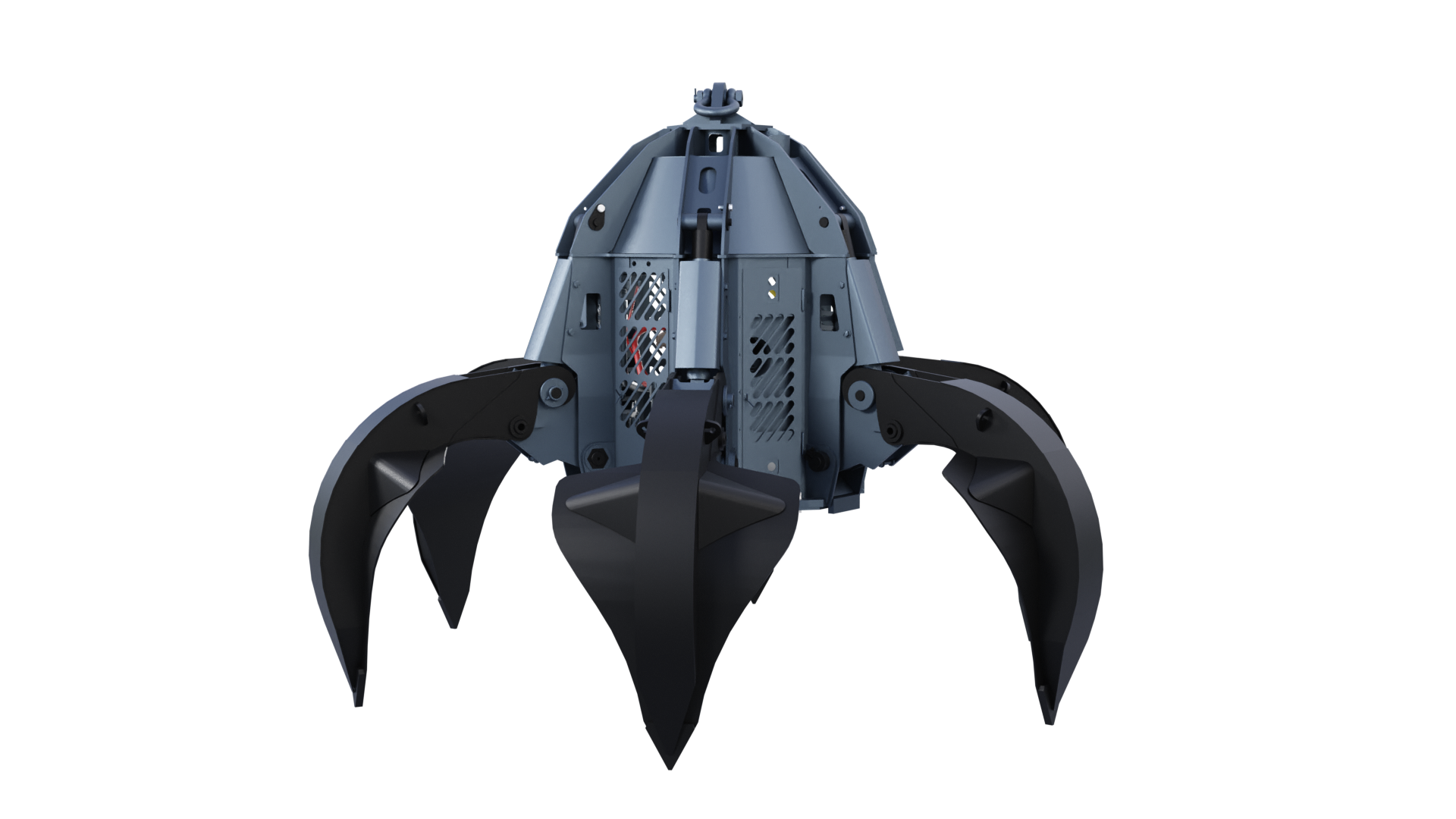

Bateman Ships Gear Grapple Image

B5TD & B6TD Models

Bateman Diesel Hyrdaulic Grabs are Purpose Built For The Port. Reduce Demurrage Fees With a Large Capacity. Reliable, Durable & Effective. The Split Body Construction Allows Complete and Easy Access To The Engine. The Hinged Access Doors Allow Easy Access For Inspection and Preventative Maintenance.

  • Heavy Duty Tines. Ultimate Cylinder Protection.

  • Leak Free with Split Flange Fittings.

  • Easy Engine and Pump Access.

  • Port Material Handling.

PRODUCT SPECIFICATIONS

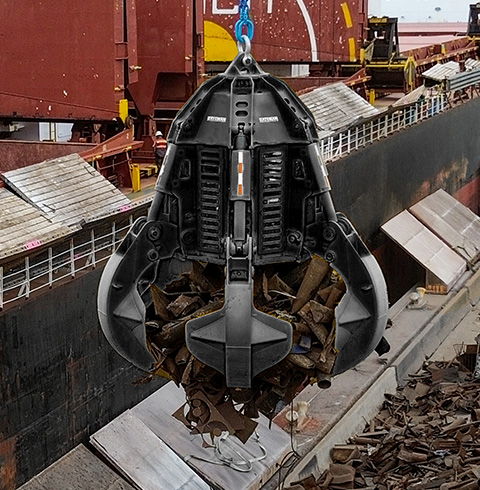

The Bateman Ships Gear Grapple otherwise known as a Diesel Hydraulic Grab is purpose built for the port. Reduce demurrage fees with a large capacity. Reliable, durable & effective. The split body construction allows complete and easy access to the engine. The hinged access doors allow easy access for inspection and preventative maintenance.

Easy-access cylinder hoses and fuel filling, no leaks. All hose connections are high pressure SAE split flange fittings and well protected. The wide body design gives cylinders 100% protection. The best heavy-duty tines with thicker, wear resistant material in high wear zones. Open, closed, and semi-closed configurations.



TECHNICAL SPECIFICATIONS

Model B5TD-500SC
Engine 64HP DEUTZ 4 CYL TURBO
Max. Opening in (mm) 142 (3,607)
Width in (mm) 163 (4,140)
Height Open in (mm) 129 (3,277)
Volume yd³ (m³) 4.5 (3.5)
Max Closing Force lb (kg) 83,940 (38,075)
Height Closed in (mm) 141 (3,581)
Weight lb (kg) 13,000 (5,897)
Model B5TD-600SC
Engine 64HP DEUTZ 4 CYL TURBO
Max. Opening in (mm) 151 (3,835)
Width in (mm) 178 (4,521)
Height Open in (mm) 137 (3,480)
Volume yd³ (m³) 5 (4.5)
Max Closing Force lb (kg) 80,377 (36,458)
Height Closed in (mm) 152 (3,861)
Weight lb (kg) 13,500 (6,123)
Model B5TD-700SC
Engine 64HP DEUTZ 4 CYL TURBO
Max. Opening in (mm) 164 (4,166)
Width in (mm) 184 (4,674)
Height Open in (mm) 133 (3,378)
Volume yd³ (m³) 6.3 (5.3)
Max Closing Force lb (kg) 73,500 (33,339)
Height Closed in (mm) 154 (3,912)
Weight lb (kg) 14,000 (6,350)
Model B6TD-1000FC
Engine 97HP DEUTZ AIR COOLED
Max. Opening in (mm) 203 (5,156)
Width in (mm) 219 (5,563)
Height Open in (mm) 146 (3,708)
Volume yd³ (m³) 9 (7.6)
Max Closing Force lb (kg) 97,645 (44,291)
Height Closed in (mm) 170 (4,318)
Weight lb (kg) 22,700 (10,297)
Model B6TD-1300FC
Engine 130HP DEUTZ CUMMINS TIER 4
Max. Opening in (mm) 209 (5,309)
Width in (mm) 234 (5,944)
Height Open in (mm) 168 (4,267)
Volume yd³ (m³) 11.8 (9.9)
Max Closing Force lb (kg) 92,279 (41,857)
Height Closed in (mm) 182 (4,623)
Weight lb (kg) 32,000 (12,515)

COMPATIBILITY

  • Cargo Handling Equipment
  • Port Material Handling
  • Stevedoring Applications
  • Crane Ships Gear Grapple

Request a quote to find the right Hydraulic Grab for your operation!

Options

Scrap Tines. Rock Tines. Pin-on Tine Ground Engaging Tips.
