Fork Racks

product--img

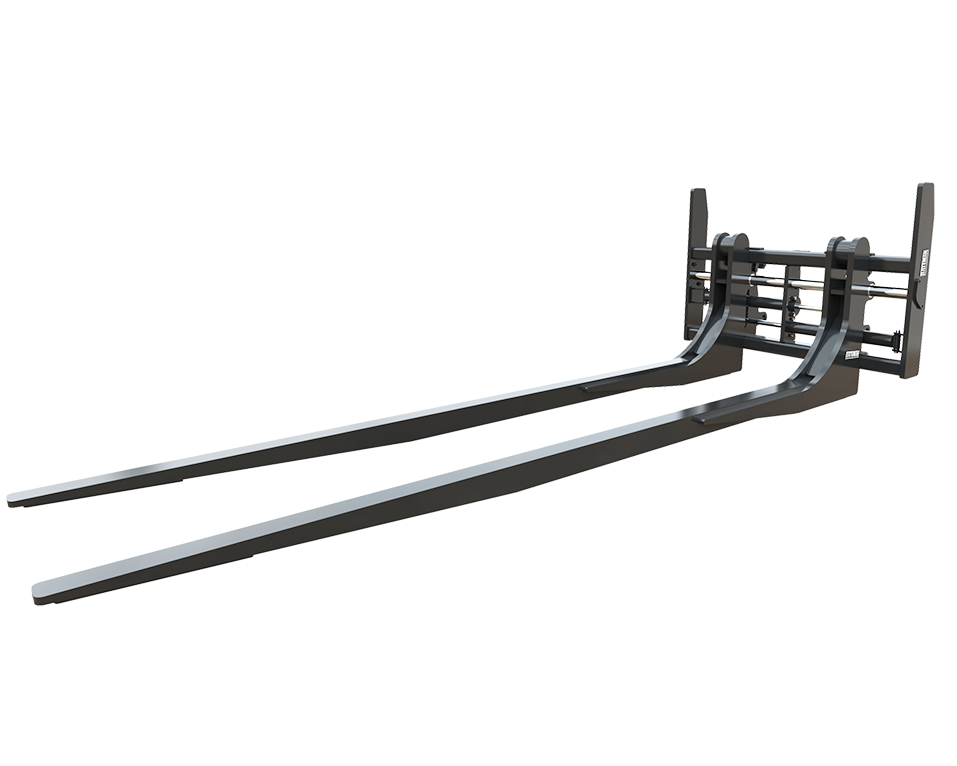

Bateman Fork Rack, Wheel Loader Fork Rack
Bateman Fork Rack, Wheel Loader Fork Rack

Wheel Loader Fork Rack

BATEMAN designs and manufactures a wide variety of fork racks suitable for an assortment of industries.

  • Robust, heavy-duty build.
  • Adjustable pallet forks.
Get a quote
Download selling sheet

PRODUCT SPECIFICATIONS

Product Specification

All BATEMAN fork racks are certified welded construction and come ready to fit your equipment. BATEMAN Fork Racks are supplies with pin-on lugging or quick coupler hooks. Wheel loader quick couplers are also available for all makes and models.

TECHNICAL SPECIFICATIONS

Model BN22467
Machine Class 20t - 40t
Length in (mm) 144 (3,658)
Width in (mm) 47 (1,194)
Tine Height in (mm) 41 (1,041)
Capacity at Load Centre lb (kg) 17,600 (7,983)/Pair
Load Centre in (mm) 72 (1,829)
Tine Dimensions in (mm) 4 x 5 x 144 (102 x 127 x 3658)
Weight (lb) 3,150 (1,429)
Download literature
Model BN22867
Machine Class 40t - 50t
Length in (mm) 144 (3,658)
Width in (mm) 49 (1,245)
Tine Height in (mm) 41.5 (1,054)
Capacity at Load Centre lb (kg) 16,500 (7,484)/Pair
Load Centre in (mm) 72 (1,829)
Tine Dimensions in (mm) 3 x 5 x 144 (76 x 127 x 3226)
Weight (lb) 2,750 (1,247)
Download literature
Model BN23064
Machine Class 50t - 70t
Length in (mm) 168 (4,267)
Width in (mm) 40 (1,016)
Tine Height in (mm) 41.5 (1,054)
Capacity at Load Centre lb (kg) 15,000 (6,804)/Pair
Load Centre in (mm) 84 (2,134)
Tine Dimensions in (mm) 4 x 5 x 168 (102 x 127 x 4267)
Weight (lb) 3,350 (1,519)
Download literature

Request Quote To Find The Right Fork Rack For Your Machine!

Adjustable pallet forks, standard, and high-back car, and more are available upon request!
