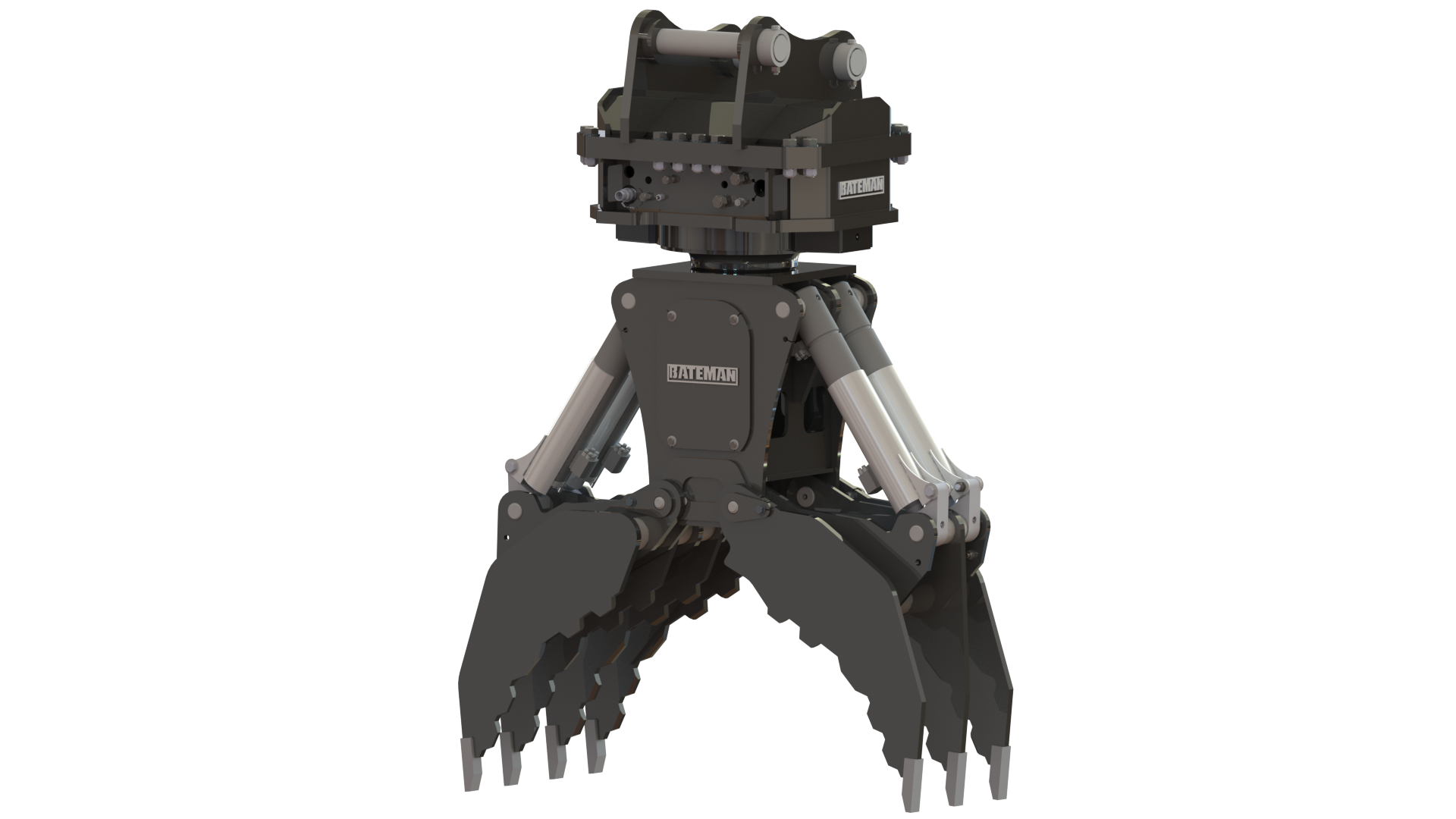

Bateman Wood Pulverizer Grapple

product--img
Bateman Wood Pulverizer Grapple - BWPG
Bateman Wood Pulverizer Grapple - BWPG

BWPG Series

The Bateman Wood Pulveriser Grapple is engineered to deliver power, precision, and durability in the toughest working environments in the recycling industry. Equipped with the 200 Series Manipulating Rotator, it offers unlimited rotation for optimal maneuverability and maximum efficiency on the job site.

With an impressive lifting capacity of 112,000 lb (50,802 kg) and a maximum torque of 175,200 lb-in (19,794.9 Nm), this rotator provides all the strength needed to handle heavy loads with confidence. Its hydraulic flow of 30 gpm (114 L/min) and rotation speed of 18 rpm ensure smooth and consistent performance, while its weight of only 770 lb (349 kg) makes integration easy.

The GC20T-060 grapple features a 62” (1574 mm) opening and delivers a crushing force of 112,000 lb (50,802 kg), providing exceptional crushing power. With a 5” (120.7 mm) bypass distance and a 3.5” (89 mm) cylinder bore, it maximizes precision and efficiency. Built to withstand extreme pressures of up to 5000 psi (345 bar), the complete unit weighs 3700 lb (1678 kg) including the rotator.

The Bateman Wood Pulveriser Grapple is the ideal tool for professionals seeking toughness, productivity, and control in their recycling operations.

  • 4 over 3 tine configuration.
  • 62" tip to tip opening.
  • 200series manipulating rotator.

PRODUCT SPECIFICATIONS

Product Specification

200 SERIES MANIPULATING ROTATOR - BWPG

Rotation Lifting capacity Max pressure Max torque Rotator flow Rotation speed Weight (rotator only)
Unlimited 112,000 lbs  3000 psi 175,200 lb-in 30 gpm 18 rpm 770 lb
  50,802 kg 207 bar 19,794.9 Nm 114 L/min 349 kg



GC20T-060 PULVERIZER GRAPPLE

Open Bypass distance Crush force Cylinder bore Cylinder max. pressure Weight (with rotator)
62"  5" 112,000 lbs  3.5  5000 psi 3700 lbs
1574.0 mm 120.7 mm 50,802 kg 89 mm 345 bar 1678 kg
