BATEMAN

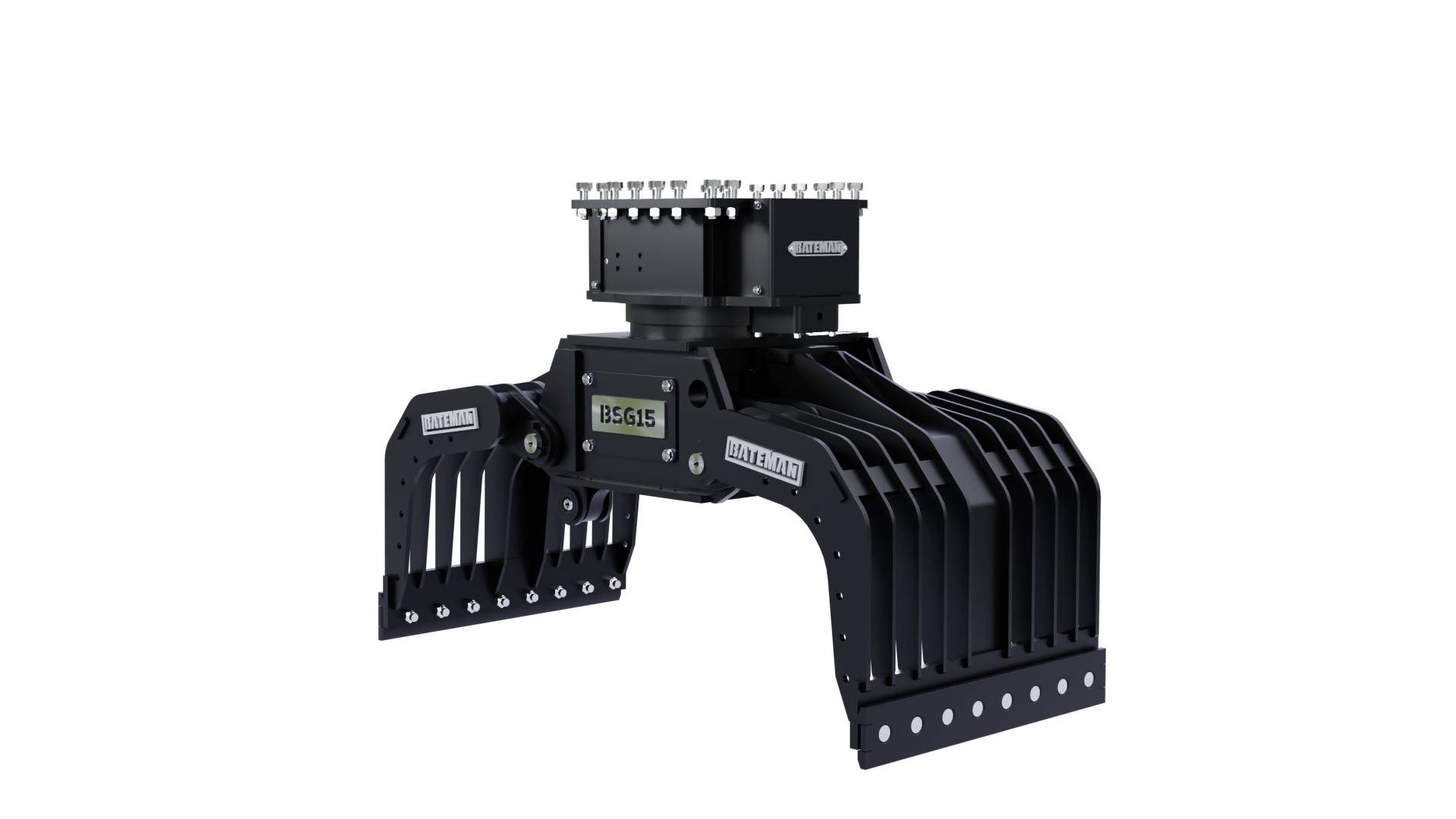

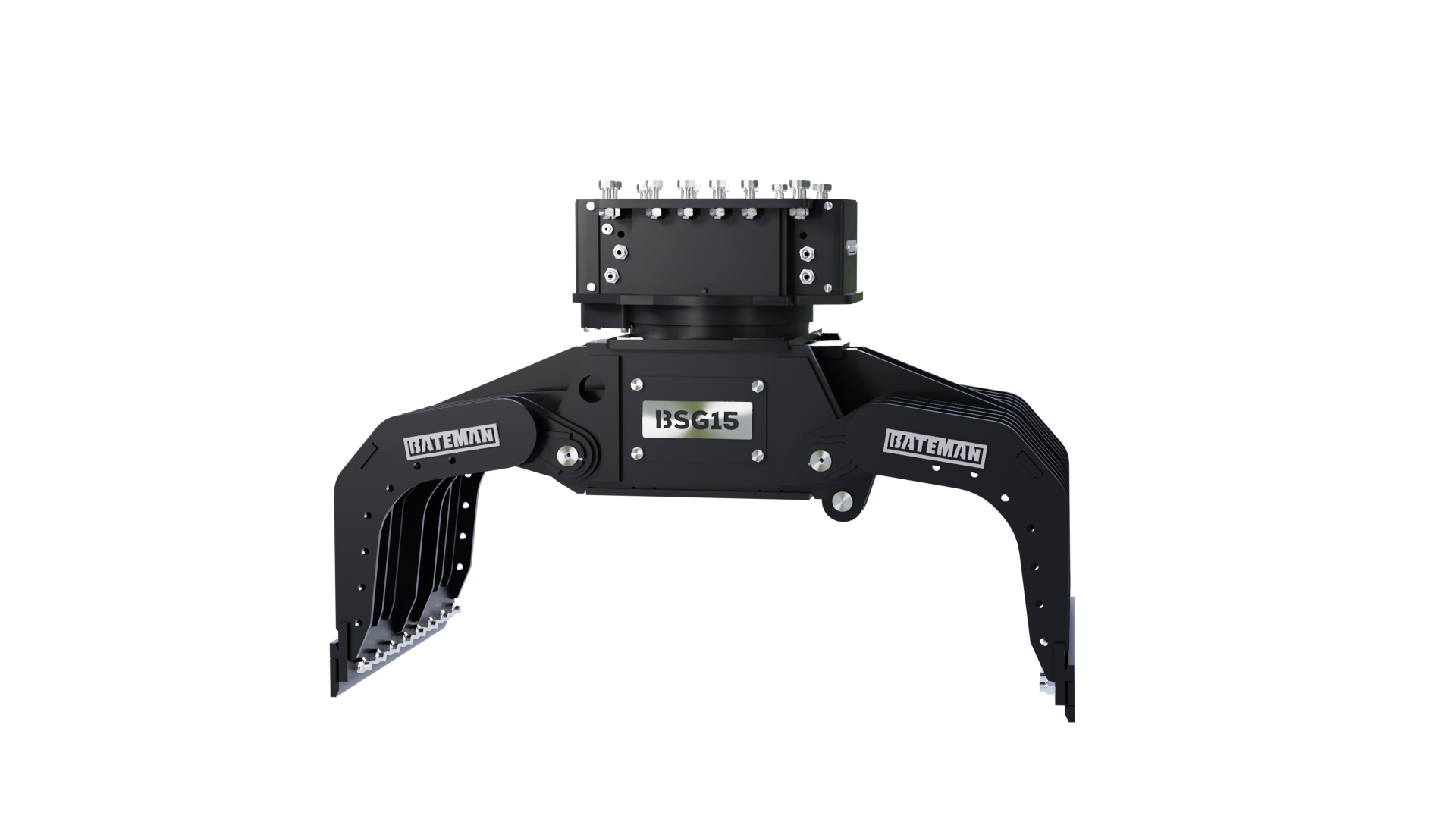

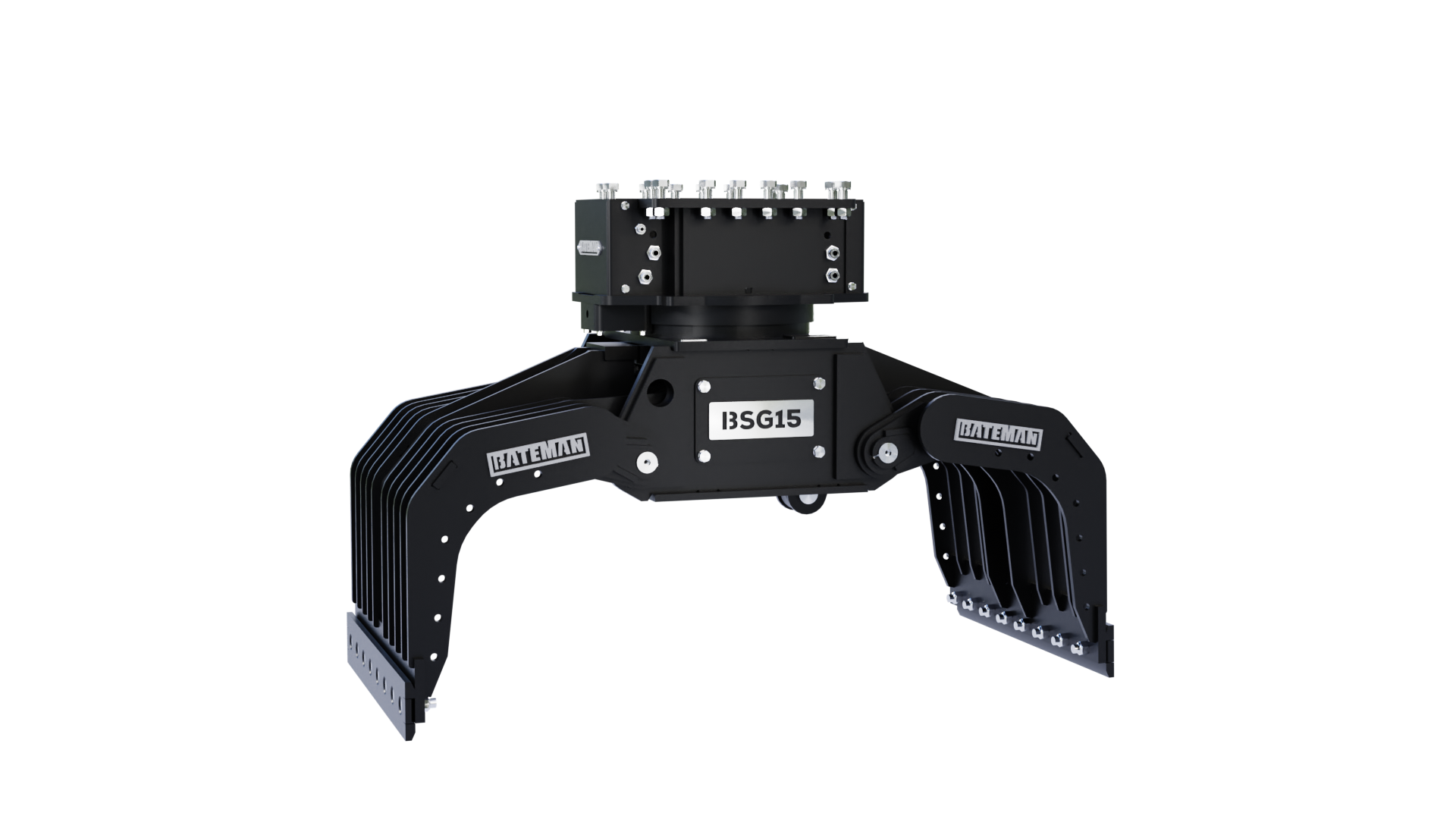

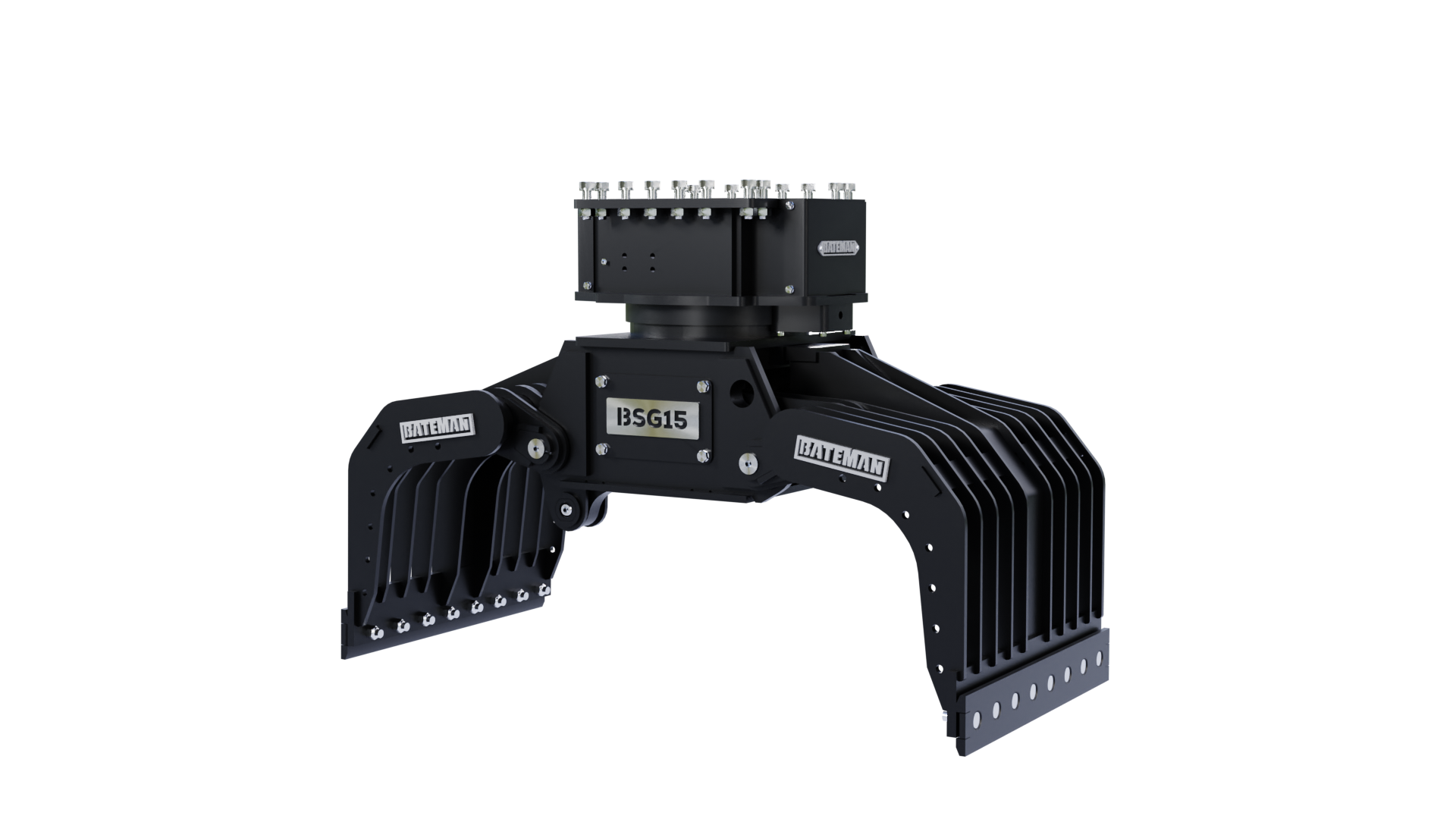

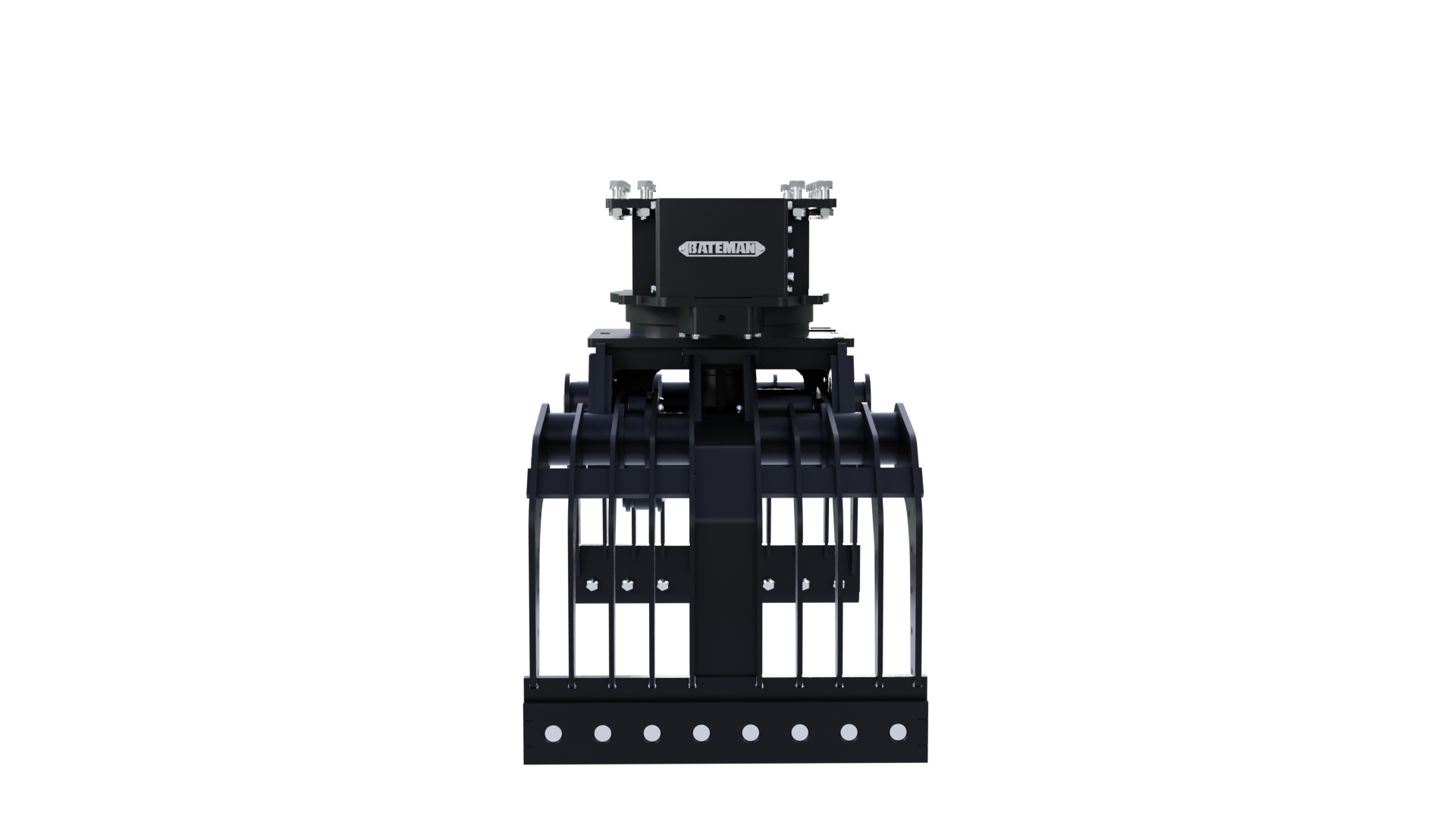

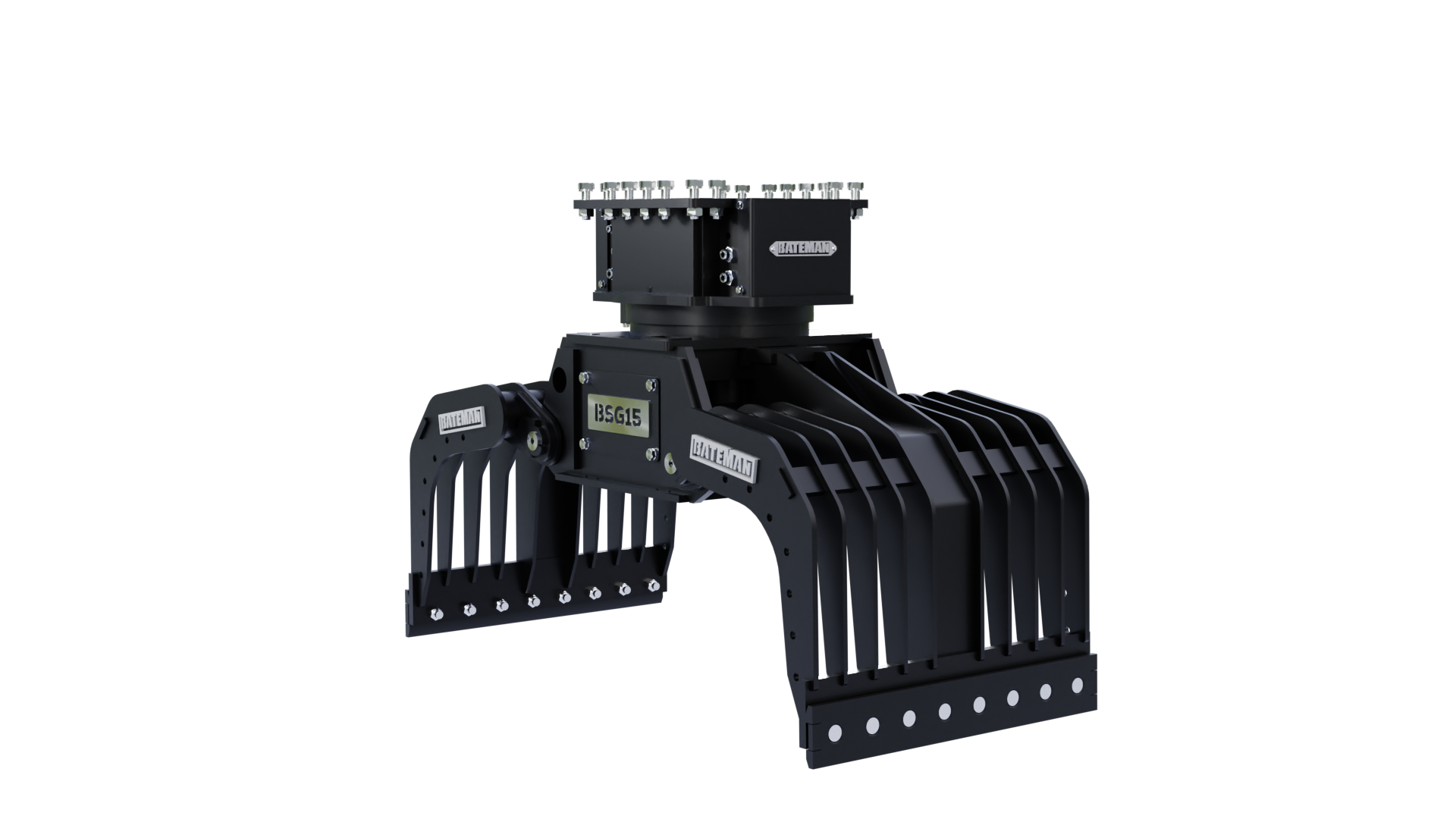

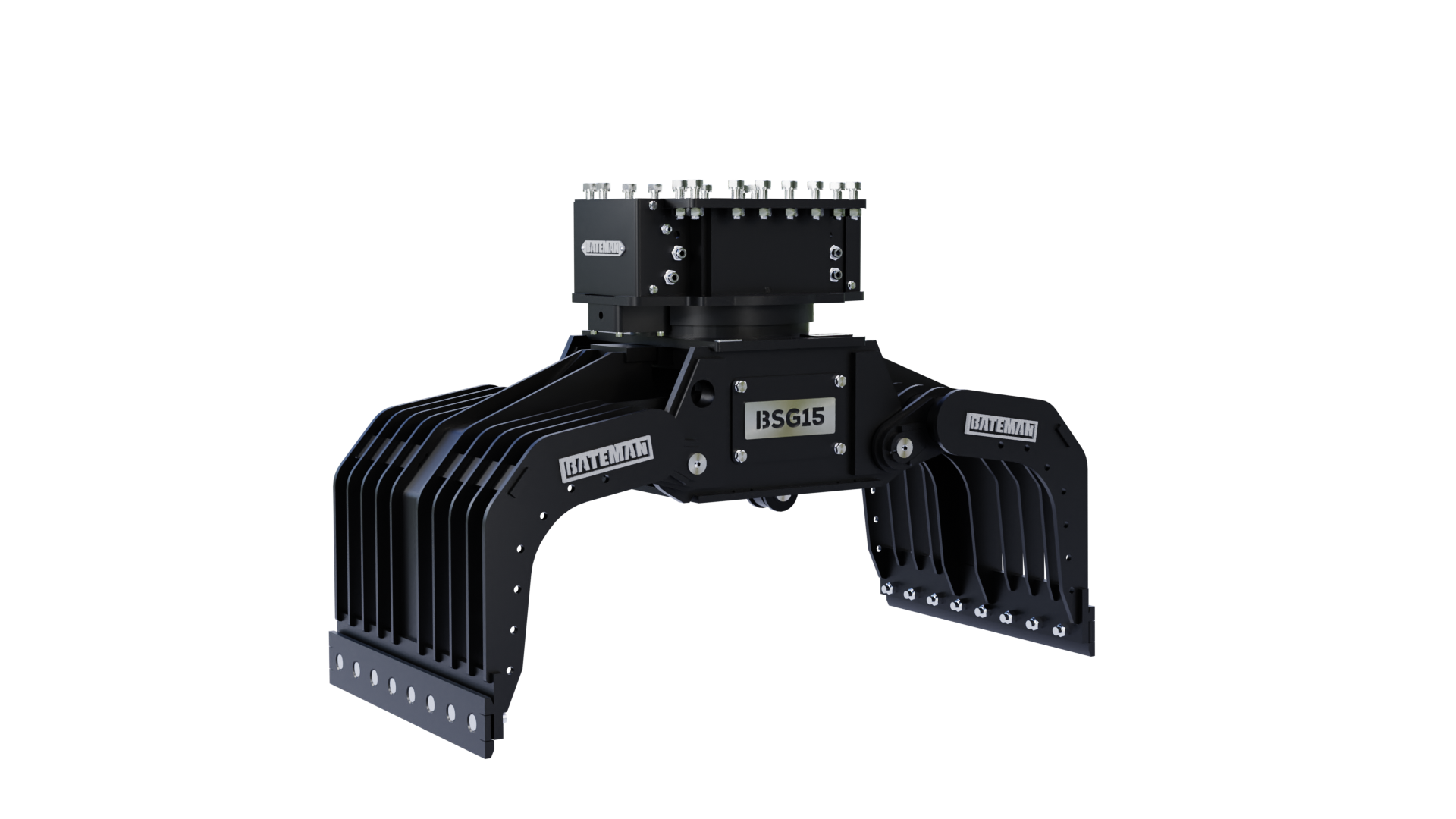

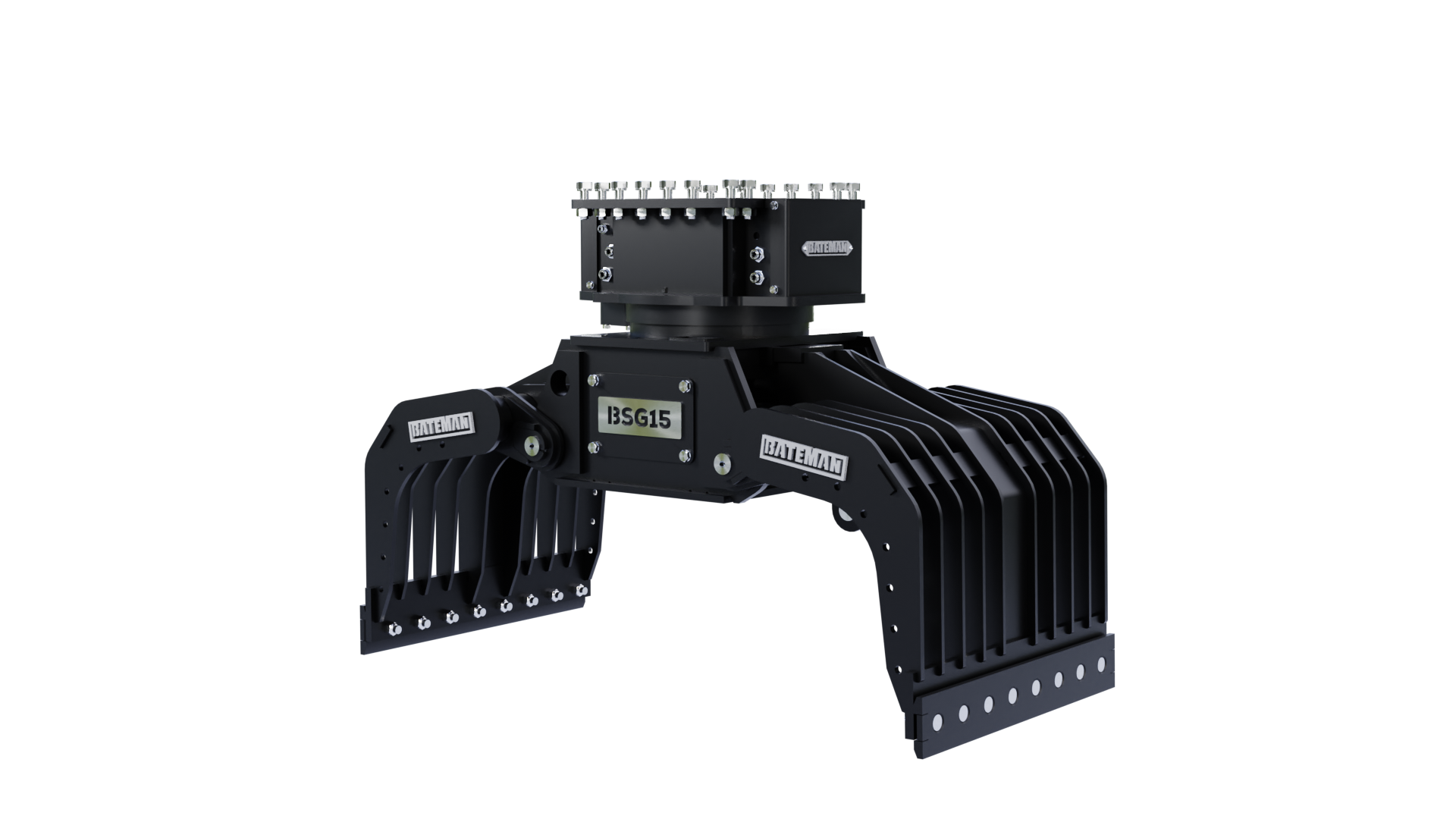

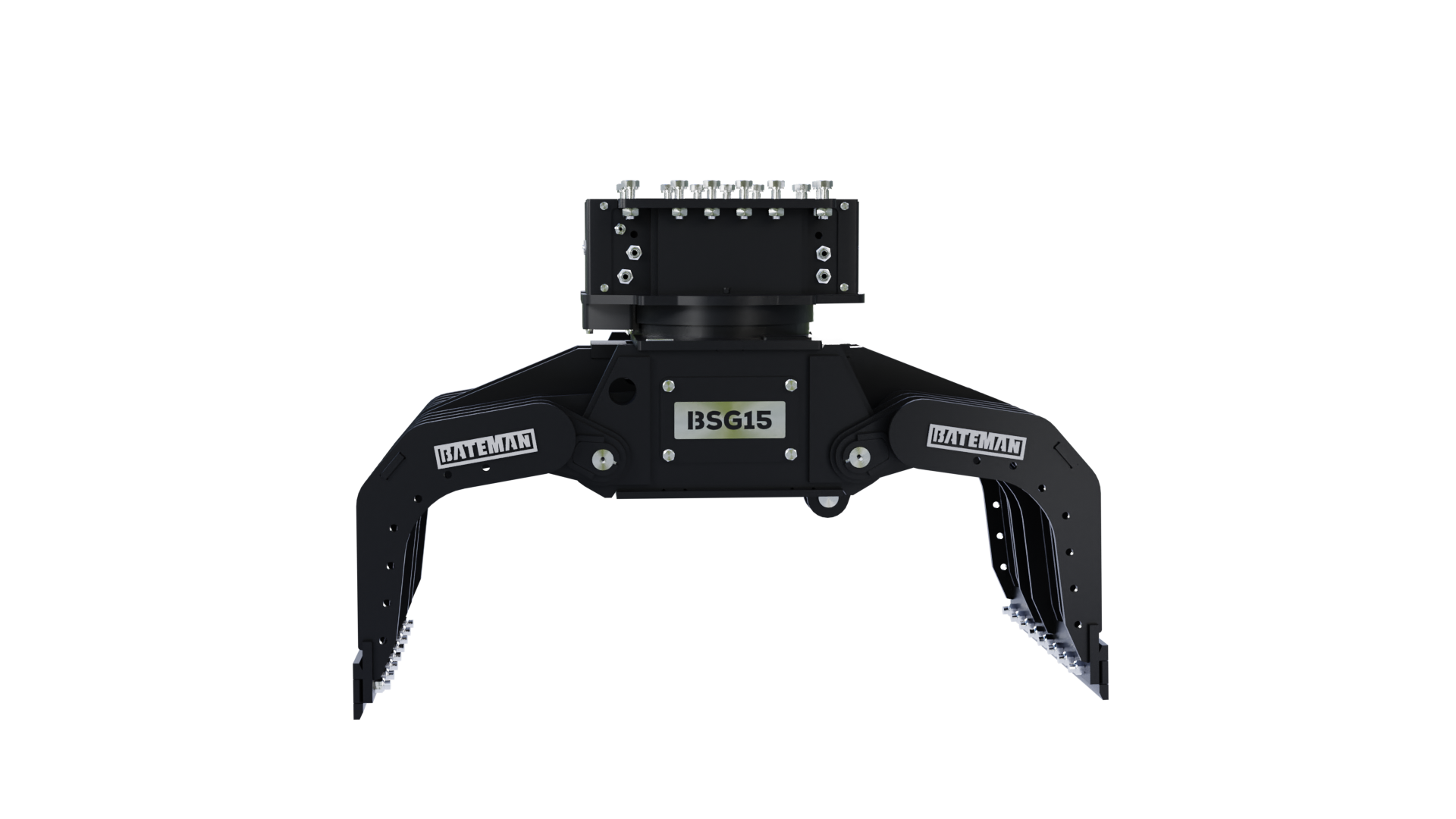

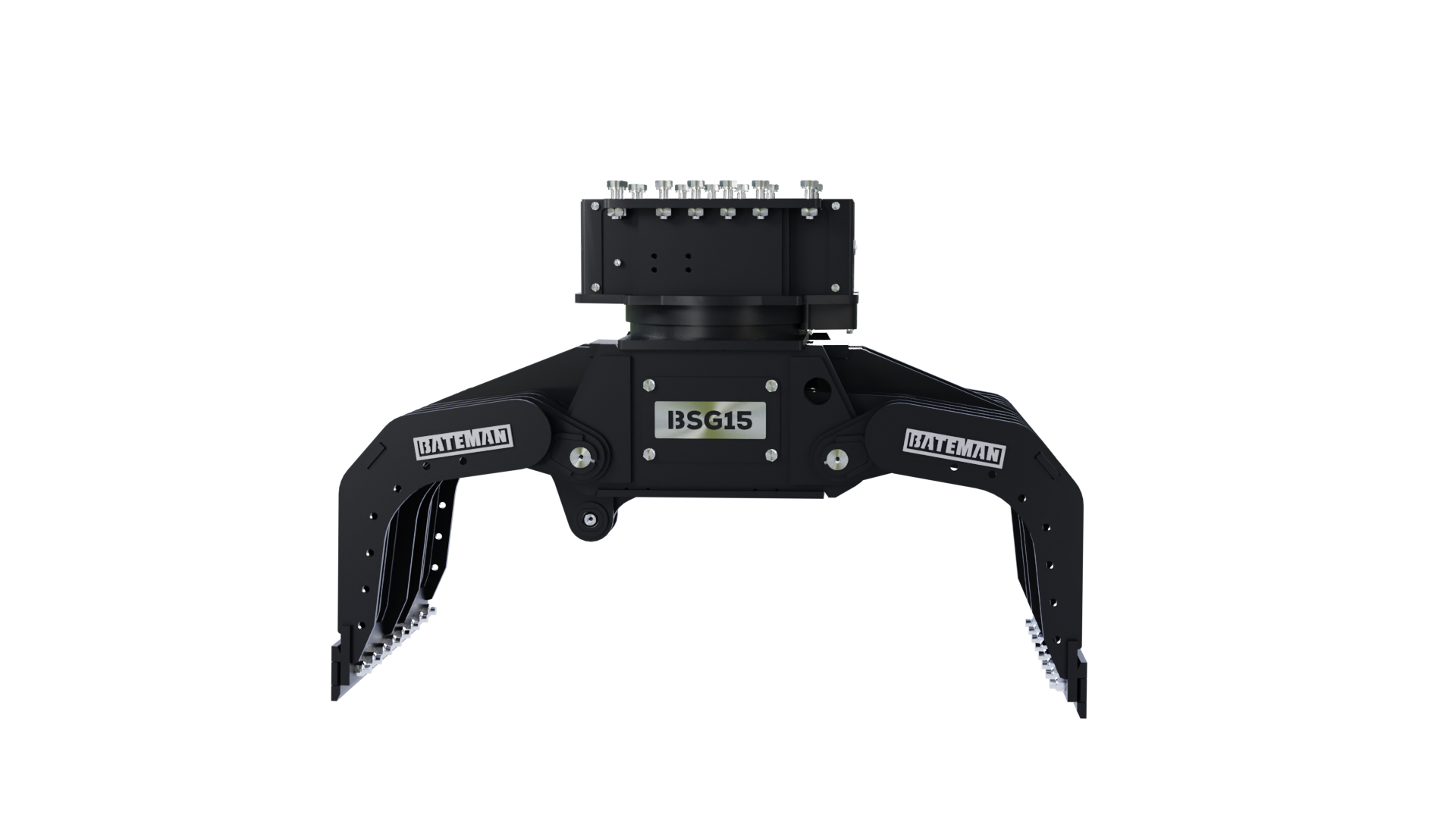

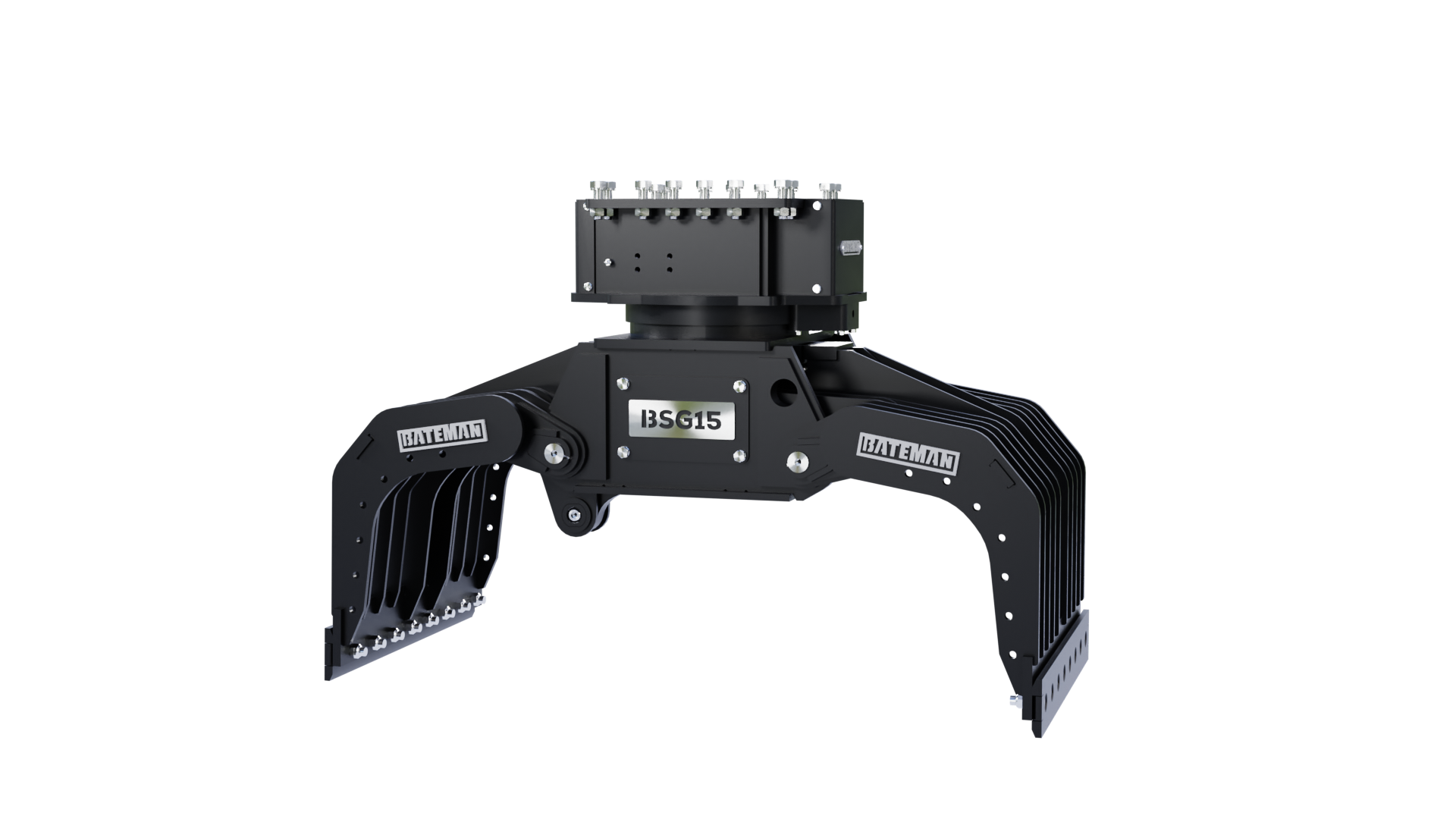

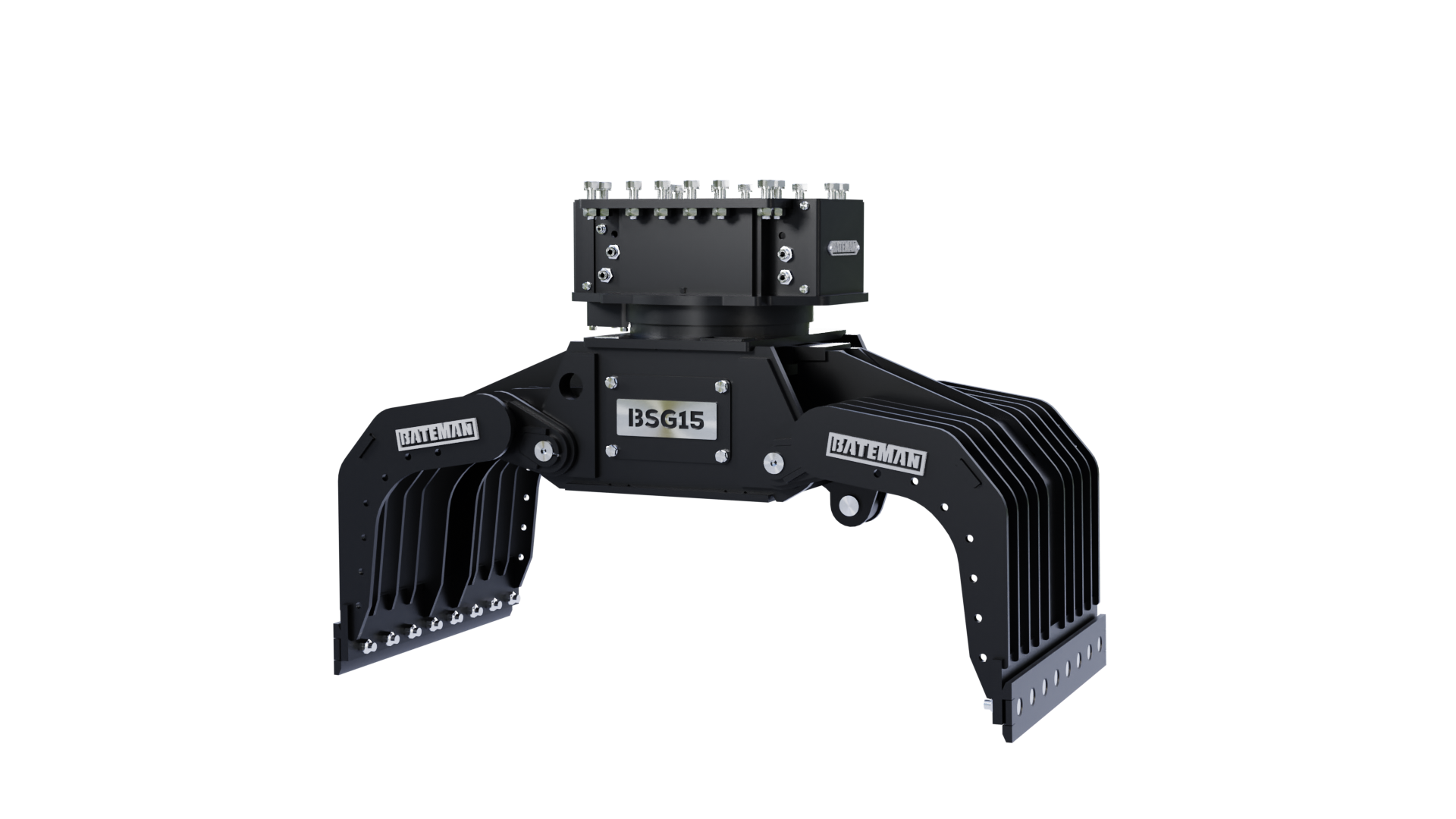

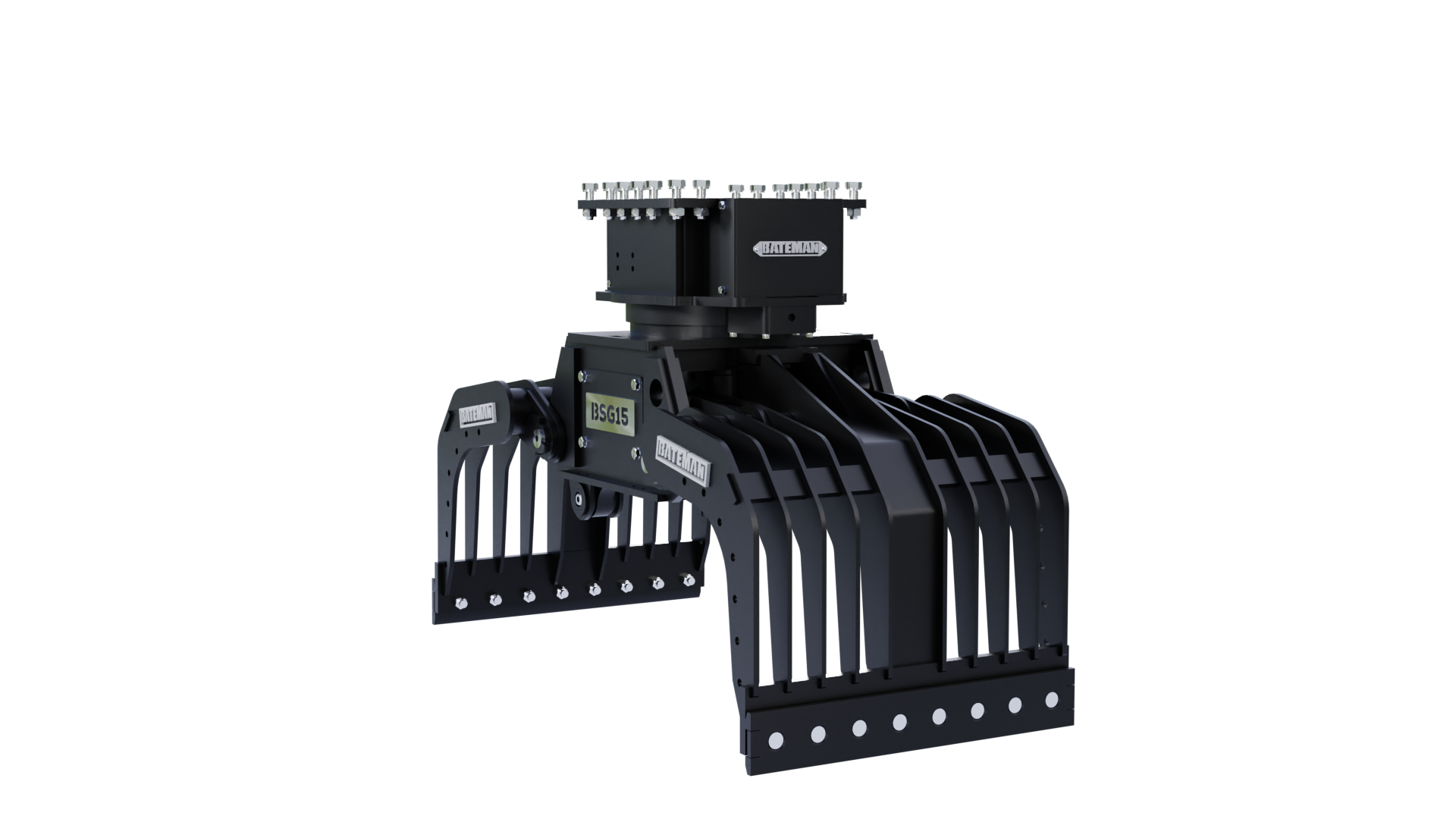

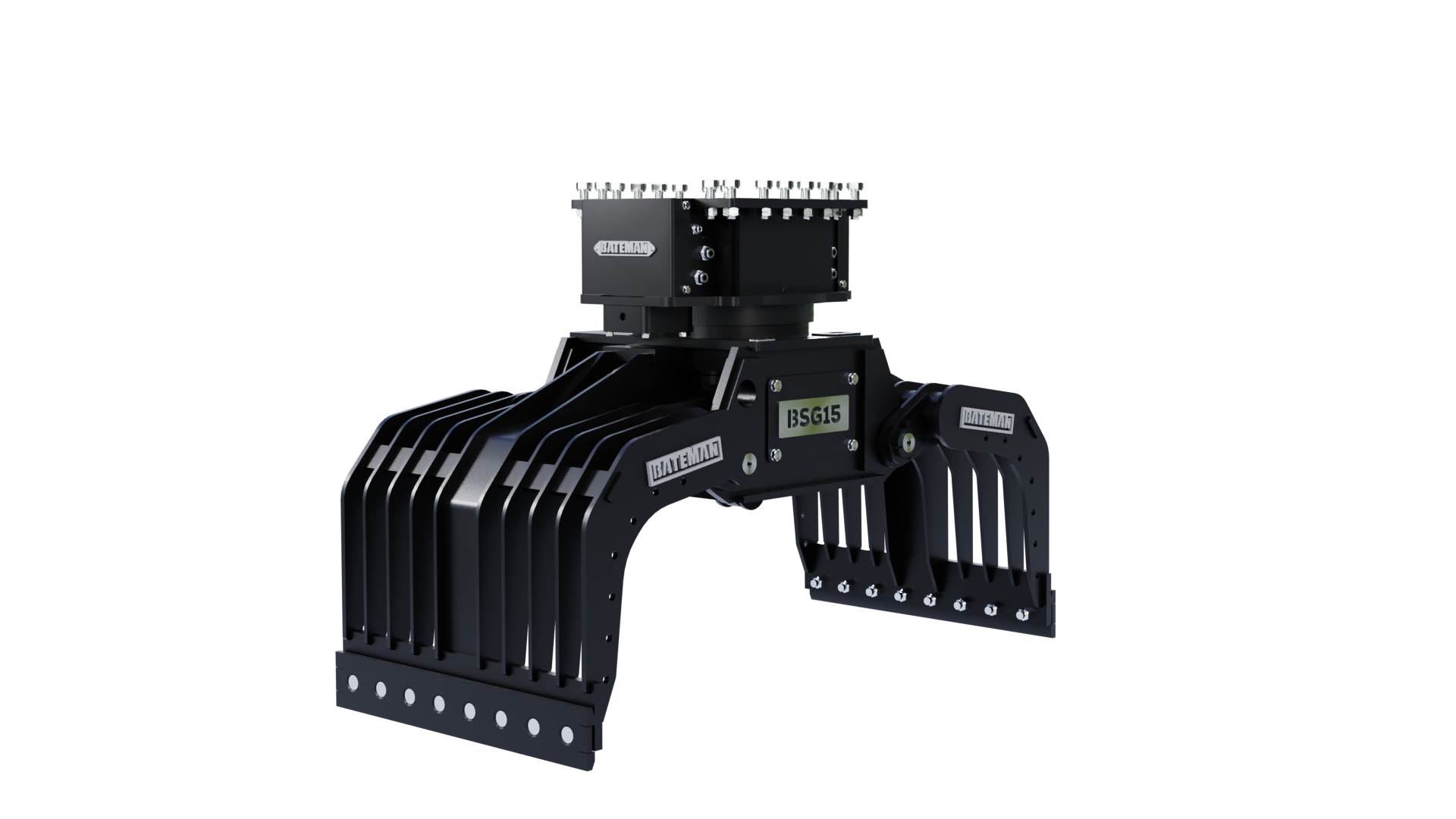

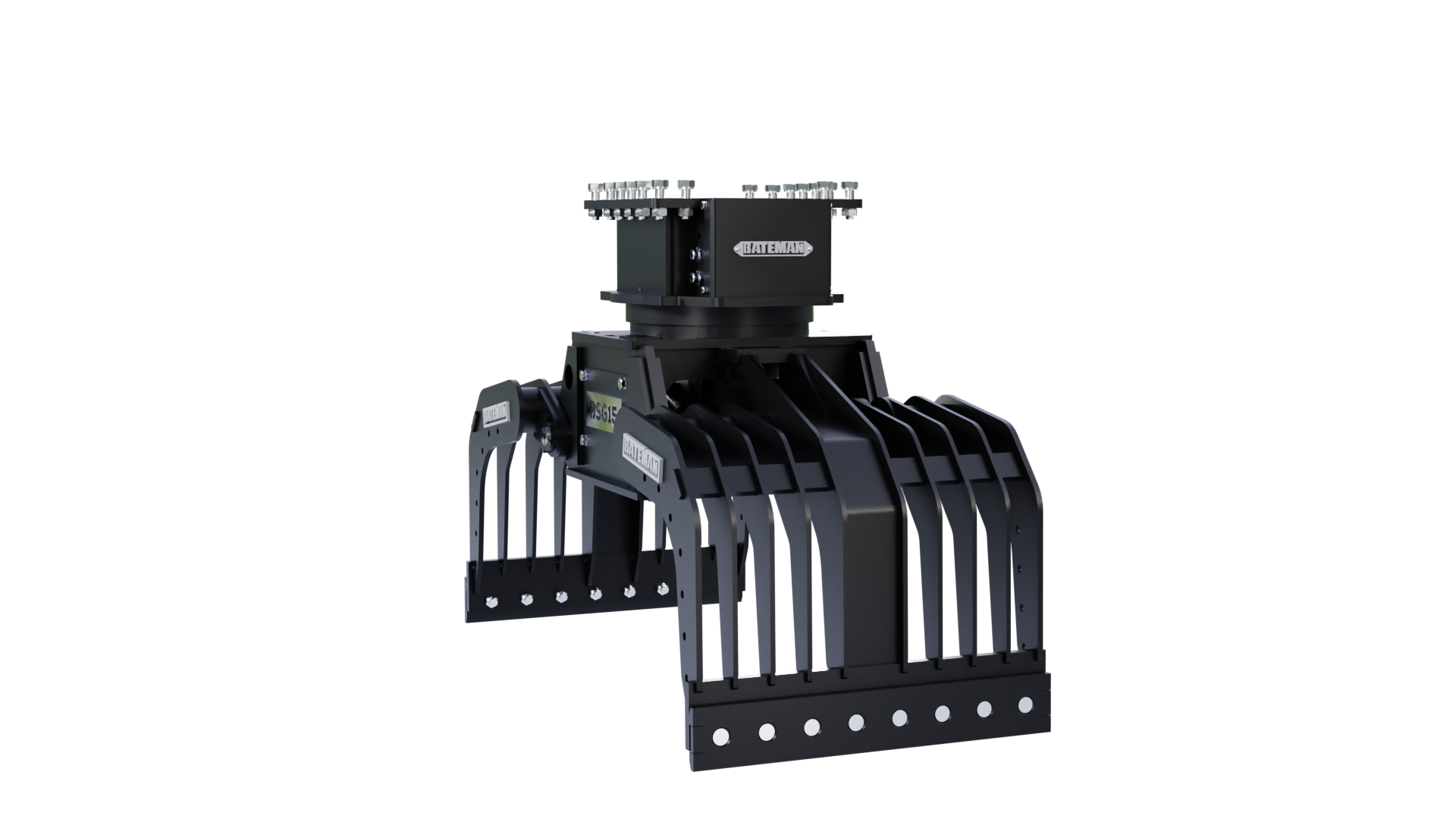

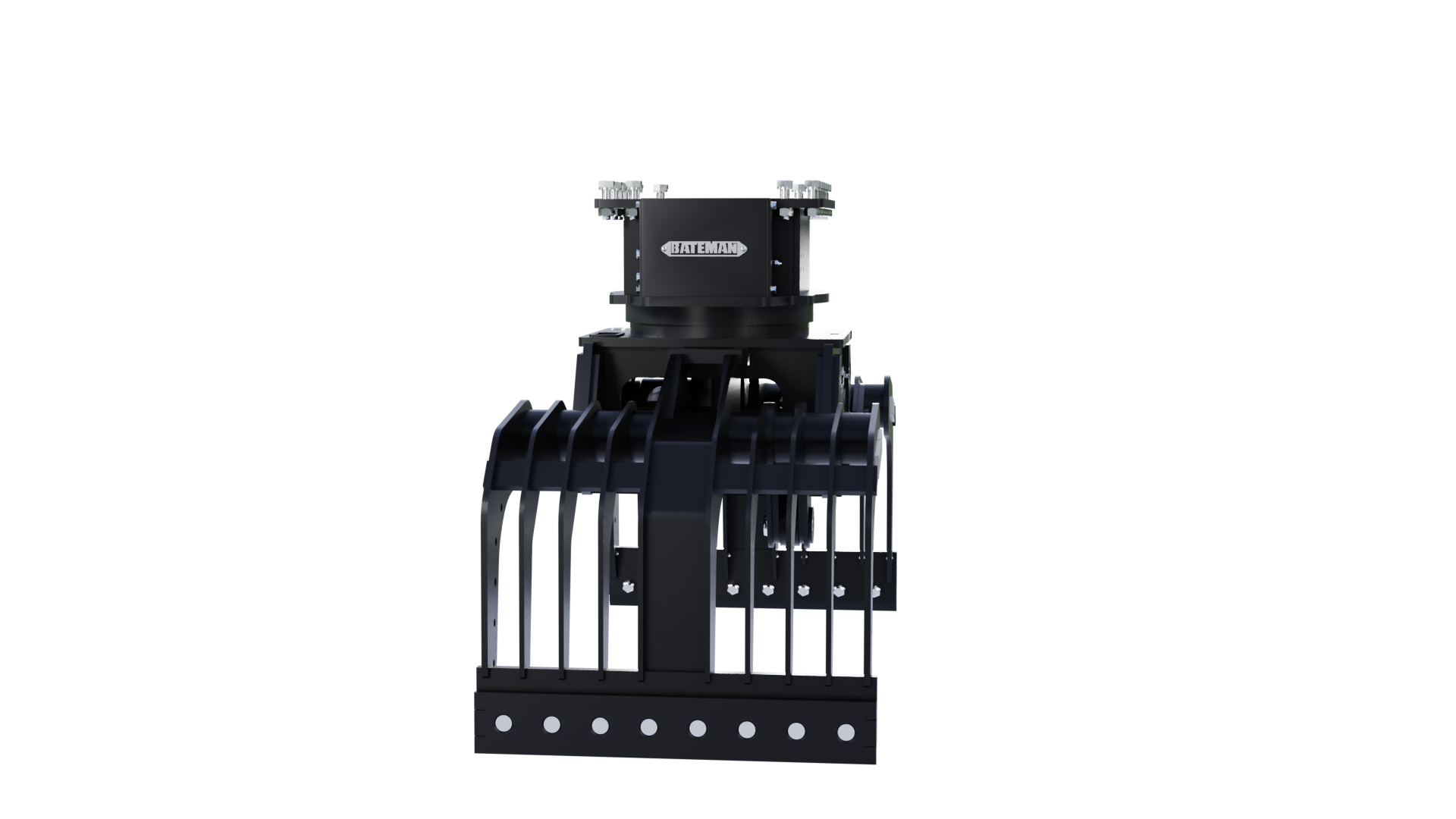

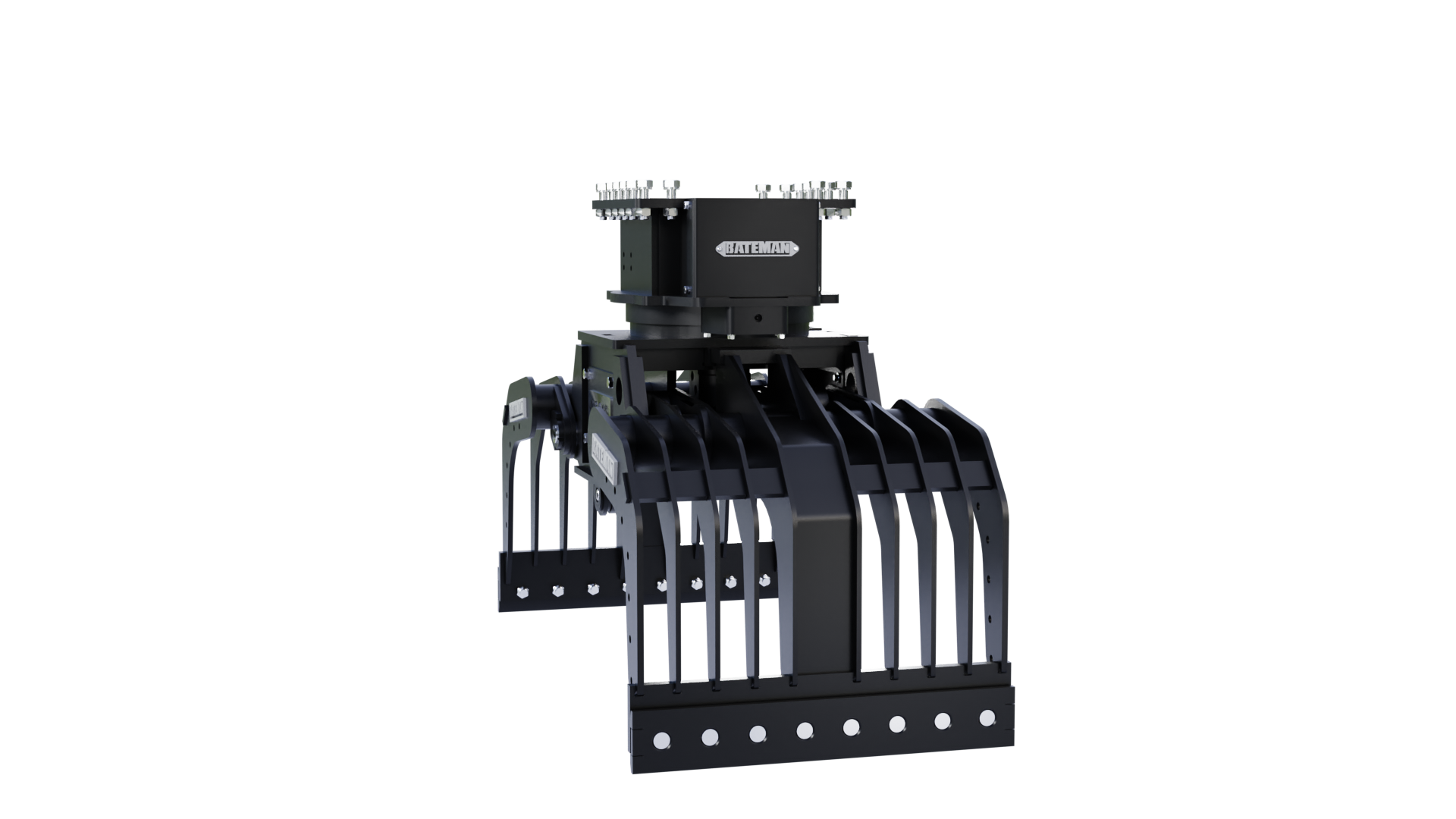

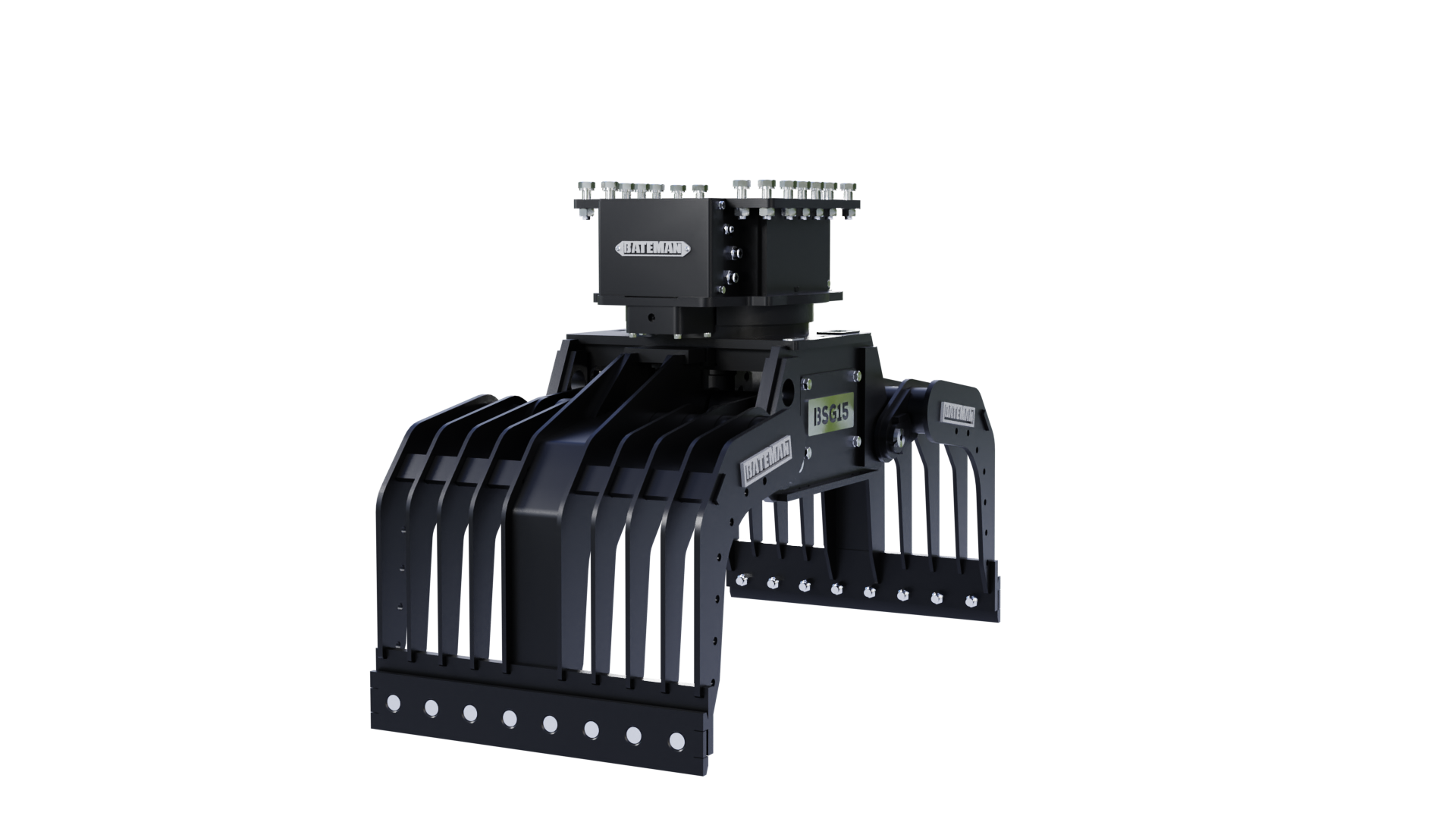

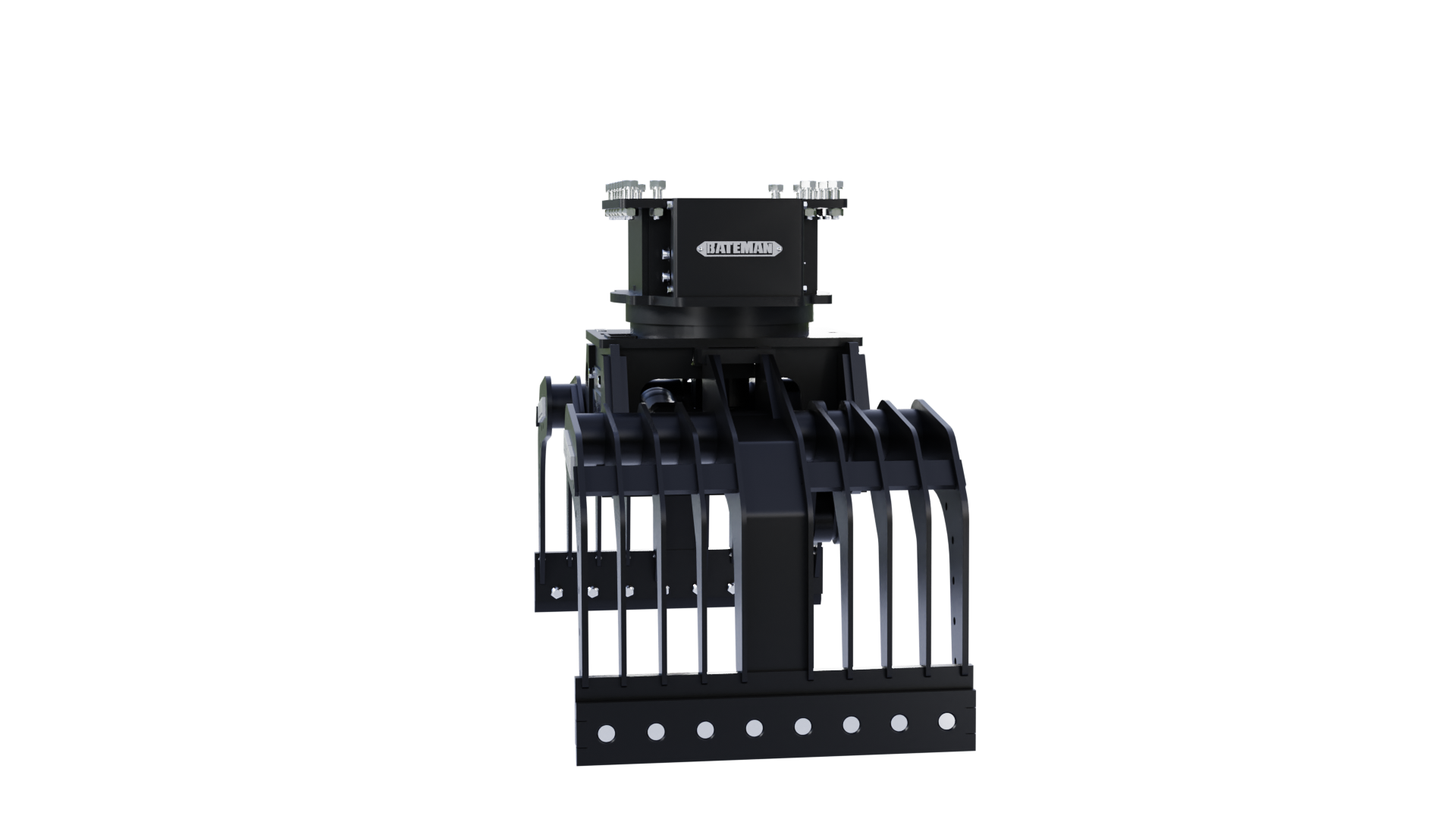

Bateman Demolition Sorting Grapple Image

| | | | |

-180° 180°

BSG Models

The BATEMAN Demolition Sorting Grapple can be used for demolishing, sorting, or loading. This rotating Sorting Grapple comes complete with heavy duty, fully protected cylinders, and hoses. The BATEMAN Sorting Grapple is suitable for handling demolition, construction, and waste materials.

360 degrees of continuous rotation.
Fully guarded, high-pressure cylinders.
Oversized pins with locknuts.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Demolition Jaws or Waste Style Jaws Available. 360° Continuous Rotating Bearing. Optional Bolt on Side Plates Turn This Sorting Grapple into A Clamshell Bucket. Available with A Pin-On Yoke, Direct Lugging, Or for Use with A Quick Coupler. Fully Guarded High Pressure Cylinders. Oversized Pins with Custom Locknuts. Supplied with Jumper Hoses. Custom Sizes Available Upon Request.

TECHNICAL SPECIFICATIONS

Model	BSG-07D
Machine Class	5t - 9t
Max Opening in (mm)	60 (1,524)
Width in (mm)	24 (610)
Tine Height in (mm)	16.5 (419)
Volume yd³ (m³)	0.2 (0.15)
Force lbf (kN)	5,625 (25)
Rotation	MR075
Weight lb (kg)	1,275 (580)

Download literature

Model	BSG-10D
Machine Class	7t - 12t
Max Opening in (mm)	70 (1,778)
Width in (mm)	28 (711)
Tine Height in (mm)	20.5 (521)
Volume yd³ (m³)	0.3 (0.23)
Force lbf (kN)	7,900 (35)
Rotation	MR075
Weight lb (kg)	1,700 (770)

Download literature

Model	BSG-13D
Machine Class	10t - 16t
Max Opening in (mm)	70 (1,778)
Width in (mm)	34 (864)
Tine Height in (mm)	20.5 (521)
Volume yd³ (m³)	0.38 (0.29)
Force lbf (kN)	10,200 (45)
Rotation	MR160
Weight lb (kg)	2,266 (1,030)

Download literature

Model	BSG-18D
Machine Class	15t - 22t
Max Opening in (mm)	80 (2,032)
Width in (mm)	36 (914)
Tine Height in (mm)	22.5 (571)
Volume yd³ (m³)	0.58 (0.44)
Force lbf (kN)	12,365 (55)
Rotation	MR200
Weight lb (kg)	3,600 (1,633)

Download literature

Model	BSG-25D
Machine Class	20t - 29t
Max Opening in (mm)	84 (2,134)
Width in (mm)	44 (1,117)
Tine Height in (mm)	24 (610)
Volume yd³ (m³)	0.8 (0.6)
Force lbf (kN)	15,300 (68)
Rotation	MR200
Weight lb (kg)	4,180 (1,900)

Download literature

Model	BSG-30D
Machine Class	25t - 38t
Max Opening in (mm)	88 (2,235)
Width in (mm)	49 (1,245)
Tine Height in (mm)	24 (610)
Volume yd³ (m³)	1 (0.76)
Force lbf (kN)	18,000 (80)
Rotation	MR300
Weight lb (kg)	4,750 (2,150)

Download literature

Model	BSG-40D
Machine Class	30t - 50t
Max Opening in (mm)	92 (2,337)
Width in (mm)	59 (1,499)
Tine Height in (mm)	25.5 (648)
Volume yd³ (m³)	1.25 (0.95)
Force lbf (kN)	20,250 (90)
Rotation	MR300
Weight lb (kg)	5,950 (2,700)

Download literature

Model	BSG-50D
Machine Class	40t - 65t
Max Opening in (mm)	112 (2,844)
Width in (mm)	59 (1,499)
Tine Height in (mm)	30 (762)
Volume yd³ (m³)	1.5 (1.15)
Force lbf (kN)	25,000 (110)
Rotation	MR400
Weight lb (kg)	10,120 (4,600)

Download literature

COMPATIBILITY

Request Quote To Find The Right Demolition Sorting Grapple For Your Material Handler Or Excavator!

Options

Demolition or waste-style jaws available. Optional bolt-on side plates turn this sorting grapple into a clamshell bucket. Custom sizes available upon request.

Similar products

view product

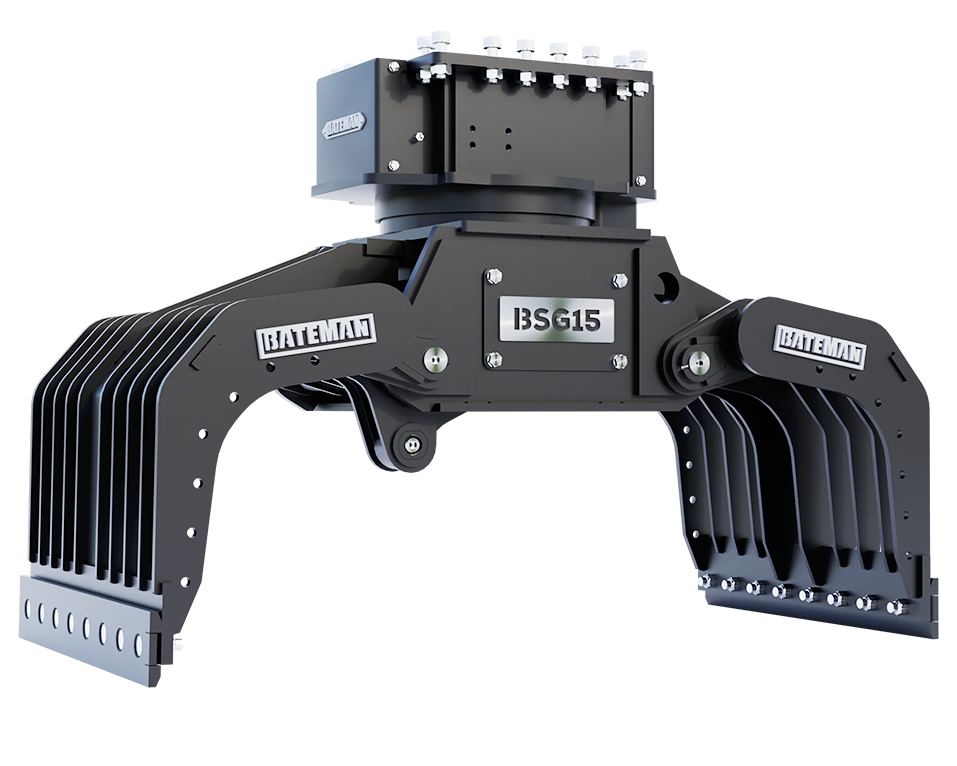

Demolition Sorting Grapple
