BATEMAN

| | | | |

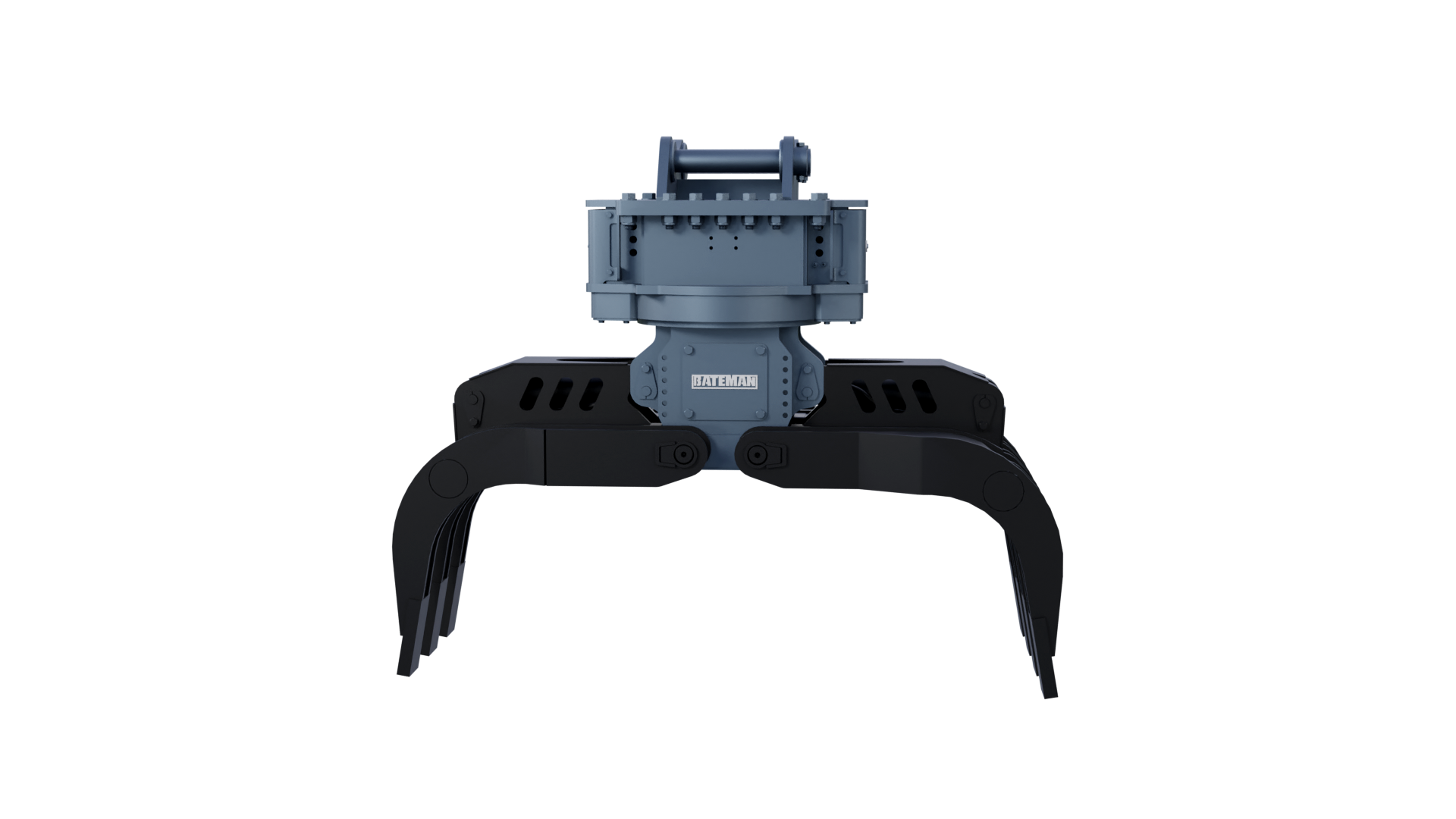

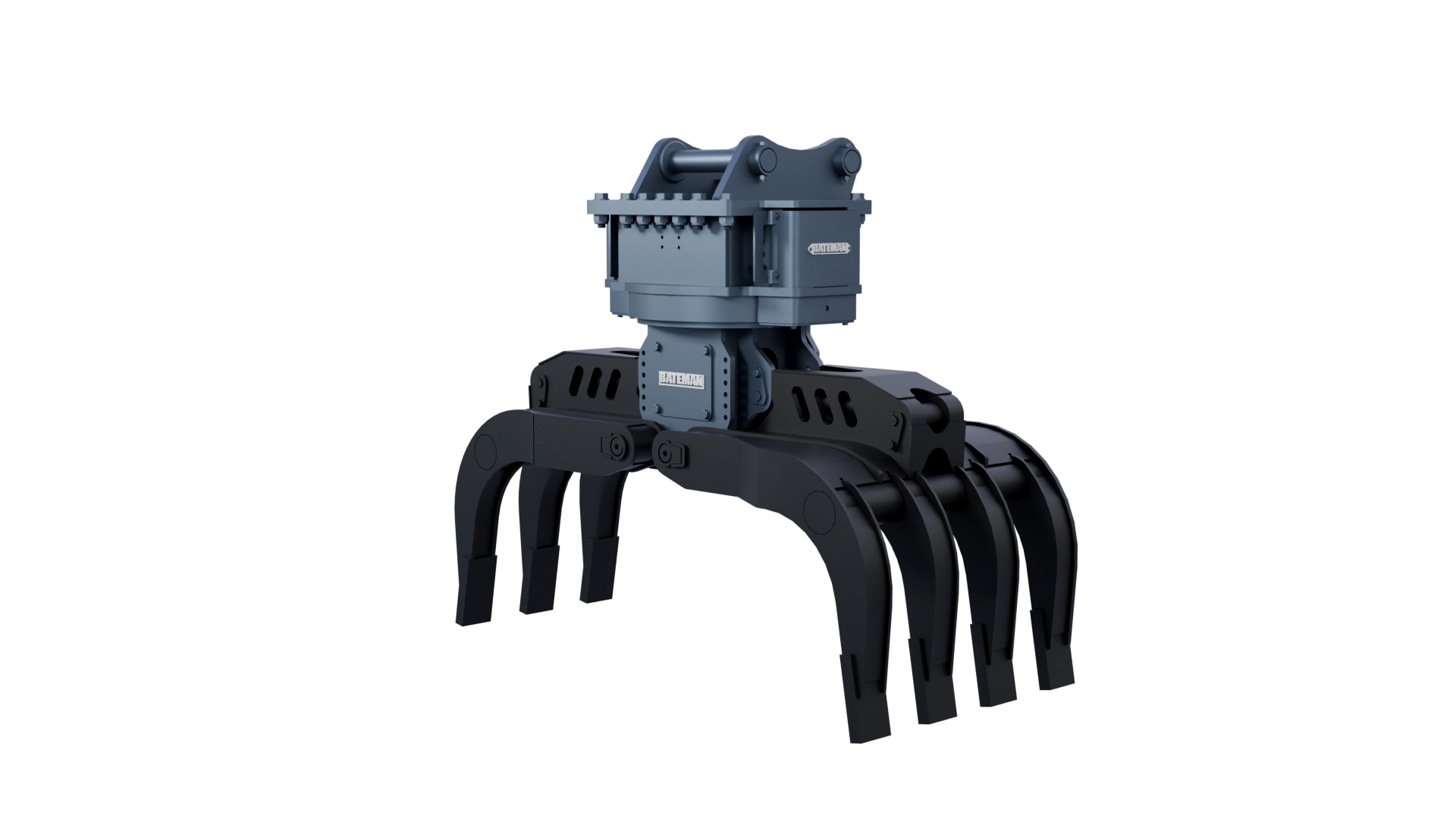

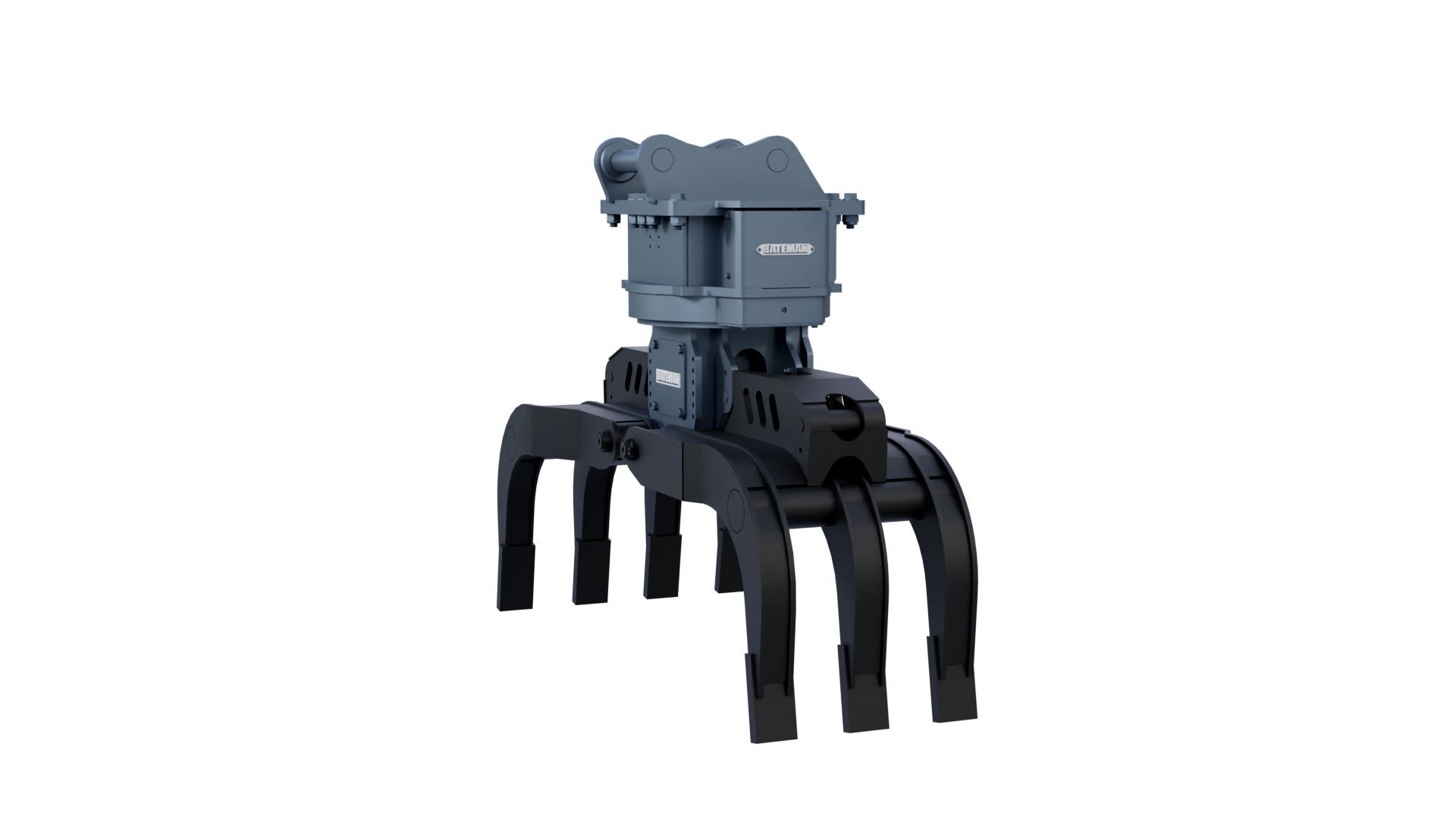

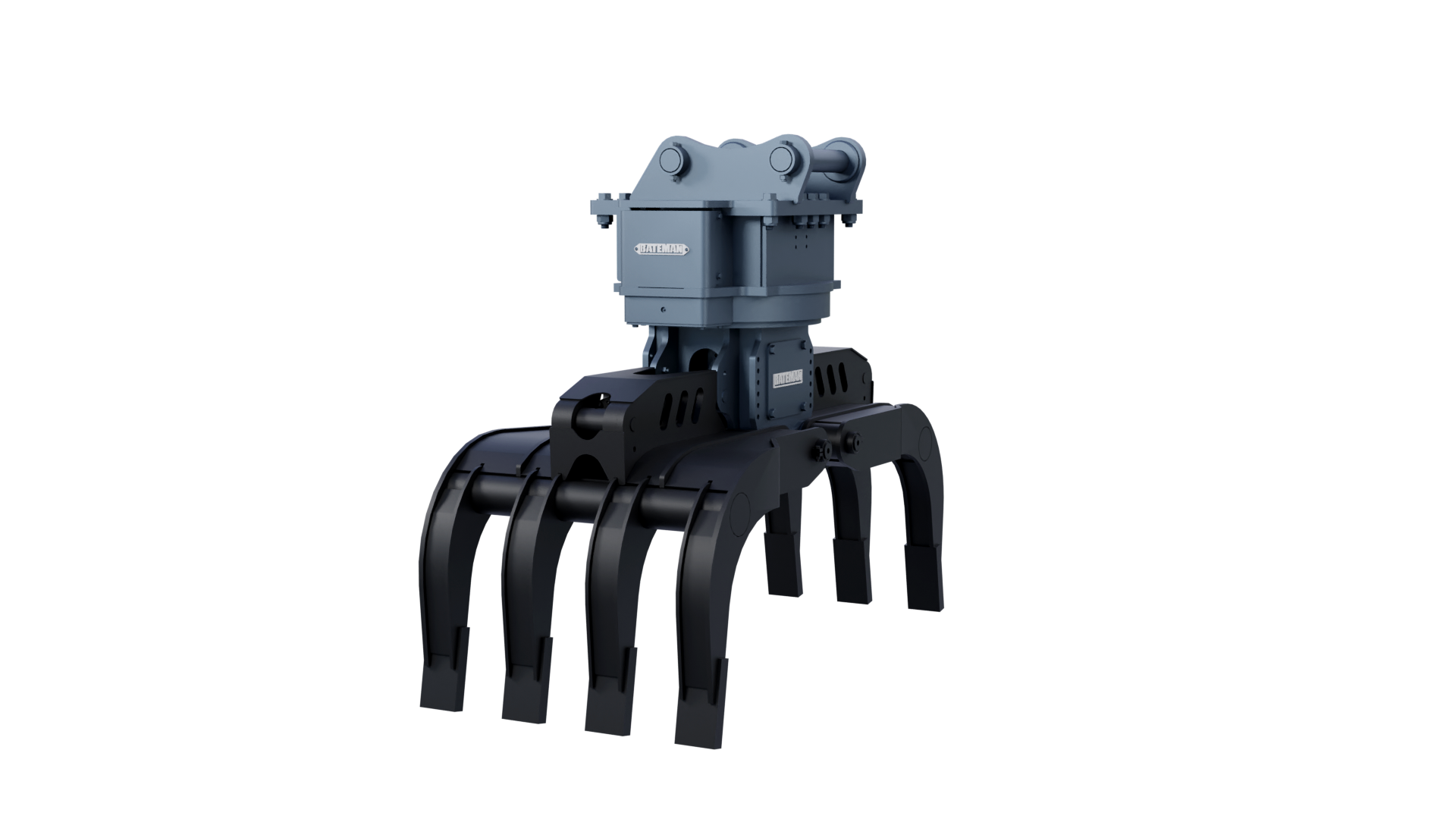

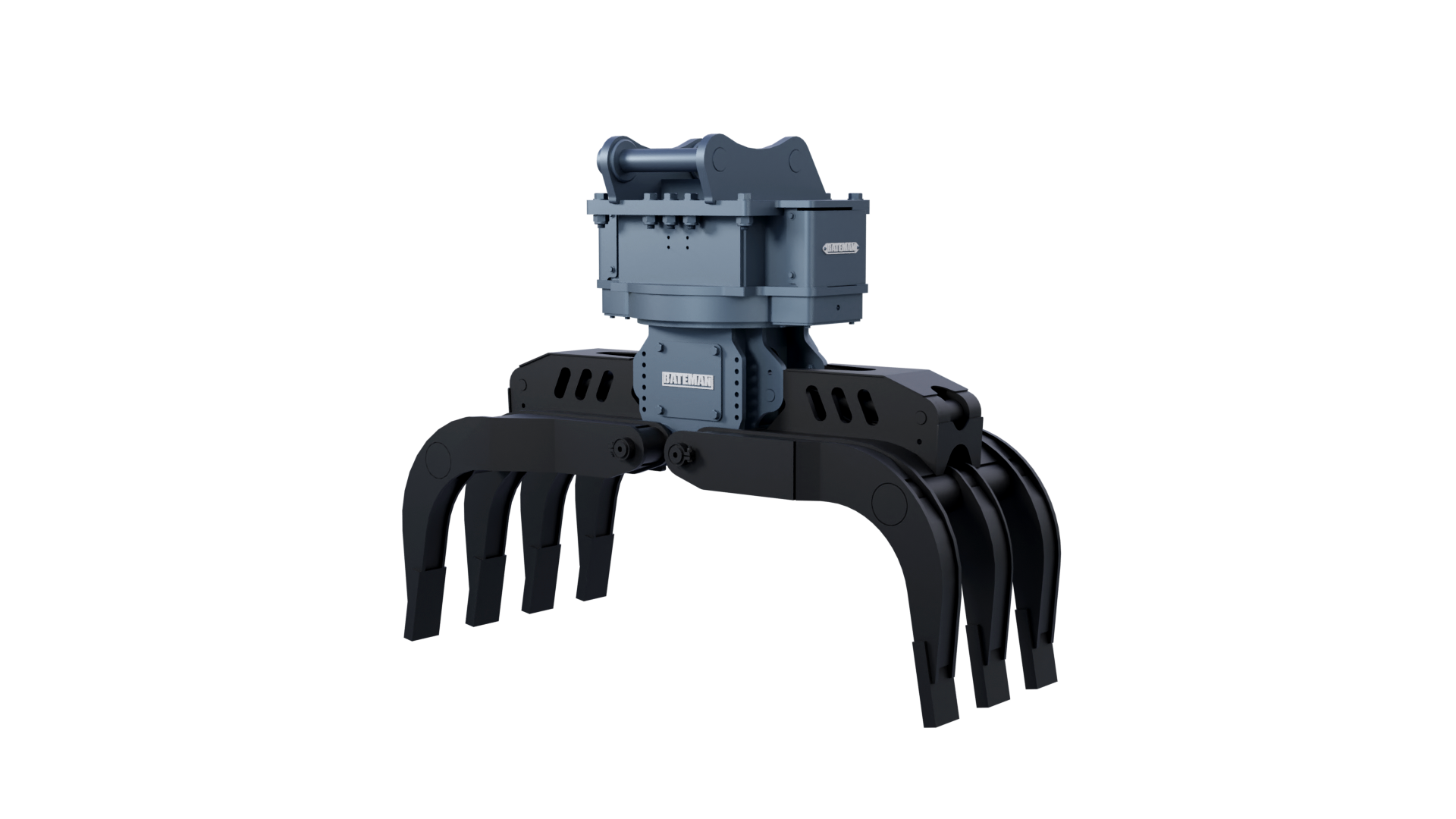

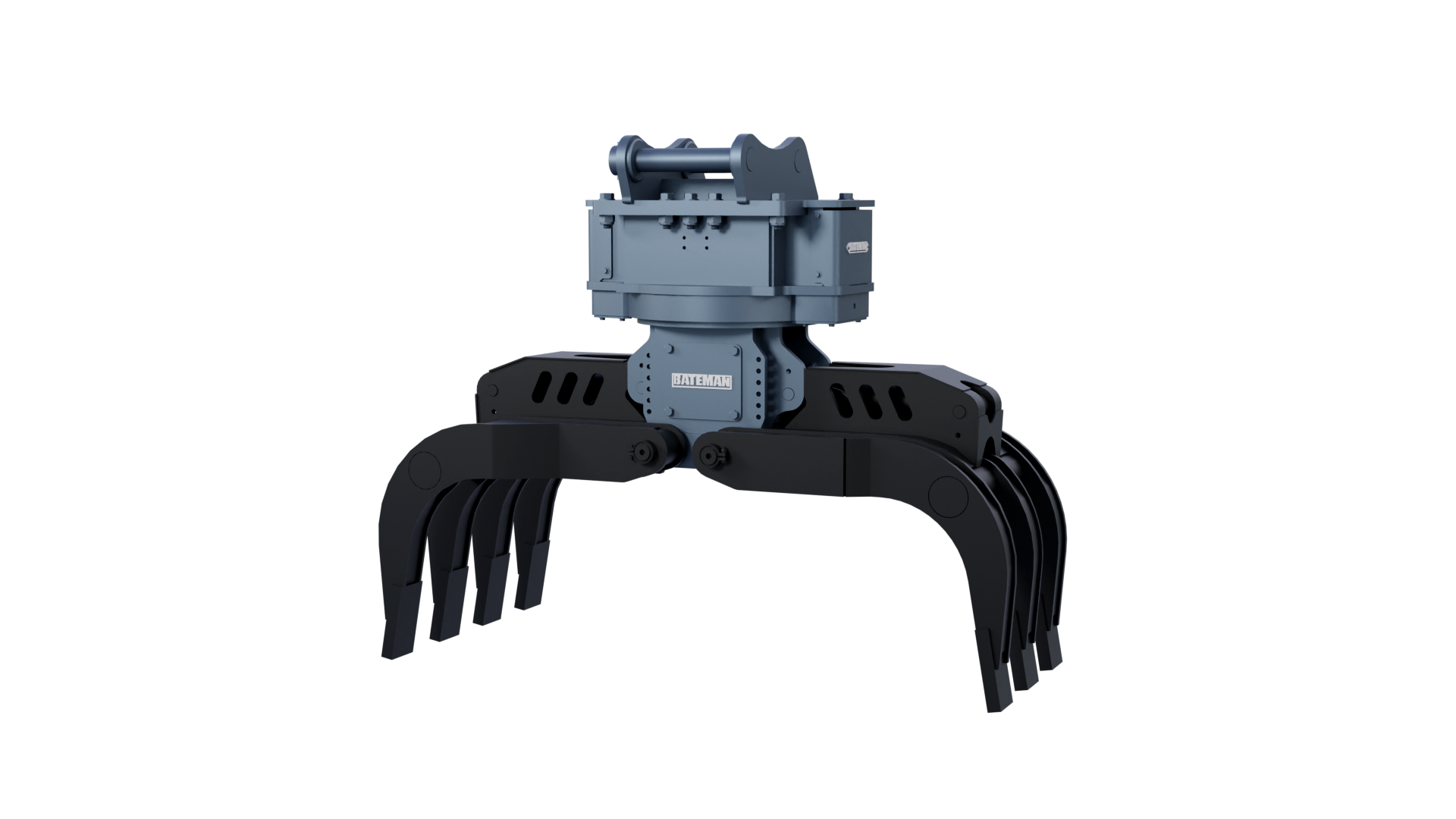

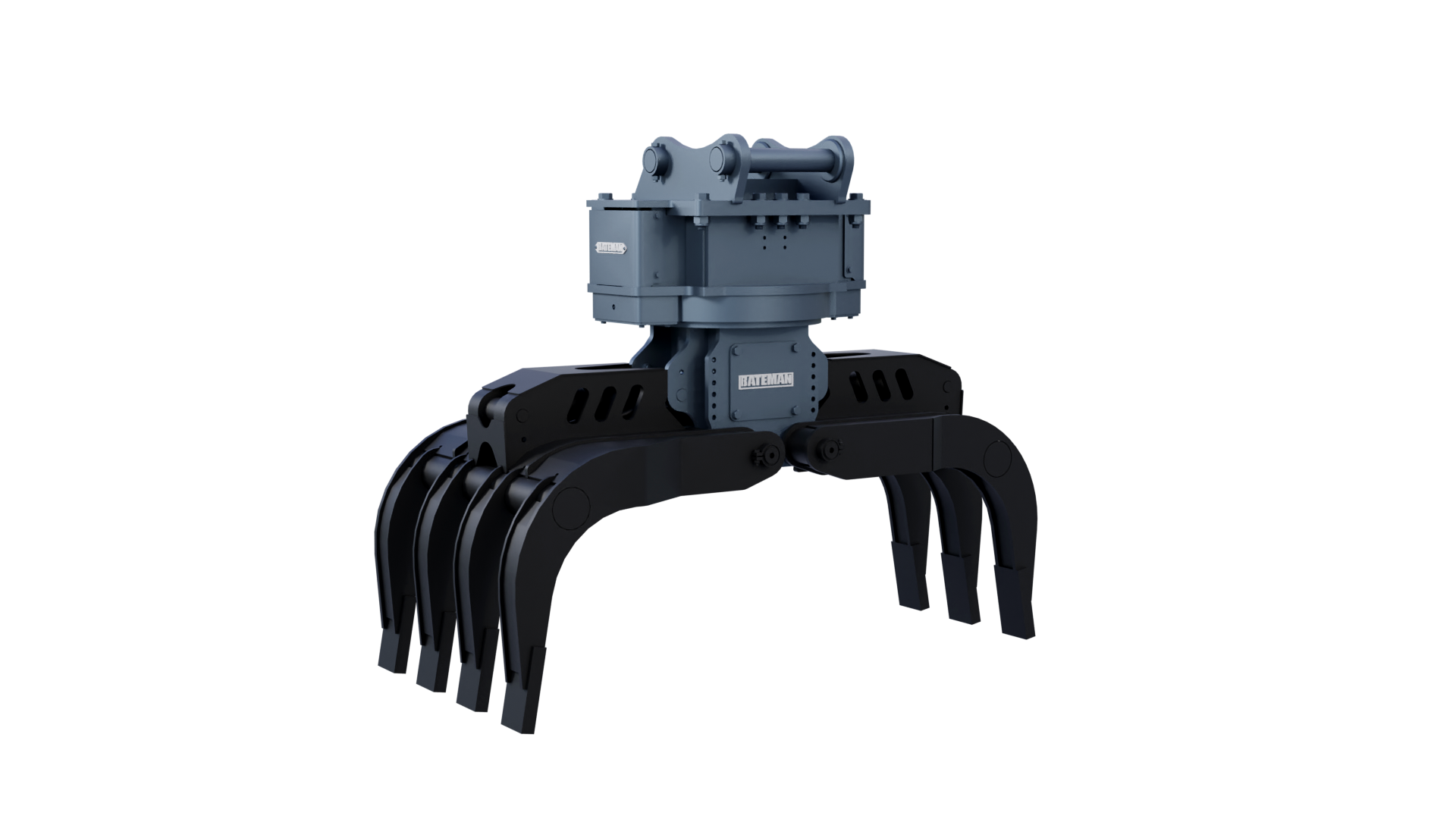

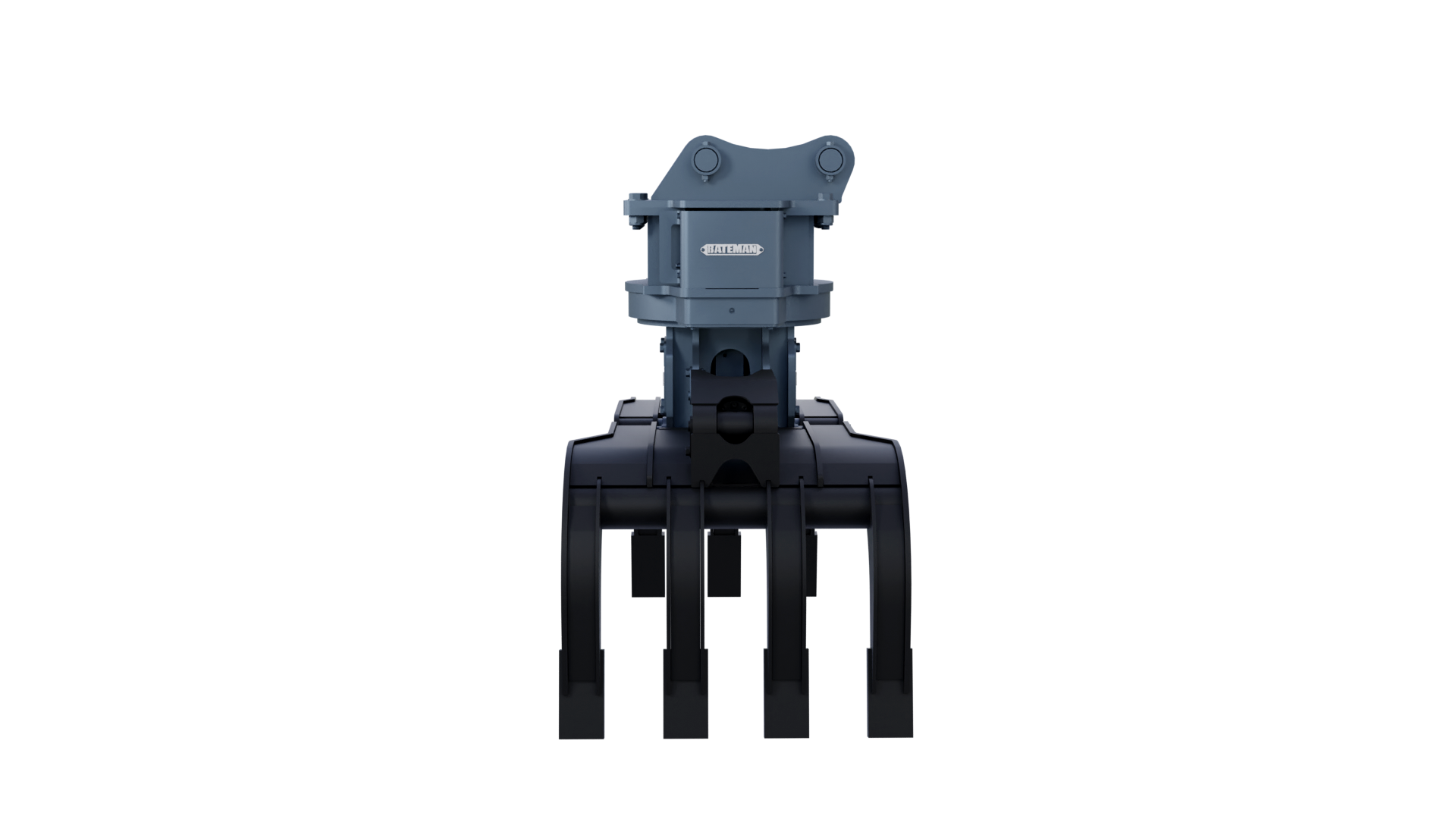

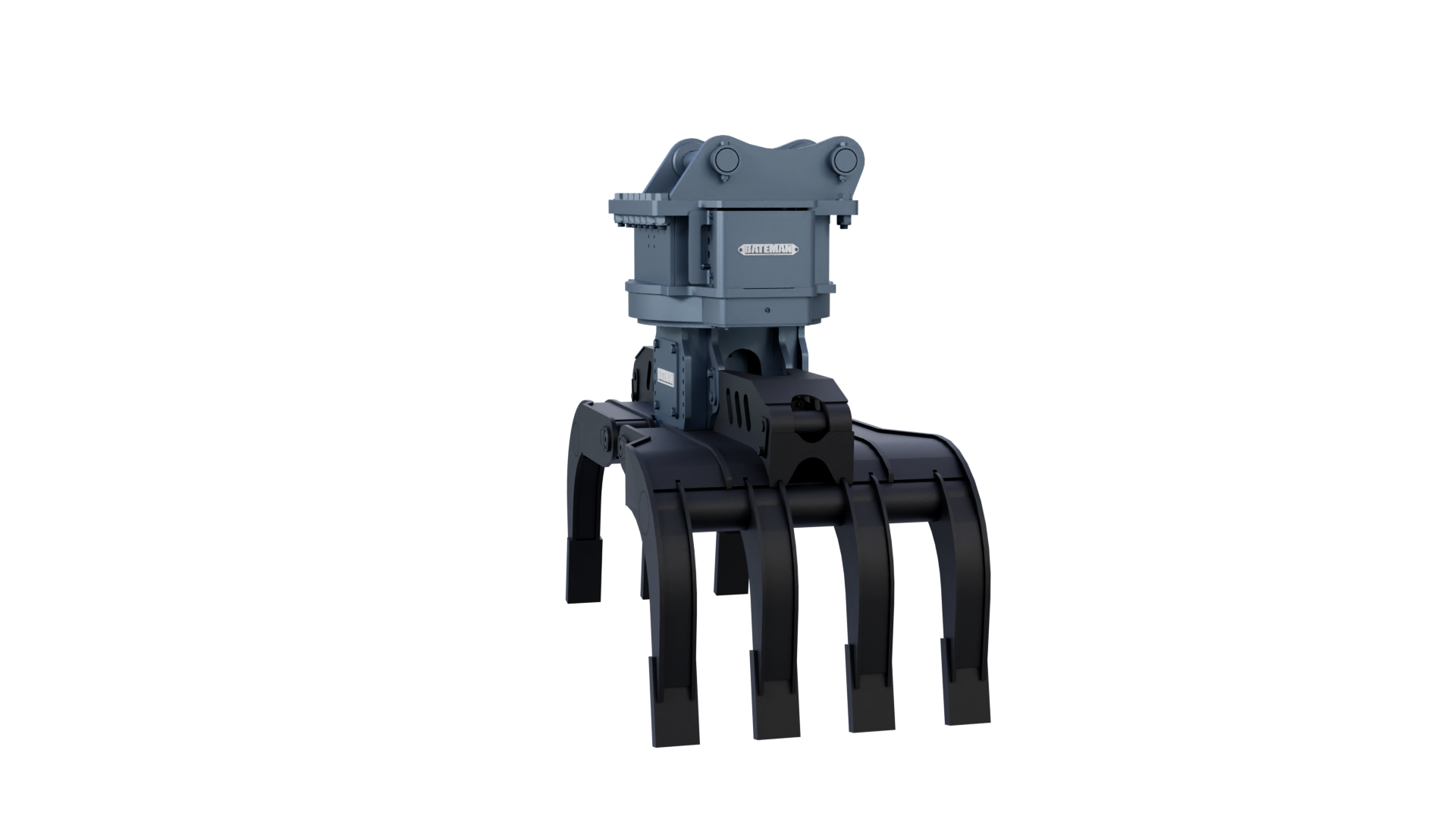

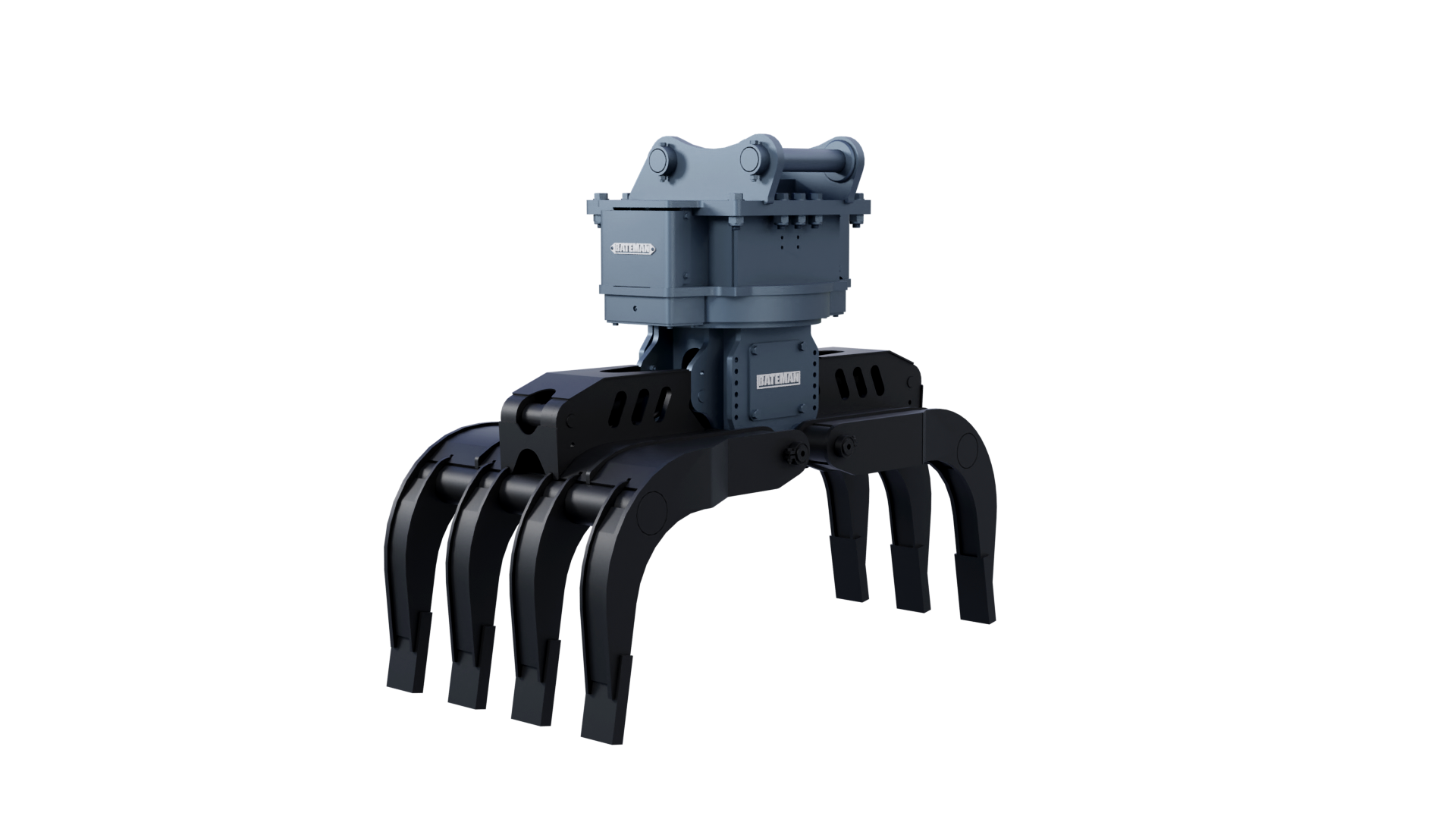

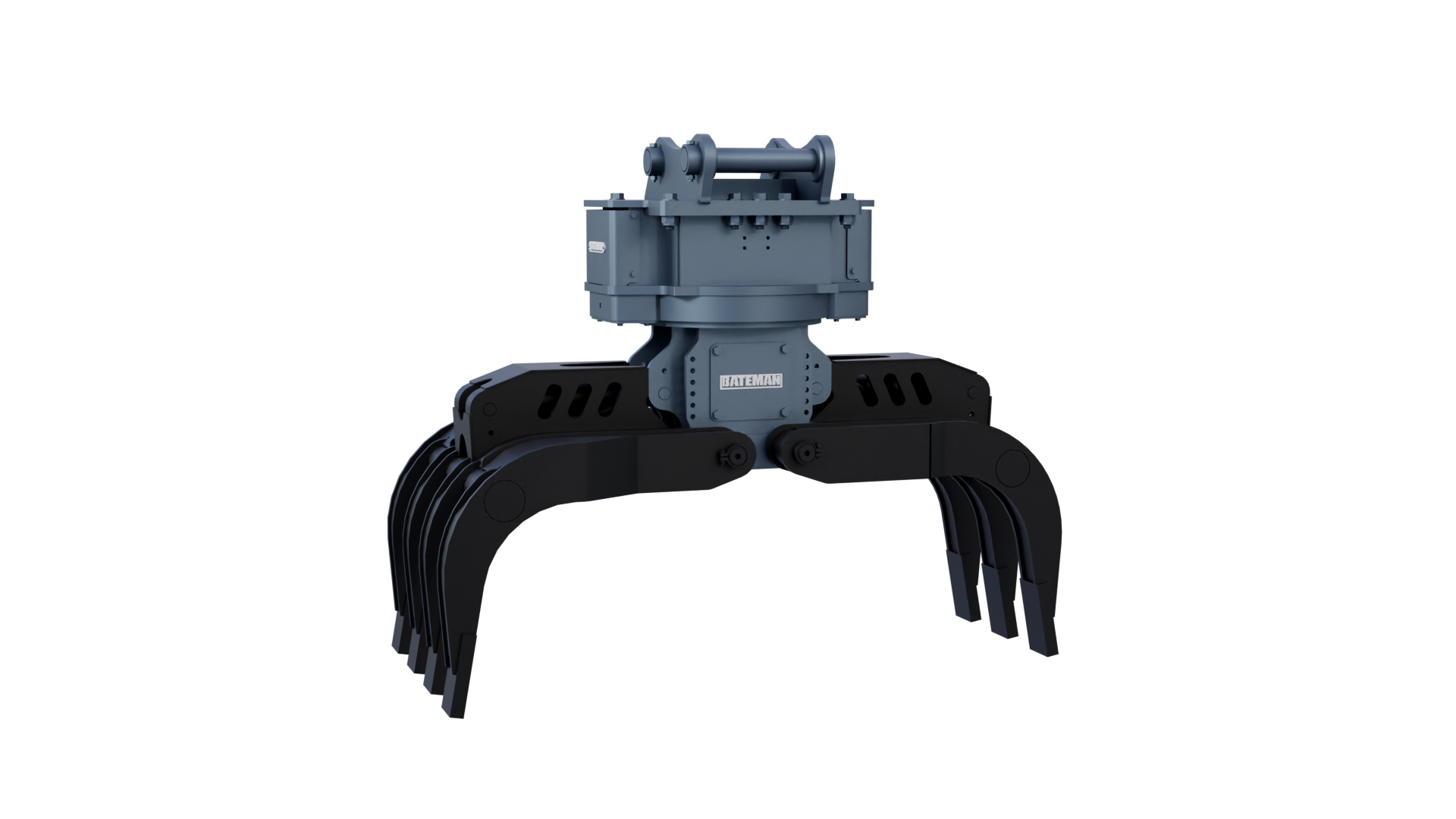

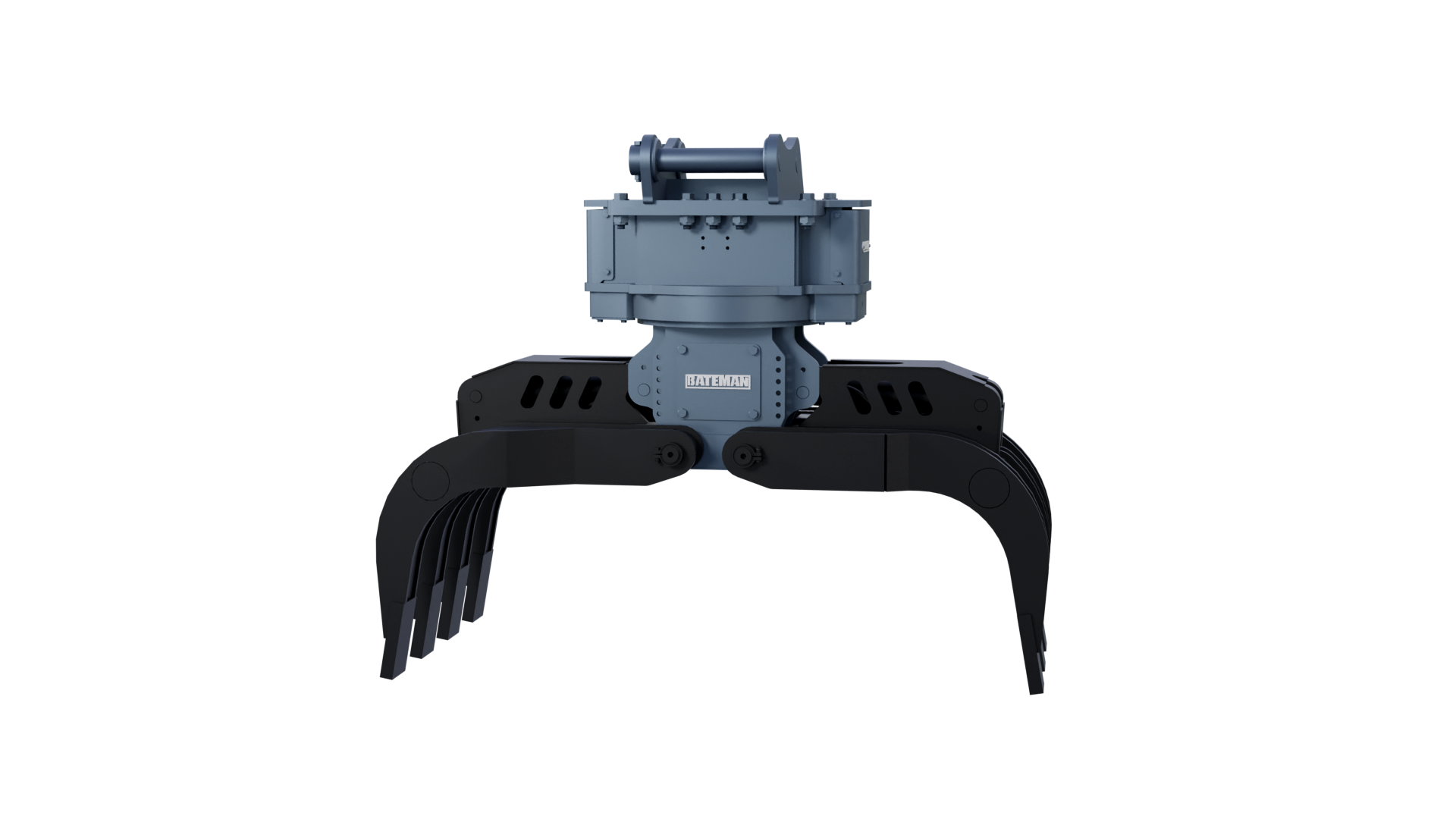

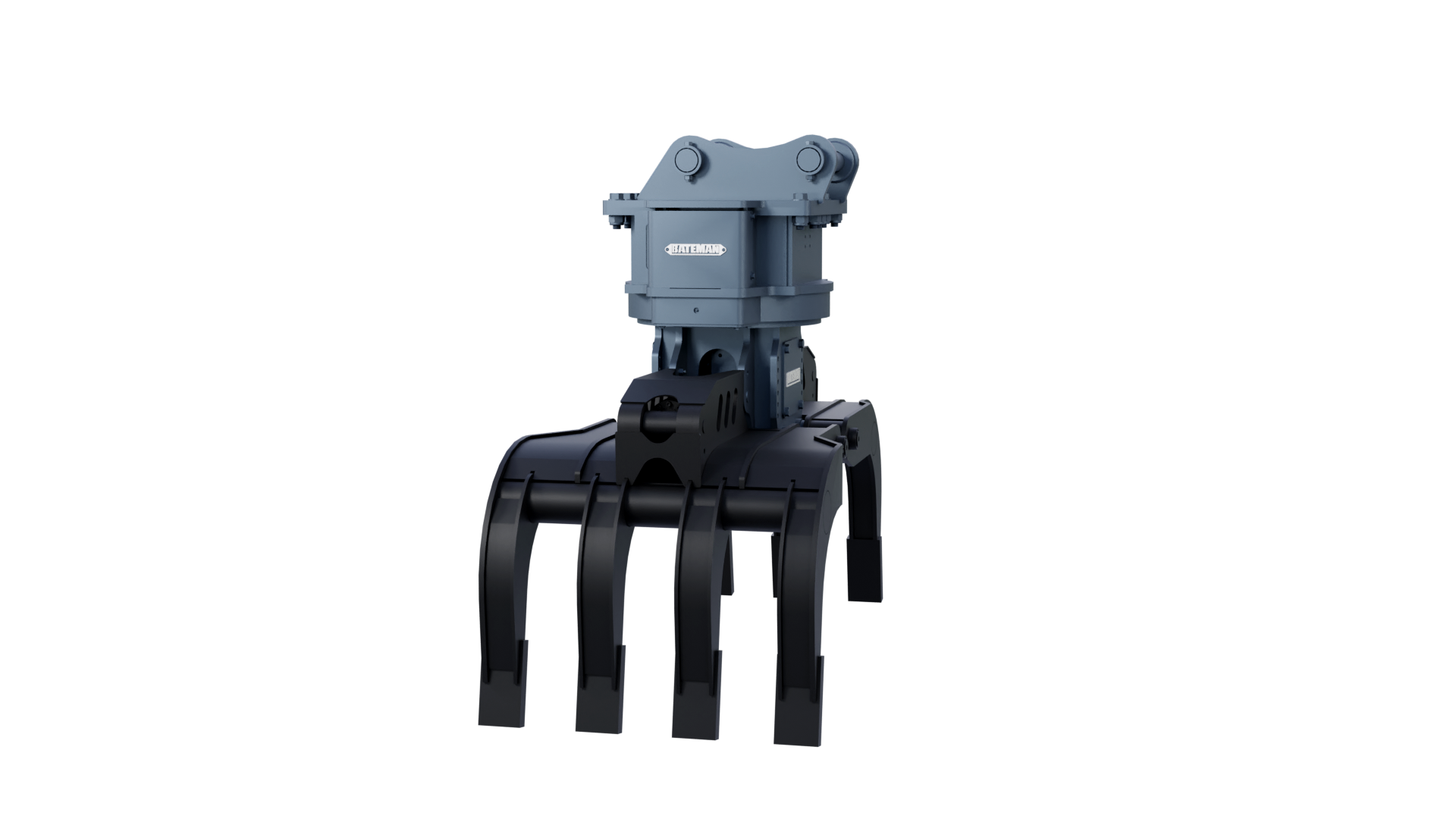

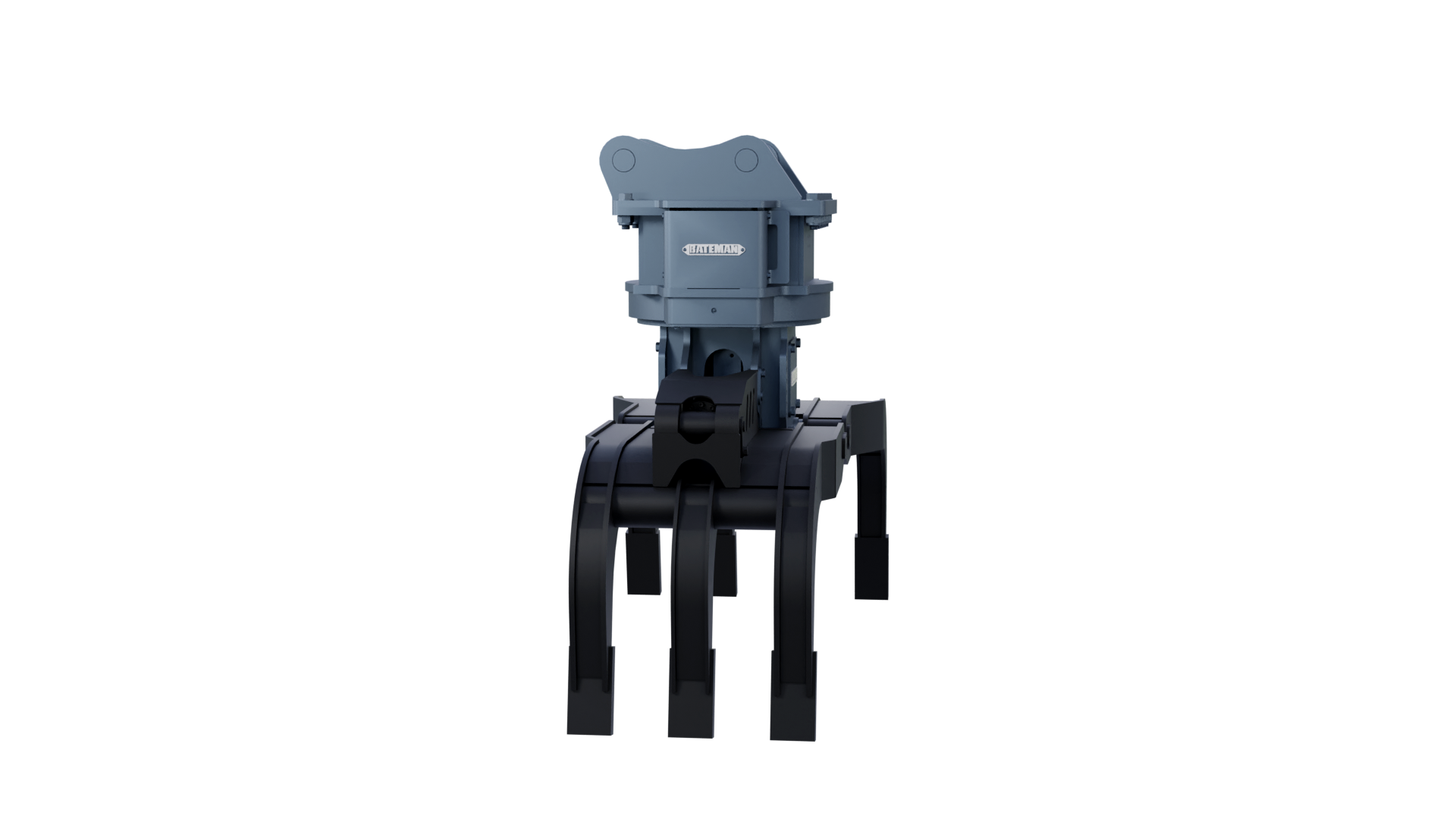

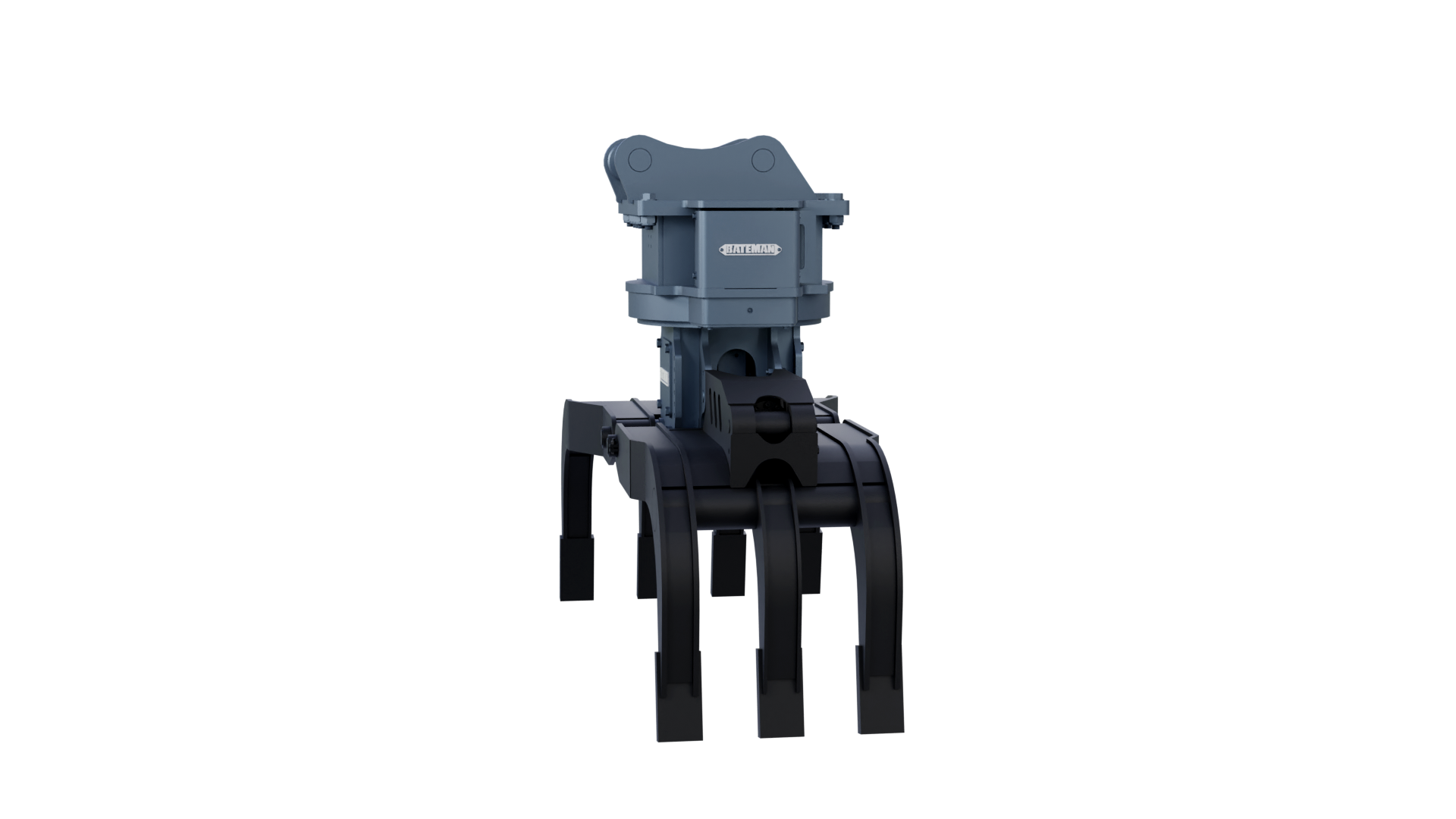

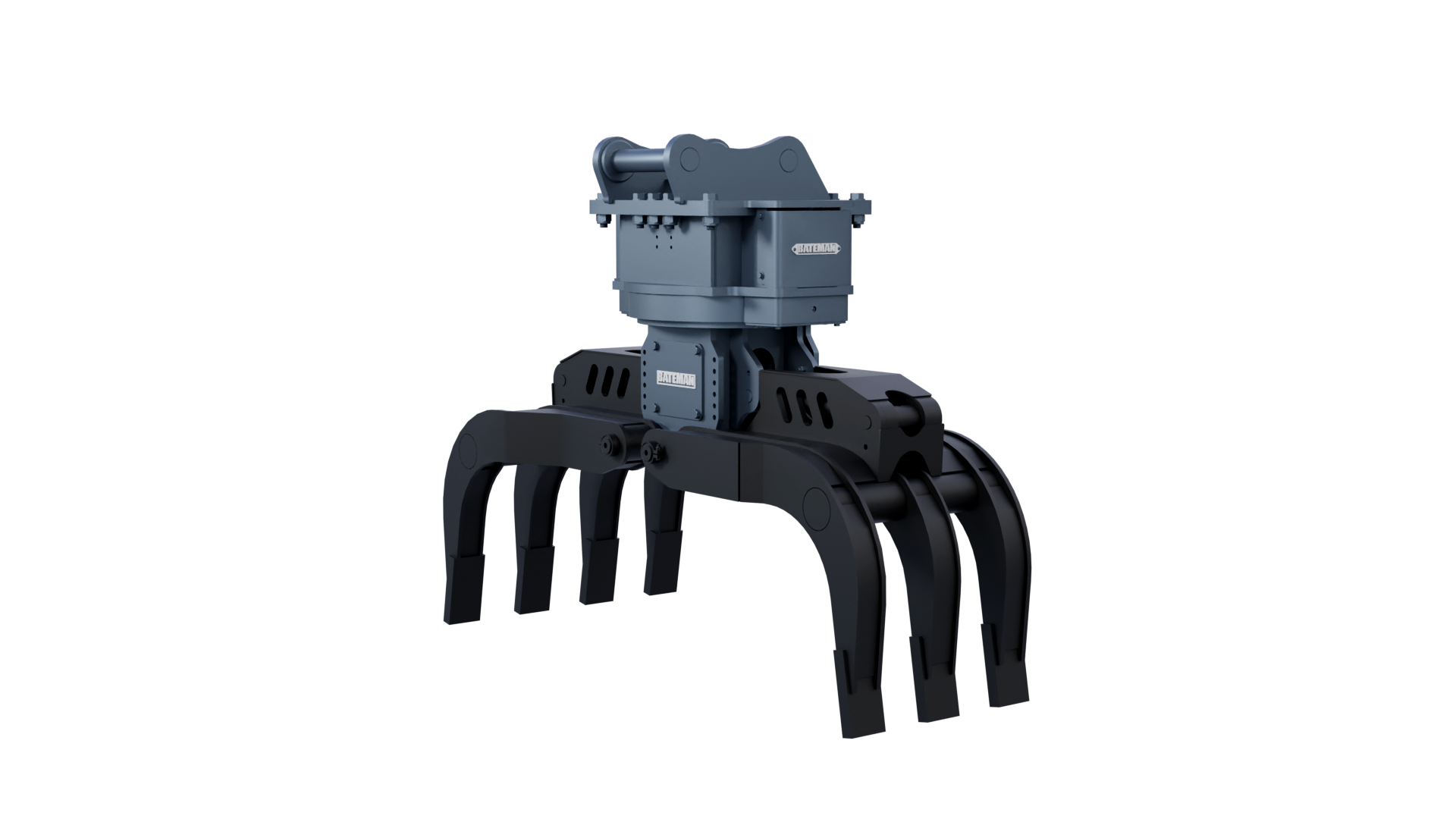

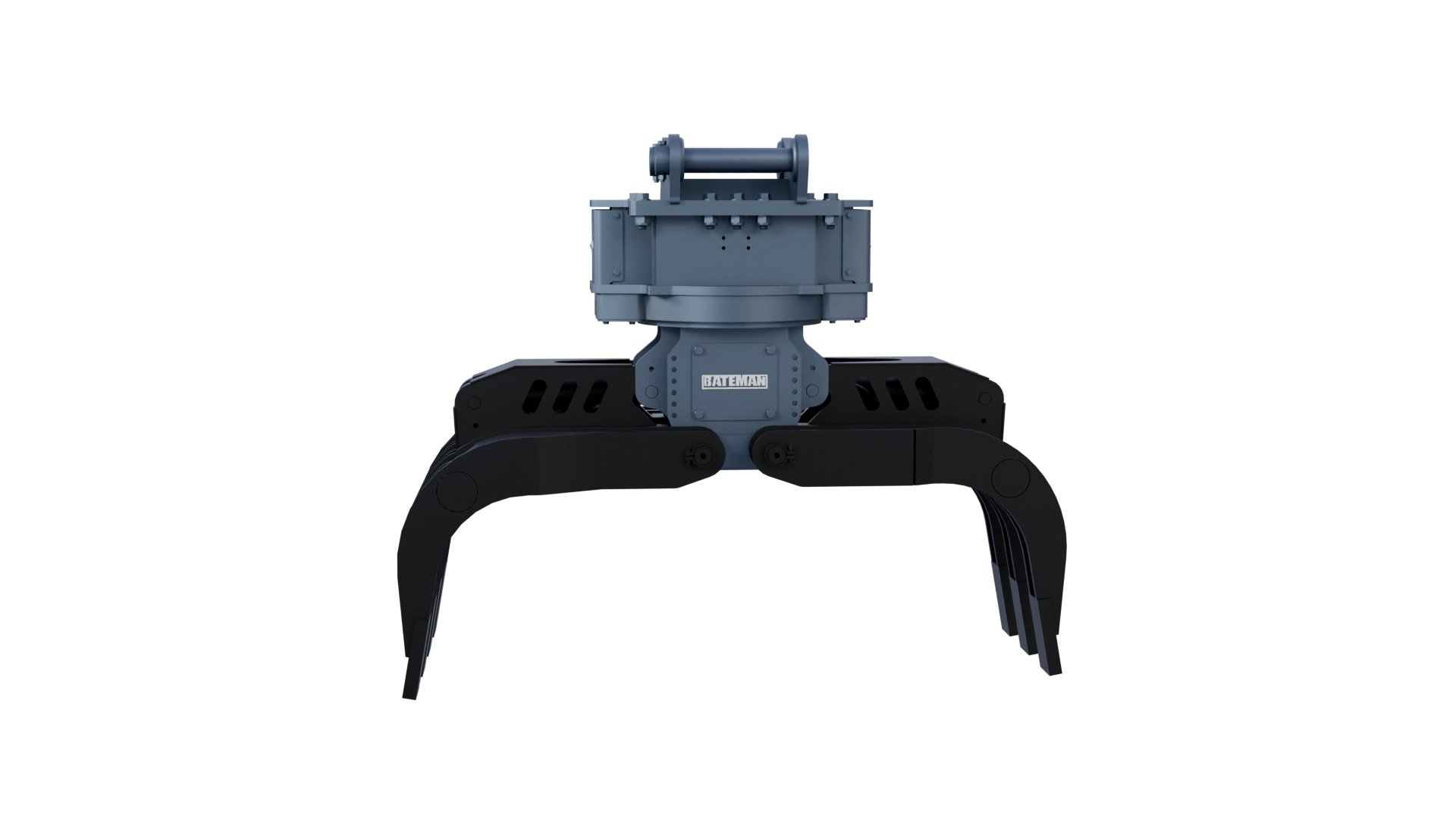

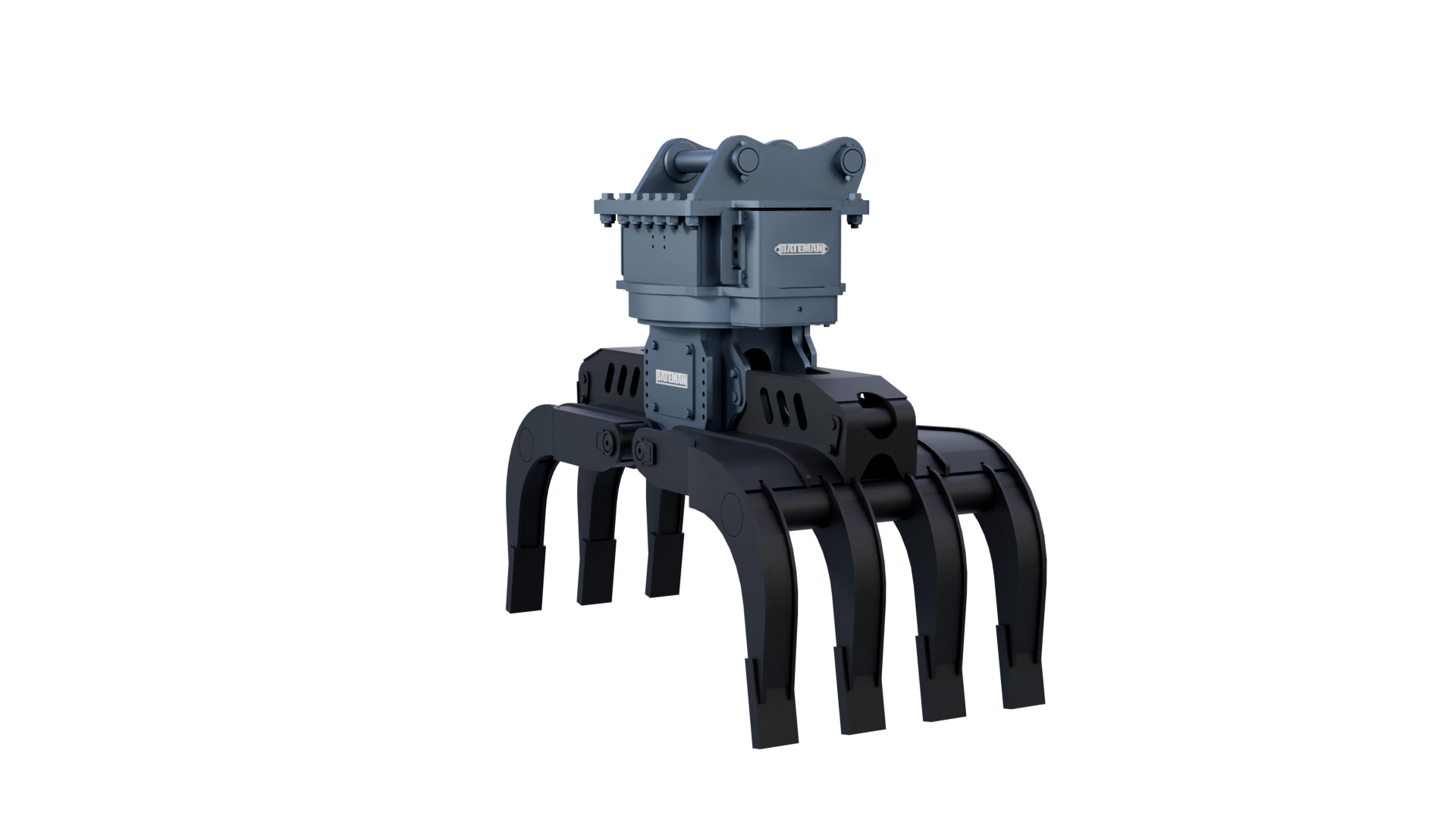

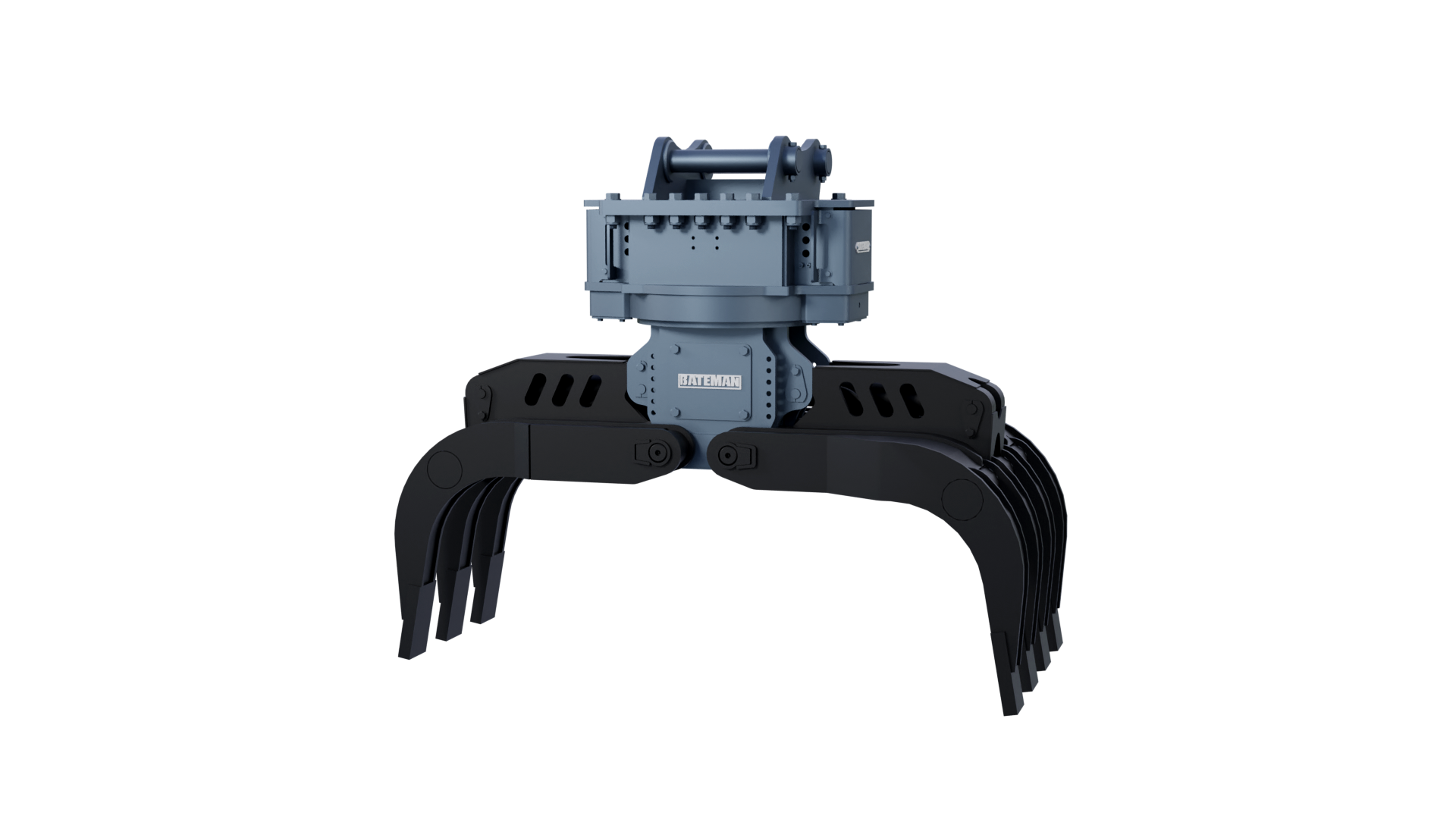

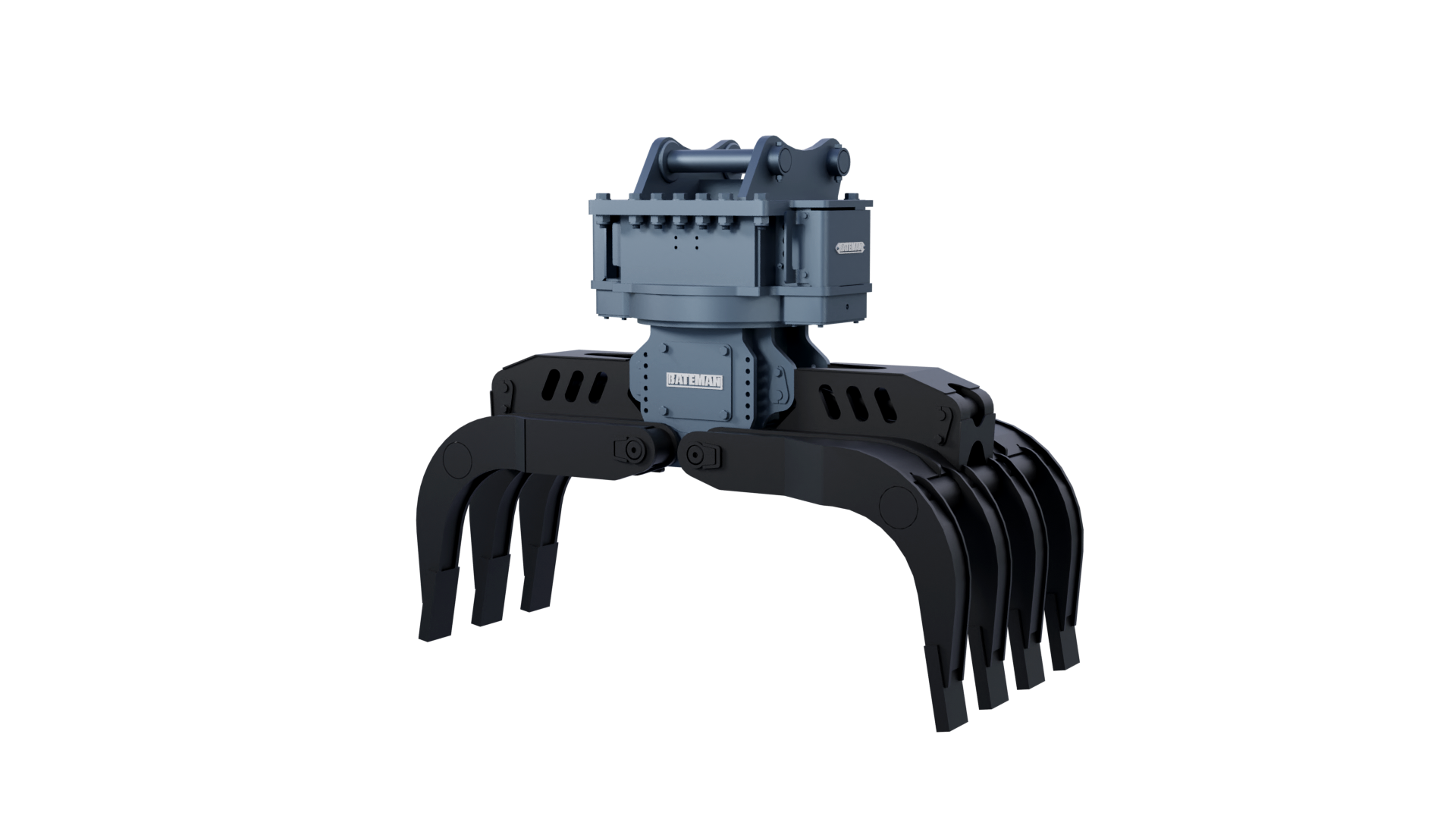

-180° 180°

BPG-DR Models

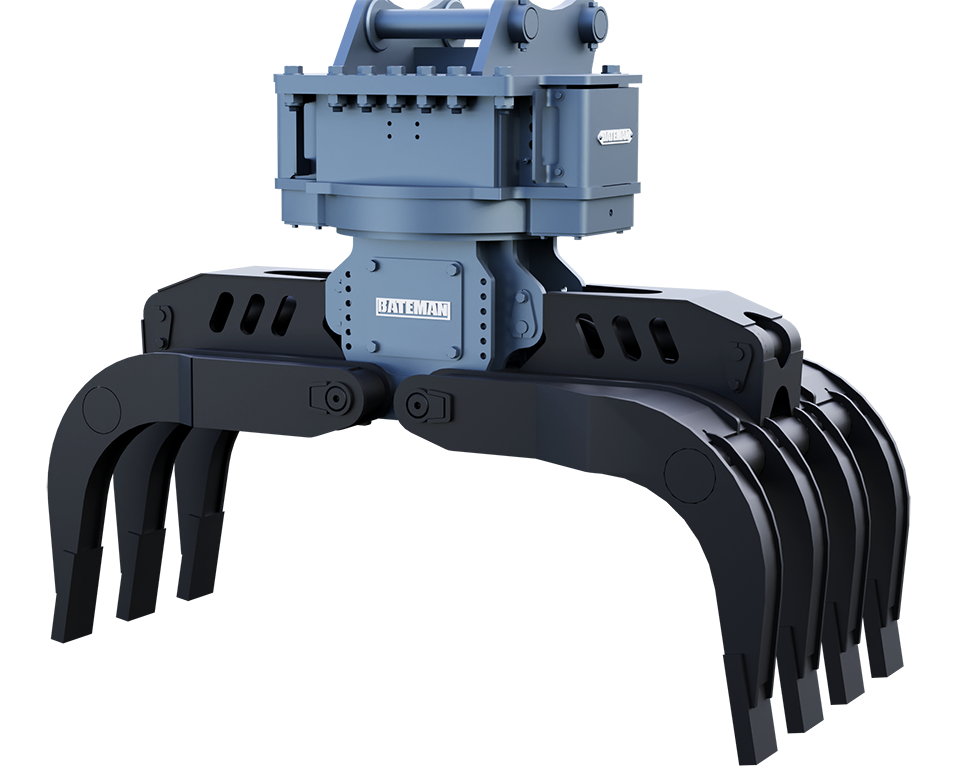

The BATEMAN Demolition Power Grapple is built to withstand the toughest of demolition applications in order to minimize downtime and increase efficiency.

Special, heavy-duty jaw.
Ease of handling.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

The BATEMAN Demolition Power Grapple features a special, heavy-duty jaw for ease of handling and is built to withstand the toughest of demolition applications in order to minimize downtime and increase efficiency.

TECHNICAL SPECIFICATIONS

Model	BPG100-32WR-056
Machine Class	3t - 6t
Max Opening in (mm)	56 (1,422)
Width in (mm)	22 (559)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	288 (2.00)
Cylinder Size in (mm)	2.5 (63.5)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	750 (340)

Download Spec. Sheet

Model	BPG100-32WR-062
Machine Class	5t - 20t
Max Opening in (mm)	62 (1,575)
Width in (mm)	26 (660)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	403 (2.80)
Cylinder Size in (mm)	3 (76)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	1,050 (476)

Download Spec. Sheet

Model	BPG160-32DT-072
Machine Class	5t - 50t
Max Opening in (mm)	72 (1,829)
Width in (mm)	30 (762)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	648 (4.50)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	1,800 (816)

Download Spec. Sheet

Model	BPG160-43DT-072
Machine Class	9t - 50t
Max Opening in (mm)	72 (1,829)
Width in (mm)	43 (1,092)
Tine By-Pass Configuration	4/3
Area Tip-To-Tip ft.² (m²)	648 (4.50)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	2,200 (998)

Download Spec. Sheet

Model	BPG200-32DT-084
Machine Class	13t - 29t
Max Opening in (mm)	84 (2,134)
Width in (mm)	34 (864)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	864 (6.00)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	3,400 (1,542)

Download Spec. Sheet

Model	BPG200-43DT-084
Machine Class	13t - 50t
Max Opening in (mm)	84 (2,134)
Width in (mm)	46 (1,168)
Tine By-Pass Configuration	4/3
Area Tip-To-Tip ft.² (m²)	890 (6.18)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	3,500 (1,588)

Download Spec. Sheet

Model	BPG300-32DT-096
Machine Class	13t - 50t
Max Opening in (mm)	96 (2,438)
Width in (mm)	40 (1,016)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	1,152 (8.00)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,100 (2,313)

Download Spec. Sheet

Model	BPG300-43DT-096
Machine Class	25t - 150t
Max Opening in (mm)	96 (2,438)
Width in (mm)	47 (1,194)
Tine By-Pass Configuration	4/3
Area Tip-To-Tip ft.² (m²)	1,130 (7.80)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,400 (2,449)

Download Spec. Sheet

Model	BPG300-54DT-096
Machine Class	25t - 150t
Max Opening in (mm)	96 (2,438)
Width in (mm)	67 (1,702)
Tine By-Pass Configuration	5/4
Area Tip-To-Tip ft.² (m²)	1,152 (8.00)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	3,400 (1,542)

Download literature

Model	BPG400-32DT-114
Machine Class	25t - 150t
Max Opening in (mm)	114 (2,896)
Width in (mm)	48 (1,219)
Tine By-Pass Configuration	3/2
Area Tip-To-Tip ft.² (m²)	1,728 (12.00)
Cylinder Size in (mm)	5 (127)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,100 (2,313)

Download literature

Model	BPG400-43DT-114
Machine Class	25t - 150t
Max Opening in (mm)	114 (2,896)
Width in (mm)	64 (1,626)
Tine By-Pass Configuration	4/3
Area Tip-To-Tip ft.² (m²)	1,728 (12.00)
Cylinder Size in (mm)	5 (127)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,540 (2,513)

Download literature

Model	BPG400-54DT-114
Machine Class	25t - 150t
Max Opening in (mm)	114 (2,896)
Width in (mm)	76 (1,030)
Tine By-Pass Configuration	5/4
Area Tip-To-Tip ft.² (m²)	1,728 (12.00)
Cylinder Size in (mm)	5 (127)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,980 (2,712)

Download literature

COMPATIBILITY

Request Quote To Find The Right Demolition Power Grapple For Your Material Handler Or Excavator!
