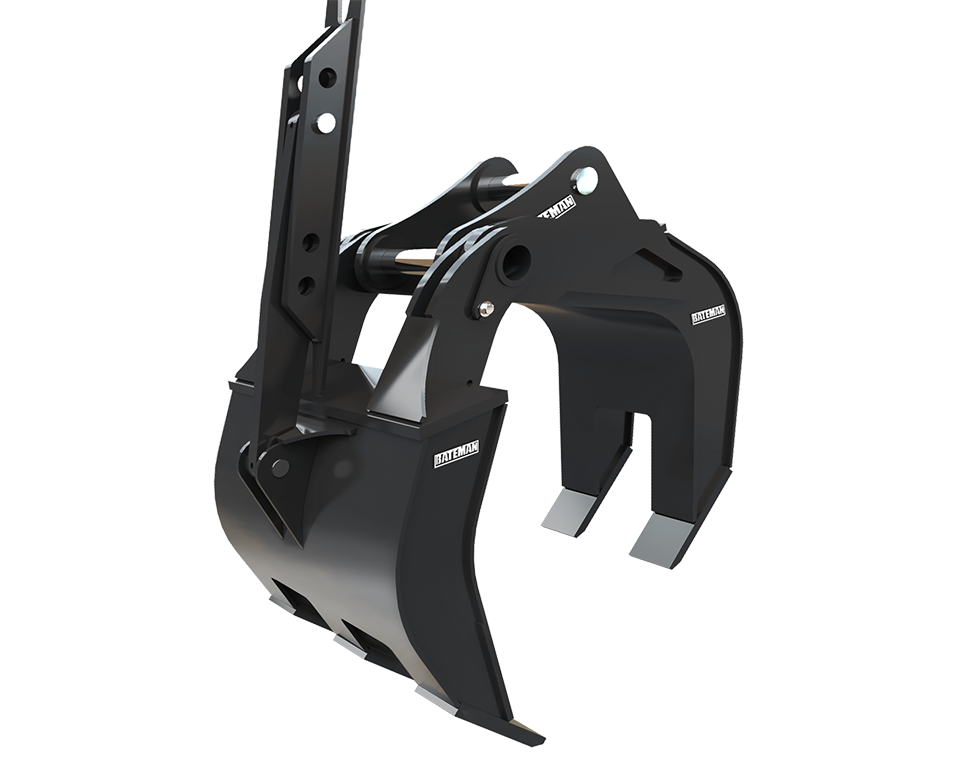

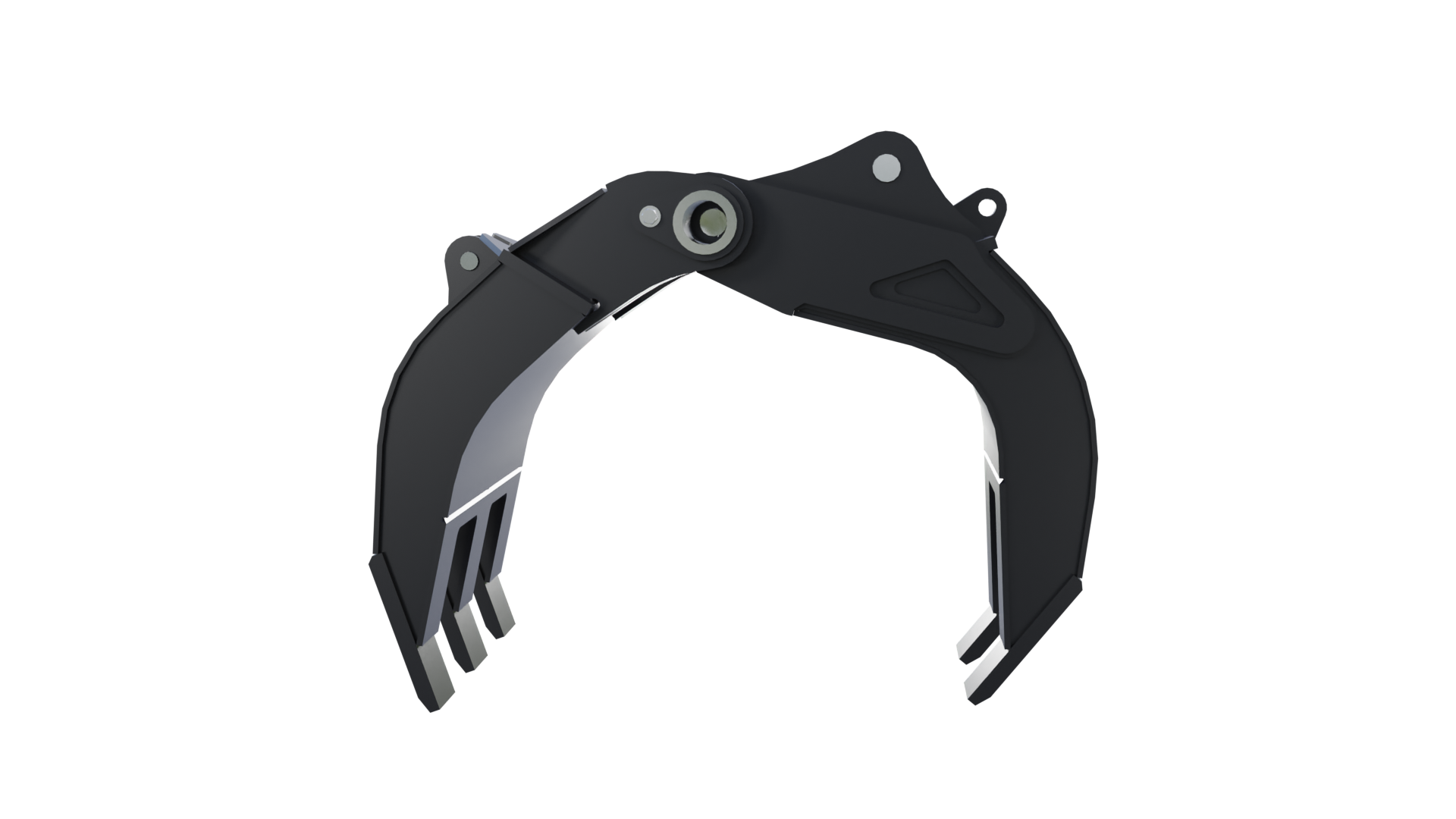

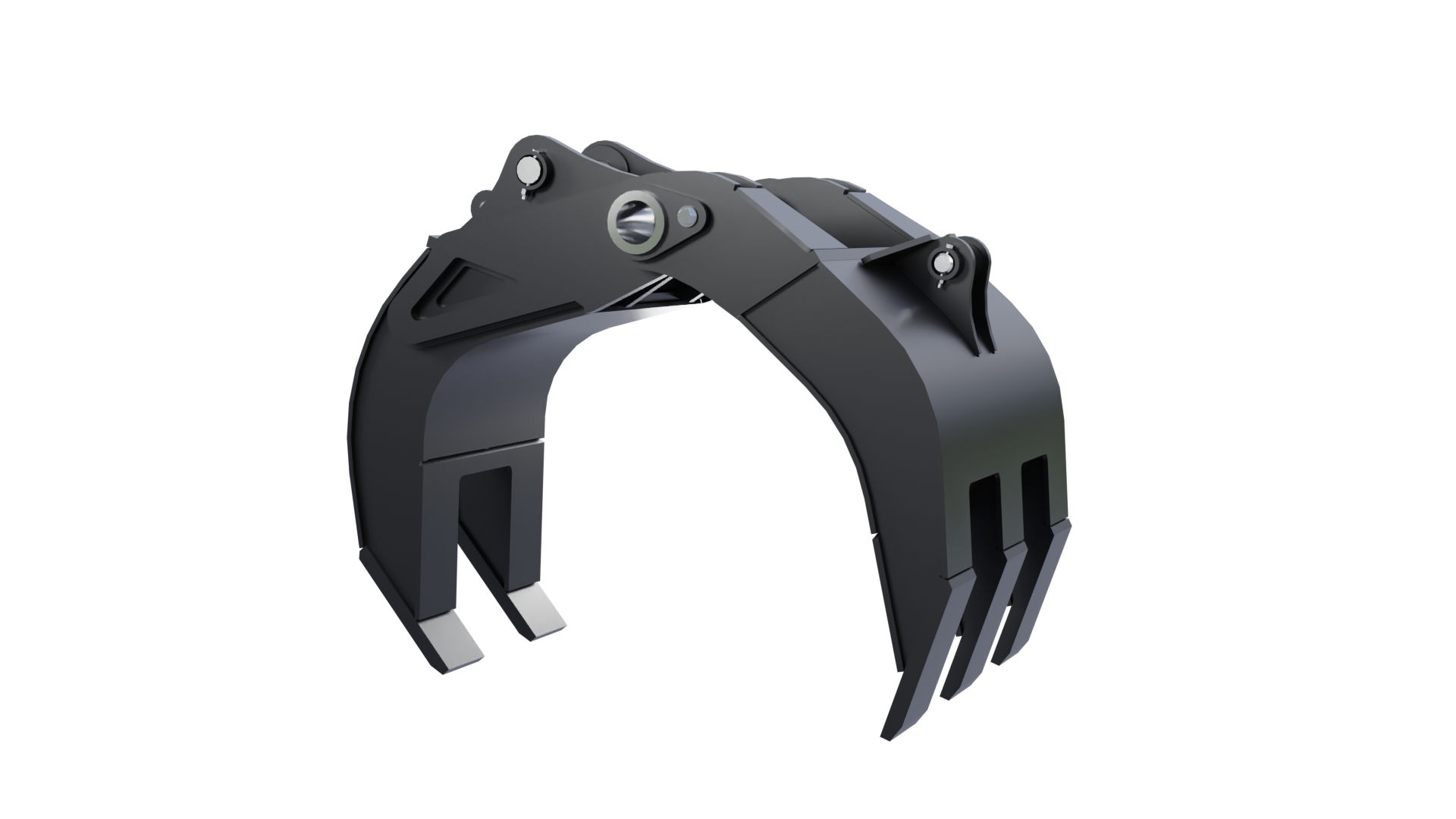

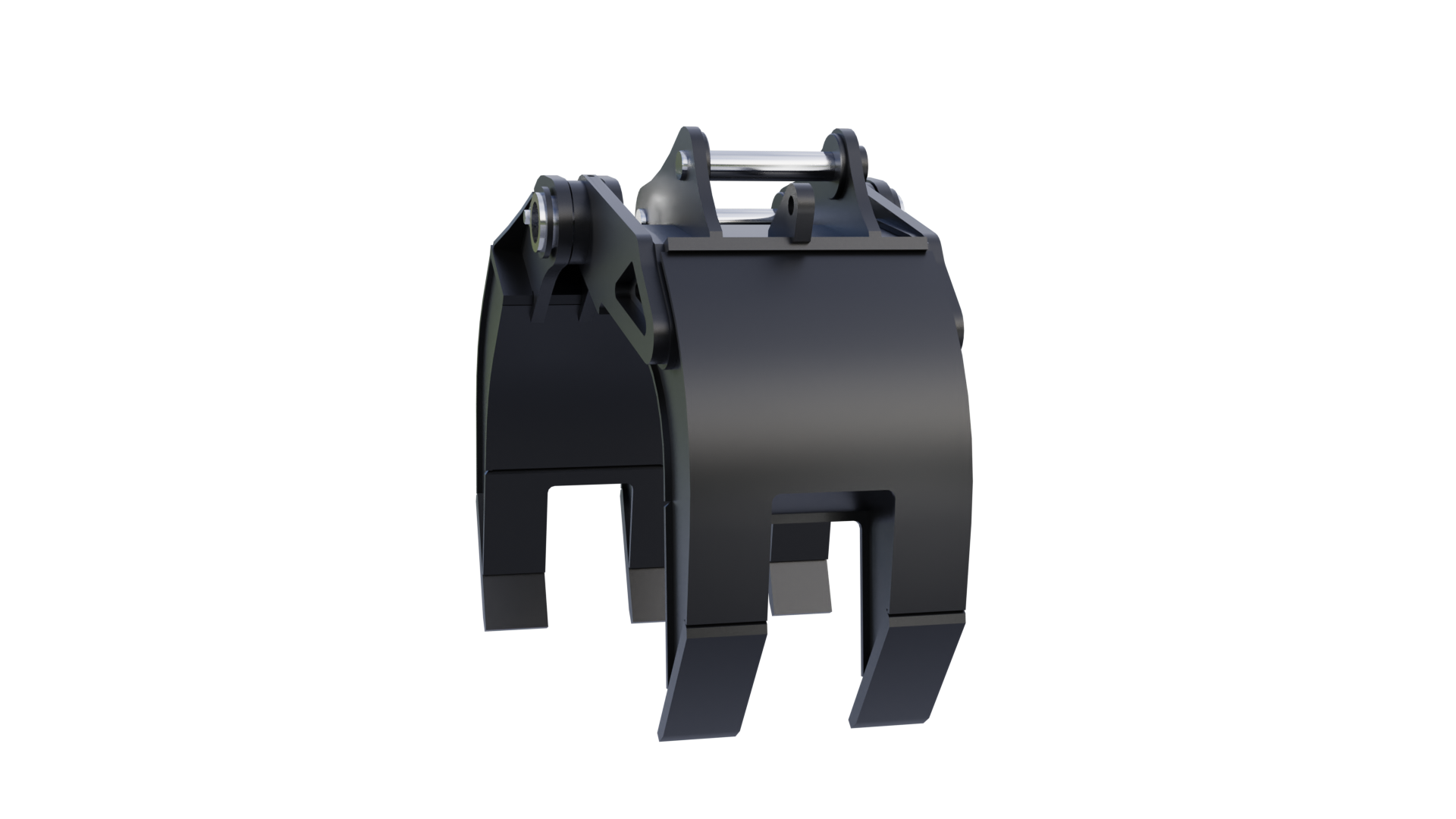

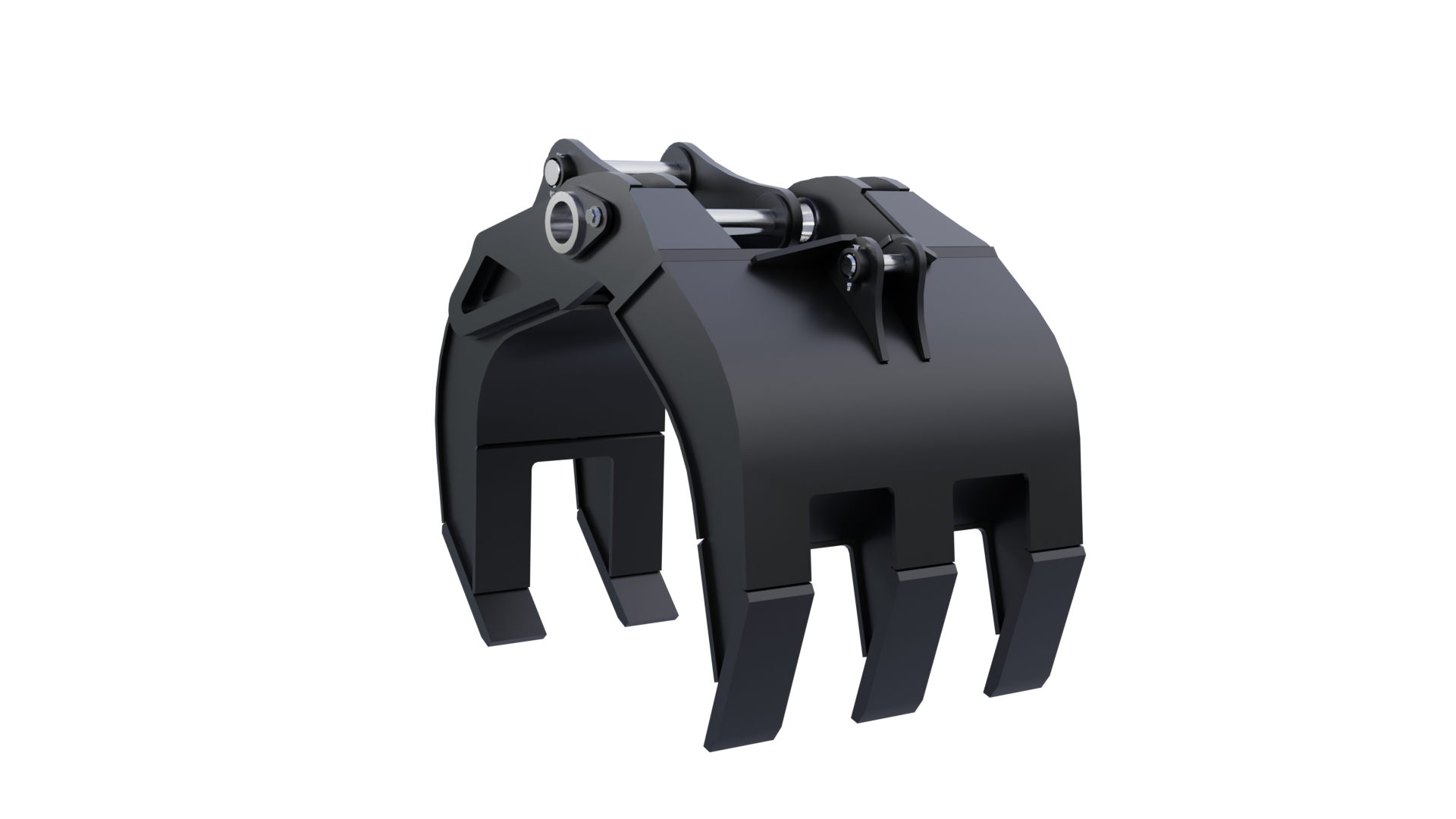

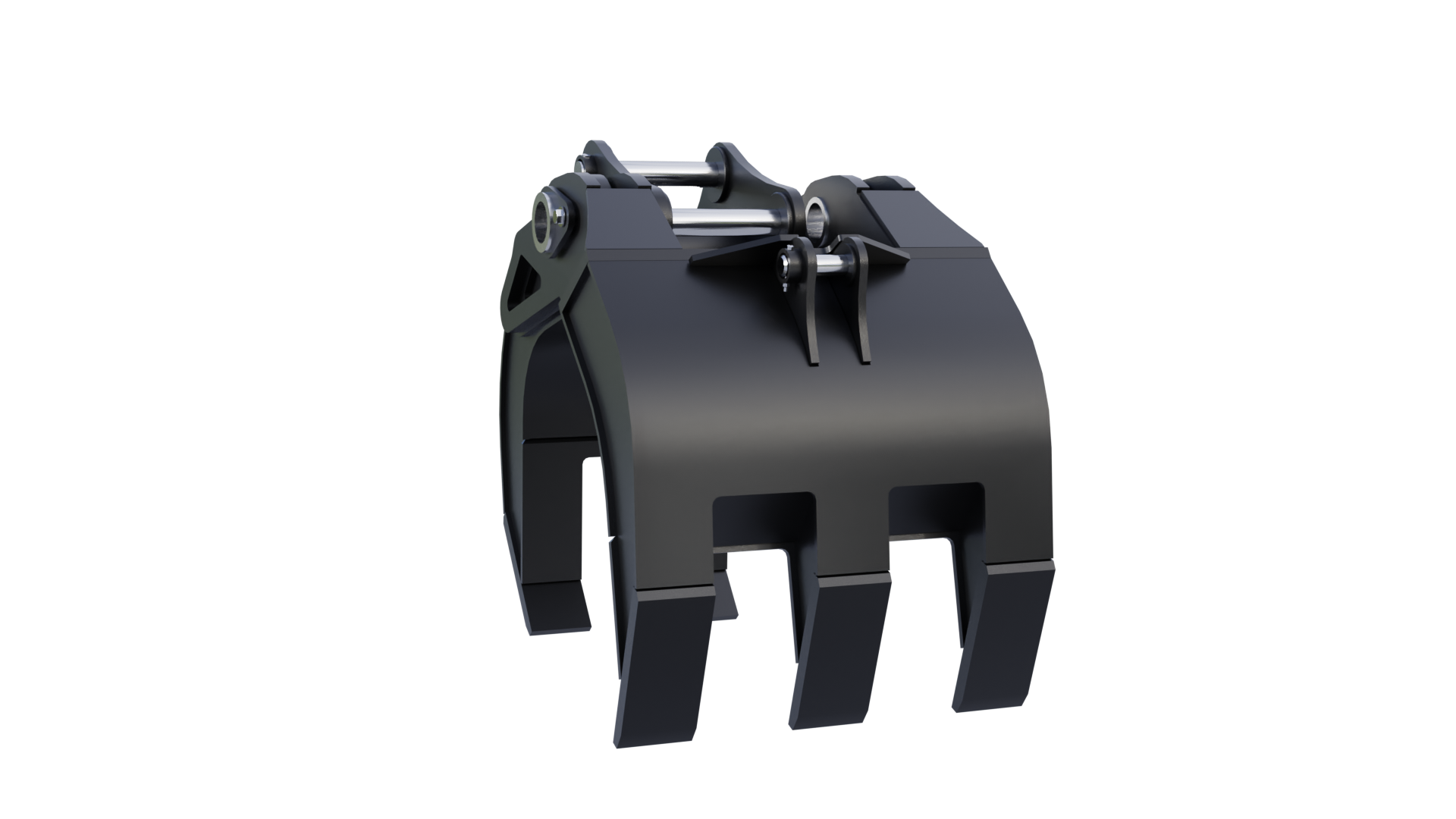

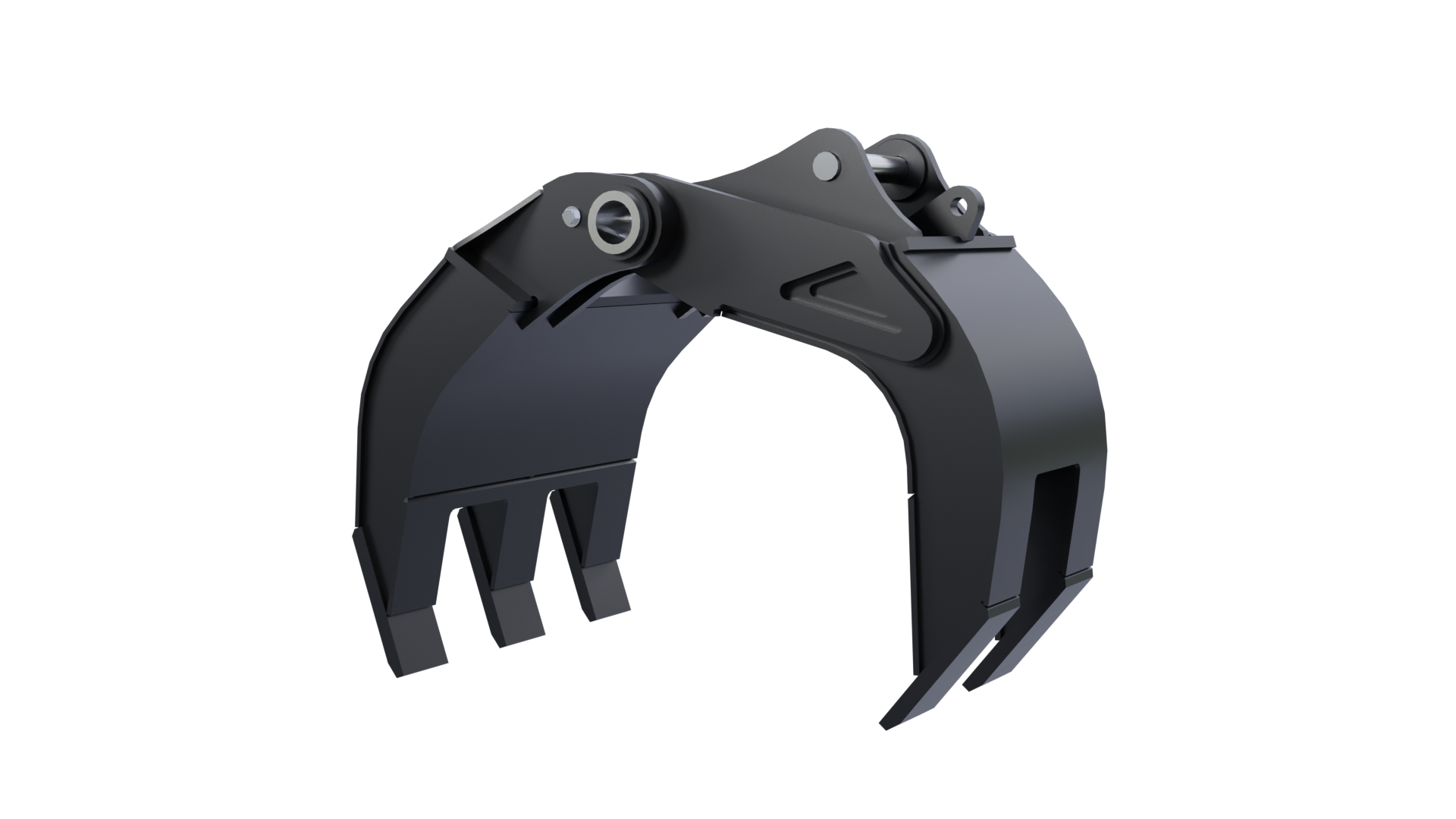

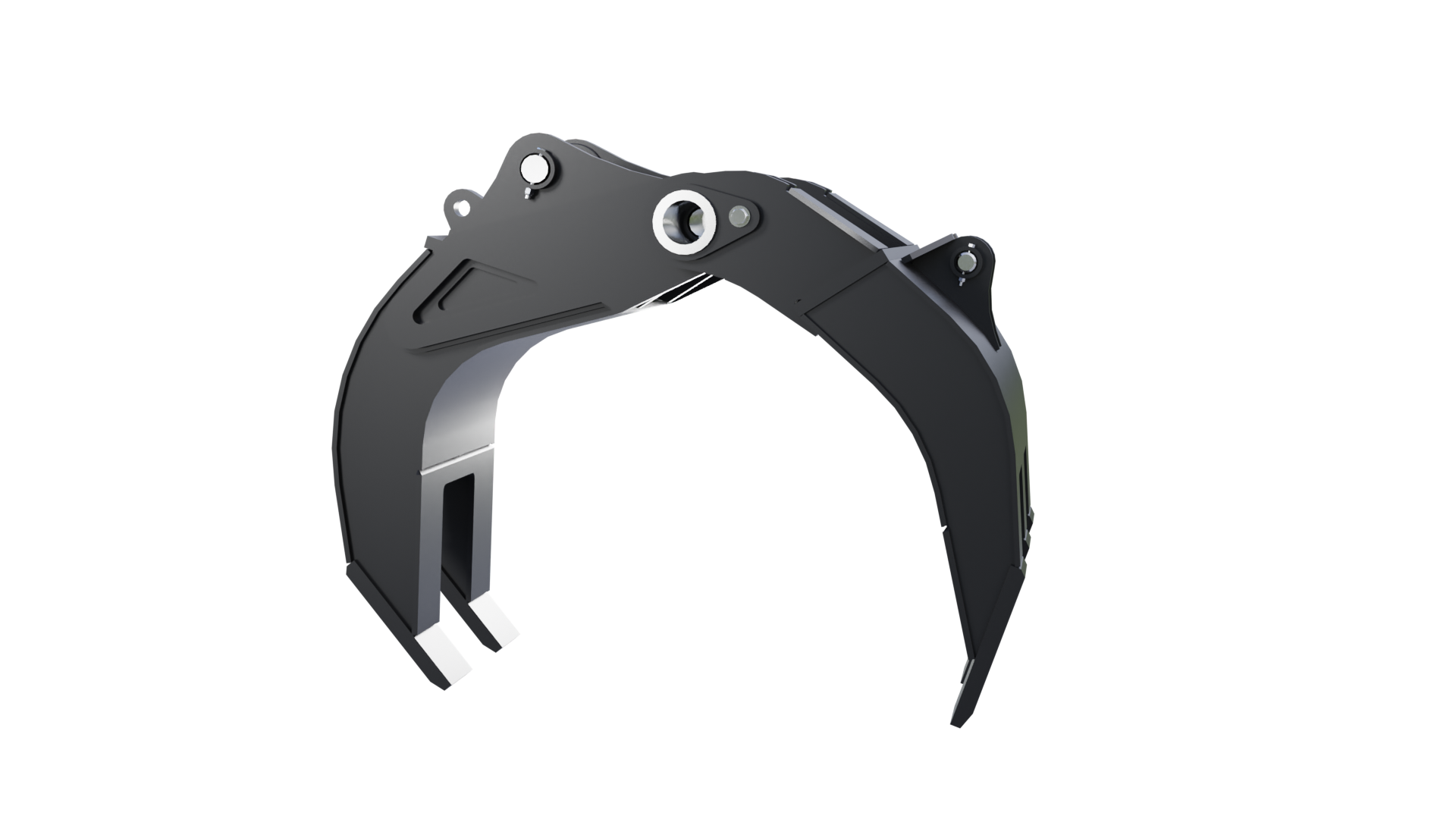

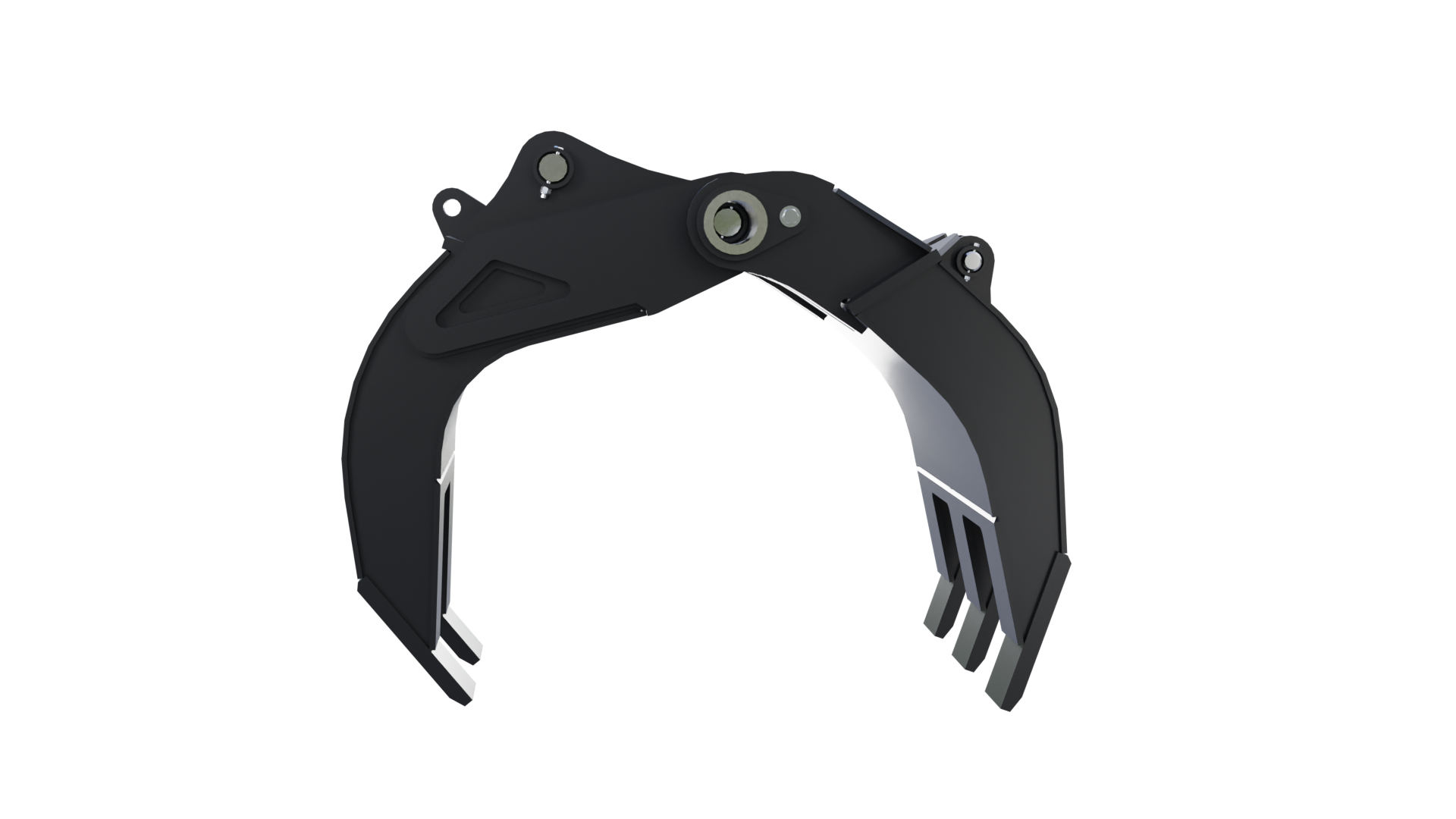

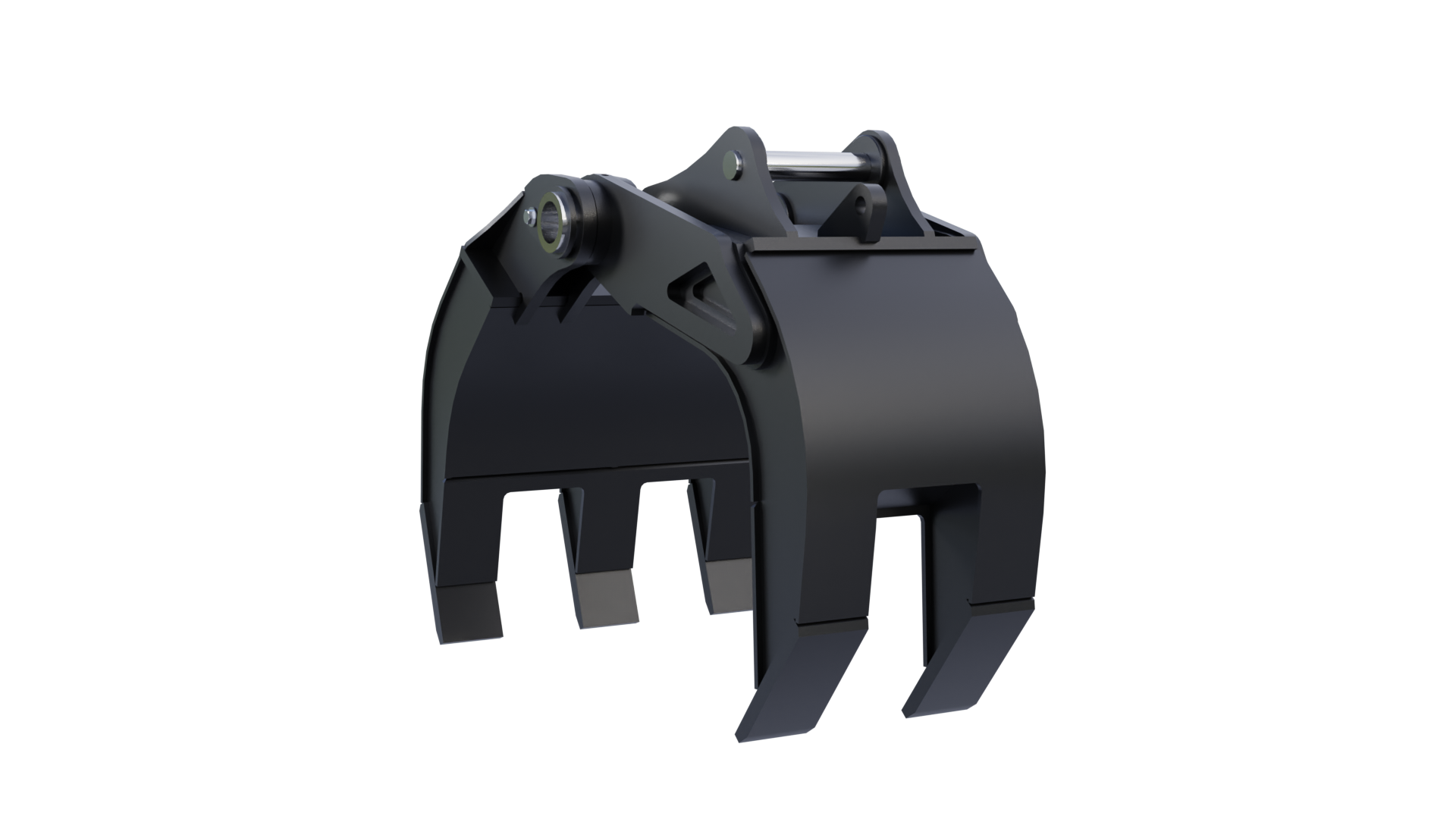

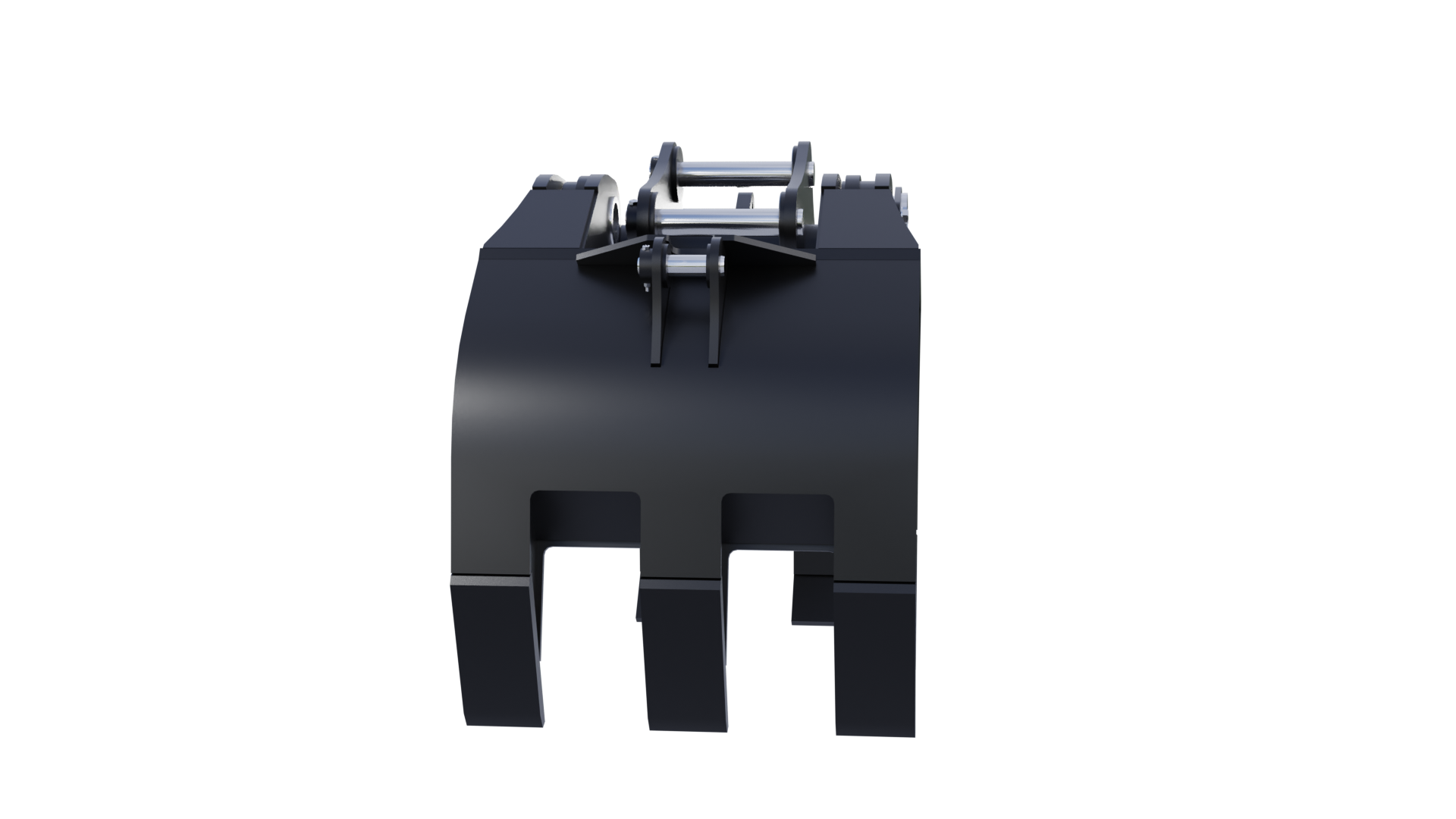

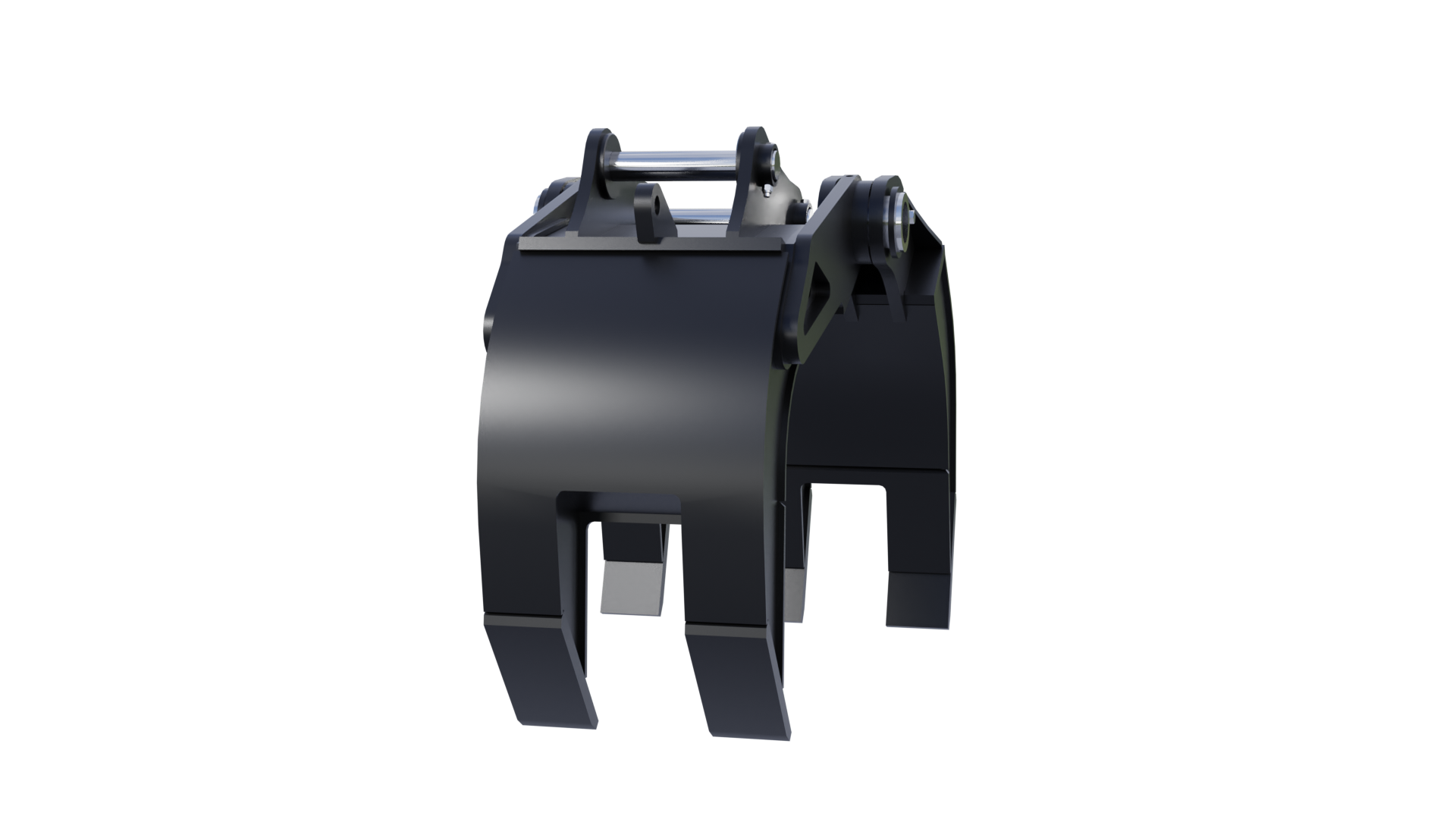

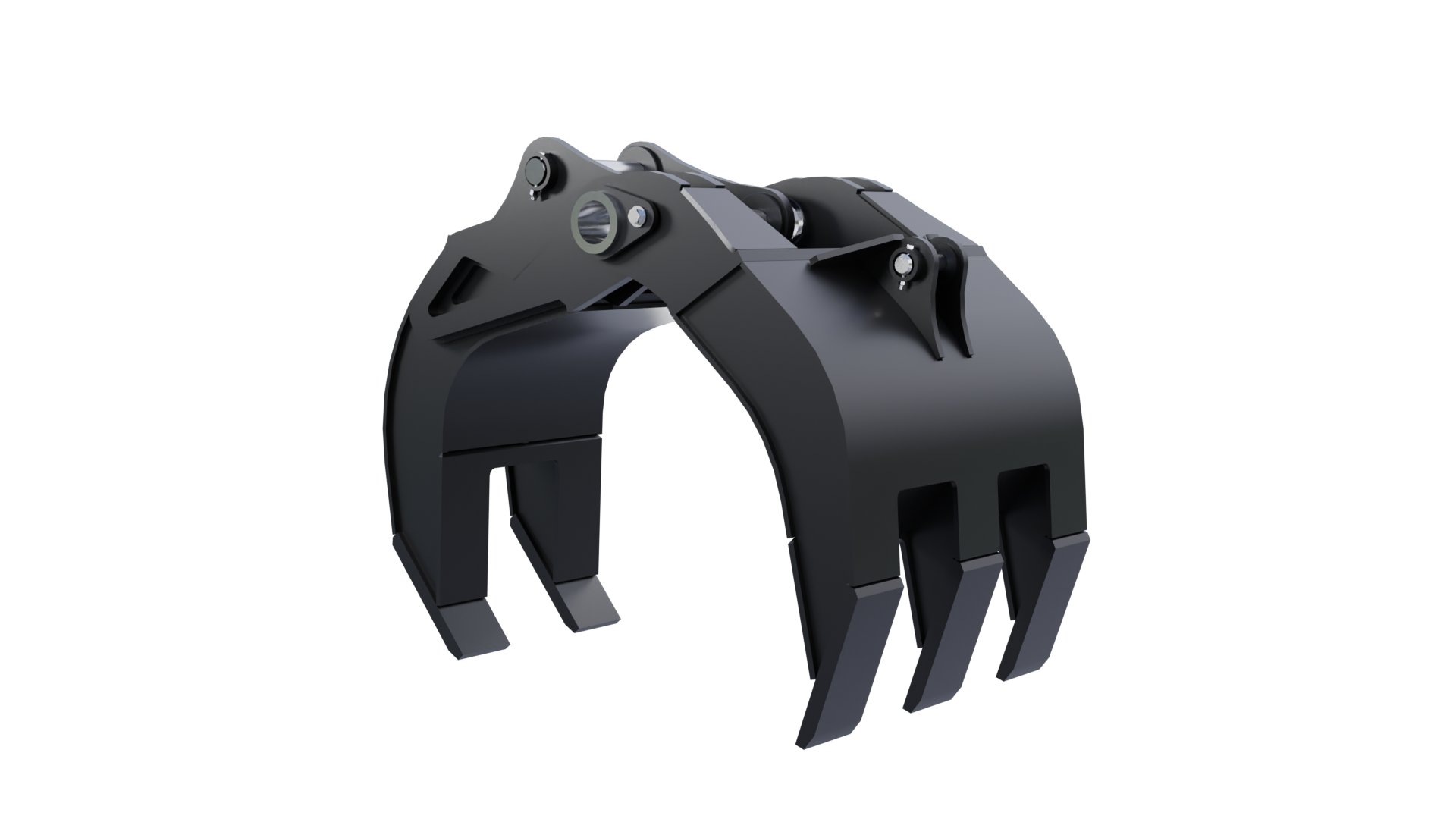

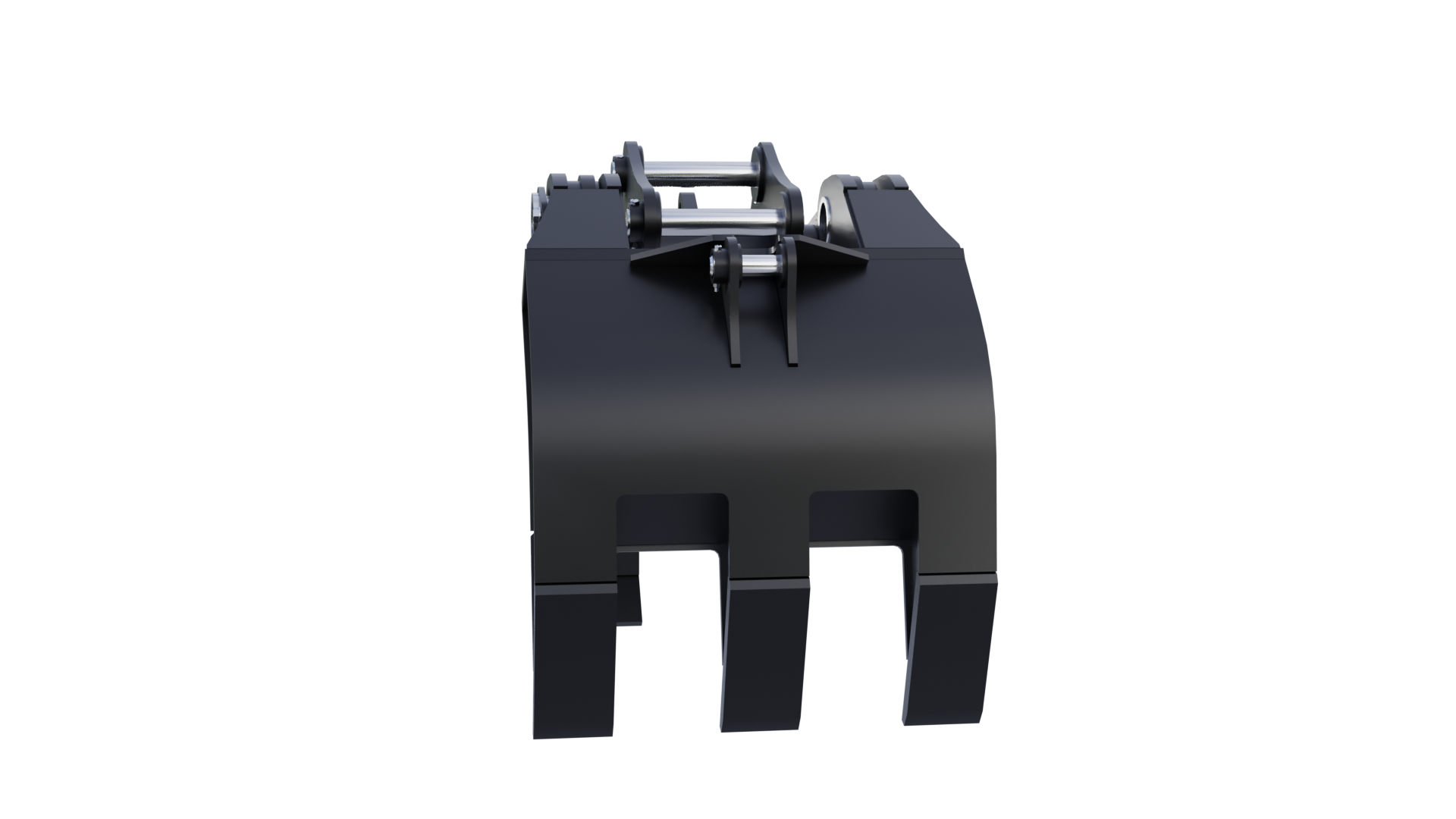

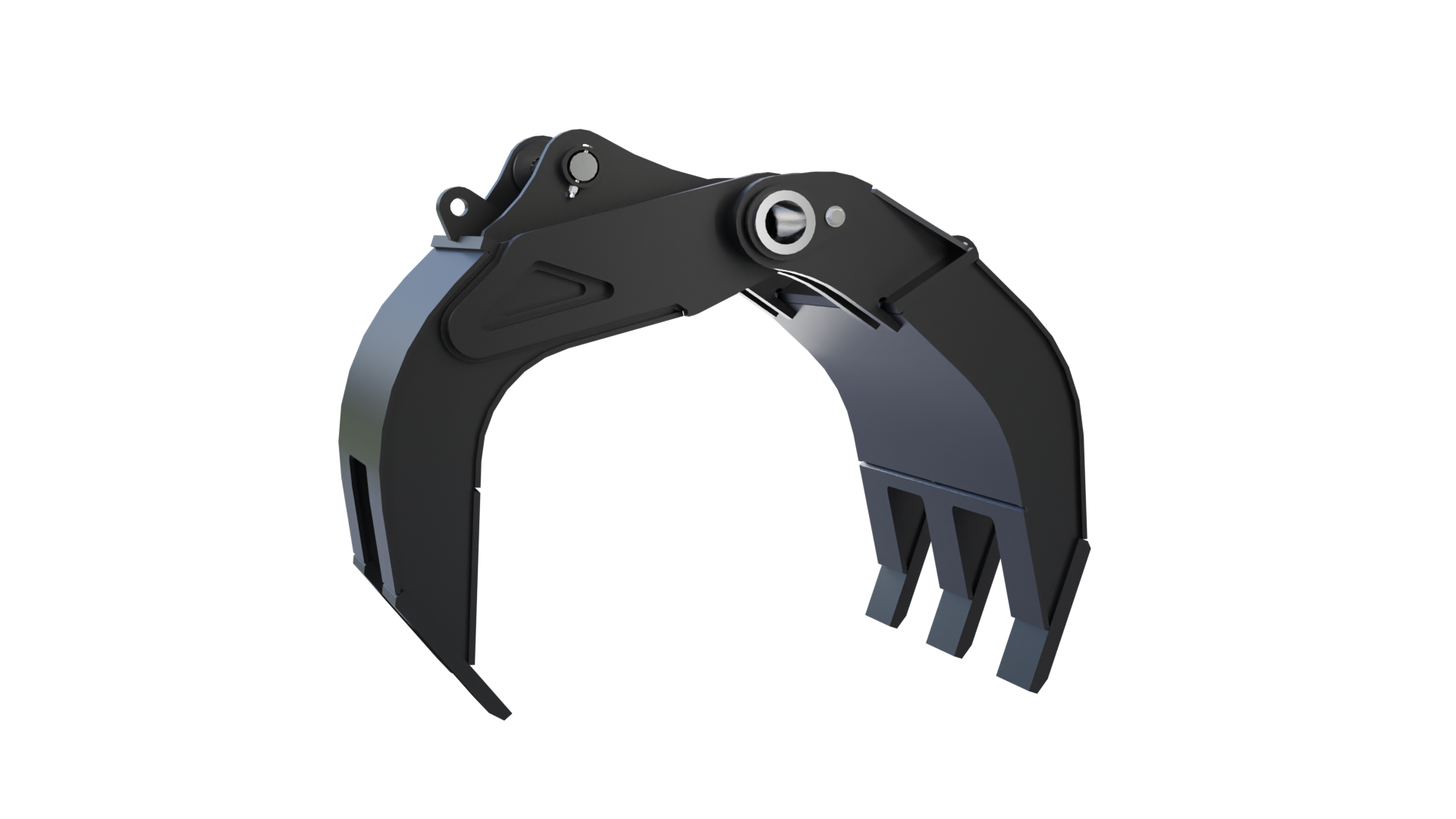

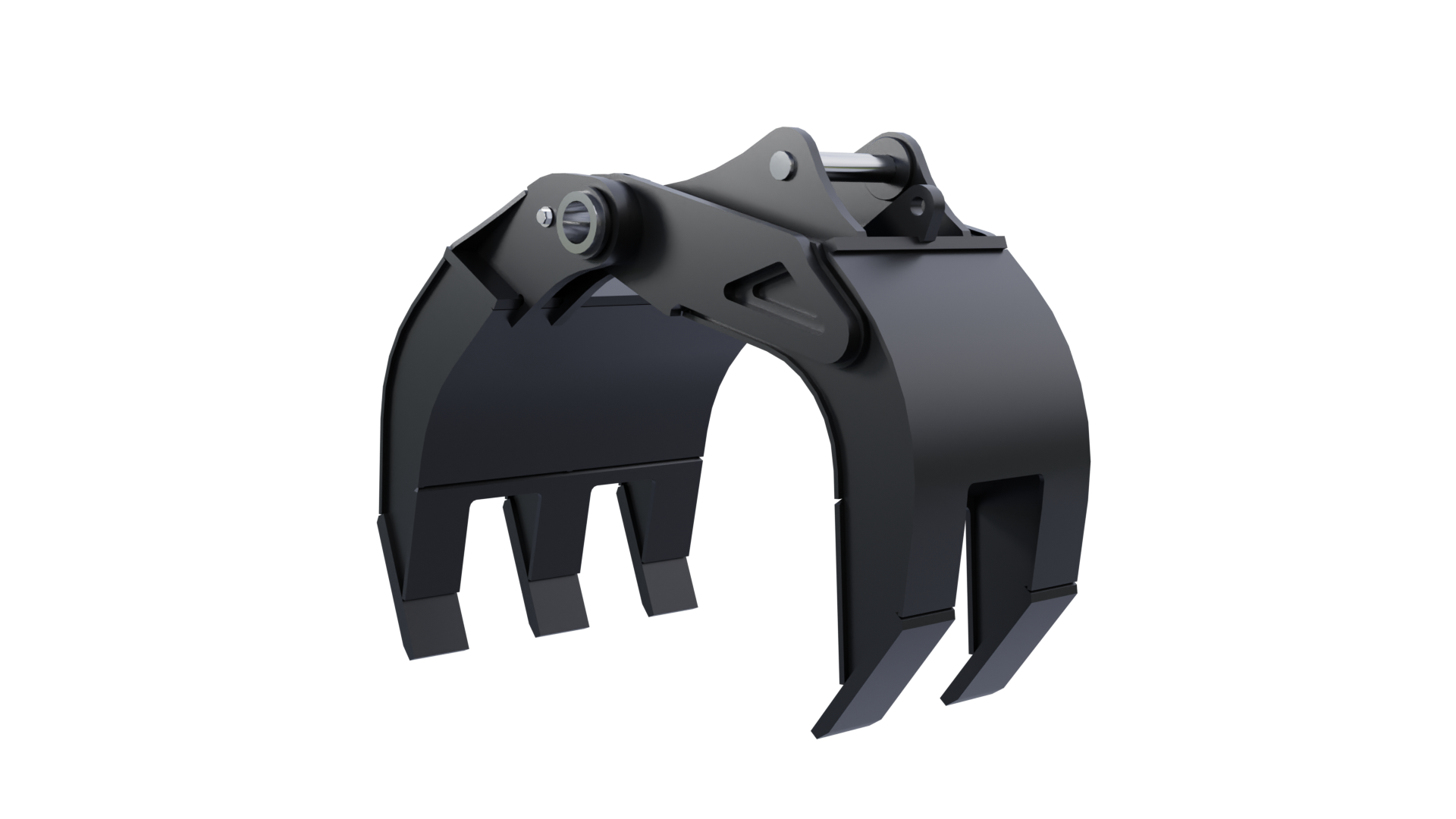

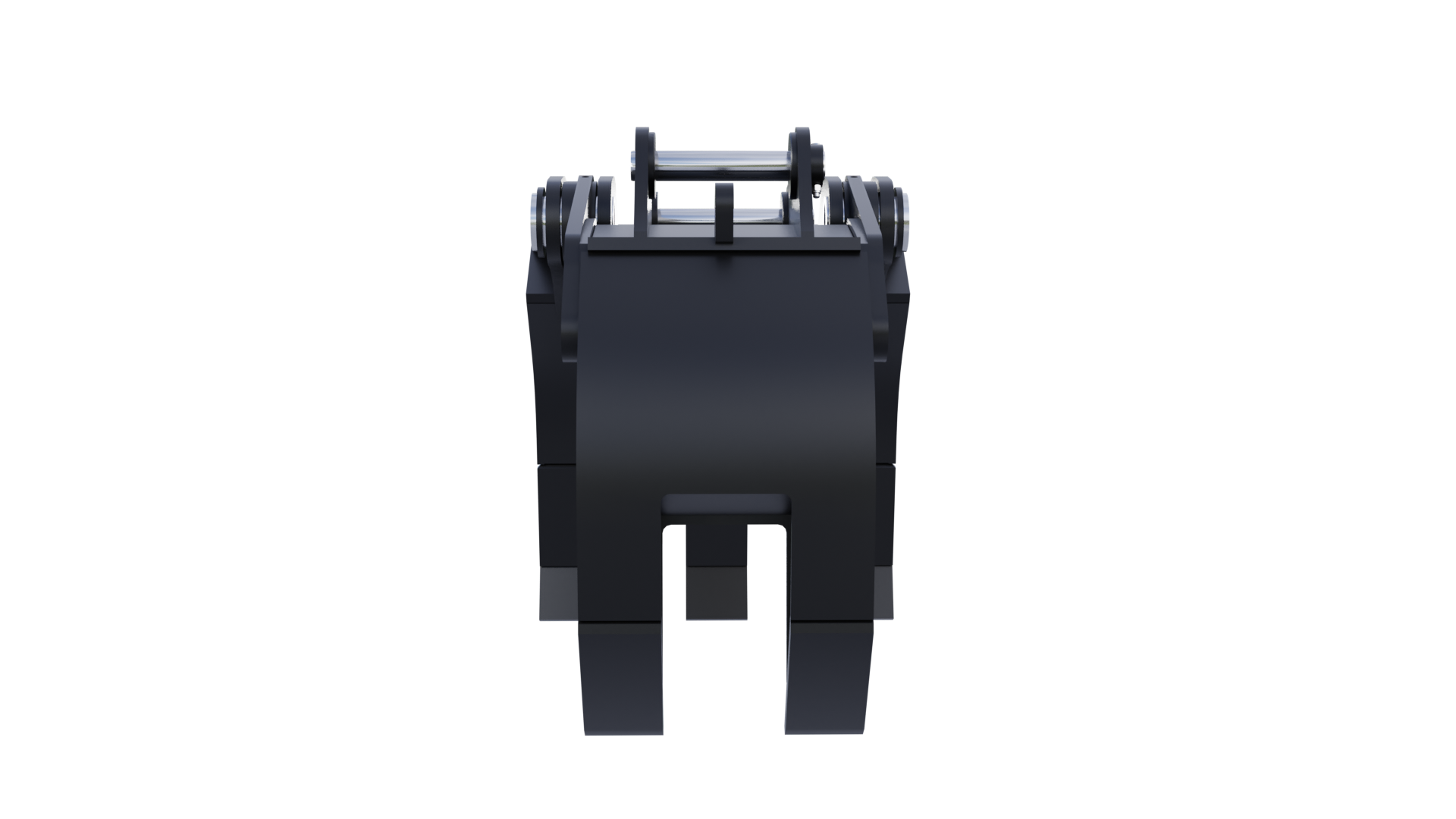

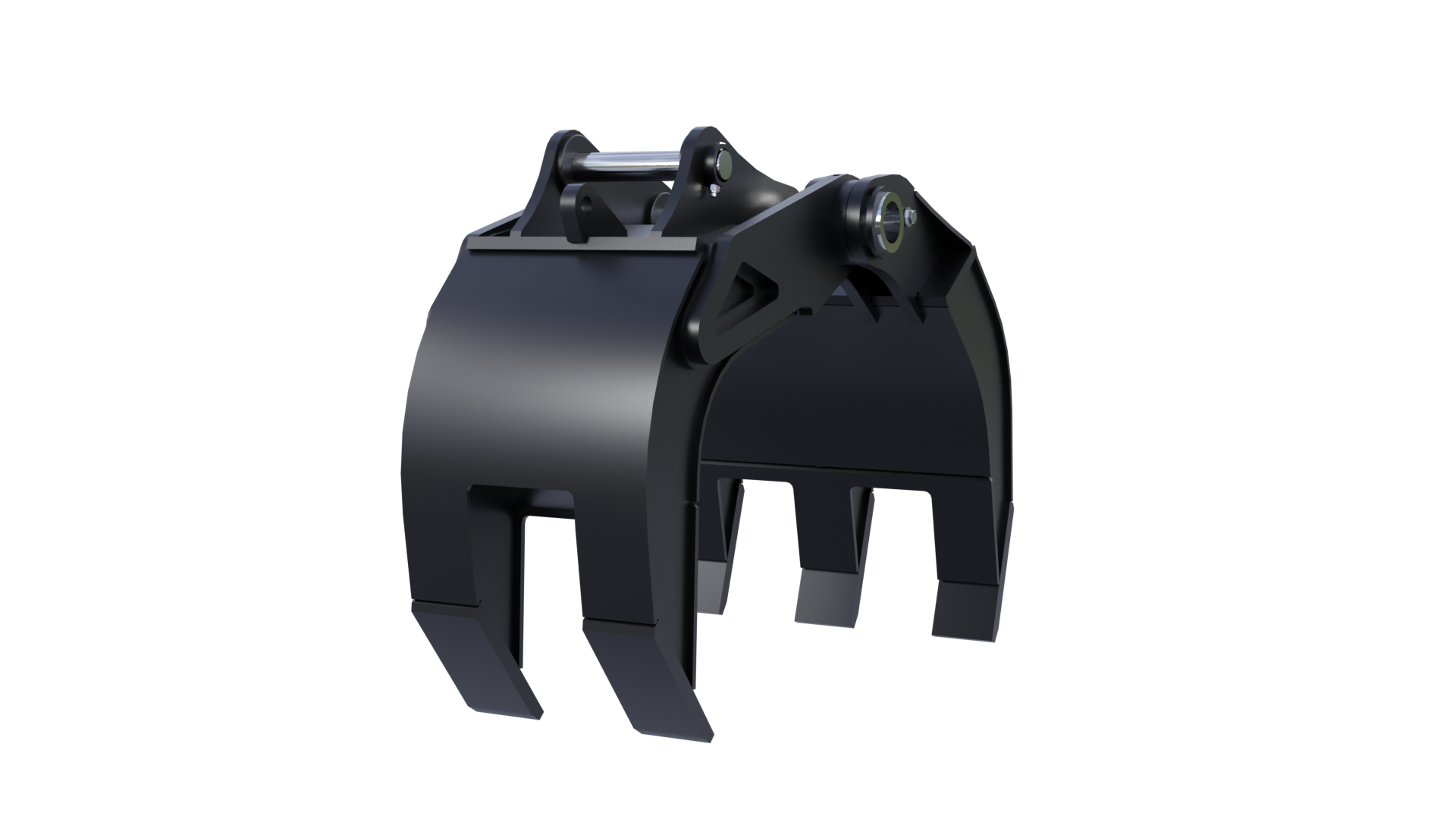

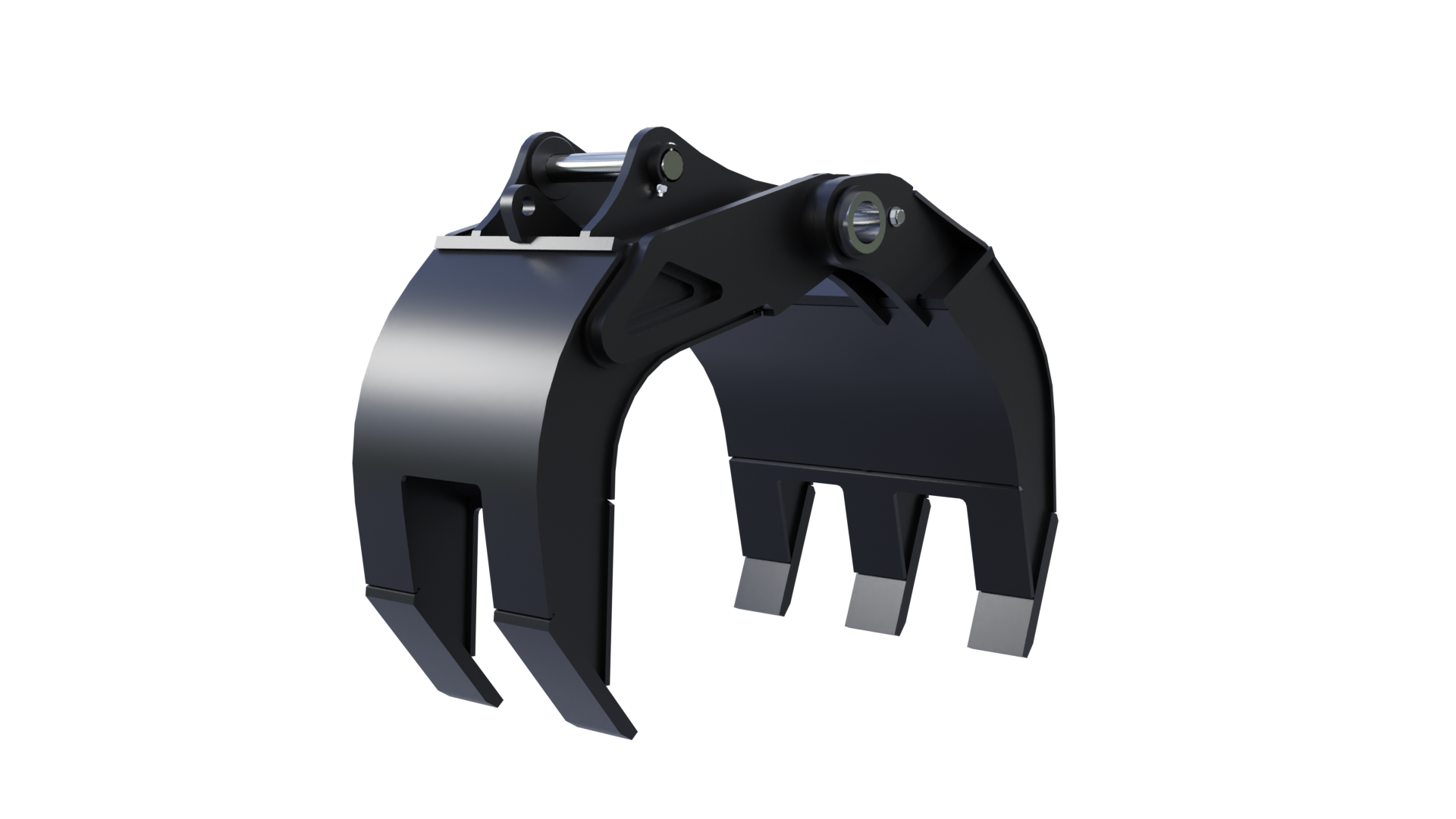

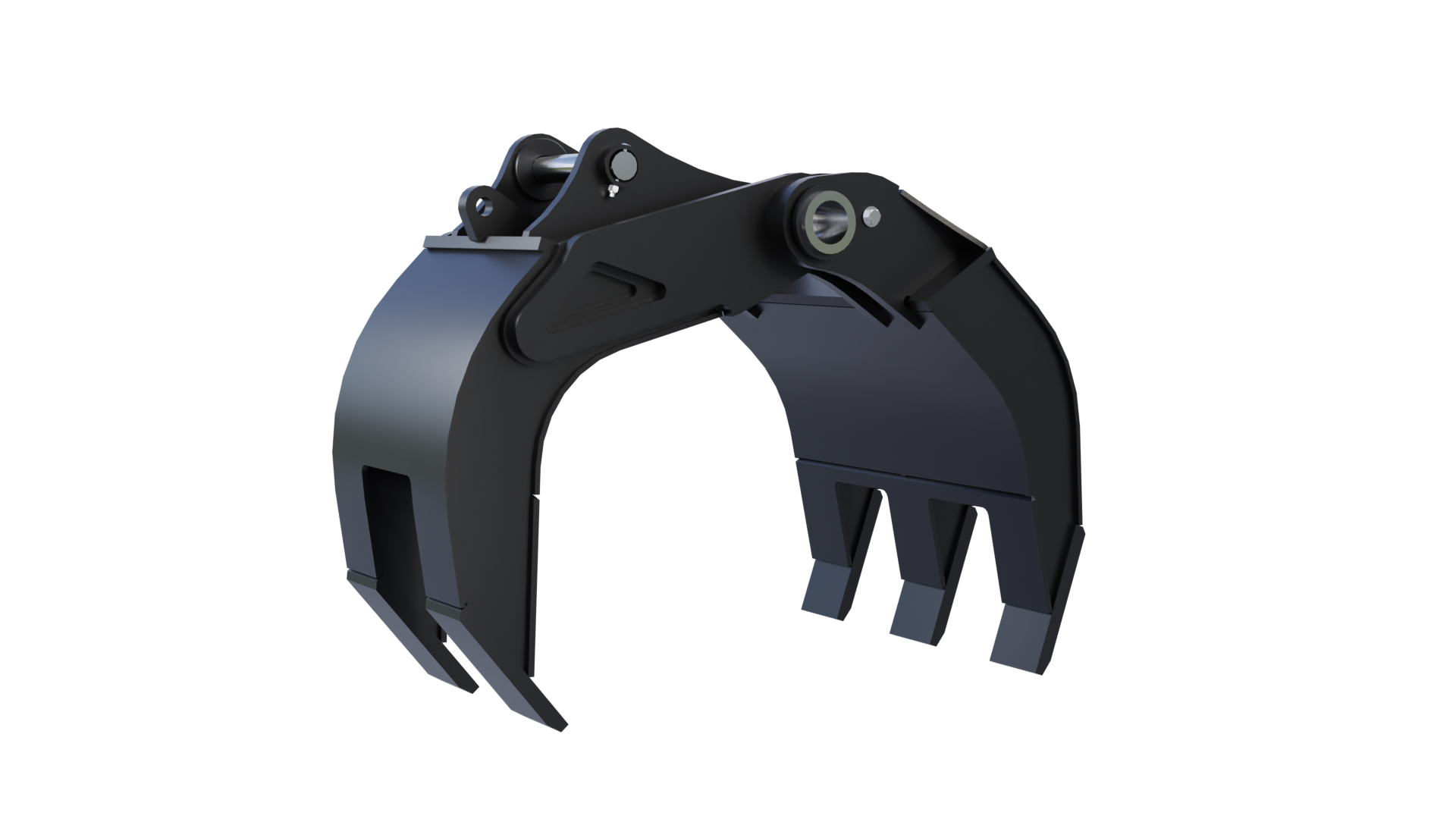

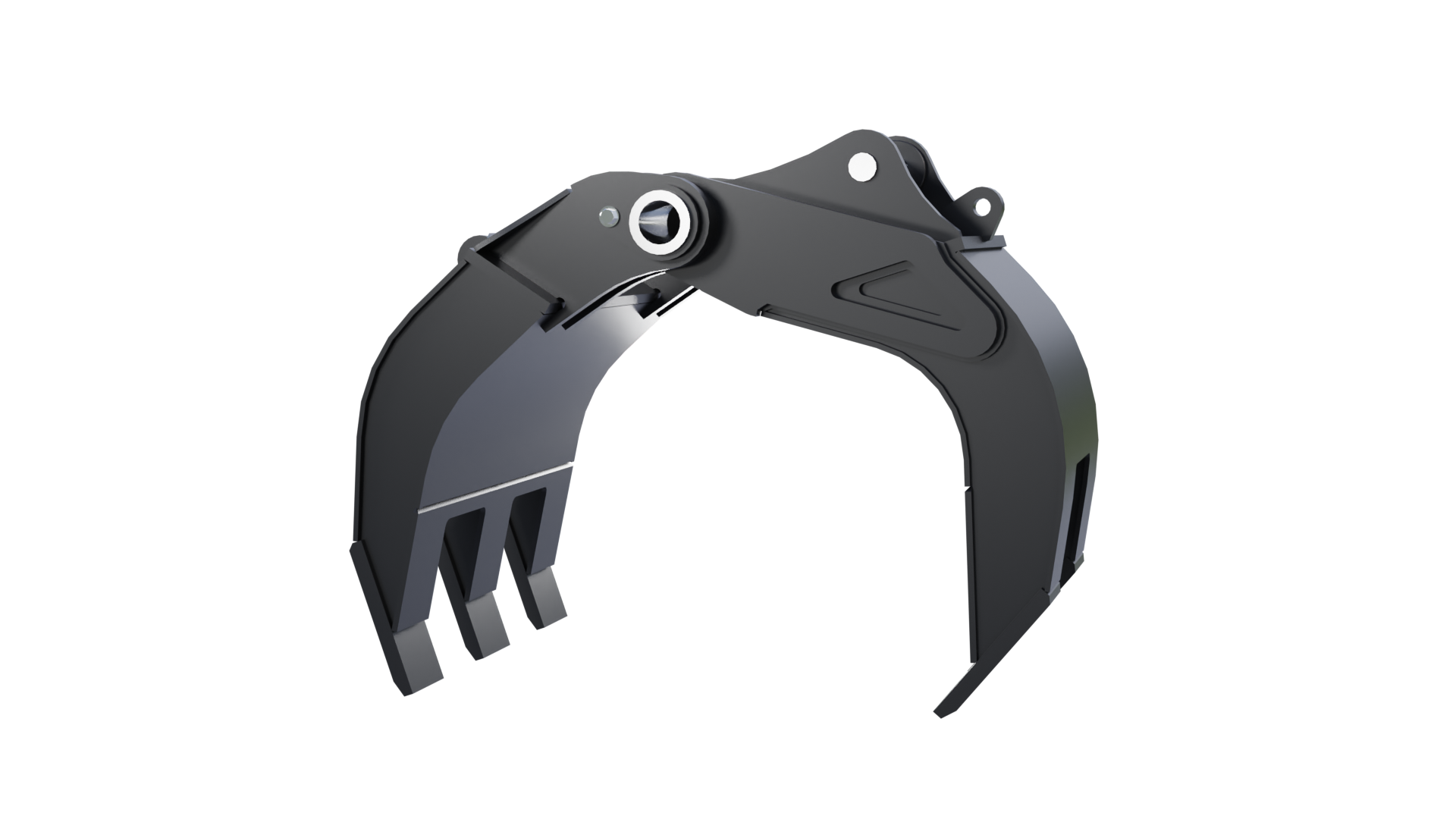

Demolition Contractor Grapple
BCG Models
Introducing our newly redesigned demolition contractor grapple, engineered for superior performance and flexibility. With enhanced clamping force and a customized sleeve kit for easy installation, this grapple is a versatile attachment for any machine in its class. Its heavy-duty casted tips ensure durability and can be easily replaced, while the sharp design enhances penetration and capacity.
- Improved Clamping Force.
- Custom Sleeve Kit for Easy Installation.
- Heavy Duty Casted & Replaceable Tips for Longevity.
- Wear Plate Packages & Hard Facing Options.
- Streamlined Mechanical Design.
PRODUCT SPECIFICATIONS
Product Specification
Ideal for demolition, scrap industries, and construction, this grapple features wear plate packages and hard-facing options. Compatible with pin-on or coupler setups, it offers a streamlined mechanical design at an affordable price, making it a must-have attachment.
| Model | BCG20-2/3 | BCG30-2/3 | BCG40-2/3 | BCG50-2/3 | BCG70-2/3 | BCG100-2/3 | BCG140-2/3 | |
|---|---|---|---|---|---|---|---|---|
| # of Tines Front/Back | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | |
| Machine Class | LBS (T) | 20-30,000 (9-14) | 25-35,000 (11-16) | 35-46,000 (21-29) | 46-65,000 (21-29) | 65-88,000 (29-40) | 88-111,000 (40-50) | 115-180,000 (52-90) |
| Approx. Weight | LBS (T) | 640 (290) | 1,850 (840) | 2,900 (1,350) | 4,100 (1,860) | 5,200 (2,360) | 6,500 (2,948) | 8,800 (3,992) |
| Tip-to-Tip Max. Opening | IN (MM) | 68 (1,727) | 104 (2,644) | 114 (2,896) | 120 (3,048) | 126 (3,200) | 136 (3,455) | 160 (4,065) |
| Back Jaw Width | IN (MM) | 26 (660) | 34.5 (876) | 44 (1,118) | 49.5 (1,257) | 52 (1,321) | 58 (1,473) | 62 (1,575) |
| Front Jaw Width | IN (MM) | 16 (406) | 20.5 (521) | 29.75 (756) | 34 (864) | 36 (914) | 40 (1,016) | 43 (1,093) |
| Closed Opening | IN (MM) | 6 (152) | 6.63 (168) | 7.75 (196) | 10.25 (260) | 11.5 (288) | 12 (304) | 16 (406) |
| Rad | IN (MM) | 34 (864) | 52 (1,321) | 57.5 (1,461) | 61.5 (1,562) | 63 (1,600) | 68 (1,727) | 80 (2,032) |
| For Use With Pingrabber | N | N | Y | Y | Y | Y | Y | See Notes |
| Sleeve Kit | N | Y | Y | Y | Y | Y | Y | N |
Please note: Not all pin grabbers will work in the same class range. Sleeve kits are machine specific. Please check with Bateman Manufacturing for sleeve kit and pin grabber compatibility. All specs are subject to change upon final design considerations. *** 3 OVER 4 configurations available upon request
Request Quote To Find The Right Demolition Contractor Grapple For Your Material Handler Or Excavator!
Available with optional wear plate packages & hard facing options.
Similar products

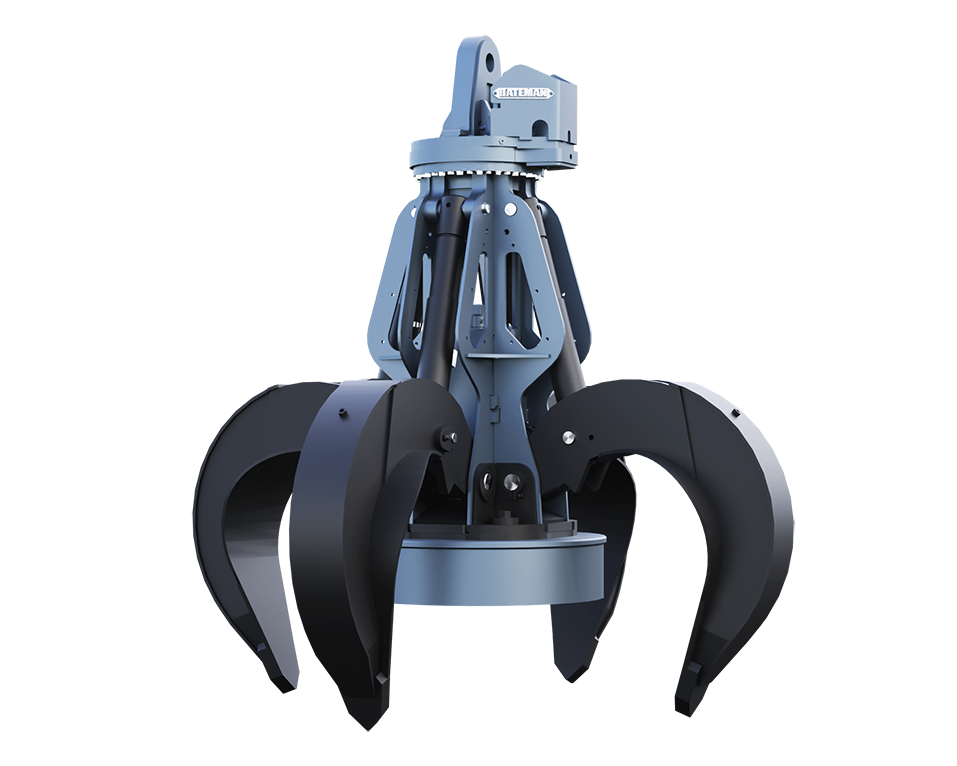

Demolition Magnet Grapple
