Woodrake Power Grapple
BPG-WR Models

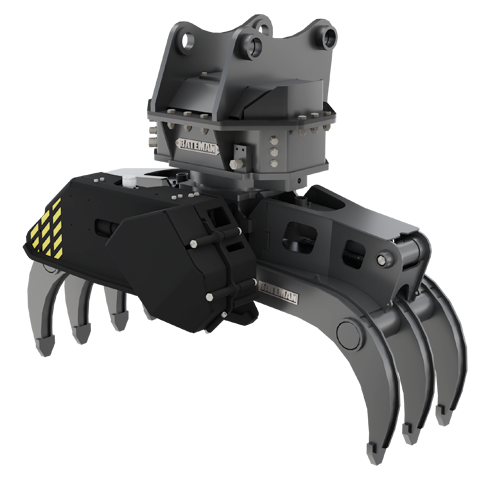

The BATEMAN Woodrake (WR) Series is built to handle the toughest of forestry applications. Whether grubbing, working on a ROW, laying down mats, feeding a grinder or chipper, or cleaning up a landing, the WR Series of grapples can handle it. This grapple can be outfitted with the Hultdins SuperSaw 555s or 650s. With our proportional simultaneous valve, this grapple can run from a single circuit.
- 360 degrees of continuous rotation.
- Available in 3/2 or 4/3 configurations.
- Can be mounted on any three to fifty ton excavator.
- Can run on a single hydraulic circuit.
- Can be outfited with a saw after purchase.
Video
Products Specification
The BATEMAN Woodrake (WR) Series is built to handle the toughest of forestry applications. Whether grubbing, working on a ROW, laying down mats, feeding a grinder or chipper, or cleaning up a landing, the WR Series of grapples can handle it. This grapple can be outfitted with the Hultdins SuperSaw 555s or 650s. With our proportional simultaneous valve, this grapple can run from a single circuit. The WR series can also be fitted with either a BATEMAN dangle series rotator (DR) or with a manipulated series rotator (MR) which provides 360 degrees of continuous rotation. Our manipulated rotator series offers a superior rotational torque performance than that of the competition. Our WR series is available in 3/2 or 4/3 configurations and can be mounted on any three to fifty ton excavator. With BATEMAN's two year/three thousand-hour warranty, you can rest assured that you will be covered by our world class service and wide dealer network.
| Model | BPG100-32WR-056 |
|---|---|
| Machine Class | 3t - 10t |
| Max Opening in (mm) | 56 (603) |
| Width in (mm) | 24 (258) |
| Tine By-Pass Configuration | 3/2 |
| Area Tip-To-Tip ft.² (m²) | 3.3 (.03) |
| Cylinder Size in (mm) | 3 (32) |
| Cylinder Max. Pressure PSI (bar) | 3,000 (207) |
| Weight lb (kg) | 720 (327) |
| Saw Bar Option | N/A |
| Model | BPG100-32WR-062 |
|---|---|
| Machine Class | 5t - 20t |
| Max Opening in (mm) | 62 (667) |
| Width in (mm) | 26 (280) |
| Tine By-Pass Configuration | 3/2 |
| Area Tip-To-Tip ft.² (m²) | 4.1 (0.4) |
| Cylinder Size in (mm) | 3 (32) |
| Cylinder Max. Pressure PSI (bar) | 3,000 (207) |
| Weight lb (kg) | 830 (376) |
| Saw Bar Option | 555 |
| Model | BPG160-32WR-068 |
|---|---|
| Machine Class | 5t - 20t |
| Max Opening in (mm) | 68 (732) |
| Width in (mm) | 23 (248) |
| Tine By-Pass Configuration | 3/2 |
| Area Tip-To-Tip ft.² (m²) | 4.7 (0.4) |
| Cylinder Size in (mm) | 3.5 (38) |
| Cylinder Max. Pressure PSI (bar) | 3,000 (207) |
| Weight lb (kg) | 1,200 (544) |
| Saw Bar Option | 555 |
| Model | BPG160-43WR-068 |
|---|---|
| Machine Class | 5t - 20t |
| Max Opening in (mm) | 68 (732) |
| Width in (mm) | 29 (312) |
| Tine By-Pass Configuration | 4/3 |
| Area Tip-To-Tip ft.² (m²) | 4.7 (0.4) |
| Cylinder Size in (mm) | 3.5 (38) |
| Cylinder Max. Pressure PSI (bar) | 3,000 (207) |
| Weight lb (kg) | 1,340 (608) |
| Saw Bar Option | 555 |
| Model | BPG200-32WR-072 |
|---|---|
| Machine Class | 9t - 50t |
| Max Opening in (mm) | 72 (775) |
| Width in (mm) | 27 (291) |
| Tine By-Pass Configuration | 3/2 |
| Area Tip-To-Tip ft.² (m²) | 5 (0.5) |
| Cylinder Size in (mm) | 3.5 (38) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 1,970 (894) |
| Saw Bar Option | 555 & 650 |
| Model | BPG200-43WR-072 |
|---|---|
| Machine Class | 9t - 50t |
| Max Opening in (mm) | 72 (775) |
| Width in (mm) | 36 (388) |
| Tine By-Pass Configuration | 4/3 |
| Area Tip-To-Tip ft.² (m²) | 5 (0.5) |
| Cylinder Size in (mm) | 3.5 (38) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 2,260 (1,025) |
| Saw Bar Option | 555 & 650 |
| Model | BPG300-32WR-086 |
|---|---|
| Machine Class | 13t - 150t |
| Max Opening in (mm) | 86 (926) |
| Width in (mm) | 34 (366) |
| Tine By-Pass Configuration | 3/2 |
| Area Tip-To-Tip ft.² (m²) | 6.6 (0.6) |
| Cylinder Size in (mm) | 4 (43) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 3,150 (1,429) |
| Saw Bar Option | 555 & 650 |
| Model | BPG300-43WR-086 |
|---|---|
| Machine Class | 13t - 150t |
| Max Opening in (mm) | 86 (926) |
| Width in (mm) | 40 (431) |
| Tine By-Pass Configuration | 4/3 |
| Area Tip-To-Tip ft.² (m²) | 6.6 (0.6) |
| Cylinder Size in (mm) | 4 (43) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 3,380 (1,533) |
| Saw Bar Option | 555 & 650 |
| Model | BPG300-43WR-096 |
|---|---|
| Machine Class | 25t - 150t |
| Max Opening in (mm) | 96 (1,033) |
| Width in (mm) | 42 (452) |
| Tine By-Pass Configuration | 4/3 |
| Area Tip-To-Tip ft.² (m²) | 10 (0.9) |
| Cylinder Size in (mm) | 4 (43) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 4,400 (1,996) |
| Saw Bar Option | 650 |
| Model | BPG400-43WR-116 |
|---|---|
| Machine Class | 25t - 150t |
| Max Opening in (mm) | 116 (1,249) |
| Width in (mm) | 42 (452) |
| Tine By-Pass Configuration | 4/3 |
| Area Tip-To-Tip ft.² (m²) | 12 (1.1) |
| Cylinder Size in (mm) | 5 (54) |
| Cylinder Max. Pressure PSI (bar) | 5,000 (345) |
| Weight lb (kg) | 4,800 (2,177) |
| Saw Bar Option | N/A |
Compatible with any three to fifty ton excavator.
The BATEMAN WoodRake Series can be fitted with the Hultdins SuperSaw 555S and 650S packages. Proportional simultaneous valve available specific to your machine. Hard facing of tines available. Installation kit. Top lugging plate.
