BPWG Models

BPWG Models

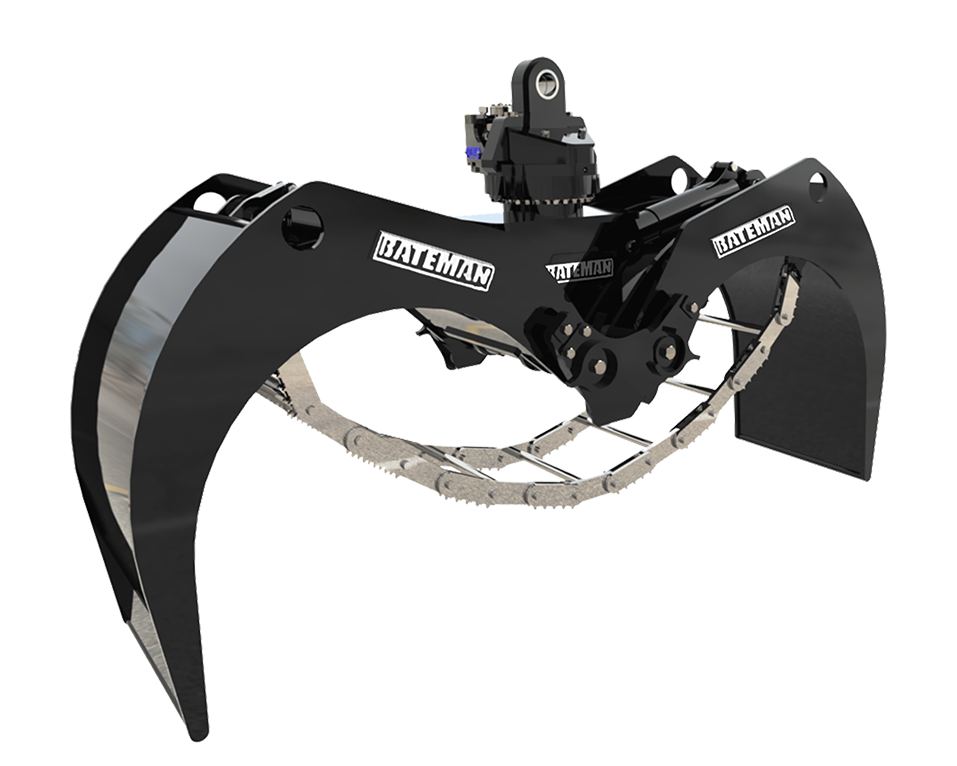

Perfect for handling and piling short wood, the BATEMAN Pulpwood Grapple is designed to be durable and low maintenance to reduce downtime.

Durable. High Performing.
Low Maintenance.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Product Specification

Designed for bulk handling of short wood at wood processing facilities. Durable, exceptional performance, and low maintenance, reducing your downtime. Synchronized jaw with optional butt plates and chain

TECHNICAL SPECIFICATIONS

Model	BPWG-TT-056
Machine Class	3t - 18t
Max Opening in (mm)	56 (1,422)
Area Tip-To-Tip ft.² (m²)	4 (0.37)
Volume in Cord 8ft. (m³)	0.25 (0.19)
Cylinder Size in (mm)	3 (76)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	600 (272)

Download literature

Model	BPWG-TT-072
Machine Class	3t - 18t
Max Opening in (mm)	72 (1,829)
Area Tip-To-Tip ft.² (m²)	4.8 (0.45)
Volume in Cord 8ft. (m³)	0.3 (0.22)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	800 (363)

Download literature

Model	BPWG-TT-076
Machine Class	3t - 24t
Max Opening in (mm)	76 (1,930)
Area Tip-To-Tip ft.² (m²)	6.4 (0.59)
Volume in Cord 8ft. (m³)	0.4 (0.3)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	850 (386)

Download literature

Model	BPWG-TT-090
Machine Class	5t - 50t
Max Opening in (mm)	90 (2,286)
Area Tip-To-Tip ft.² (m²)	10 (0.93)
Volume in Cord 8ft. (m³)	0.5 (0.38)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,000 (207)
Weight lb (kg)	1,450 (658)

Download literature

Model	BPWG-TT-102
Machine Class	18t - 150t
Max Opening in (mm)	102 (2,591)
Area Tip-To-Tip ft.² (m²)	12 (1.11)
Volume in Cord 8ft. (m³)	0.75 (0.57)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	3,000 (1,361)

Download literature

Model	BPWG-TT-113
Machine Class	18t - 150t
Max Opening in (mm)	113 (2,870)
Area Tip-To-Tip ft.² (m²)	16.2 (1.51)
Volume in Cord 8ft. (m³)	1.01 (3.67)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	3,400 (1,542)

Download literature

Model	BPWG-TT-125
Machine Class	18t - 150t
Max Opening in (mm)	125 (3,175)
Area Tip-To-Tip ft.² (m²)	21 (1.95)
Volume in Cord 8ft. (m³)	1.31 (4.75)
Cylinder Size in (mm)	4.00 (102)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	4,200 (1,905)

Download literature

Model	BPWG-TT-136
Machine Class	18t - 150t
Max Opening in (mm)	136 (3,454)
Area Tip-To-Tip ft.² (m²)	24 (2.23)
Volume in Cord 8ft. (m³)	1.5 (1.14)
Cylinder Size in (mm)	4.00 (102)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	4,580 (2,077)

Download literature

Model	BPWG-TT-148
Machine Class	30t - 150t
Max Opening in (mm)	148 (3,759)
Area Tip-To-Tip ft.² (m²)	28 (2.6)
Volume in Cord 8ft. (m³)	1.75 (1.33)
Cylinder Size in (mm)	5 (127)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	5,750 (2,608)
