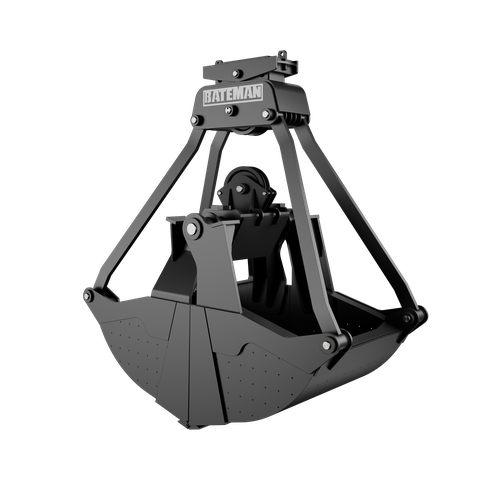

Cable Clamshell Bucket
Cable Clamshell Bucket
Bateman Cable Clamshell Buckets provide the best solution for digging, loading and re-handling in ports, dredging and marine construction. Built on wire rope operated technology, the line is optimized for maximum dig force and extended cable life, with either Round Nose or General Purpose bowl configurations.
- Parts of line engineered for maximum dig force.
- Oversized sheaves to minimize cable wear and extend life.
- High-strength, corrosion-resistant steel construction.
- Oversized pins and bushings for longer life.
- Ideal for port, dredging and marine construction applications.
PRODUCT SPECIFICATIONS
Product Specification
Bateman has been serving the needs of the port and dredging industry for decades. We have continued to innovate our products to improve dig efficiency and cable life for our customers. Bateman Cable Clamshell is your go-to crane attachment for material re-handling. Built to outlast the competition.
Industry applications: Digging, loading and re-handling raw materials, dredging, stevedoring, etc.
Request Custom Cable Clamshell Bucket Designs for Specific Applications.
Round Nose
| Spec | 2 yd | 3 yd | 4 yd | 5 yd | 6 yd | 7 yd | 8 yd | 10 yd |
|---|---|---|---|---|---|---|---|---|
| Length Open (LO), ft.in | 9.6 | 10.8 | 12 | 13 | 13.8 | 14.6 | 16 | 18.6 |
| Length Closed (LC), ft.in | 8 | 9 | 10 | 11 | 12 | 12.8 | 16.6 | 17 |
| Height Open (HO), ft.in | 10.8 | 12.2 | 13.10 | 15 | 15.4 | 16.4 | 17 | 18.6 |
| Height Closed (HC), ft.in | 9 | 10 | 11.2 | 13 | 13.8 | 14.4 | 15 | 17 |
| Width, Inside, ft.in | 4 | 5 | 5.6 | 6 | 6.3 | 6.6 | 7 | 7.6 |
| No. Sheaves | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Sheave Dia., in | 16 | 18 | 18 | 24 | 24 | 30 | 36 | 40 |
| No. of Teeth | 5 | 7 | 7 | 9 | 9 | 9 | 9 | 9 |
| Weight, Standard, lbs | 7,200 | 8,600 | 12,000 | 16,000 | 17,500 | 20,000 | 22,000 | 28,000 |
| Weight, HD, lbs | 8,200 | 10,000 | 14,000 | 17,500 | 20,500 | 22,000 | 25,000 | 35,000 |
| Weight, XHD, lbs | 9,500 | 13,500 | 18,000 | 23,500 | 28,000 | 32,000 | 36,000 | 40,000 |
General Purpose
| Spec | 2 yd | 3 yd | 4 yd | 5 yd | 6 yd |
|---|---|---|---|---|---|
| Length Open (LO), ft.in | 9.6 | 10.7 | 11.10 | 12.4 | 13.0 |
| Length Closed (LC), ft.in | 7.11 | 8.11 | 9.4 | 9.8 | 10.4 |
| Height Open (HO), ft.in | 10.5 | 11.10 | 13.2 | 14.2 | 15.0 |
| Height Closed (HC), ft.in | 8.10 | 9.6 | 11.0 | 12.0 | 13.0 |
| Width, Inside, ft.in | 4.2 | 5.2 | 5.9 | 6.4 | 6.10 |
| No. Sheaves | 5 | 5 | 5 | 5 | 5 |
| Sheave Dia., in | 14 | 16 | 16 | 18 | 20 |
| No. of Teeth | 7 | 7 | 7 | 7 | 7 |
| Weight, Standard, lbs | 7,000 | 8,500 | 12,200 | 16,300 | 18,000 |
| Weight, HD, lbs | 8,000 | 10,400 | 14,600 | 17,500 | 20,000 |
| Weight, XHD, lbs | 10,400 | 15,300 | 18,700 | 23,500 | 28,000 |
• Crawler cranes.
• Cable-operated dragline and clamshell cranes.
• Barge-mounted and port cranes.
• Dredging and marine construction equipment.
Request quote to find the right Cable Clamshell Bucket for your crane!
• Custom Cable Clamshell bucket designs available to fit your needs.
• Round Nose or General Purpose bowl configuration.
• Standard, HD or XHD weight class.
