BTBG Models

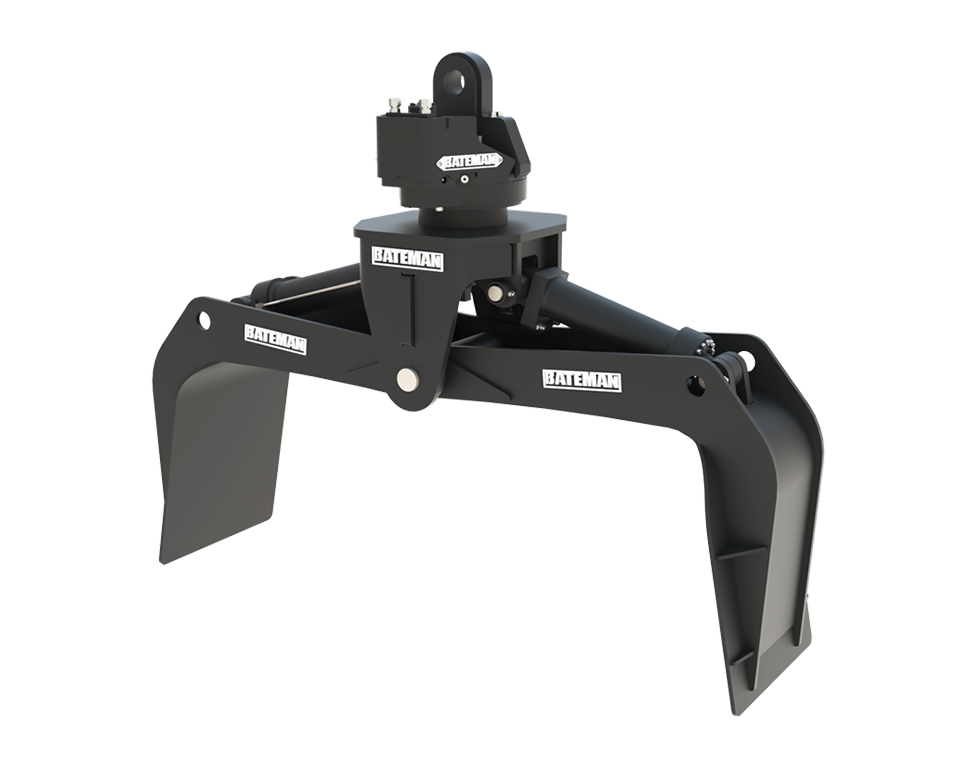

BATEMAN Tie Bundle Grapples are designed to make handling bundles of railroad ties a seamless process. Utilizing our proven BATEMAN rotator that comes standard with 360° rotation and an oversized bearing, the Tie Bundle Grapple will be handling bundles for years to come. The Tie Bundle Grapple line can handle bundles from five to nine ties wide.

360 degrees of endless rotation.
Oversized bearing.
Heavy-duty build.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Request Quote To Find The Right Forestry Tie Bundle Grapple For Your Material Handler Or Excavator!

TECHNICAL SPECIFICATIONS

Model	BTBG15-57
Machine Class	12t - 150t
Max Opening in (mm)	56 (1,422)
Min. Opening in (mm)	25 (635)
Area Tip-To-Tip ft.² (m²)	542 (50)
Volume in Cord 8ft. (m³)	30 (0.85)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	2,160 (980)

Download literature

Model	BTBG15-73
Machine Class	18t - 150t
Max Opening in (mm)	74.5 (1,892)
Min. Opening in (mm)	34 (864)
Area Tip-To-Tip ft.² (m²)	881 (82)
Volume in Cord 8ft. (m³)	48 (1.35)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	2,360 (1,070)

Download literature

Model	BTBG15-82
Machine Class	18t - 150t
Max Opening in (mm)	85.5 (2,171)
Min. Opening in (mm)	36 (914)
Area Tip-To-Tip ft.² (m²)	1,008 (94)
Volume in Cord 8ft. (m³)	56 (1.60)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	2,400 (1,089)

Download literature

Model	BTBG15-108
Machine Class	18t - 150t
Max Opening in (mm)	108 (2,743)
Min. Opening in (mm)	38 (914)
Area Tip-To-Tip ft.² (m²)	1,267 (118)
Volume in Cord 8ft. (m³)	70 (2.00)
Cylinder Max. Pressure PSI (bar)	5,000 (345)
Weight lb (kg)	2,800 (1,270)

Download literature

Options

Optional gripping teeth.

Tie Bundle Grapple

BTBG Models

PRODUCT SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Options
